Nissan Cube. Manual - part 998





VTL-8

< REMOVAL AND INSTALLATION >

DUCT AND GRILLE

CENTER VENTILATOR GRILLE

CENTER VENTILATOR GRILLE : Removal and Installation

INFOID:0000000009946834

REMOVAL

1.

Remove cluster lid C. Refer to

IP-13, "Exploded View"

.

2.

Remove mounting screws, and then remove center ventilator grille from cluster lid C.

INSTALLATION

Installation is basically the reverse order of removal.

SIDE VENTILATOR GRILLE

SIDE VENTILATOR GRILLE : Removal and Installation

INFOID:0000000009946835

REMOVAL

1.

Remove instrument panel assembly. Refer to

IP-13, "Exploded View"

2.

Remove mounting screws (A), and then remove side ventilator
grille (1) from instrument panel assembly.

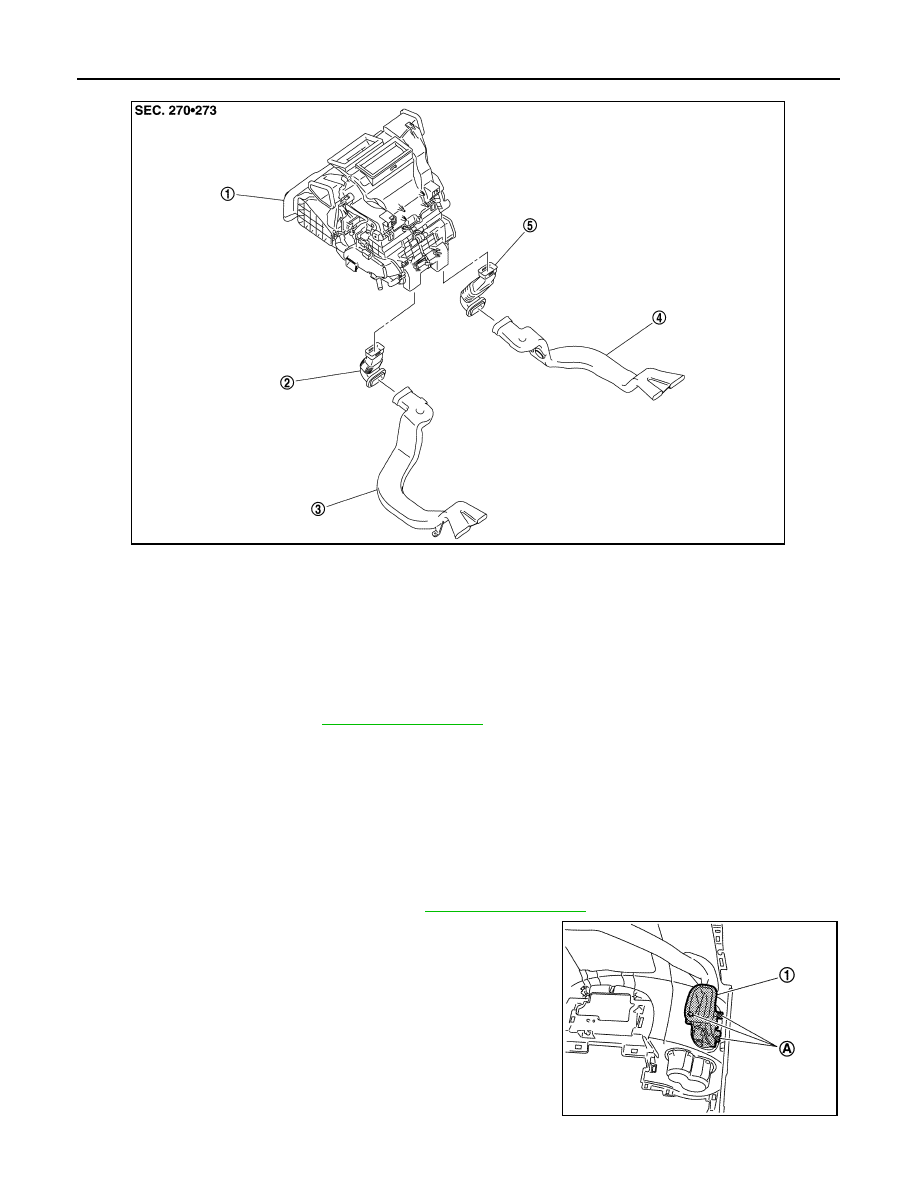

INSTALLATION

1.

A/C unit assembly

2.

Rear foot duct 1 LH

3.

Rear foot duct 2 LH

4.

Rear foot duct 2 RH

5.

Rear foot duct 1 RH

JPIIA1678ZZ

JPIIA1685ZZ

DUCT AND GRILLE

VTL-9

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

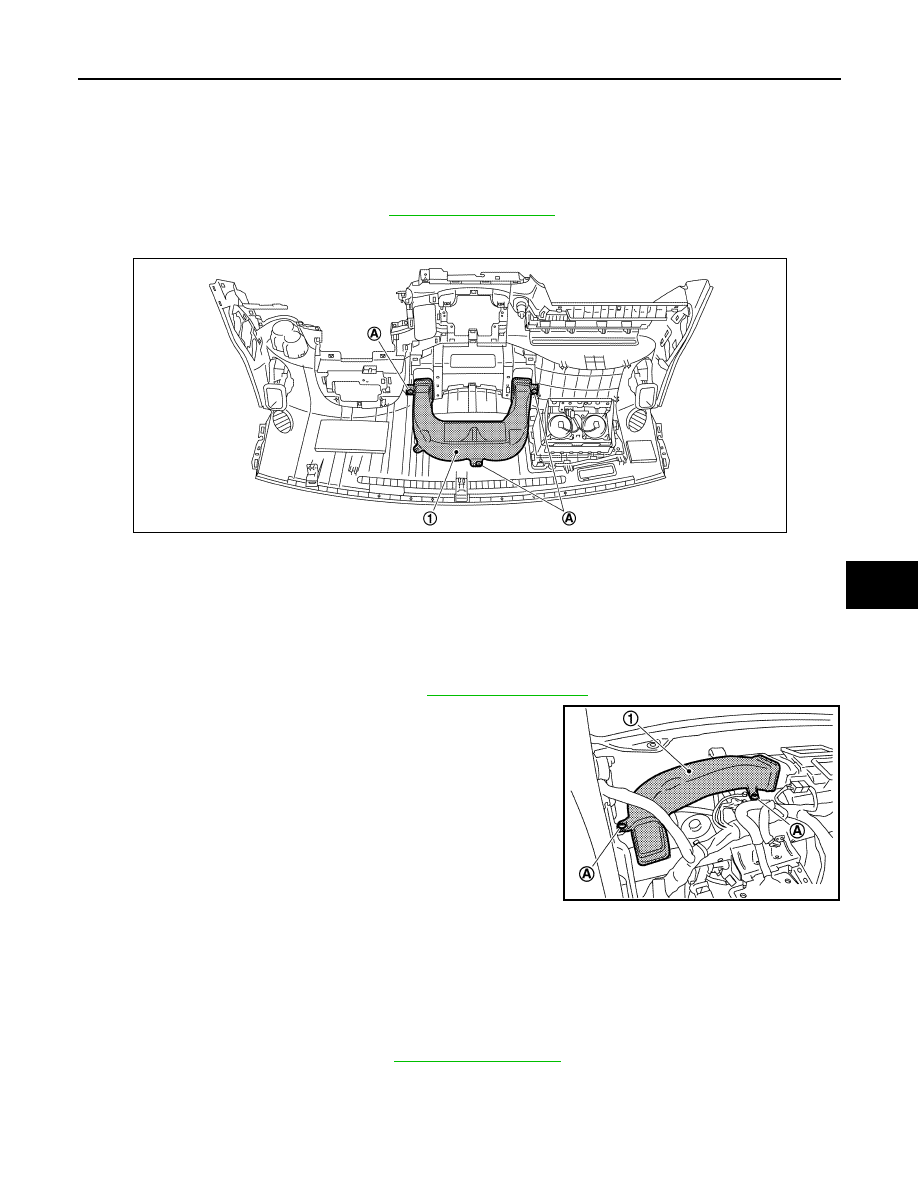

Installation is basically the reverse order of removal.

CENTER VENTILATOR DUCT

CENTER VENTILATOR DUCT : Removal and Installation

INFOID:0000000009946836

REMOVAL

1.

Remove front defroster nozzle. Refer to

VTL-7, "Exploded View"

.

2.

Remove mounting screws (A), and then remove center ventilator duct (1) from instrument panel assem-
bly.

INSTALLATION

Installation is basically the reverse order of removal.

SIDE VENTILATOR DUCT

SIDE VENTILATOR DUCT : Removal and Installation

INFOID:0000000009946837

REMOVAL

1.

Remove instrument panel assembly. Refer to

IP-13, "Exploded View"

.

2.

Remove mounting screws (A), and then remove side ventilator
duct (1) from the vehicle.

INSTALLATION

Installation is basically the reverse order of removal.

FRONT DEFROSTER NOZZLE

FRONT DEFROSTER NOZZLE : Removal and Installation

INFOID:0000000009946838

REMOVAL

1.

Remove side defroster nozzles. Refer to

VTL-7, "Exploded View"

.

JPIIA1686ZZ

JPIIA1687ZZ

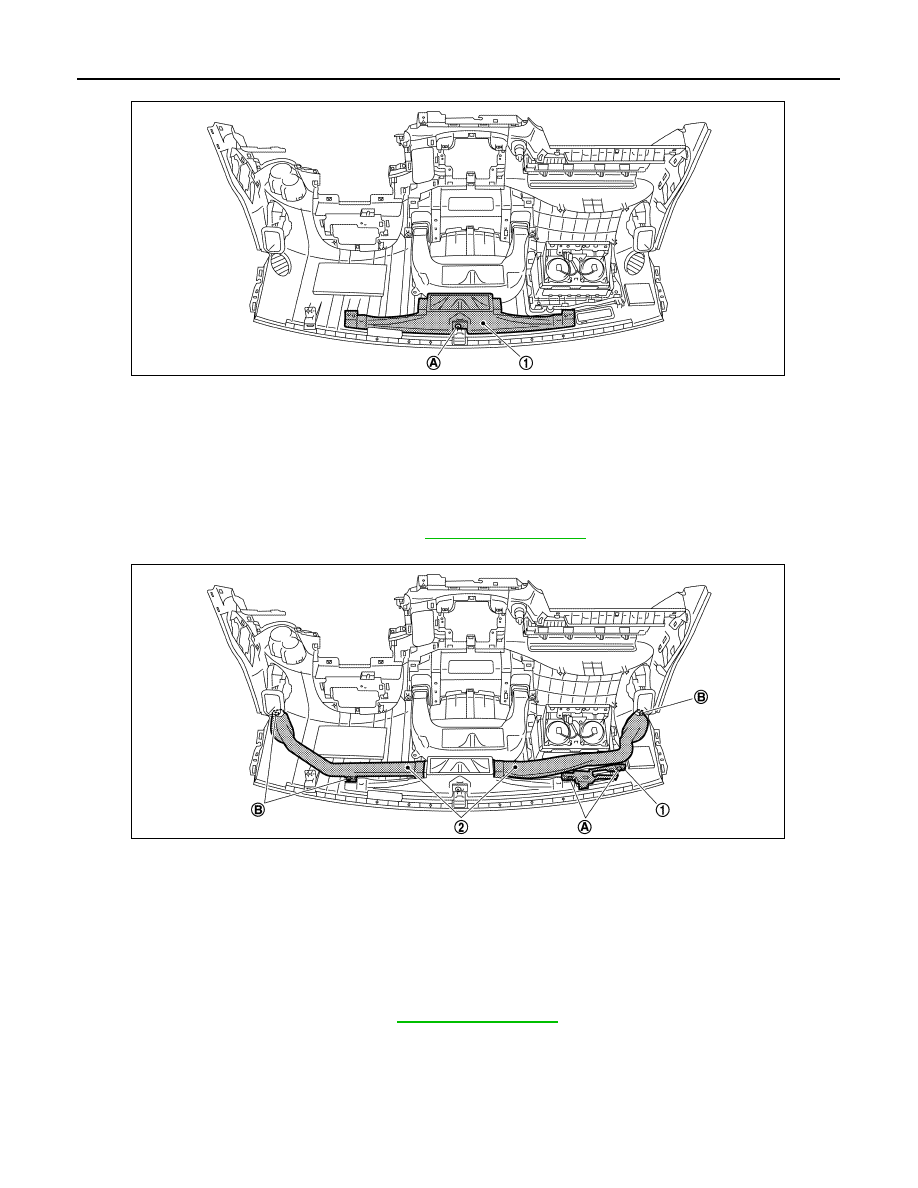

VTL-10

< REMOVAL AND INSTALLATION >

DUCT AND GRILLE

2.

Remove mounting screw (A), and then remove front defroster nozzle (1) from instrument panel assembly.

INSTALLATION

Installation is basically the reverse order of removal.

SIDE DEFROSTER NOZZLE

SIDE DEFROSTER NOZZLE : Removal and Installation

INFOID:0000000009946839

REMOVAL

1.

Remove instrument panel assembly. Refer to

IP-13, "Exploded View"

.

2.

Remove mounting screws (A), and then remove bracket (1).

3.

Remove mounting screws (B), and then remove side defroster nozzle (2) from instrument panel assembly.

INSTALLATION

Installation is basically the reverse order of removal.

REAR FOOT DUCT 1

REAR FOOT DUCT 1 : Removal and Installation

INFOID:0000000009946840

REMOVAL

1.

Remove instrument lower cover. Refer to

IP-13, "Exploded View"

.

2.

Remove rear foot duct 1 from the vehicle.

INSTALLATION

Installation is basically the reverse order of removal.

REAR FOOT DUCT 2

JPIIA1688ZZ

JPIIA1689ZZ

DUCT AND GRILLE

VTL-11

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

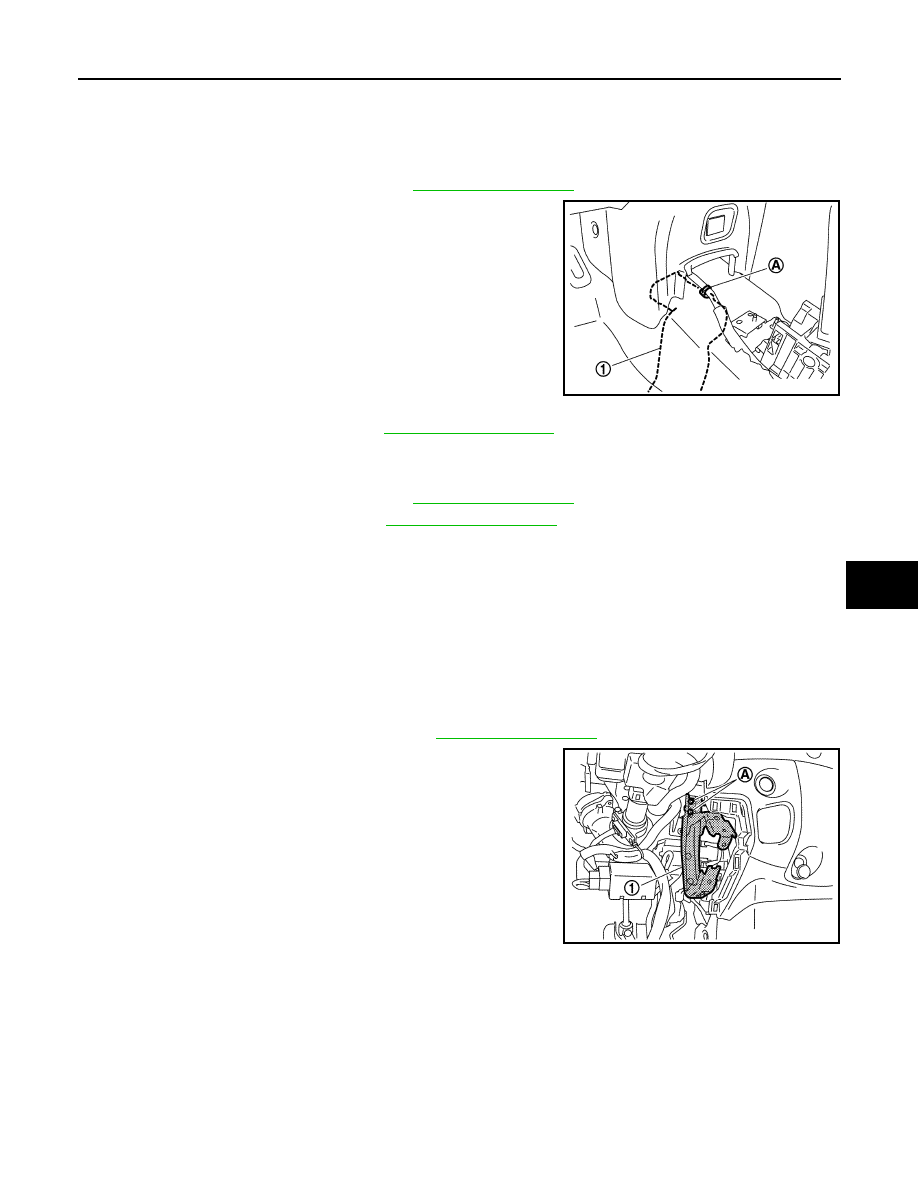

REAR FOOT DUCT 2 : Removal and Installation

INFOID:0000000009946841

REMOVAL

Driver side

1.

Remove center console assembly. Refer to

IP-23, "Exploded View"

.

2.

Remove harness clip (A) from rear foot duct 2 LH (1).

3.

Remove front floor spacer LH. Refer to

INT-19, "Exploded View"

4.

Remove clip, and then remove rear foot duct 2 LH from the vehicle.

Passenger side

1.

Remove center console assembly. Refer to

IP-23, "Exploded View"

.

2.

Remove front floor spacer RH. Refer to

INT-19, "Exploded View"

.

3.

Remove clip, and then remove rear foot duct 2 RH from the vehicle.

INSTALLATION

Installation is basically the reverse order of removal.

FOOT DUCT

FOOT DUCT : Removal and Installation

INFOID:0000000009946842

REMOVAL

Driver side

1.

Remove steering column lower cover. Refer to

IP-13, "Exploded View"

.

2.

Remove mounting nuts (A), and then remove knee protector
upper (1).

JPIIA1690ZZ

JPIIA1691ZZ
