FINAL DRIVE

Check final gear and differential case. Replace if necessary.

Bearing

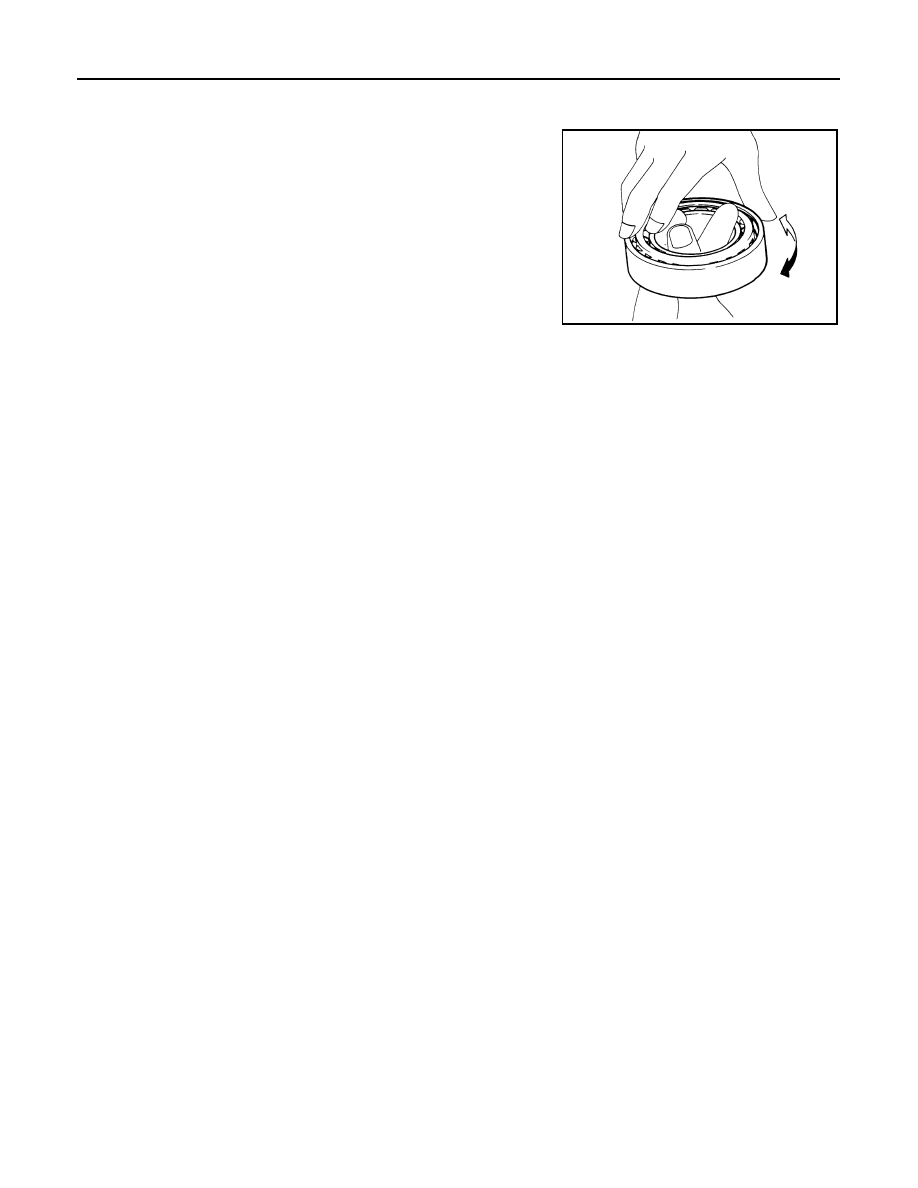

Check bearing for damage and unsmooth rotation. Replace if neces-
sary.

CAUTION:

• Replace differential side bearing outer race (clutch housing

side) and differential side bearing inner race (clutch housing
side) as a set.

• Replace differential side bearing inner race (transaxle case

side) and differential side bearing outer race (transaxle case
side) as a set.

SPD715

SHIFT FORK AND FORK ROD

TM-61

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F94R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

SHIFT FORK AND FORK ROD

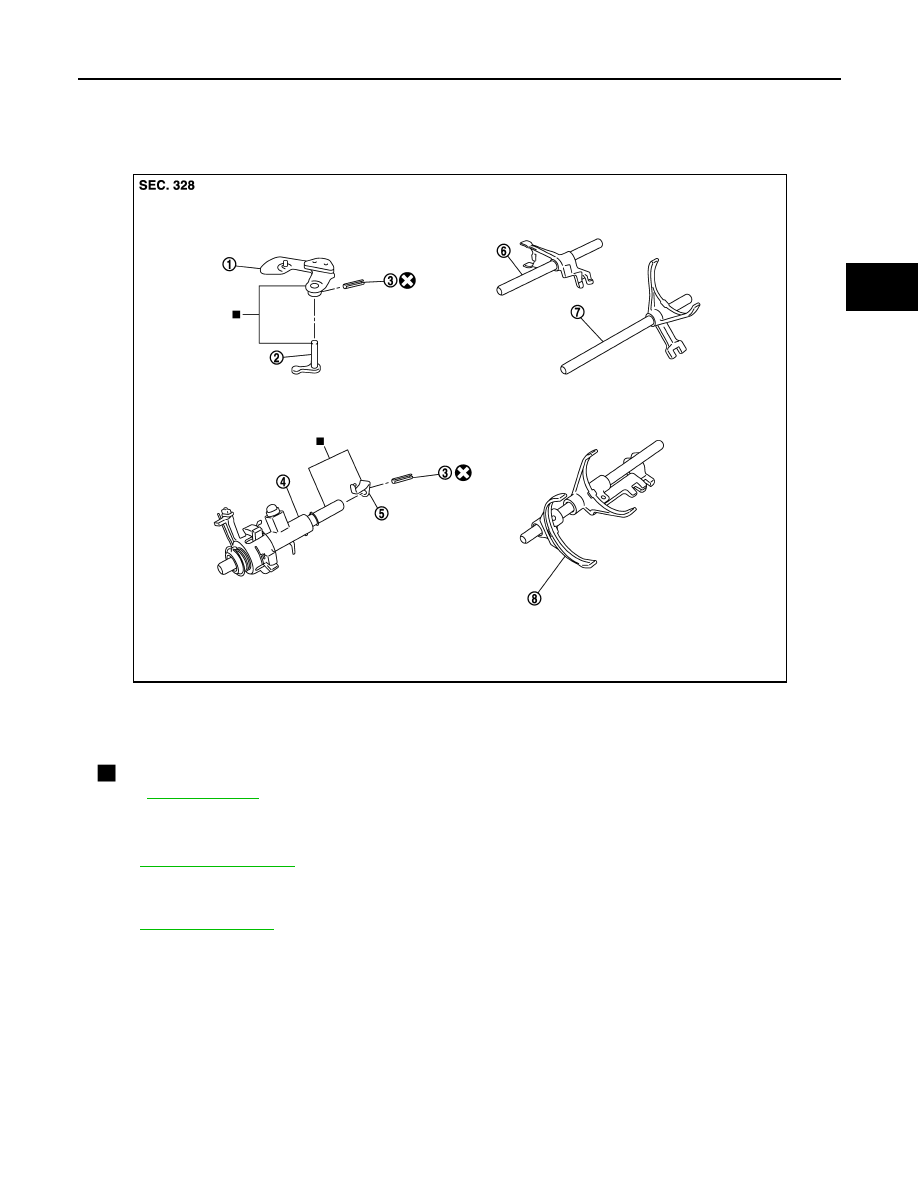

Exploded View

INFOID:0000000009948900

Disassembly

INFOID:0000000009948901

Refer to

TM-32, "Disassembly"

 for disassembly procedure.

Assembly

INFOID:0000000009948902

Refer to

TM-37, "Assembly"

 for assembly procedure.

Inspection

INFOID:0000000009948903

INSPECTION AFTER DISASSEMBLY

1.

Shifter lever A

2.

Shifter lever B

3.

Retaining pin

4.

Selector

5.

Selector lever

6.

Reverse fork rod

7.

1st-2nd fork rod

8.

Fork rod

: Replace the parts as a set.

Refer to

GI-4, "Components"

 for symbols not described on the above.

JPDIC0603ZZ

TM-62

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F94R]

SHIFT FORK AND FORK ROD

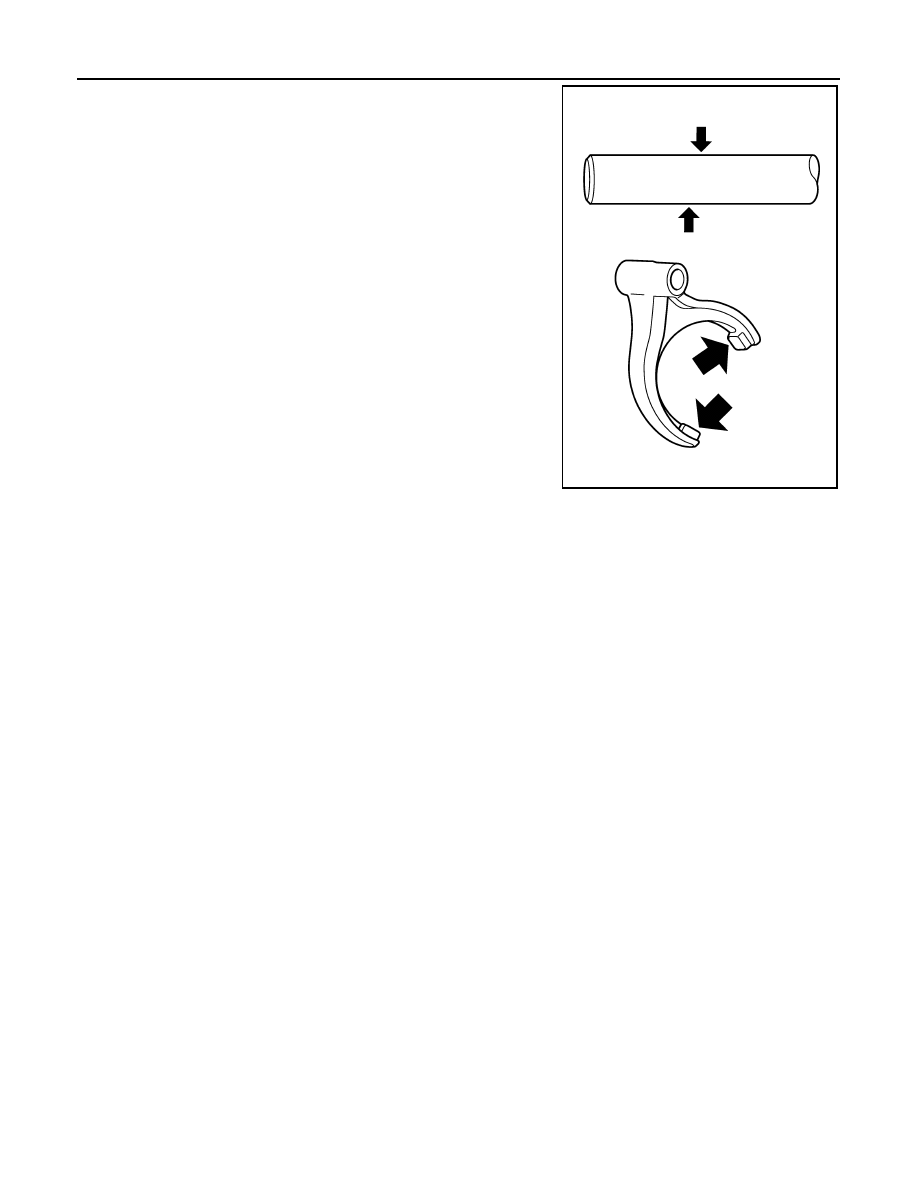

Check contact surface and sliding surface for excessive wear,
uneven wear, bend, and damage. Replace if necessary.

SCIA7785E

SERVICE DATA AND SPECIFICATIONS (SDS)

TM-63

< SERVICE DATA AND SPECIFICATIONS (SDS)

[6MT: RS6F94R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specification

INFOID:0000000009948904

Transaxle type

RS6F94R

Engine type

MR18DE

Number of speed

6

Synchromesh type

Warner

Shift pattern

Gear ratio

1st

3.727

2nd

2.105

3rd

1.452

4th

1.171

5th

0.971

6th

0.811

Reverse

3.687

Final gear

3.933

Number of teeth

Input gear

1st

11

2nd

19

3rd

31

4th

35

5th

35

6th

37

Reverse

11

Main gear

1st

41

2nd

40

3rd

45

4th

41

5th

34

6th

30

Reverse

42

Reverse idler gear

Input/Output

28/29

Final gear

Final gear/Pinion

59/15

Side gear/Pinion
mate gear

21/18

Oil capacity (Reference)

 (US pt, Imp pt)

Approx. 2.0 (4-1/4, 3-1/2)

Remarks

Reverse synchronizer

Installed

Triple-cone synchronizer

1st and 2nd

PCIB1769E
