TM-24

< REMOVAL AND INSTALLATION >

[6MT: RS6F94R]

POSITION SWITCH

1.

Remove air duct (inlet). Refer to

EM-24, "Removal and Installation"

.

2.

Remove battery. Refer to

PG-82, "Removal and Installation"

.

3.

Remove clips from the air cleaner case and air duct. Refer to

TM-22, "Removal and Installation"

.

4.

Remove air cleaner case and air ducts. Refer to

EM-24, "Removal and Installation"

.

5.

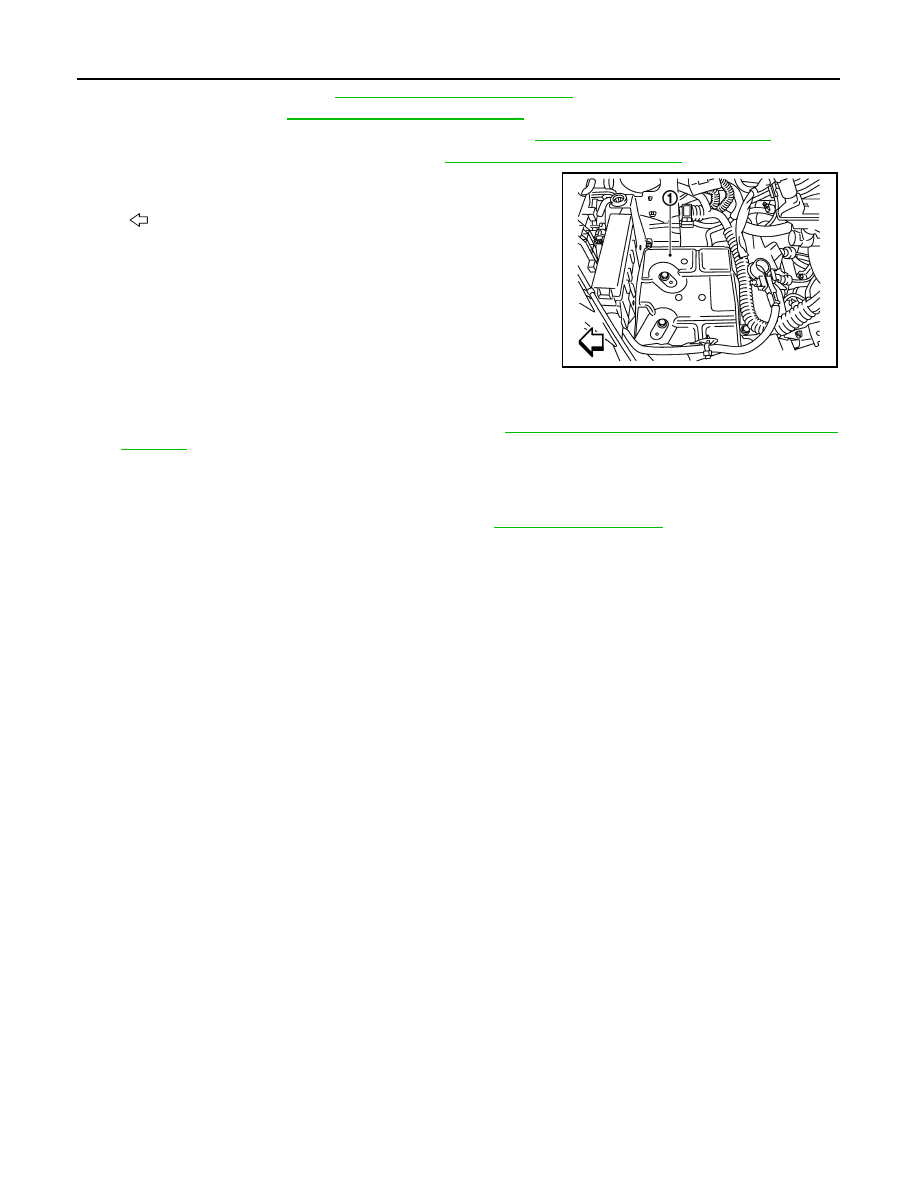

Remove bracket (1).

6.

Disconnect position switch connector.

7.

Remove position switch from transaxle case.

INSTALLATION

1.

Apply recommended sealant to threads of position switch.
• Use Genuine Silicone RTV or an equivalent. Refer to

GI-22, "Recommended Chemical Products and

Sealants"

.

CAUTION:

Remove old sealant and oil adhering to threads.

2.

Install position switch to transaxle case.

3.

Tighten position switch to the specified torque. Refer to

TM-27, "Exploded View"

.

4.

For the next step and after, install in the reverse order of removal.

: Vehicle front

JPDIC0660ZZ

TRANSAXLE ASSEMBLY

TM-25

< UNIT REMOVAL AND INSTALLATION >

[6MT: RS6F94R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

UNIT REMOVAL AND INSTALLATION

TRANSAXLE ASSEMBLY

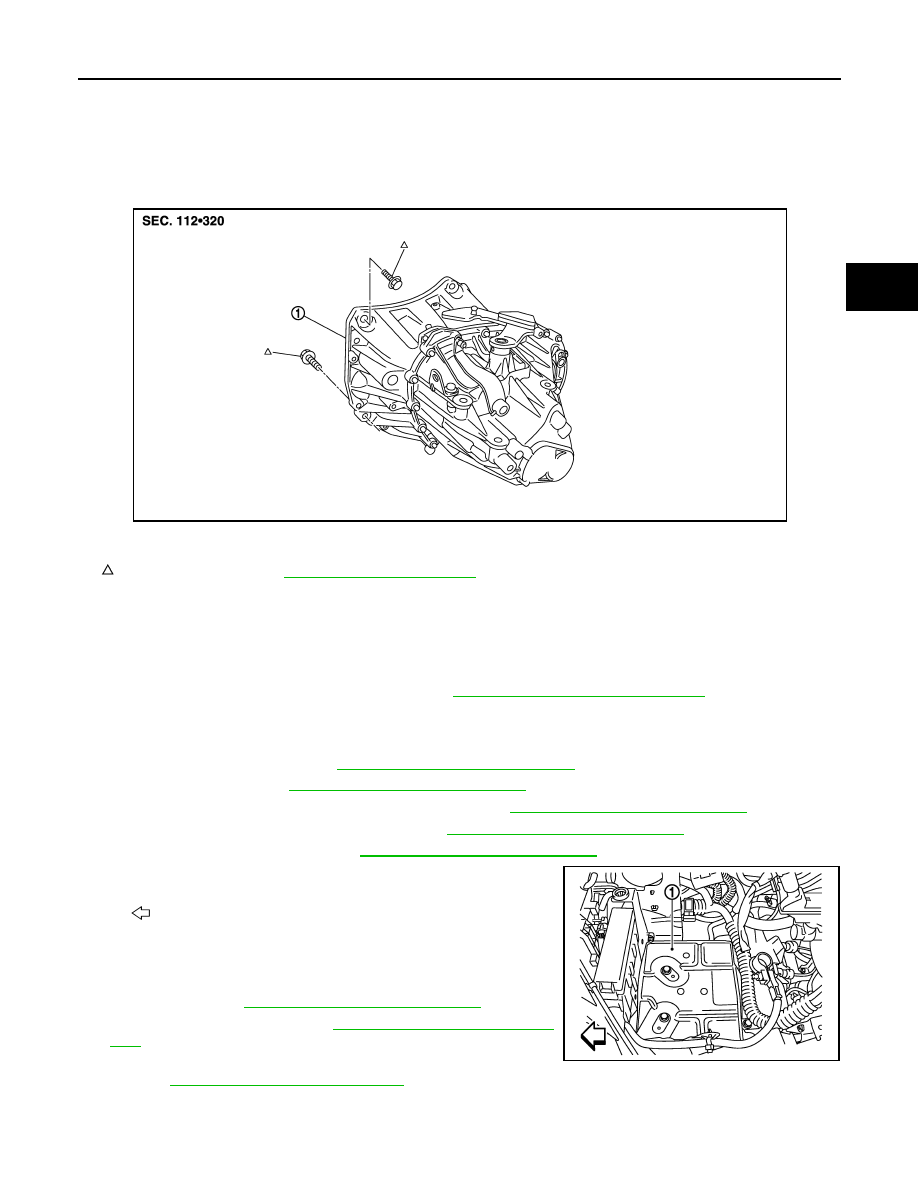

Exploded View

INFOID:0000000009948878

Removal and Installation

INFOID:0000000009948879

CAUTION:

Never reuse CSC (Concentric Slave Cylinder). Because CSC slides back to the original position every
time when removing transaxle assembly. At this timing, dust on the sliding parts may damage a seal of
CSC and may cause clutch fluid leakage. Refer to

CL-17, "Removal and Installation"

.

REMOVAL

1.

Disconnect the battery cable from the negative terminal.

2.

Remove air duct (inlet). Refer to

EM-24, "Removal and Installation"

.

3.

Remove battery. Refer to

PG-82, "Removal and Installation"

.

4.

Remove clips from air cleaner case and air duct. Refer to

TM-22, "Removal and Installation"

.

5.

Remove air cleaner case and air ducts. Refer to

EM-24, "Removal and Installation"

.

6.

Remove air breather hose. Refer to

TM-22, "Removal and Installation"

.

7.

Remove bracket (1).

8.

Disconnect position switch connector.

9.

Remove harness clip from transaxle assembly.

10. Disconnect selector cable and shifter cable from transaxle

assembly. Refer to

TM-19, "Removal and Installation"

.

11. Remove starter motor. Refer to

STR-26, "Removal and Installa-

tion"

.

12. Remove clutch tube from CSC (Concentric Slave Cylinder).

Refer to

CL-15, "Removal and Installation"

.

CAUTION:

• Keep painted surface on the body or other parts free of clutch fluid. If it spills, wipe up immedi-

ately and wash the affected area with water.

1.

Transaxle assembly

: Refer to "INSTALLATION" in

TM-25, "Removal and Installation"

 for the locations and tightening torque.

JPDIC0632ZZ

: Vehicle front

JPDIC0660ZZ

TM-26

< UNIT REMOVAL AND INSTALLATION >

[6MT: RS6F94R]

TRANSAXLE ASSEMBLY

• Never depress clutch pedal during removal procedure.

13. Remove engine under cover.
14. Remove fender protector LH. Refer to

EXT-21, "FENDER PROTECTOR : Removal and Installation"

.

15. Disconnect ground cable.

16. Remove front drive shafts. Refer to

FAX-16, "LEFT SIDE : Removal and Installation"

 (LH) or

FAX-17,

"RIGHT SIDE : Removal and Installation"

 (RH).

NOTE:
Insert a suitable plug into differential side oil seal after removing front drive shaft.

17. Set a suitable jack to transaxle assembly and then set a suitable jack to engine assembly.

CAUTION:

When setting a suitable jack, be careful so that it does not contact with the switch.

18. Remove engine mounting bracket (LH) mounting bolts (

) from

transaxle assembly. Refer to

EM-74, "Removal and Installation"

.

19. Remove rear engine mounting bracket and rear torque rod.

Refer to

EM-74, "Removal and Installation"

.

20. Remove transaxle assembly mounting bolts, using a power tool

[Commercial service tool].

21. Remove transaxle assembly from the engine.

CAUTION:

• Fix transaxle assembly to a suitable jack.
• The transaxle assembly must not interfere with the wire harnesses and clutch tube.

22. Remove CSC (Concentric Slave Cylinder). Refer to

CL-17, "Removal and Installation"

.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

• Fix transaxle assembly to a suitable jack.
• The transaxle assembly must not interfere with the wire harnesses and clutch tube.
• When installing transaxle assembly, never bring input shaft into contact with clutch cover.
• Tighten transaxle assembly mounting bolts to the specified torque.

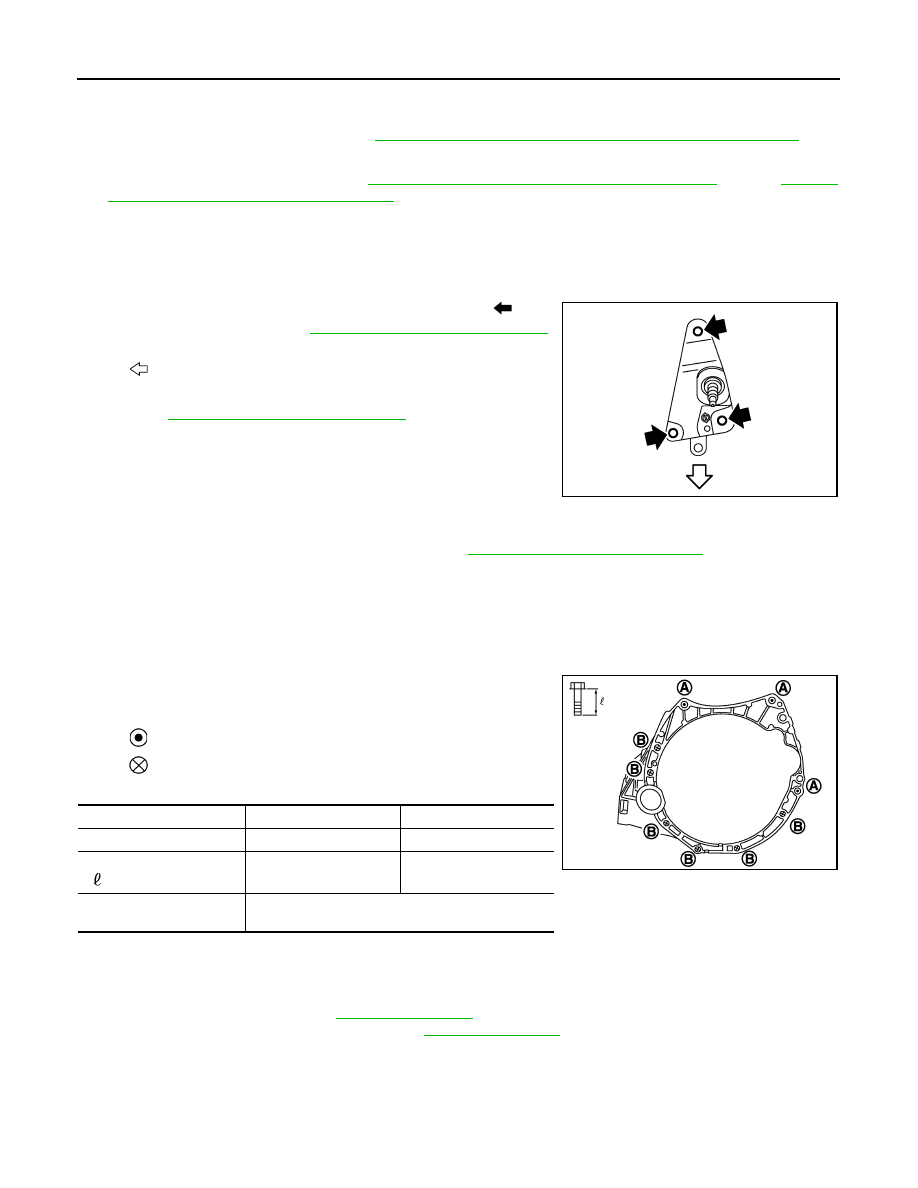

The figure is the view from the engine.

Inspection

INFOID:0000000009948880

INSPECTION AFTER INSTALLATION

• Check the control linkage. Refer to

TM-21, "Inspection"

.

• Check the oil leakage and the oil level. Refer to

TM-17, "Inspection"

.

: Vehicle front

JPDIC0661ZZ

: Transaxle to engine

: Engine to transaxle

Bolt symbol

A

B

Quantity

3

6

Bolt length

“

” mm (in)

60 (2.36)

50 (1.97)

Tightening torque
 N·m (kg-m, ft-lb)

62.0 (6.3, 46)

JPDIC0094ZZ

TRANSAXLE ASSEMBLY

TM-27

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F94R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

UNIT DISASSEMBLY AND ASSEMBLY

TRANSAXLE ASSEMBLY

Exploded View

INFOID:0000000009948881

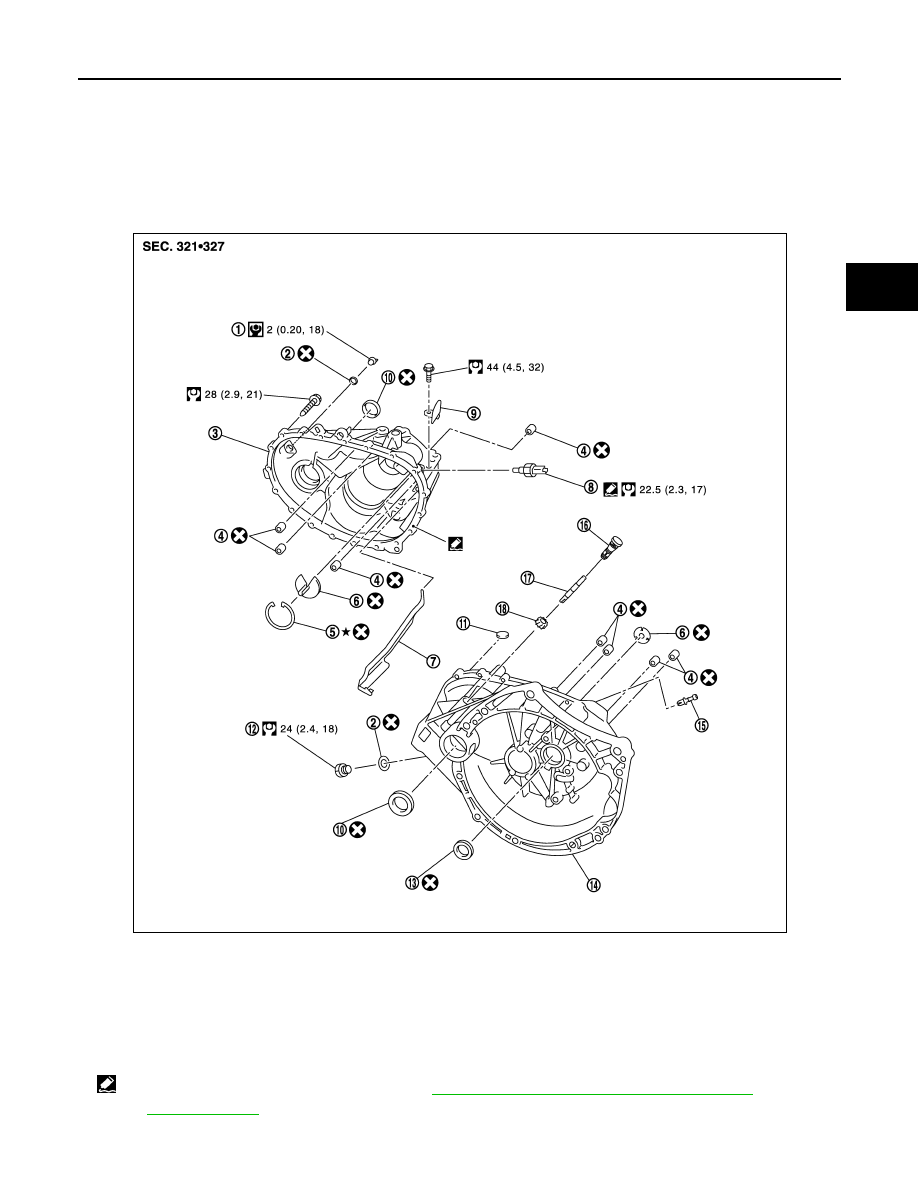

CASE AND HOUSING

1.

Filler plug

2.

Gasket

3.

Transaxle case

4.

Bushing

5.

Snap ring

6.

Oil channel

7.

Oil gutter

8.

Position switch

9.

Bracket

10. Differential side oil seal

11. Magnet

12. Drain plug

13. Input shaft oil seal

14. Clutch housing

15. 2 way connector

16. Plug

17. Pinion shaft

18. Pinion gear

: Apply Genuine Silicone RTV or an equivalent. Refer to

GI-22, "Recommended Chemical Products and Sealants"

.

Refer to

GI-4, "Components"

 for symbols not described on the above.

JPDIC0437GB
