Nissan Cube. Manual - part 939





TM-12

< PRECAUTION >

[6MT: RS6F94R]

PRECAUTIONS

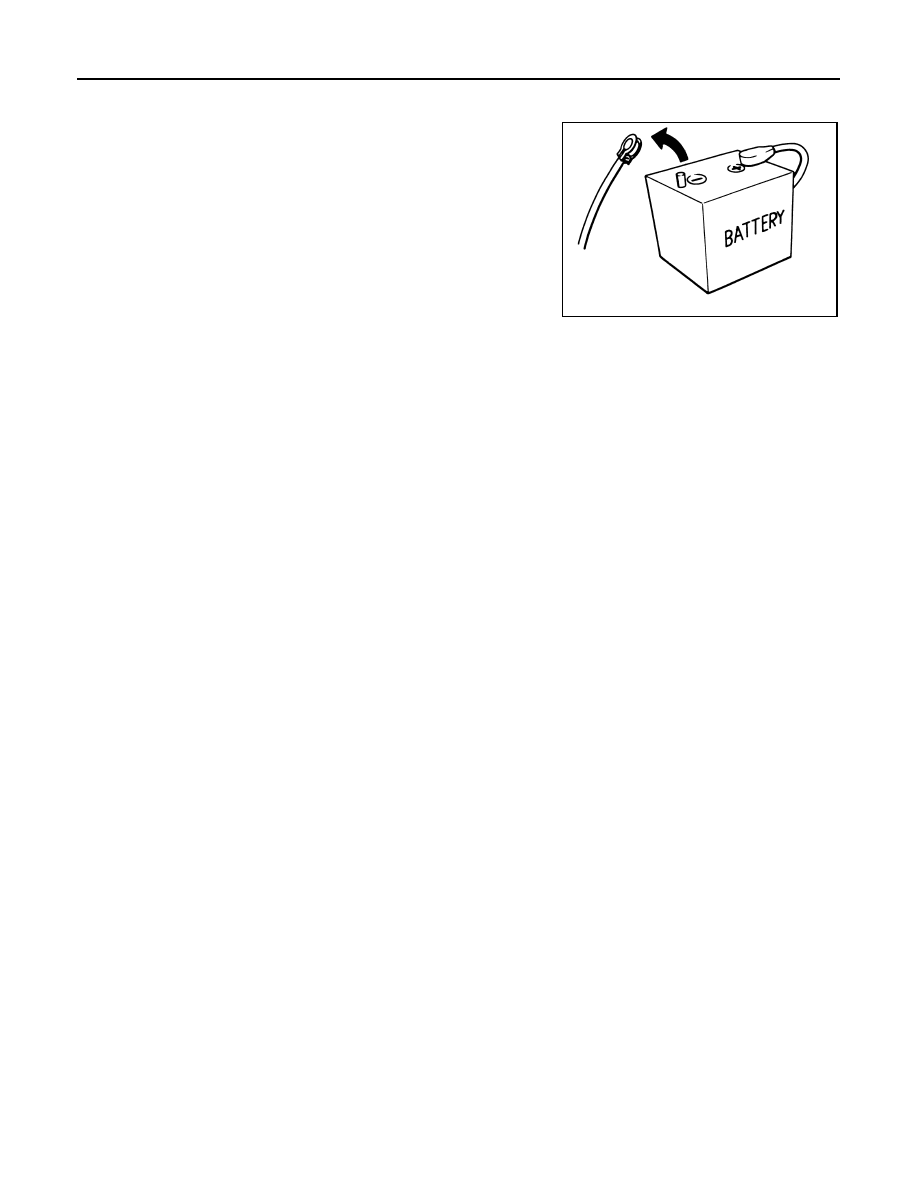

Precautions for Removing of Battery Terminal

INFOID:0000000010078184

•  When removing the 12V battery terminal, turn OFF the ignition

switch and wait at least 30 seconds.
NOTE:
ECU may be active for several tens of seconds after the ignition
switch is turned OFF. If the battery terminal is removed before ECU
stops, then a DTC detection error or ECU data corruption may
occur.

•  For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be
detected.

•  After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

SEF289H

PREPARATION

TM-13

< PREPARATION >

[6MT: RS6F94R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

PREPARATION

PREPARATION

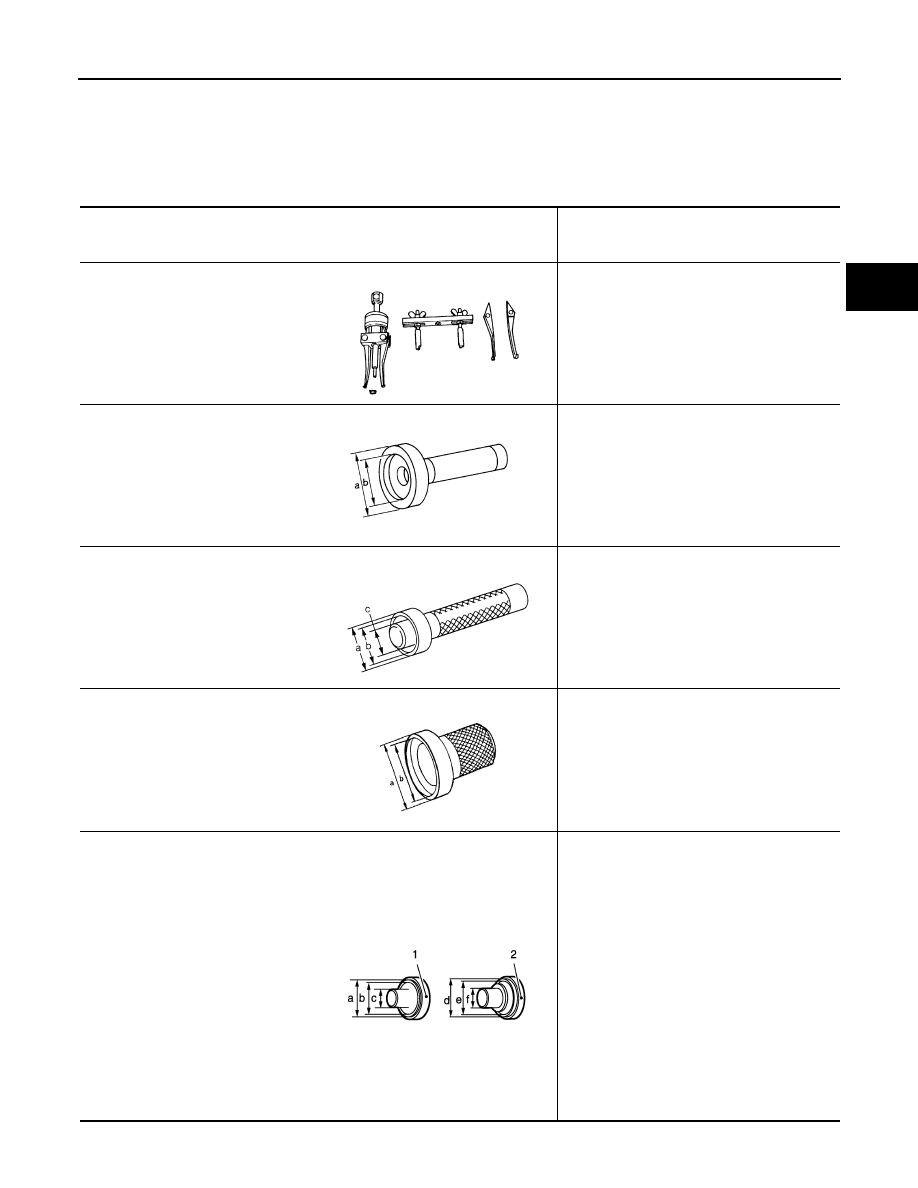

Special Service Tools

INFOID:0000000009948864

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

KV381054S0
(J-34286)
Puller

Removing mainshaft front bearing outer race

KV38100200
( - )
Drift
a: 65 mm (2.56 in) dia.
b: 49 mm (1.93 in) dia.

• Installing mainshaft front bearing outer race
• Installing mainshaft rear bearing outer race
• Installing differential side bearing outer race

(clutch housing side)

ST33220000
( - )
Drift
a: 37 mm (1.46 in) dia.
b: 31 mm (1.22 in) dia.
c: 22 mm (0.87 in) dia.

Installing input shaft oil seal

ST33400001
(J-26082)
Drift
a: 60 mm (2.36 in) dia.
b: 47 mm (1.85 in) dia.

Installing differential side bearing outer race
(transaxle case side)

KV32500QAA
( - )
(Renault SST: B.vi 1666)
Drift set
1.

—
( - )
(Stamping number: B.vi 1666-A)
Drift
a: 54.3 mm (2.138 in) dia.
b: 45 mm (1.77 in) dia.
c: 26.6 mm (1.047 in) dia.

2.

—
( - )
(Stamping number: B.vi 1666-B)
Drift
d: 54 mm (2.13 in) dia.
e: 48.6 mm (1.913 in) dia.
f: 26.6 mm (1.047 in) dia.

Installing differential side oil seal

ZZA0601D

ZZA1143D

ZZA1046D

ZZA0814D

JPDIC0730ZZ

TM-14

< PREPARATION >

[6MT: RS6F94R]

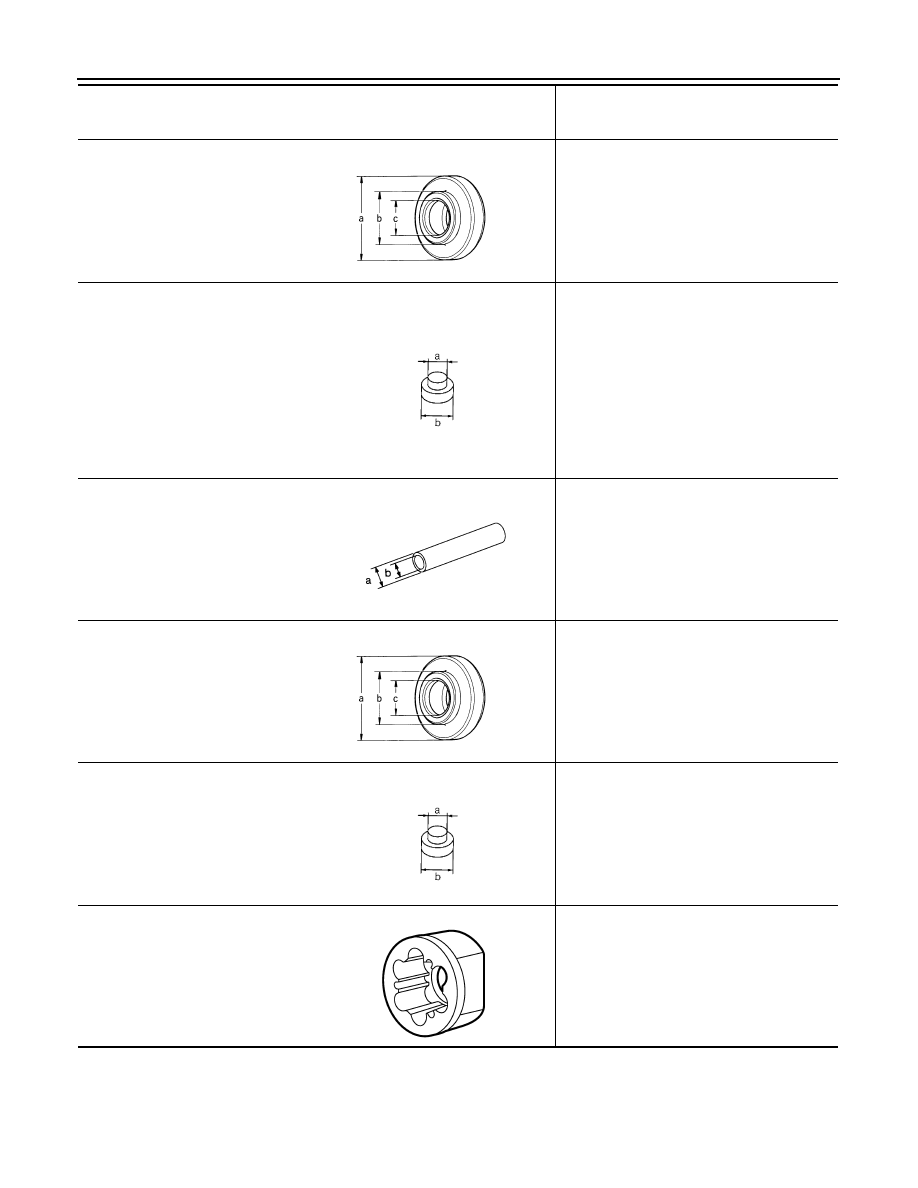

PREPARATION

ST36720030
( - )
Drift
a: 70 mm (2.76 in) dia.
b: 40 mm (1.57 in) dia.
c: 29 mm (1.14 in) dia.

• Installing input shaft rear bearing
• Installing mainshaft front bearing inner race

ST33052000
( - )
Drift
a: 22 mm (0.87 in) dia.
b: 28 mm (1.10 in) dia.

• Removing mainshaft rear bearing inner race
• Removing 6th main gear
• Removing 5th main gear
• Removing 4th main gear
• Removing 1st main gear
• Removing 1st-2nd synchronizer hub as-

sembly

• Removing 2nd main gear
• Removing bushing
• Removing 3rd main gear
• Removing mainshaft front bearing inner

race

KV32102700
( - )
Drift
a: 48.6 mm (1.913 in) dia.
b: 41.6 mm (1.638 in) dia.

• Installing bushing
• Installing 2nd main gear
• Installing 3rd main gear
• Installing 4th main gear
• Installing 5th main gear
• Installing 6th main gear

ST30901000
(J-26010-01)
Drift
a: 79 mm (3.11 in) dia.
b: 45 mm (1.77 in) dia.
c: 35.2 mm (1.386 in) dia.

Installing mainshaft rear bearing inner race

ST33061000
(J-8107-2)
Drift
a: 28.5 mm (1.122 in) dia.
b: 38 mm (1.50 in) dia.

Removing differential side bearing inner race
(clutch housing side)

KV32300QAM
( - )
(Renault SST: B.vi 1823)
Drift

Removing and installing input shaft rear bear-
ing mounting bolt

Tool number
(Kent-Moore No.)
Tool name

Description

ZZA0978D

ZZA0969D

S-NT065

ZZA0978D

ZZA0969D

PCIB2078J

PREPARATION

TM-15

< PREPARATION >

[6MT: RS6F94R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

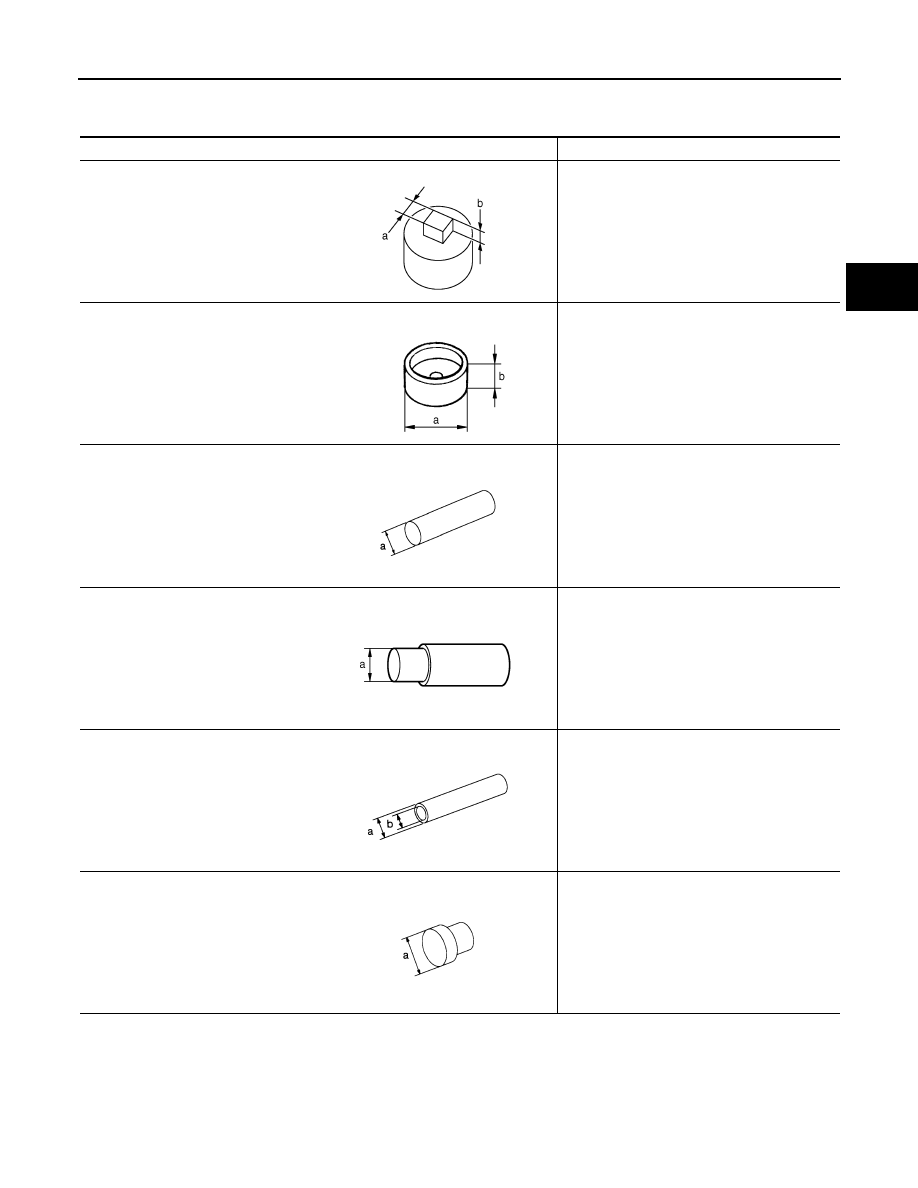

Commercial Service Tools

INFOID:0000000009948865

Tool name

Description

Socket
a: 8 mm (0.31 in)
b: 5 mm (0.20 in)

Removing and installing drain plug

Spacer
a: 25 mm (0.98 in) dia.
b: 25 mm (0.98 in)

Removing mainshaft front bearing outer race

Drift
a: 17 mm (0.67 in) dia.

Installing bushing

Drift
a: 24 mm (0.94 in) dia.

Removing input shaft rear bearing

Drift
a: 35 mm (1.38 in) dia.
b: 25 mm (0.98 in) dia.

Installing input shaft front bearing

Drift
a: 43 mm (1.69 in) dia.

• Installing input shaft rear bearing
• Removing differential side bearing inner

race (transaxle case side)

PCIB1776E

PCIB1780E

S-NT063

PCIB1779E

S-NT065
