Protection Function

INFOID:0000000009945965

EPS control unit decreases the output signal to EPS motor while extremely using the power steering function
(e.g., full steering) consecutively for protecting EPS motor and EPS control unit (Overload protection control).
While activating overload protection control, the assist torque gradually decreases, and the steering wheel
turning force becomes heavy. The normal assist torque is recovered if the steering wheel is not turned for a
while.

DTC Inspection Priority Chart

INFOID:0000000009945966

When multiple DTCs are detected simultaneously, check one by one depending on the following priority list.

DTC Index

INFOID:0000000009945967

Priority

Priority order item (DTC)

1

U1000 CAN COMM CIRCUIT

2

C1609 CAN VHCL SPEED

3

C1601 BATTERY VOLT

4

Other than the above

DTC

Items (CONSULT screen terms)

Reference

C1601

BATTERY VOLT

STC-21, "DTC Logic"

C1604

TORQUE SENSOR

STC-23, "DTC Logic"

C1606

EPS MOTOR

STC-25, "DTC Logic"

C1607

EEPROM

STC-27, "DTC Logic"

C1608

CONTROL UNIT

STC-27, "DTC Logic"

C1609

CAN VHCL SPEED

STC-28, "DTC Logic"

U1000

CAN COMM CIRCUIT

STC-29, "DTC Logic"

STC-14

< WIRING DIAGRAM >

ELECTRONICALLY CONTROLLED POWER STEERING SYSTEM

WIRING DIAGRAM

ELECTRONICALLY CONTROLLED POWER STEERING SYSTEM

Wiring Diagram

INFOID:0000000009945968

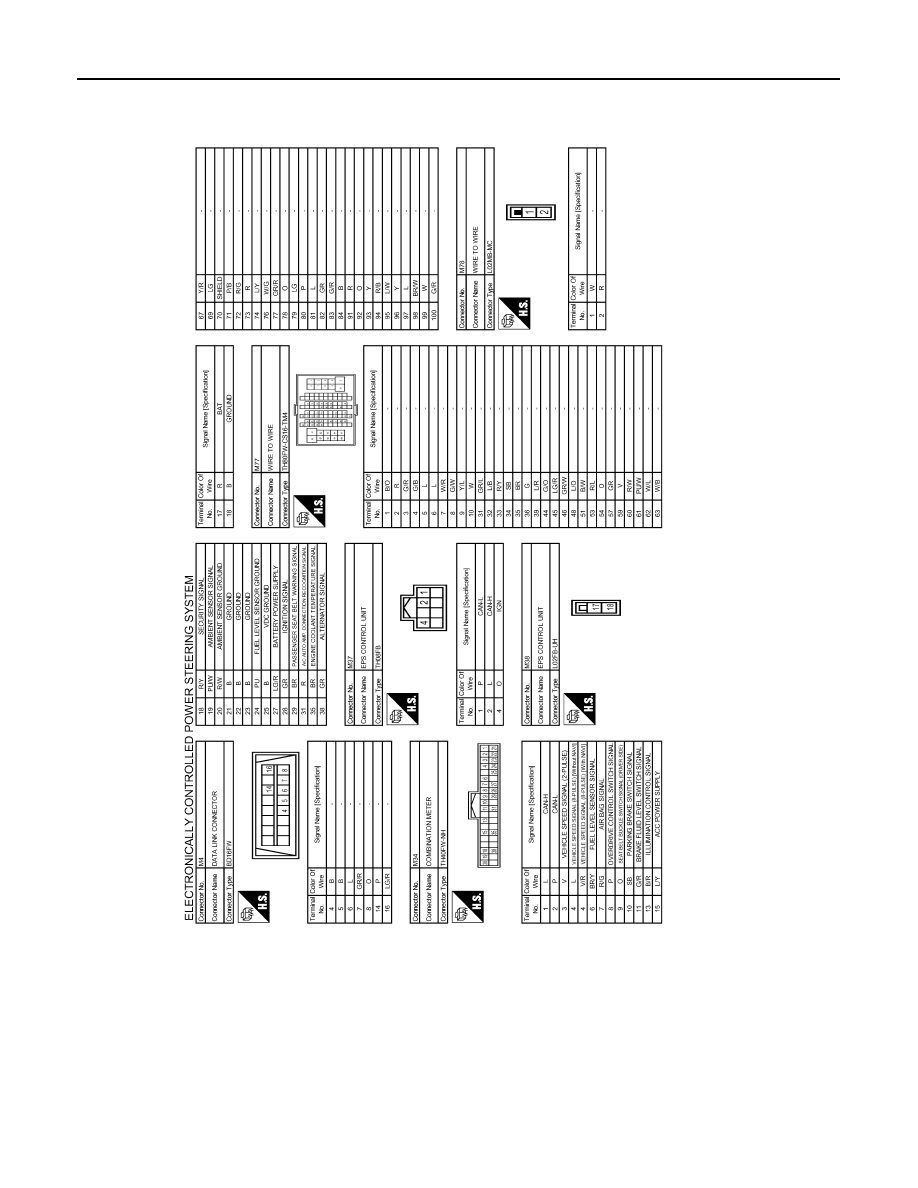

JCGWM0492GB

ELECTRONICALLY CONTROLLED POWER STEERING SYSTEM

STC-15

< WIRING DIAGRAM >

C

D

E

F

H

I

J

K

L

M

A

B

STC

N

O

P

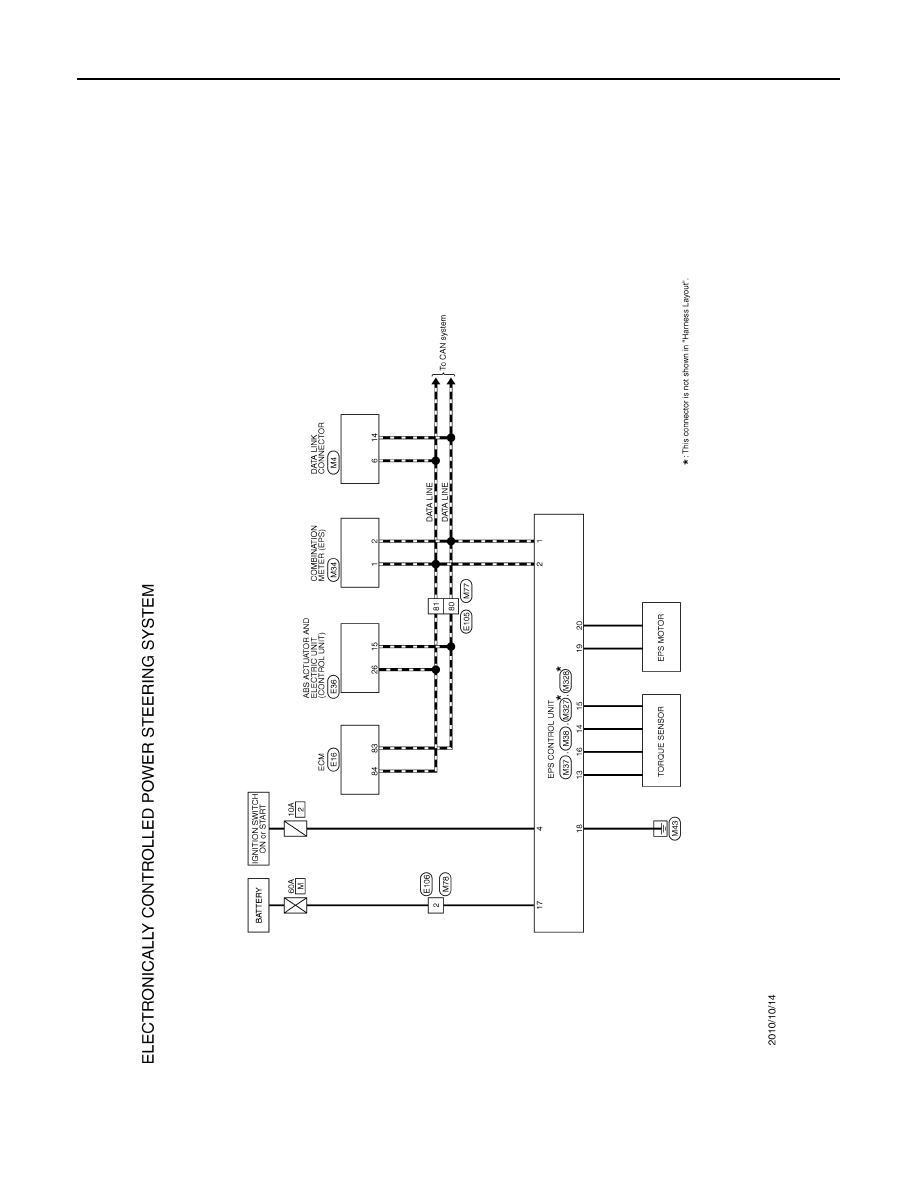

JRGWC0908GB

STC-16

< WIRING DIAGRAM >

ELECTRONICALLY CONTROLLED POWER STEERING SYSTEM

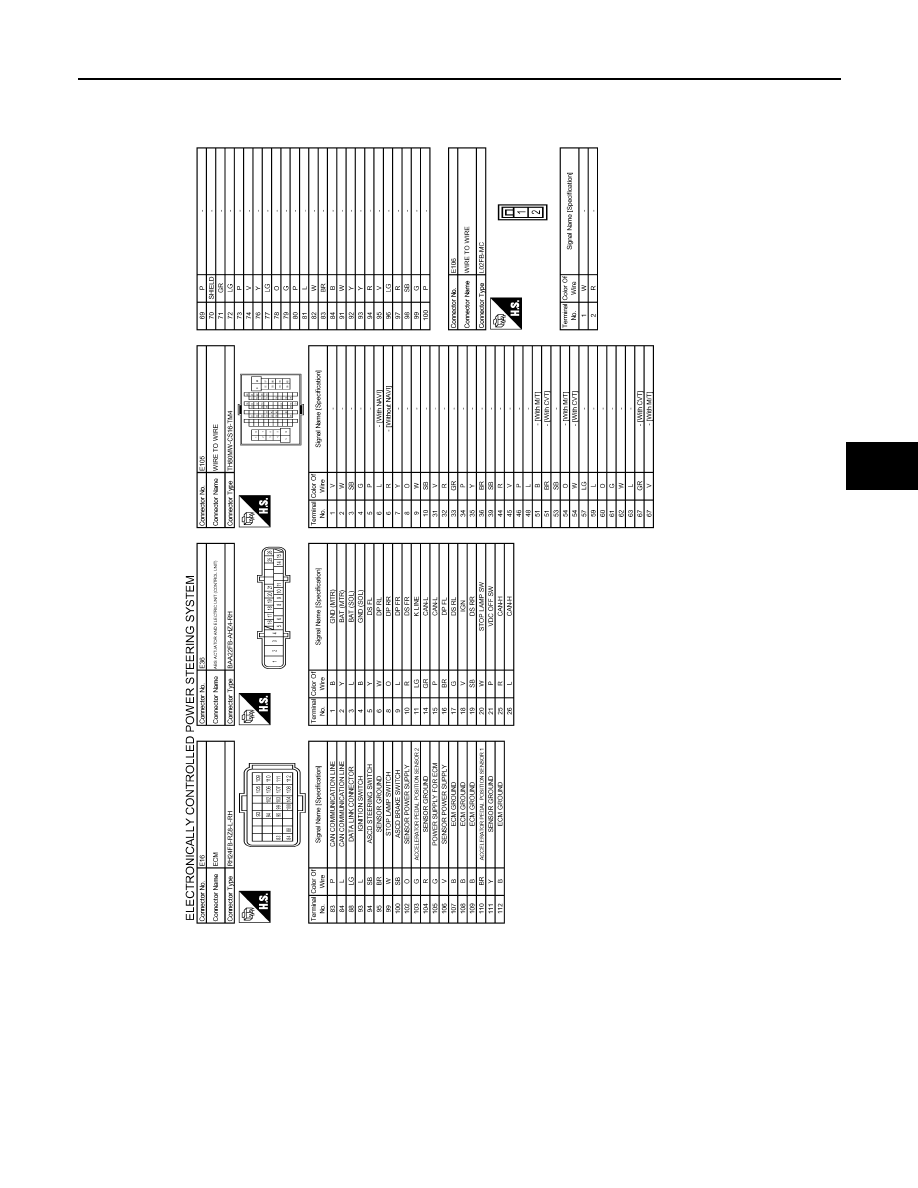

JRGWC0909GB
