JRHWC1438GB

SRC-170

< ECU DIAGNOSIS INFORMATION >

DIAGNOSIS SENSOR UNIT

JRHWC1439GB

DIAGNOSIS SENSOR UNIT

SRC-171

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

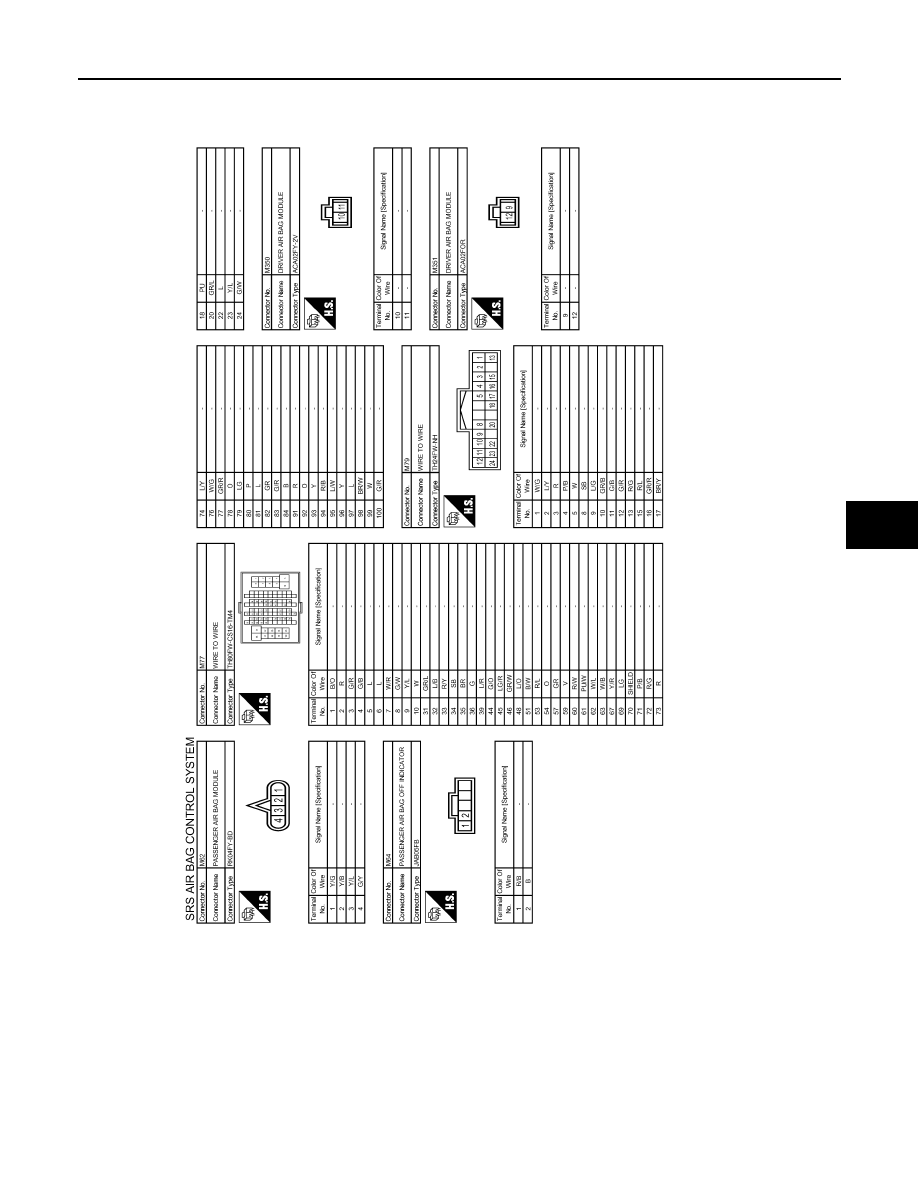

JRHWC1440GB

SRC-172

< SYMPTOM DIAGNOSIS >

SRS AIR BAG WARNING LAMP DOES NOT TURN OFF

SYMPTOM DIAGNOSIS

SRS AIR BAG WARNING LAMP DOES NOT TURN OFF

Diagnosis Procedure

INFOID:0000000009946312

1.

CHECK AIR BAG MODULE AND SEAT BELT PRE-TENSIONER

Check the deployment of air bag module and seat belt pre-tensioner.

Is air bag module deployed?

YES

>> Replace the malfunctioning parts.

NO

>> GO TO 2.

2.

CHECK AIR BAG FUSE

Check 10A fuse [No.2, located in fuse block (J/B)].

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Replace the fuse.

3.

CHECK HARNESS CONNECTOR

Check the harness connector.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace harness connectors.

4.

CHECK WIRING HARNESS

Check the wiring harness externals.
Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace wiring harness.

5.

REPLACE AIR BAG DIAGNOSIS SENSOR UNIT

1.

Replace air bag diagnosis sensor unit. Refer to

SR-26, "Exploded View"

.

2.

Check air bag warning lamp operation.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 6.

6.

REPLACE COMBINATION METER

1.

Replace combination meter. Refer to

MWI-93, "Exploded View"

.

2.

Check air bag warning lamp operation.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 1.
