DIAGNOSIS SENSOR UNIT

SRC-165

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

B1130

SIDE MODULE RH
[VB-SHORT]

Side air bag module RH circuit is shorted to power supply cir-
cuit

SRC-112, "DTC
Logic"

.

B1131

SIDE MODULE RH
[GND-SHORT]

Side air bag module RH circuit is shorted to ground

SRC-114, "DTC
Logic"

.

B1132

SIDE MODULE RH
[SHORT]

Seat belt pre-tensioner RH circuits are shorted to each other

SRC-116, "DTC
Logic"

.

B1134

SIDE MODULE LH
[OPEN]

Side air bag module LH circuit is open

SRC-118, "DTC
Logic"

.

B1135

SIDE MODULE LH
[VB-SHORT]

Side air bag module LH circuit is shorted to power supply cir-
cuit

SRC-120, "DTC
Logic"

.

B1136

SIDE MODULE LH
[GND-SHORT]

Side air bag module LH circuit is shorted to ground

SRC-122, "DTC
Logic"

.

B1137

SIDE MODULE LH
[SHORT]

Side air bag module LH circuits are shorted to each other

SRC-124, "DTC
Logic"

.

B1138-B1143

CONTROL UNIT

Air bag diagnosis sensor unit is malfunctioning

SRC-126, "DTC
Logic"

B1144

CONTROL UNIT

Air bag diagnosis sensor unit is malfunctioning or out of the
specified specification

SRC-128, "DTC
Logic"

.

B1145

CURTAIN MODULE RH
[OPEN]

Curtain air bag module RH circuit is open

SRC-129, "DTC
Logic"

.

B1146

CURTAIN MODULE RH
[VB-SHORT]

Curtain air bag module RH circuit is shorted to power supply
circuit

SRC-131, "DTC
Logic"

.

B1147

CURTAIN MODULE RH
[GND-SHORT]

Curtain air bag module RH circuit is shorted to ground

SRC-133, "DTC
Logic"

.

B1148

CURTAIN MODULE RH
[SHORT]

Curtain air bag module RH circuits are shorted to each other

SRC-135, "DTC
Logic"

.

B1150

CURTAIN MODULE LH
[OPEN]

Curtain air bag module LH circuit is open

SRC-137, "DTC
Logic"

.

B1151

CURTAIN MODULE LH
[VB-SHORT]

Curtain air bag module LH circuit is shorted to power supply
circuits

SRC-139, "DTC
Logic"

.

B1152

CURTAIN MODULE LH
[GND-SHORT]

Curtain air bag module LH circuit is shorted to ground

SRC-141, "DTC
Logic"

.

B1153

CURTAIN MODULE LH
[SHORT]

Curtain air bag module LH circuits are shorted to each other

SRC-143, "DTC
Logic"

.

B1154-B1159

CONTROL UNIT

Air bag diagnosis sensor unit is malfunctioning

SRC-145, "DTC
Logic"

.

B1170-B1175

CONTROL UNIT

Air bag diagnosis sensor unit is malfunctioning

SRC-147, "DTC
Logic"

.

B1186-B1191

CONTROL UNIT

Air bag diagnosis sensor unit is malfunctioning

SRC-149, "DTC
Logic"

.

B1202-B1207

CONTROL UNIT

Air bag diagnosis sensor unit is malfunctioning

SRC-151, "DTC
Logic"

.

B1209

FRONTAL COLLISION DE-
TECTION

Seat belt pre-tensioner, driver side air bag and passenger air
bag are deployed

SRC-153, "DTC
Logic"

.

B1210

SIDE COLLISION DETEC-
TION

Side air bag and curtain air bag are deployed

SRC-154, "DTC
Logic"

.

B1211

ROLLOVER DETECTION

Seat belt pre-tensioner side curtain air bag module are de-
ployed because of rollover detection

SRC-155, "DTC
Logic"

.

B1212-B1214

RH1 SAT-SENS

Satellite sensor RH is malfunctioning

SRC-156, "DTC
Logic"

.

B1215-B1217

LH1 SAT-SENS

Satellite sensor LH is malfunctioning

SRC-158, "DTC
Logic"

.

DTC

Diagnostic item

Explanation

Reference page

SRC-166

< ECU DIAGNOSIS INFORMATION >

DIAGNOSIS SENSOR UNIT

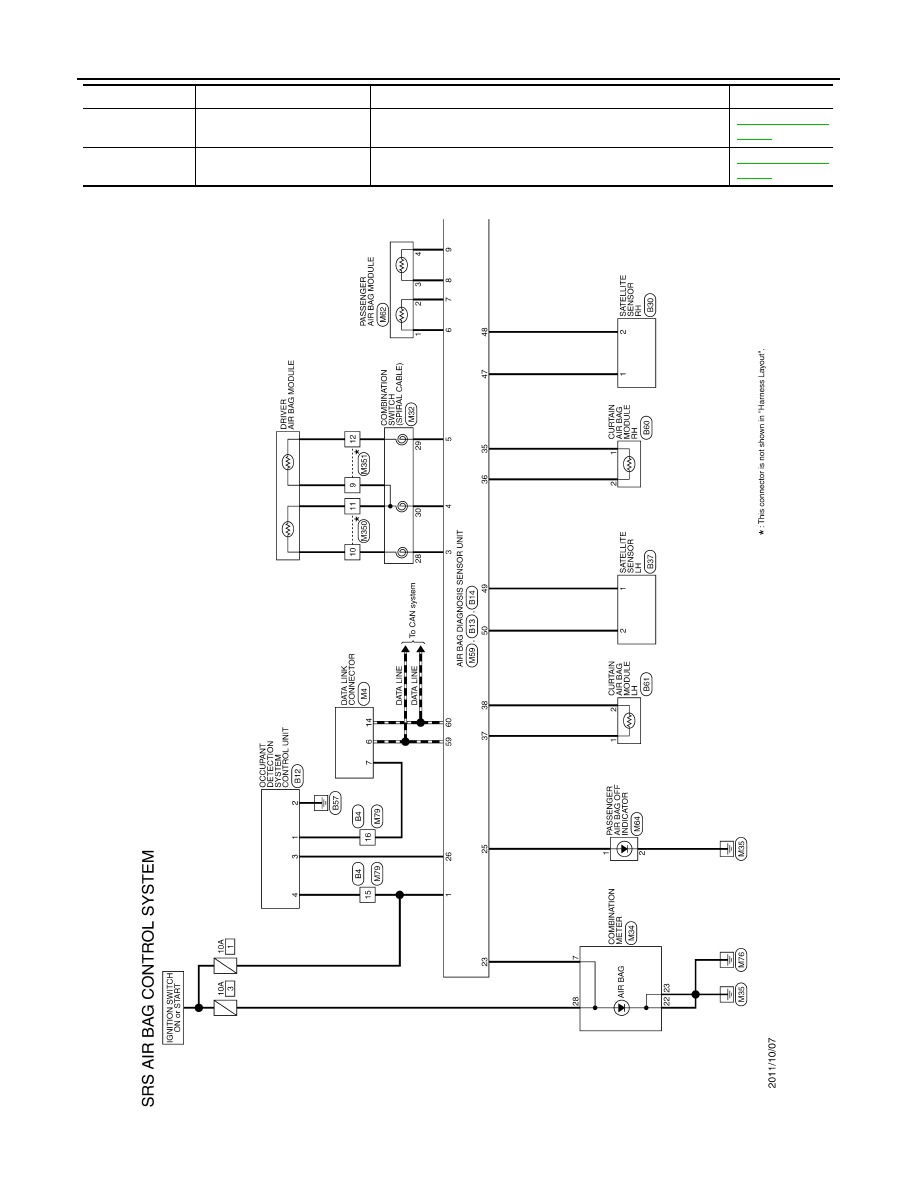

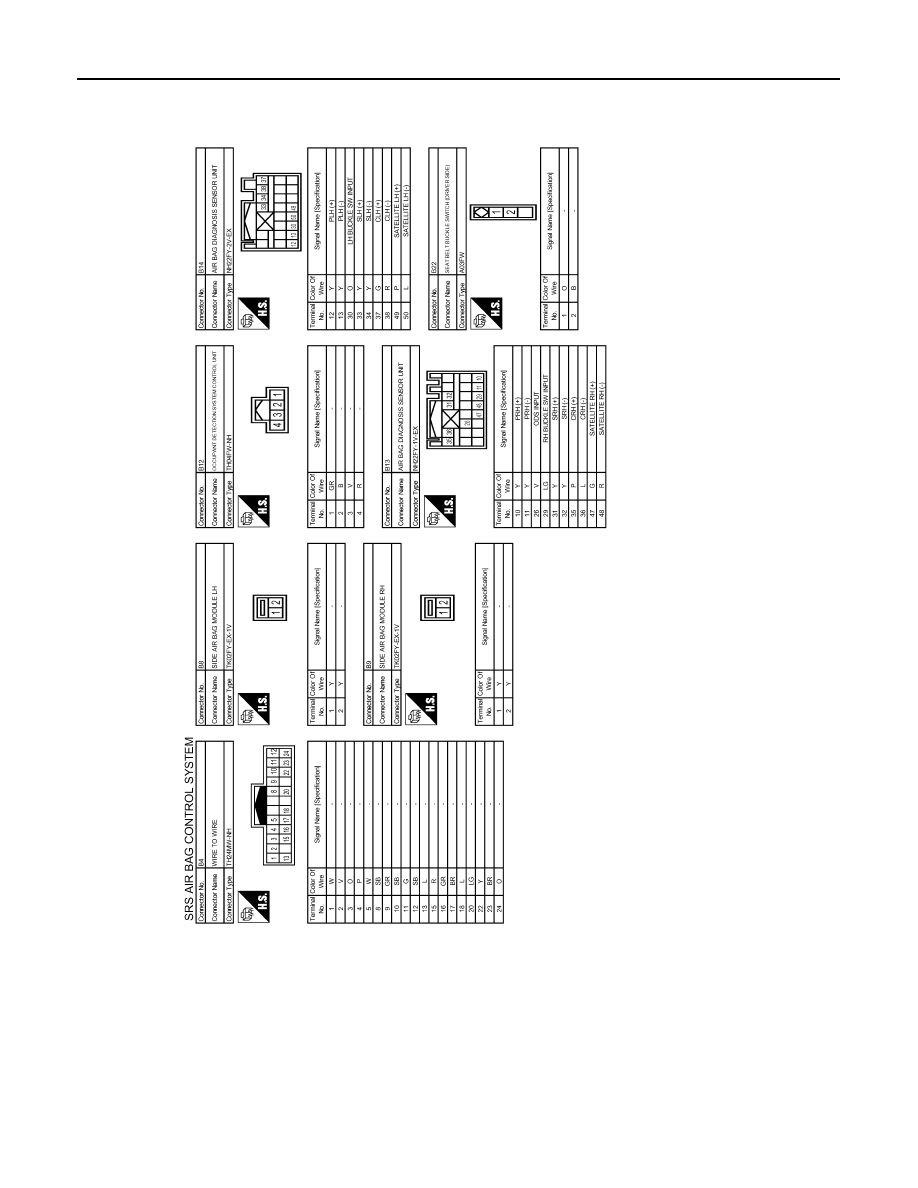

Wiring Diagram - SRS AIR BAG CONTROL SYSTEM -

INFOID:0000000009946311

B1218-B1223

CONTROL UNIT

Air bag diagnosis sensor unit is malfunctioning

SRC-160, "DTC
Logic"

.

B1239

CONTROL UNIT

Air bag diagnosis sensor unit is malfunctioning

SRC-162, "DTC
Logic"

.

DTC

Diagnostic item

Explanation

Reference page
