SR-18

< REMOVAL AND INSTALLATION >

PASSENGER AIR BAG MODULE

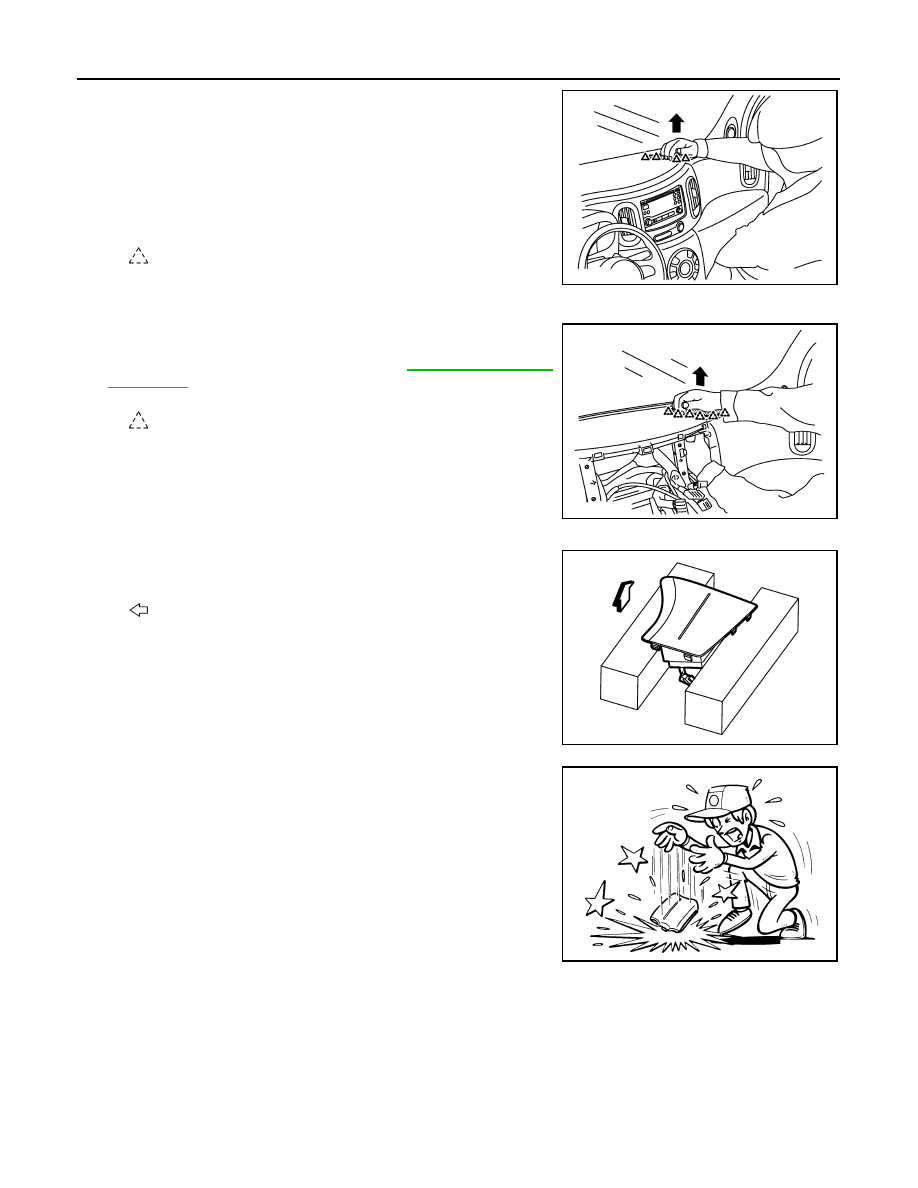

4.

Put a hand to back of instrument panel (glove box opening), dis-
engage connections of the passenger air bag module pawls
from the inside of the vehicle toward the outside, and remove.

CAUTION:

• Never insert a remover tool between passenger air bag

module and instrument panel assembly. Doing so may
cause damage.

• Wear gloves.

NOTE:
If the above operation is difficult, remove the cluster lid C, put a
hand from center ventilator side, and disengage connections of
passenger air bag module pawls. Refer to

IP-14, "Removal and

Installation"

.

CAUTION:

• Always place the passenger air bag module with pad side fac-

ing upward.

• Never impact the passenger air bag module.
• Replace the passenger air bag module if it has been dropped

or sustained an impact.

• Never insert any foreign objects (screwdriver, etc.) into the passenger air bag module.
• Never disassemble the passenger air bag module.
• Never expose the passenger air bag module to temperatures exceeding 90

°

C (194

°

F).

• Never allow oil, grease, detergent, or water to come in contact with the passenger air bag module.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Never use the old fixing bolts after removal, replace with the new bolts.

: Pawl

JMHIA1088ZZ

: Pawl

JMHIA1089ZZ

: Upward

JMHIA1090ZZ

JMHIA0009ZZ

PASSENGER AIR BAG MODULE

SR-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

• Never damage the harness while installing.
• If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunc-

tioning parts, reset the memory using self-diagnosis or CONSULT. Refer to

SRC-24, "CONSULT

Function"

.

• After the work is completed, check that no system malfunction is detected by air bag warning lamp.

SR-20

< REMOVAL AND INSTALLATION >

CURTAIN AIR BAG MODULE

CURTAIN AIR BAG MODULE

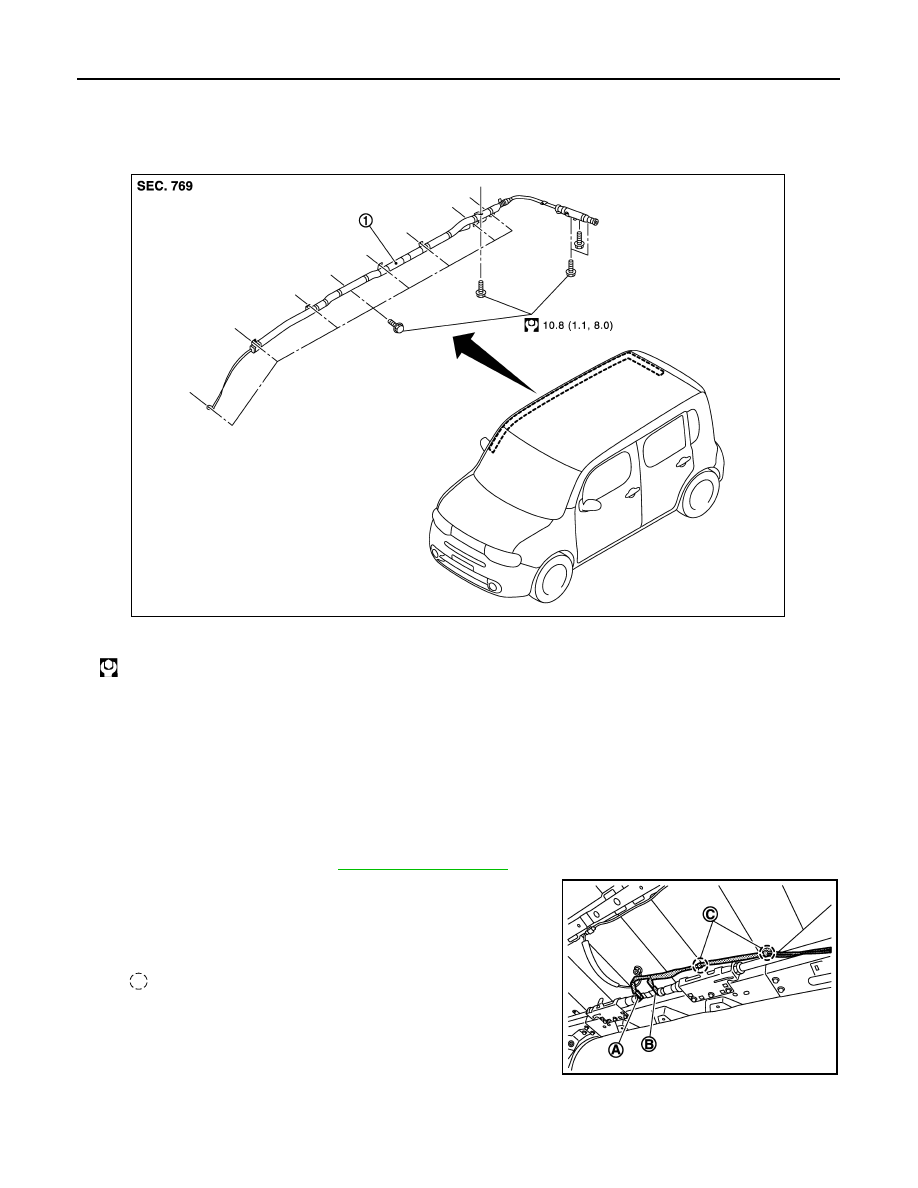

Exploded View

INFOID:0000000009946908

Removal and Installation

INFOID:0000000009946909

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes

or more.

• Always work from the side of curtain air bag module. Never work in front of it.
• Never use the air tools or electric tools for servicing.

REMOVAL

1.

Remove the headlining. Refer to

INT-21, "Exploded View"

.

2.

Disconnect harness connector (A) when removing the curtain air
bag module RH.

3.

Disconnect harness connector (B) and disengage harness clips
(C) when removing the curtain air bag module LH.

CAUTION:

1.

Curtain air bag module

: N·m (kg-m, ft-lb)

JMHIA1036GB

: Clip

JMHIA1037ZZ

CURTAIN AIR BAG MODULE

SR-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

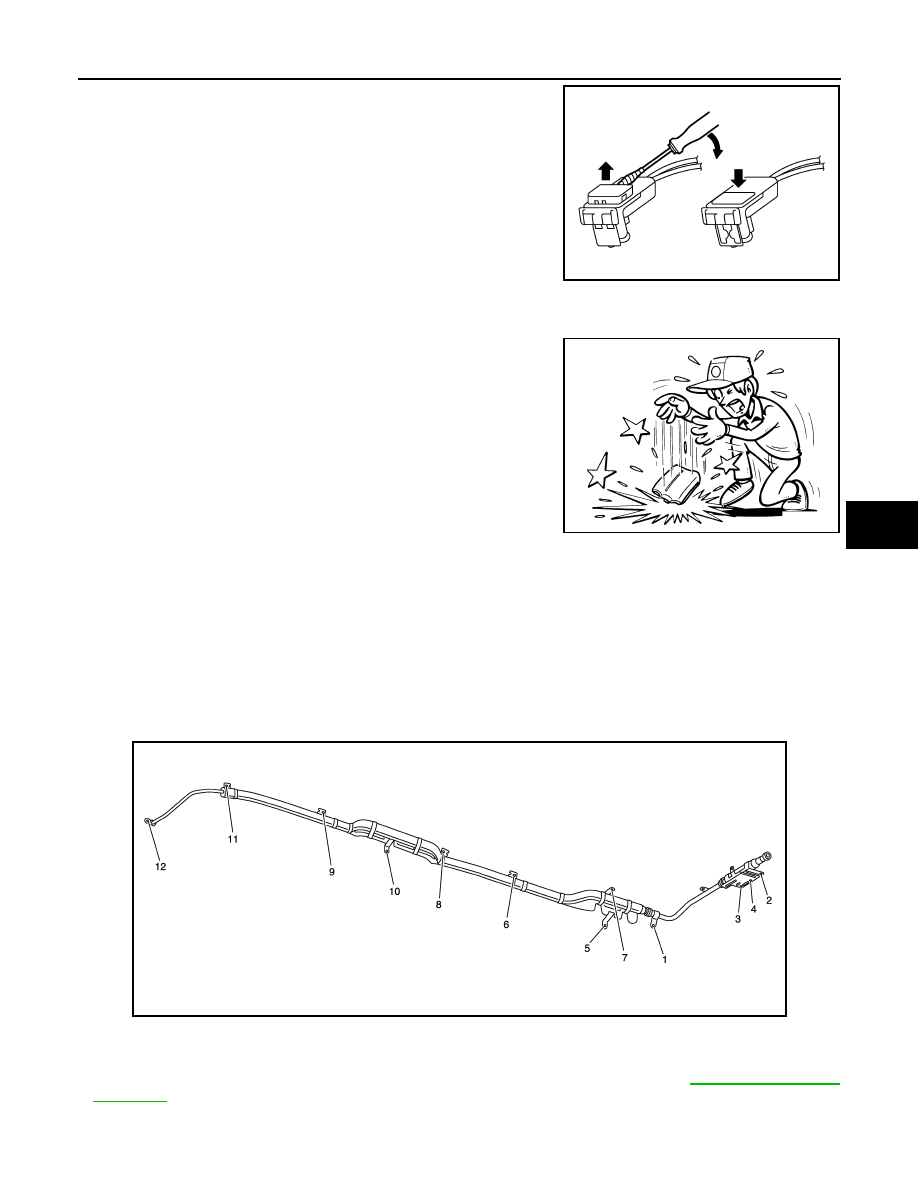

• For installing/removing the curtain air bag module har-

ness connector, insert thin screwdriver wrapped in tape
into notch, lift lock and remove the connector.

• Install the connector with lock raised, and push lock into

the connector.

• After installing the connector, check that the lock is

pushed securely into it.

4.

Remove the fixing bolts, and then remove the curtain air bag module.

CAUTION:

• Never impact the curtain air bag module.
• Replace the curtain air bag module if it has been dropped or

sustained an impact.

• Never insert any foreign objects (screwdriver, etc.) into the curtain air bag module.
• Never disassemble the curtain air bag module.
• Never expose the curtain air bag module to temperatures exceeding 90

°

C (194

°

F).

• Never allow oil, grease, detergent, or water to come in contact with the curtain air bag module.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• When installing, always be careful not to drop curtain air bag module and install mounting bolts

according to the order as shown in the figure.

• Never damage the harness while installing.
• If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunc-

tioning parts, reset the memory using self-diagnosis or CONSULT. Refer to

SRC-24, "CONSULT

Function"

.

• After the work is completed, check that no system malfunction is detected by air bag warning lamp.

PHIA0953J

JMHIA0009ZZ

JMHIA1038ZZ
