SR-10

< BASIC INSPECTION >

COLLISION DIAGNOSIS

Trim/headlining

1.

Check for visible signs of damage (dents, cracks, deformation, etc.) of the interior trim on the
collision side.

2.

If damaged

 REPLACE the damaged trim parts.

Door-mounted curtain air bag
module LH

If the door-mounted curtain air bag LH has NOT deployed:
1.

Check for visible signs of damage (dents, tears, deformation, etc.) of the door finisher on the
collision side.

2.

If damaged

 REPLACE the door finisher LH with new fasteners.

3.

Check for visible signs of damaged (tears etc.) of the door-mounted curtain air bag module LH.

4.

Check harness and connectors for damage, and terminals for deformities.

5.

If no damage is found, reinstall door finisher.

CAUTION:

When removing door-mounted curtain air bag module from door finisher, never reuse
door finisher.

6.

If damaged

 REPLACE the door finisher LH and door-mounted curtain air bag module LH with

new fasteners.

Door-mounted curtain air bag
module RH

If the door-mounted curtain air bag RH has NOT deployed:
1.

Check for visible signs of damage (dents, tears, deformation, etc.) of the door finisher on the
collision side.

2.

If damaged

 REPLACE the door finisher RH with new fasteners.

3.

Check for visible signs of damage (tears etc.) of the door-mounted curtain air bag module RH.

4.

Check harness and connectors for damage, and terminals for deformities.

5.

If no damage is found, reinstall door finisher.

CAUTION:

When removing door-mounted curtain air bag module from door finisher, never reuse
door finisher.

6.

If damaged

 REPLACE the door finisher RH and door-mounted curtain air bag module RH with

new fasteners.

Pop-up roll bar

If the pop-up roll bar has NOT deployed:
1.

Check for visible signs of damage (dents, tears, deformation, etc.) of the pop-up roll bar.

2.

If damaged

 REPLACE the pop-up roll bar with new fasteners.

3.

Check harness and connectors for damage, and terminals for deformities.

4.

If no damage is found, reinstall the pop-up roll bar with new fasteners.

5.

Check for visible signs of damage (dents, cracks, deformation, etc.) of the seatback support
brace assembly.

6.

If damaged

 REPAIR the seatback support brace assembly.

Part

Inspection

DRIVER AIR BAG MODULE

SR-11

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

REMOVAL AND INSTALLATION

DRIVER AIR BAG MODULE

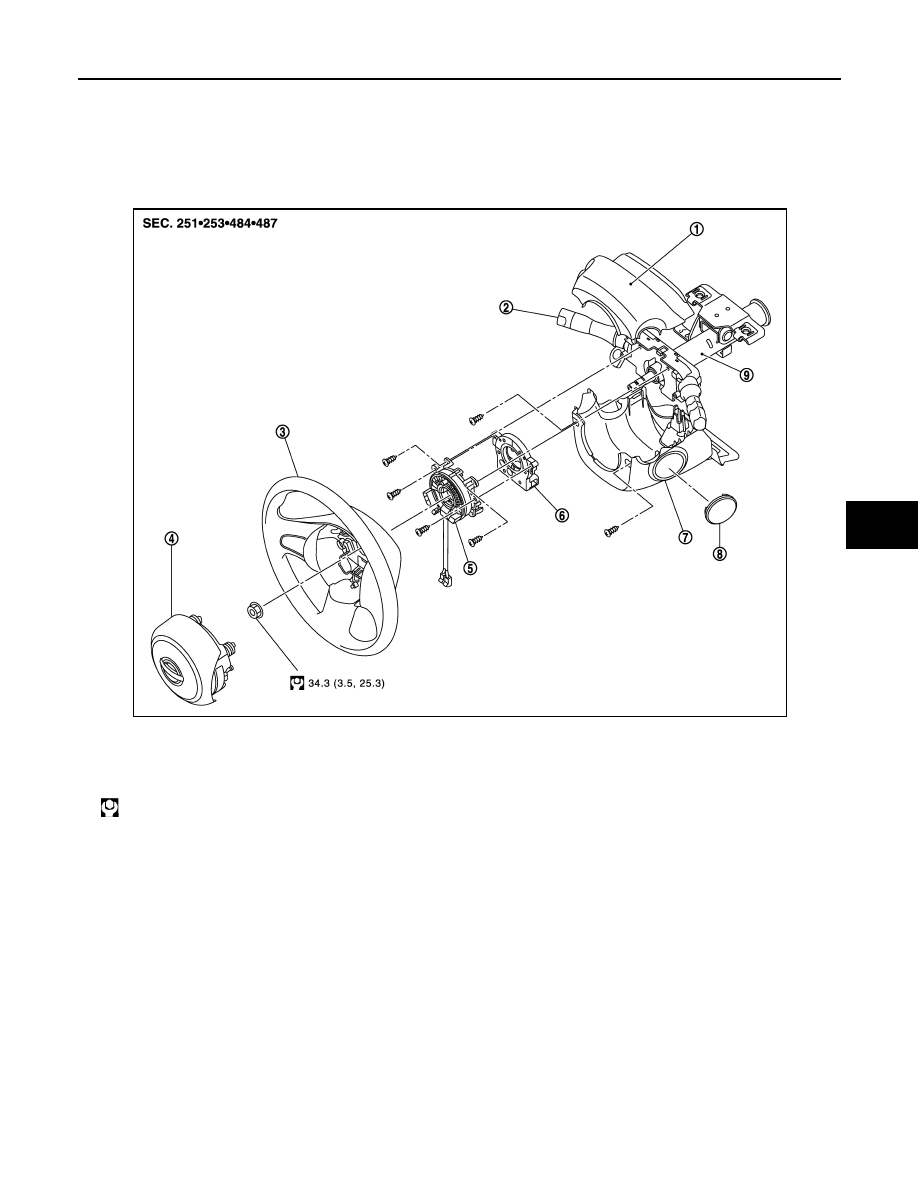

Exploded View

INFOID:0000000009946902

Removal and Installation

INFOID:0000000009946903

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes

or more.

• Always work from the side of air bag module. Never work in front of it.
• Never use the air tools or electric tools for servicing.

REMOVAL

1.

Steering column upper cover

2.

Lighting & turn signal switch

3.

Steering wheel

4.

Driver air bag module

5.

Spiral cable

6.

Steering angle sensor

7.

Steering column lower cover

8.

Steering lock escutcheon

9.

Steering column assembly

: N·m (kg-m, ft-lb)

JMHIA1081GB

SR-12

< REMOVAL AND INSTALLATION >

DRIVER AIR BAG MODULE

1.

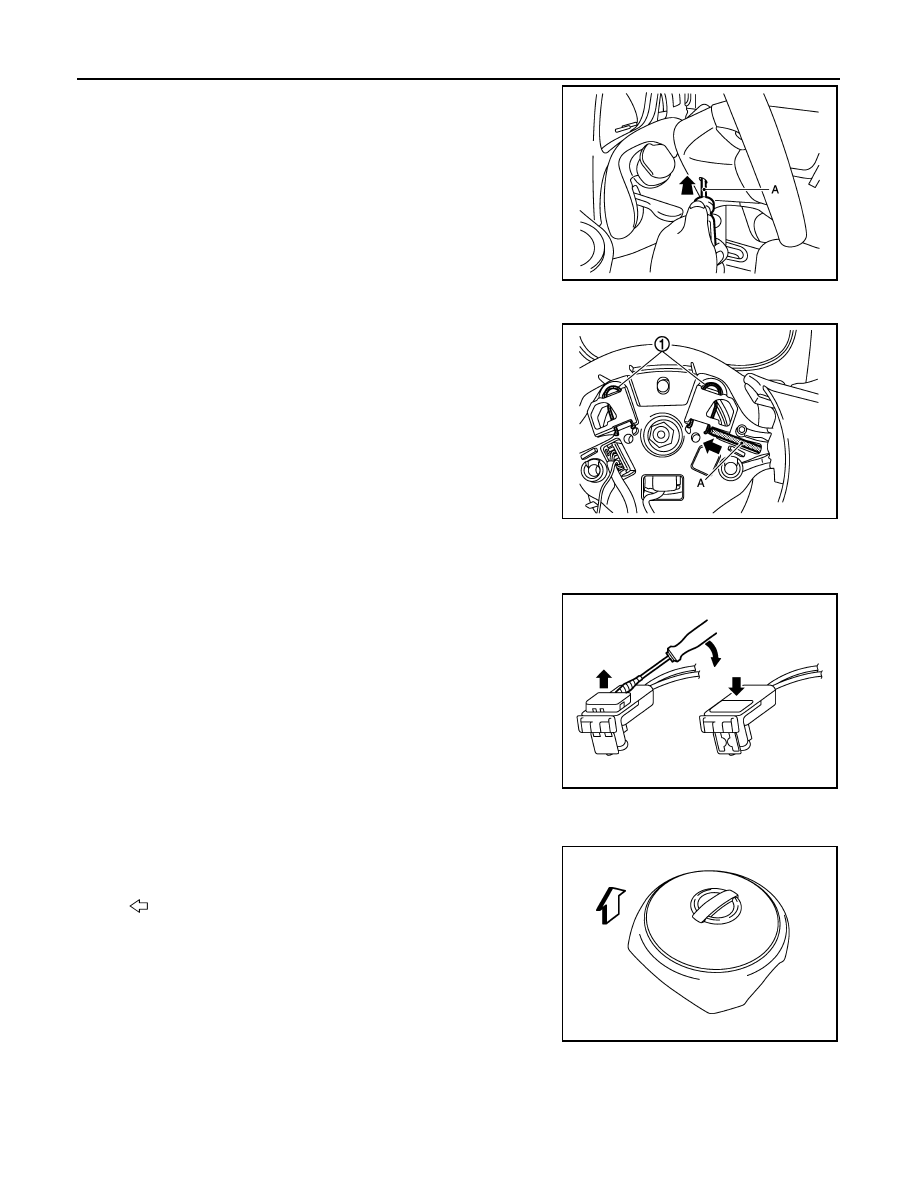

Locate retaining clip access hole (LH/RH) and insert a 5.0 mm
(0.197 in) diameter, blunt-ended tool (A).

NOTE:
When inserting a blunt-ended tool (A), check that the tool con-
tacts torsion spring (1). By pressing torsion spring, connection of
driver air bag module is disengaged.

2.

Pull out the driver air bag module assembly.

3.

Disconnect the driver air bag module harness connector.

CAUTION:

• For installing/removing the driver air bag module harness

connector, insert thin screwdriver wrapped in tape into
notch, lift lock and remove connector.

• Install the connector with lock raised, and push lock into

the connector.

• After installing the connector, check that the lock is

pushed securely into it.

4.

Remove the driver air bag module.

CAUTION:

• Always place the driver air bag module with pad side facing

upward.

JMHIA1082ZZ

JMHIA1025ZZ

PHIA0953J

: Upward

JMHIA1026ZZ

DRIVER AIR BAG MODULE

SR-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

• Never impact the driver air bag module.
• Replace the driver air bag module if it has been dropped or

sustained an impact.

• Never insert any foreign objects (screwdriver, etc.) into the driver air bag module.
• Never disassemble the driver air bag module.
• Never expose the driver air bag module to temperatures exceeding 90

°

C (194

°

F).

• Never allow oil, grease, detergent, or water to come in contact with the driver air bag module.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Never damage the harness while installing.

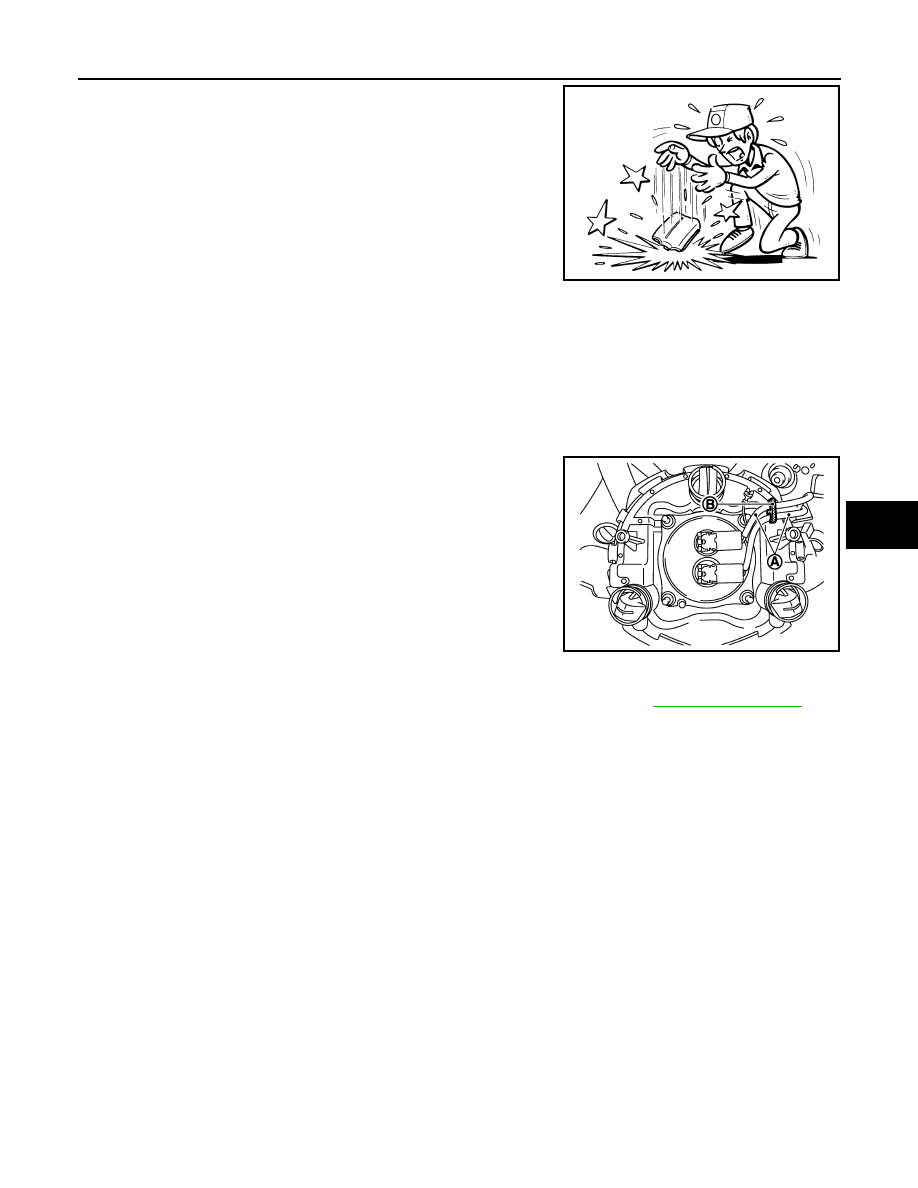

• Fix the driver air bag module harnesses (A) to the harness fix-

ing hook (B).

• If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunc-

tioning parts, reset the memory using self-diagnosis or CONSULT. Refer to

GI-4, "Components"

.

• After the work is completed, check that no system malfunction is detected by air bag warning lamp.

JMHIA0009ZZ

JMHIA1083ZZ
