VEHICLE SECURITY ALARM DOES NOT ACTIVATE

SEC-263

< SYMPTOM DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

VEHICLE SECURITY ALARM DOES NOT ACTIVATE

Description

INFOID:0000000009950312

Alarm does not operate when alarm operating condition is satisfied.
NOTE:
Check that vehicle is under the condition shown in “Conditions of vehicle” before starting diagnosis, and check
each symptom.

CONDITIONS OF VEHICLE (OPERATING CONDITIONS)

“SECURITY ALARM SET” in “WORK SUPPORT” of “THEFT ALM” is ON when setting on CONSULT.

Diagnosis Procedure

INFOID:0000000009950313

1.

CHECK DOOR SWITCH

Check door switch.
Refer to

DLK-249, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Replace the malfunctioning door switch

2.

CHECK HEADLAMP FUNCTION

Check headlamp function.
Refer to

SEC-210, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace the malfunctioning parts.

3.

CHECK HORN FUNCTION

Check horn function.
Refer to

SEC-208, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace the malfunctioning parts.

4.

CONFIRM THE OPERATION

Confirm the operation again.

Is the result normal?

YES

>> Check intermittent incident. Refer to

GI-40, "Intermittent Incident"

.

NO

>> GO TO 1.

SEC-264

< PRECAUTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precautions for Removing of Battery Terminal

INFOID:0000000010246065

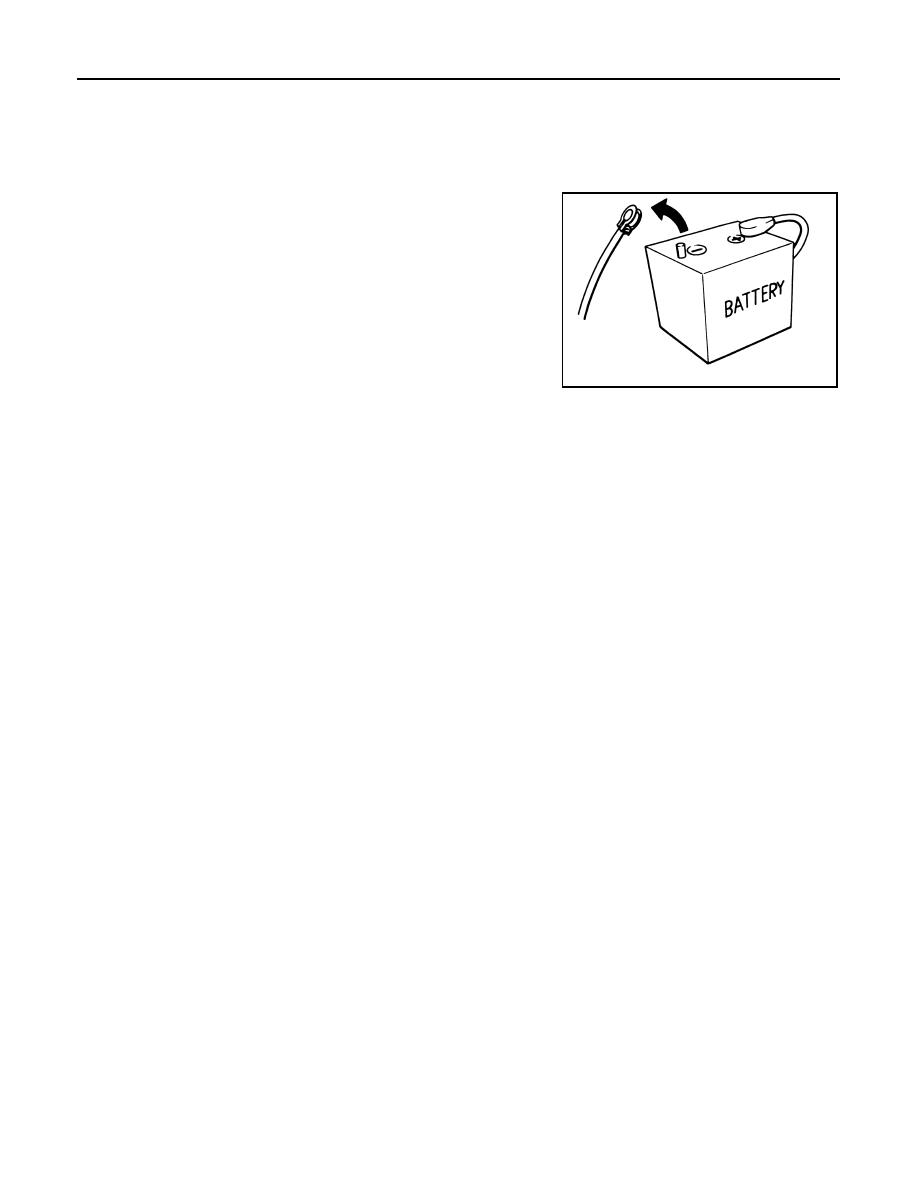

•  When removing the 12V battery terminal, turn OFF the ignition

switch and wait at least 30 seconds.
NOTE:
ECU may be active for several tens of seconds after the ignition
switch is turned OFF. If the battery terminal is removed before ECU
stops, then a DTC detection error or ECU data corruption may
occur.

•  For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be
detected.

•  After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009950314

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” of this
Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

SEF289H

NATS ANTENNA AMP.

SEC-265

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

REMOVAL AND INSTALLATION

NATS ANTENNA AMP.

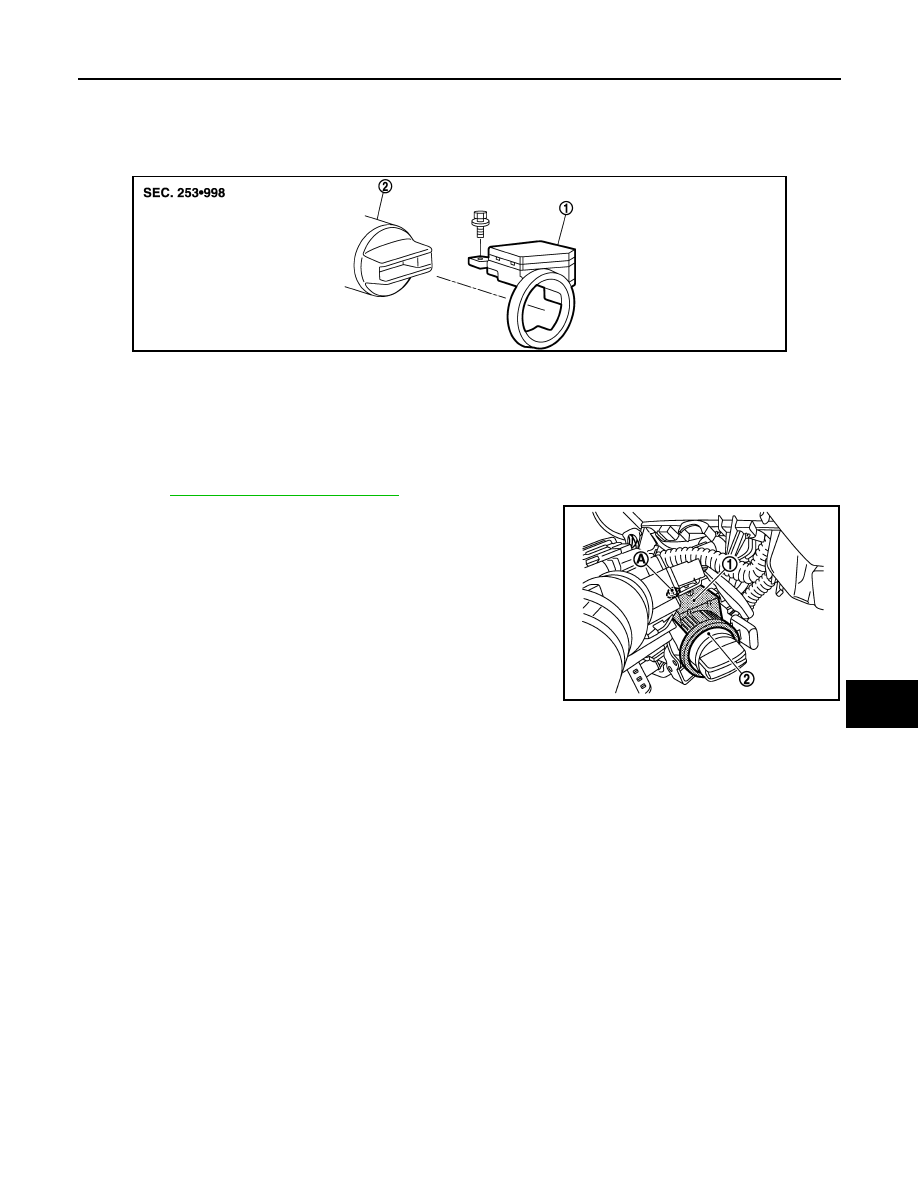

Exploded View

INFOID:0000000009950315

Removal and Installation

INFOID:0000000009950316

REMOVAL

1.

Remove the steering column cover.
Refer to

IP-14, "Removal and Installation"

.

2.

Remove the NATS antenna amp. mounting screw (A), and then
remove NATS antenna amp. (1) from key switch (2).

INSTALLATION

Install in the reverse order of removal.

JMKIA0463ZZ

1.

NATS antenna amp.

2.

Key switch

JMKIA0464ZZ
