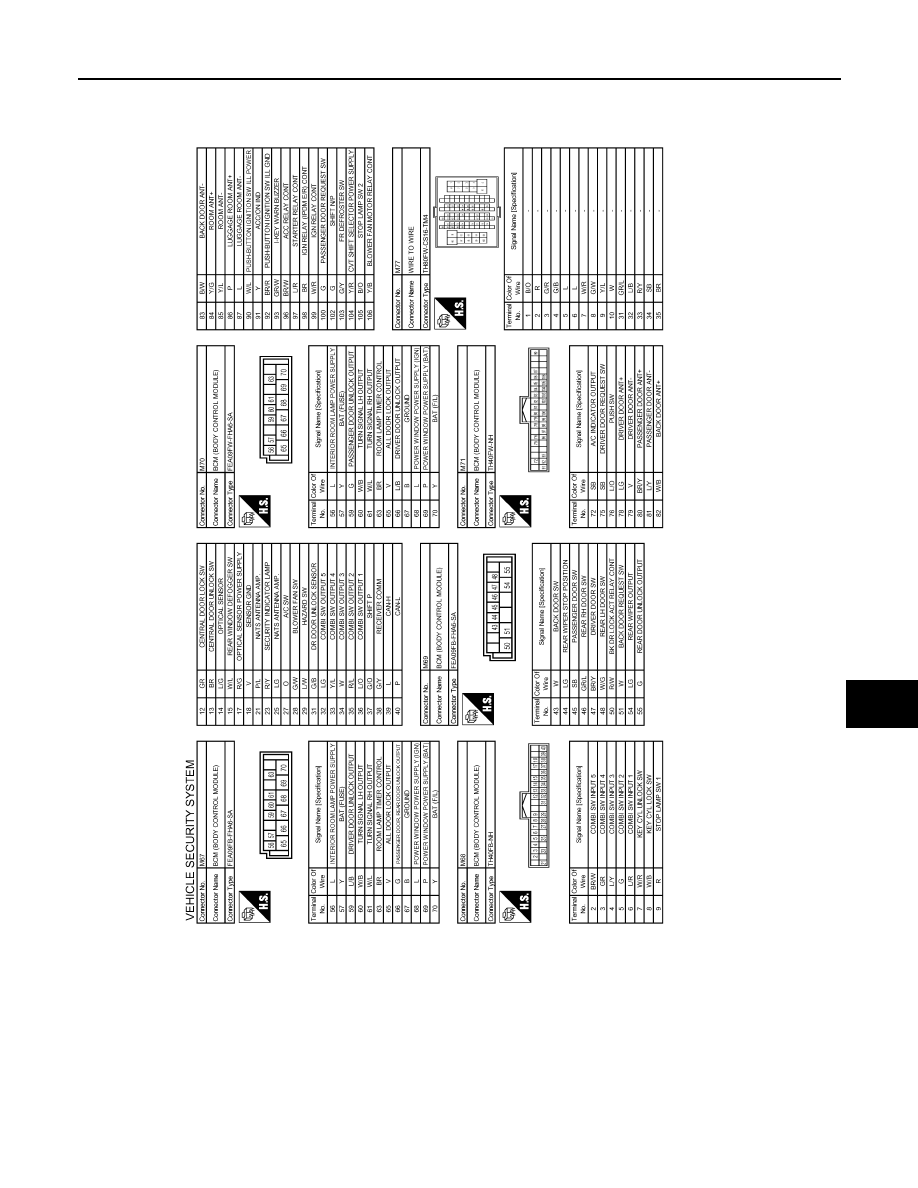

VEHICLE SECURITY SYSTEM

SEC-223

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

JRKWC9349GB

SEC-224

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

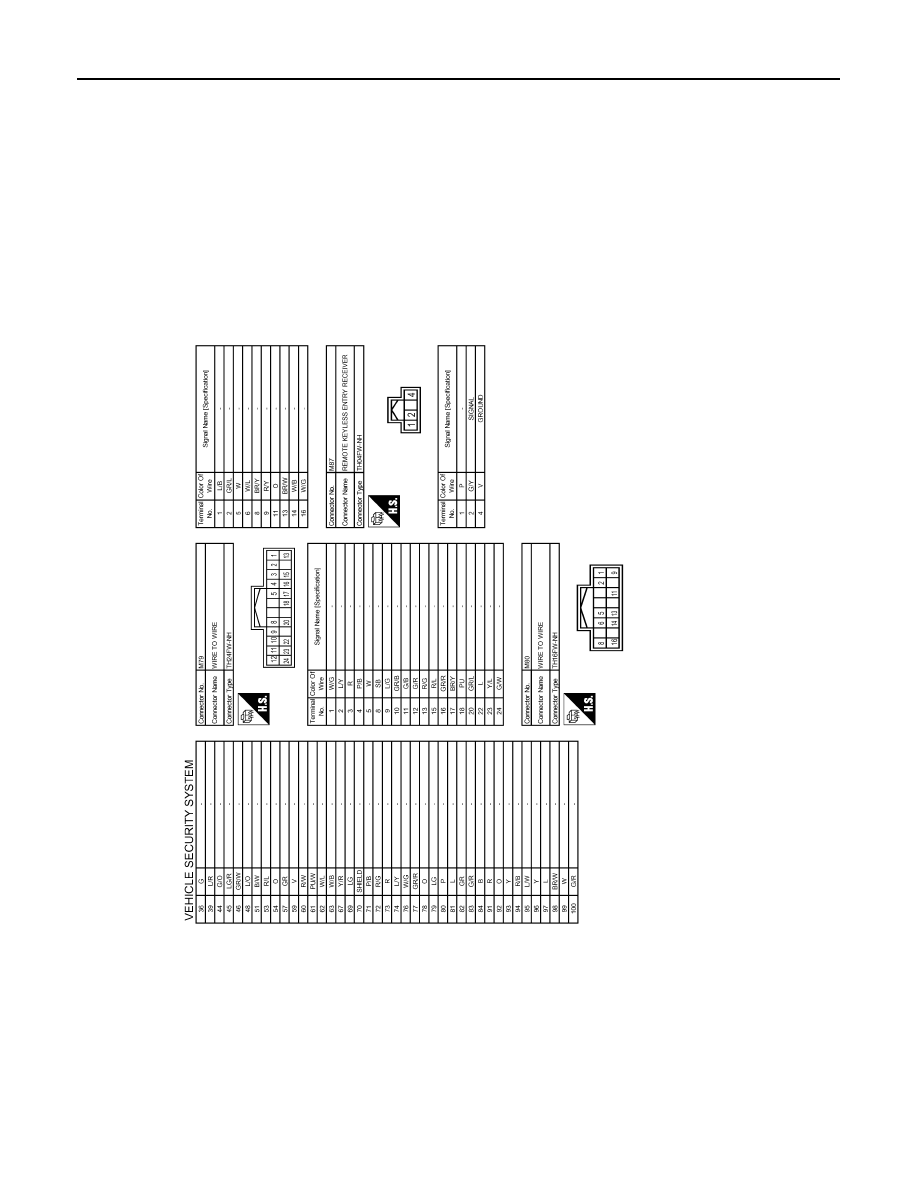

VEHICLE SECURITY SYSTEM

JRKWC9350GB

BCM (BODY CONTROL MODULE)

SEC-225

< ECU DIAGNOSIS INFORMATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

ECU DIAGNOSIS INFORMATION

BCM (BODY CONTROL MODULE)

Reference Value

INFOID:0000000010246096

VALUES ON THE DIAGNOSIS TOOL

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

Monitor Item

Condition

Value/Status

IGN ON SW

Ignition switch OFF or ACC

Off

Ignition switch ON

On

KEY ON SW

Mechanical key is removed from key cylinder

Off

Mechanical key is inserted to key cylinder

On

CDL LOCK SW

Door lock/unlock switch does not operate

Off

Press door lock/unlock switch to the lock side

On

CDL UNLOCK SW

Door lock/unlock switch does not operate

Off

Press door lock/unlock switch to the unlock side

On

DOOR SW-DR

Driver's door closed

Off

Driver's door opened

On

DOOR SW-AS

Passenger door closed

Off

Passenger door opened

On

DOOR SW-RR

Rear RH door closed

Off

Rear RH door opened

On

DOOR SW-RL

Rear LH door closed

Off

Rear LH door opened

On

BACK DOOR SW

Back door closed

Off

Back door opened

On

LOCK STATUS

NOTE:
The item is indicated, but not monitored.

Off

ACC ON SW

Ignition switch OFF

Off

Ignition switch ACC or ON

On

KEYLESS LOCK

“LOCK” button of key fob is not pressed

Off

“LOCK” button of key fob is pressed

On

KEYLESS UNLOCK

“UNLOCK” button of key fob is not pressed

Off

“UNLOCK” button of key fob is pressed

On

SHOCK SENSOR

NOTE:
The item is indicated, but not monitored.

NORMAL

KEY CYL LK-SW

Other than driver door key cylinder LOCK position

Off

Driver door key cylinder LOCK position

On

KEY CYL UN-SW

Other than driver door key cylinder UNLOCK position

Off

Driver door key cylinder UNLOCK position

On

VEHICLE SPEED

While driving

Equivalent to speed-

ometer reading

REAR DEF SW

Rear window defogger switch OFF

Off

Rear window defogger switch ON

On

SEC-226

< ECU DIAGNOSIS INFORMATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

BCM (BODY CONTROL MODULE)

REVERSE SW CAN

NOTE:
The item is indicated, but not used.

Off

On

TAIL LAMP SW

Lighting switch OFF

Off

Lighting switch 1ST

On

FR FOG SW

NOTE:
The item is indicated, but not monitored.

Off

BUCKLE SW

The seat belt (driver side) is fastened. [Seat belt switch (driver side) OFF]

Off

The seat belt (driver side) is unfastened. [Seat belt switch (driver side) ON]

On

TRNK/HAT MNTR

NOTE:
The item is indicated, but not monitored.

Off

KYLS TRNK/HAT

NOTE:
The item is indicated, but not monitored.

Off

KEYLESS PANIC

PANIC button of key fob is not pressed

Off

PANIC button of key fob is pressed

On

HI BEAM SW

Lighting switch OFF

Off

Lighting switch HI

On

HEAD LAMP SW 1

Lighting switch OFF

Off

Lighting switch 2ND

On

HEAD LAMP SW 2

Lighting switch OFF

Off

Lighting switch 2ND

On

AUTO LIGHT SW

NOTE:
The item is indicated, but not monitored.

Off

PASSING SW

Other than lighting switch PASS

Off

Lighting switch PASS

On

RR FOG SW

NOTE:
The item is indicated, but not monitored.

Off

TURN SIGNAL R

Turn signal switch OFF

Off

Turn signal switch RH

On

TURN SIGNAL L

Turn signal switch OFF

Off

Turn signal switch LH

On

PKB SW

Parking brake switch is OFF

Off

Parking brake switch is ON

On

ENGINE RUN

Engine stopped

Off

Engine running

On

OPTI SEN (DTCT)

NOTE:
The item is indicated, but not monitored.

Close to 5 V

OPTI SEN (FILT)

NOTE:
The item is indicated, but not monitored.

Close to 5 V

LIG SEN COND

NOTE:
The item is indicated, but not monitored.

OFF

IGN SW CAN

Ignition switch OFF or ACC

Off

Ignition switch ON

On

FR WIPER HI

Front wiper switch OFF

Off

Front wiper switch HI

On

FR WIPER LOW

Front wiper switch OFF

Off

Front wiper switch LO

On

Monitor Item

Condition

Value/Status
