VEHICLE SECURITY SYSTEM

SEC-183

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

• When the vehicle security system is in the disarmed phase, the security indicator lamp blinks every 2.4 sec-

onds.

Pre-armed Phase and Armed Phase

When the following operation 1 or 2 is performed, the vehicle security system turns into the “pre-armed”
phase. (Security indicator lamp illuminates.)

1.

BCM receives LOCK signal from door key cylinder switch, door lock and unlock switch or keyfob, after all
doors are closed.

2.

All doors are closed after all doors are locked by ignition key or door lock and unlock switch.

CANCELING THE ARMED PHASE VEHICLE SECURITY SYSTEM

When one of the following operations is performed, the armed phase is canceled.
1.

Unlock all doors ignition key, door lock and unlock switch or keyfob.

2.

Turn ignition switch “ON” position.

CANCELING THE ALARM OPERATION OF THE VEHICLE SECURITY SYSTEM

When one of the following operations is performed, the alarm operation is canceled.

1.

Unlock all doors with the keyfob.

2.

Turn ignition switch “ON” position.

ACTIVATING THE ALARM OPERATION OF THE VEHICLE SECURITY SYSTEM

Check that the system is in the armed phase. (Security indicator lamp blinks every 2.4 seconds.)
When the following operation 1 or 2 is performed, the system sounds the horns and blinks the headlamps for
approx. 50 seconds.

1.

Any door is opened during armed phase.

2.

Disconnecting and connecting the battery connector before canceling armed phase.

PANIC ALARM OPERATION

When BCM receives panic alarm signal from keyfob, ground is supplied intermittently to both headlamp relay
and horn relay.
When headlamp relay and horn relay are energized, then power is supplied to headlamps (HI) and horn.
The headlamp blinks and the horn sounds intermittently.
The alarm automatically turns off after 50 seconds or when BCM receives any signal from keyfob.

SEC-184

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

VEHICLE SECURITY SYSTEM

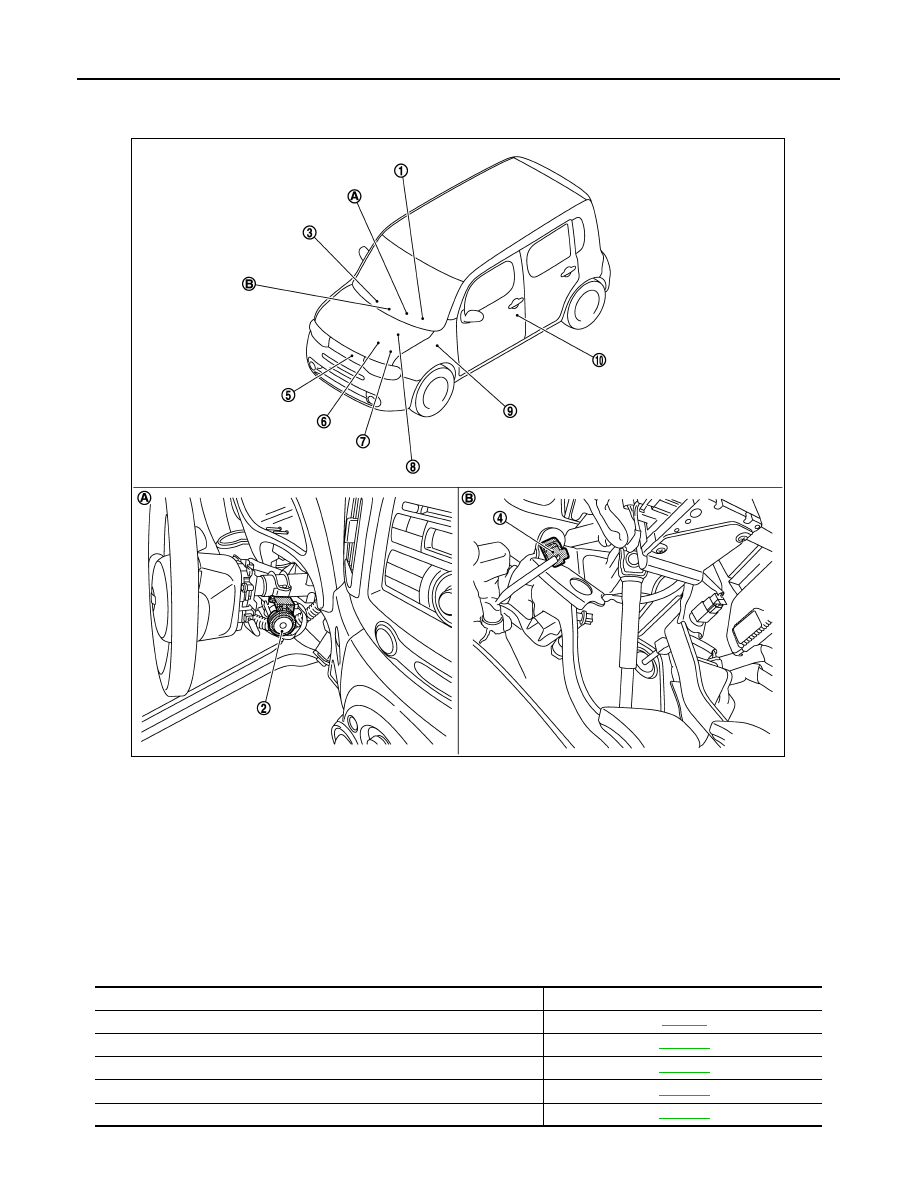

Component Parts Location

INFOID:0000000009950246

Component Description

INFOID:0000000009950247

1.

Security indicator lamp
(combination meter M34)

2.

NATS antenna amp. M26

3.

Remote keyless entry tuner M61

4.

Clutch interlock switch E113
(with M/T)

5.

Horn E50, E51

6.

Transmission range switch F21
(with CVT)

7.

IPDM E/R
E10, E11, E12, E13, E14, E15

8.

ECM E16

9.

BCM
M65, M66, M67

10.

Front door switch (driver side) B34

A.

Behind steering column cover

B.

Behind instrument lower panel LH

JMKIA4035ZZ

Component Reference

BCM

BCS-94

Security indicator lamp

SEC-206

Door switch

DLK-249

Horn

SEC-208

Headlamp

SEC-210

DIAGNOSIS SYSTEM (BCM)

SEC-185

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM

COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

INFOID:0000000010246095

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.

×

: Applicable item

IMMU

IMMU : CONSULT Function (BCM - IMMU)

INFOID:0000000009950249

DATA MONITOR

NOTE:

Diagnosis mode

Function Description

Work Support

Changes the setting for each system function.

Self Diagnostic Result

Displays the diagnosis results judged by BCM.

CAN Diag Support Monitor

Monitors the reception status of CAN communication viewed from BCM.

Data Monitor

The BCM input/output signals are displayed.

Active Test

The signals used to activate each device are forcibly supplied from BCM.

Ecu Identification

The BCM part number is displayed.

Configuration

• Read and save the vehicle specification.
• Write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

Work Support

Data Monitor

Active Test

Door lock

DOOR LOCK

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp control

INT LAMP

×

×

×

Remote keyless entry system

MULTI REMOTE ENT

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps

FLASHER

×

×

Manual air conditioner

AIR CONDITONER

×

×

Combination switch

COMB SW

×

Body control system

BCM

×

NVIS - NATS

IMMU

×

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Back door

TRUNK

×

Vehicle security system

THEFT ALM

×

×

×

RAP system

RETAINED PWR

×

×

Signal buffer system

SIGNAL BUFFER

×

×

TPMS

TPMS (AIR PRESSURE MONITOR)

×

×

×

Panic alarm system

PANIC ALARM

×

SEC-186

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

DIAGNOSIS SYSTEM (BCM)

The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

ACTIVE TEST

THEFT ALM

THEFT ALM : CONSULT Function (BCM - THEFT ALM)

INFOID:0000000009950250

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

WORK SUPPORT

Monitor item

Content

IGN ON SW

Indicates [ON/OFF] condition of ignition switch in ON position.

KEY ON SW

Indicates [ON/OFF] condition of key switch.

Test item

Description

THEFT IND

This test is able to check security indicator lamp operation [ON/OFF].

Monitor Item

Condition

IGN ON SW

Indicates [ON/OFF] condition of ignition switch in ON position.

ACC ON SW

Indicates [ON/OFF] condition of ignition switch in ACC position.

KEY ON SW

Indicates [ON/OFF] condition of key switch.

KEYLESS LOCK

Indicates [ON/OFF] condition of lock signal from keyfob.

KEYLESS UNLOCK

Indicates [ON/OFF] condition of unlock signal from keyfob.

TRUNK OPNR SW

NOTE:
The item is indicated, but not monitored.

TRNK OPNR MNTR

NOTE:
The item is indicated, but not monitored.

HOOD SW

NOTE:
The item is indicated, but not monitored.

DOOR SW-DR

Indicates [ON/OFF] condition of front door switch (driver side).

DOOR SW-AS

Indicates [ON/OFF] condition of front door switch (passenger side).

DOOR SW-RR

Indicates [ON/OFF] condition of rear door switch RH.

DOOR SW-RL

Indicates [ON/OFF] condition of rear door switch LH.

BACK DOOR SW

Indicates [ON/OFF] condition of back door switch.

KEY CYL LK-SW

Indicates [ON/OFF] condition of door key cylinder switch.

KEY CYL UN-SW

Indicates [ON/OFF] condition of door key cylinder switch.

CDL LOCK SW

Indicates [ON/OFF] condition of door lock and unlock switch.

CDL UNLOCK SW

Indicates [ON/OFF] condition of door lock and unlock switch.

TRANSPONDER

Indicates key ID verification results by [ON/OFF].

INTELLI KEY

NOTE:
The item is indicated, but not monitored.

LOCK STATUS

NOTE:
The item is indicated, but not monitored.

AUTO RELOCK

NOTE:
The item is indicated, but not monitored.
