HORN FUNCTION

SEC-91

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

4.

CHECK INTERMITTENT INCIDENT

>> INSPECTION END

SEC-92

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

HEADLAMP FUNCTION

HEADLAMP FUNCTION

Description

INFOID:0000000009950205

Headlamp lighting when vehicle security system is alarm phase.

Component Function Check

INFOID:0000000009950206

1.

CHECK FUNCTION

1.

Perform “HEAD LAMP(HI)” in the “ACTIVE TEST” mode using CONSULT.

2.

Check headlamp operation.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Refer to

SEC-92, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009950207

1.

CHECK HEADLAMP FUNCTION

Refer to

EXL-42, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

CHECK INTERMITTENT INCIDENT

>> INSPECTION END

Test item

Description

HEAD LAMP (HI)

ON

HEADLAMP (HI)

Lighting

OFF

Does not lighting

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION

SEC-93

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION

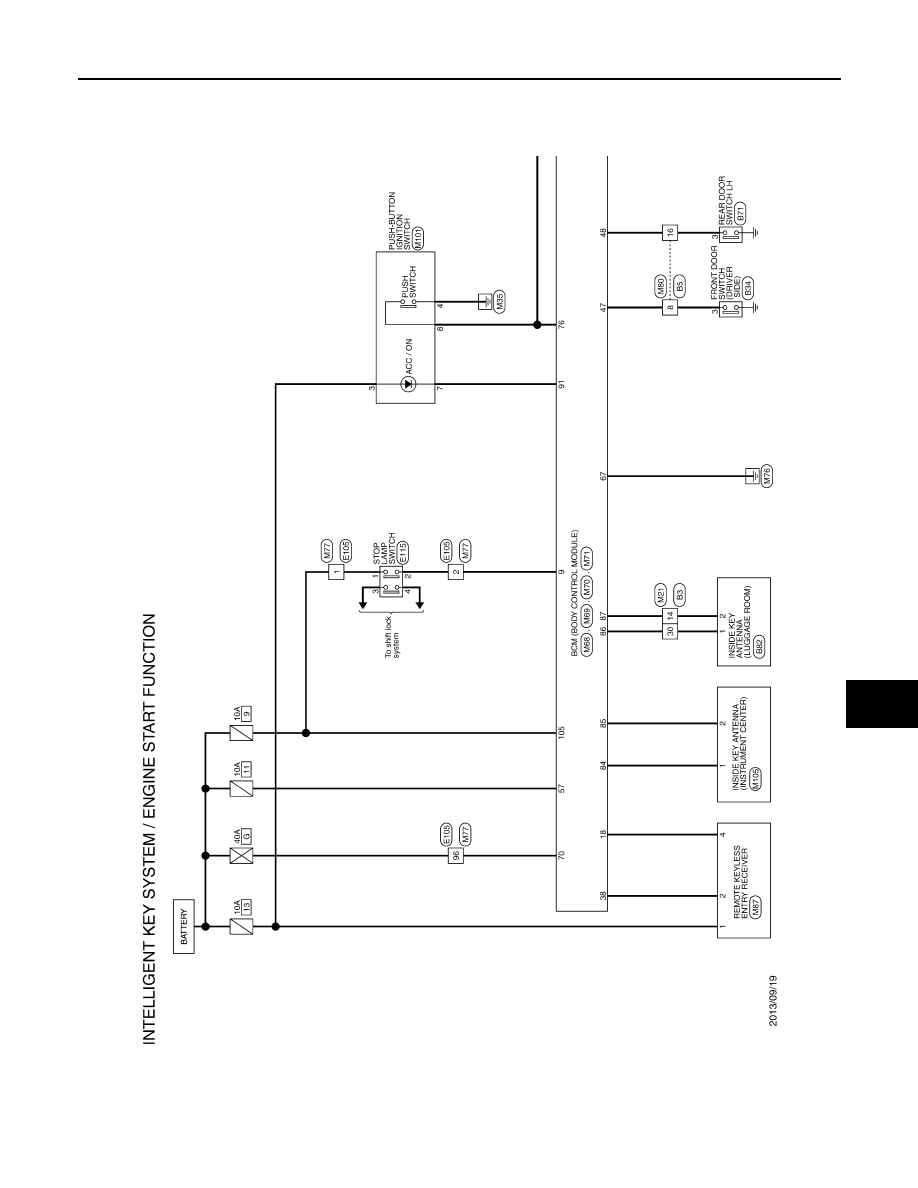

Wiring Diagram - INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION -

INFOID:0000000009950208

JRKWC9127GB

SEC-94

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

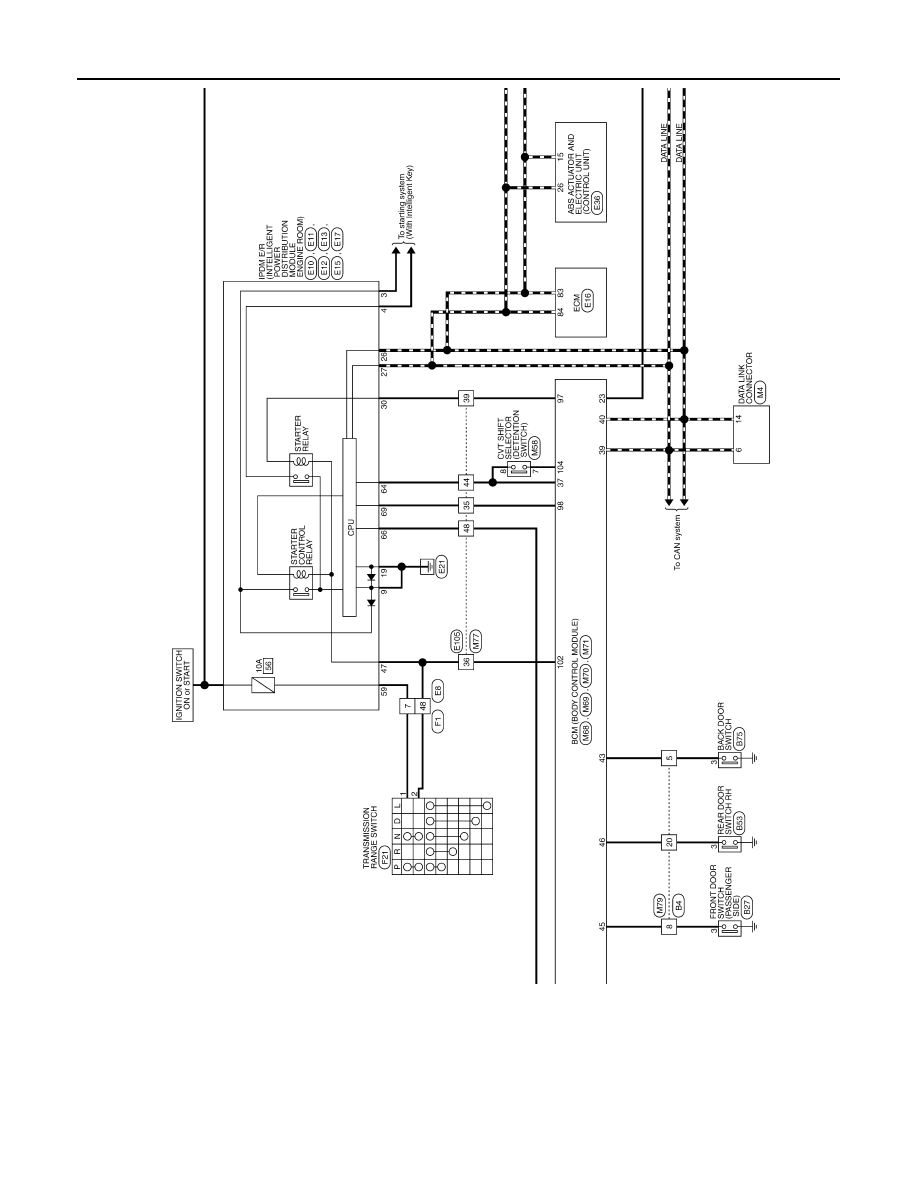

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION

JRKWC9128GB
