PG-58

< DTC/CIRCUIT DIAGNOSIS >

[POWER SUPPLY & GROUND CIRCUIT]

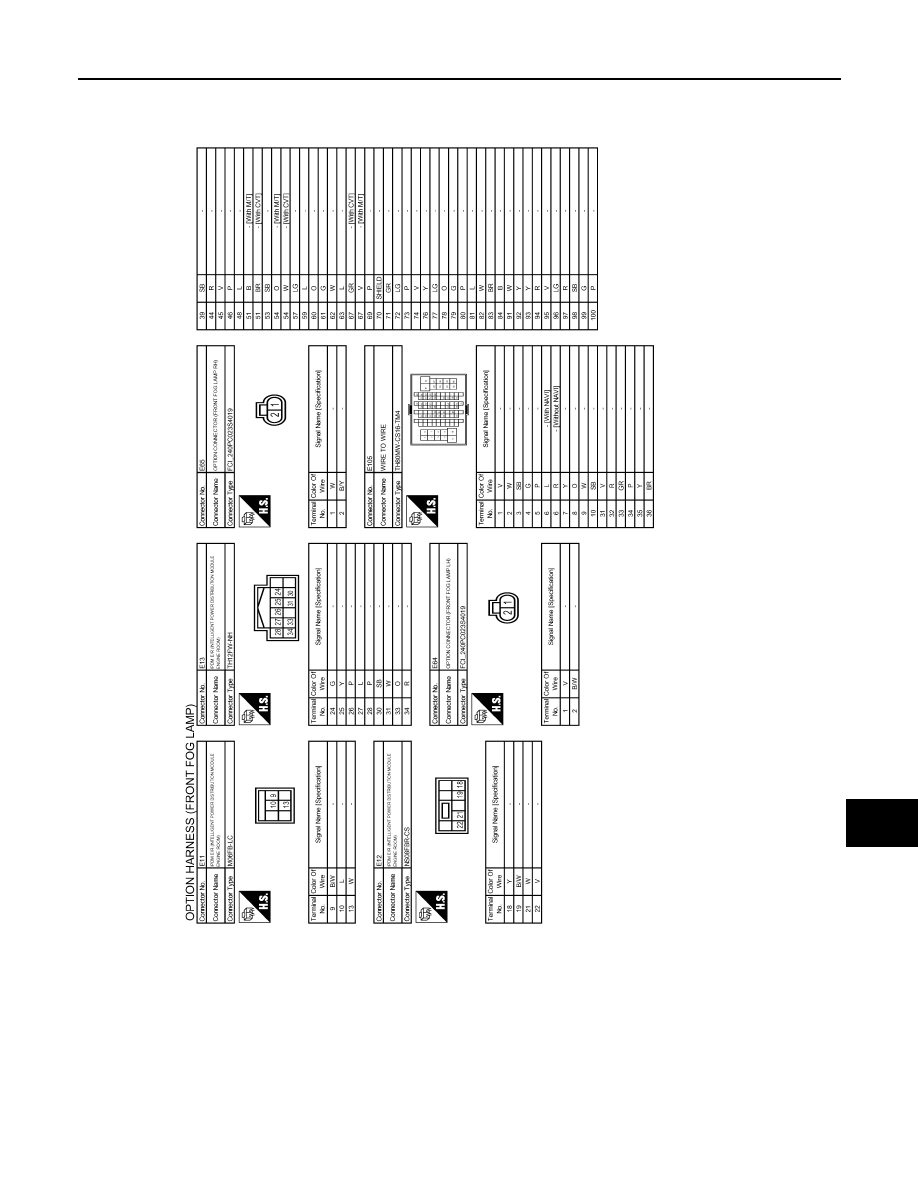

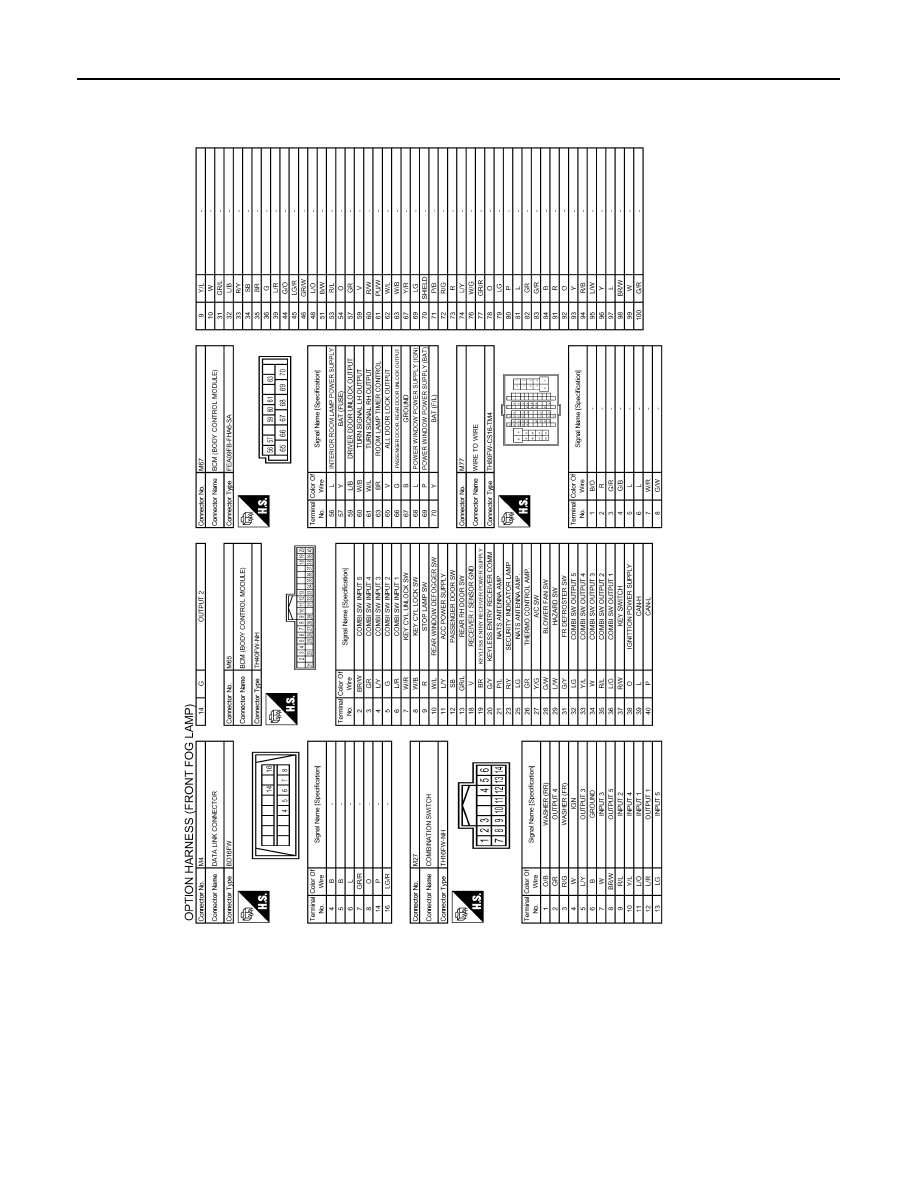

OPTION HARNESS

JRMWE7845GB

PG

HARNESS LAYOUT

PG-59

< DTC/CIRCUIT DIAGNOSIS >

[POWER SUPPLY & GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

HARNESS LAYOUT

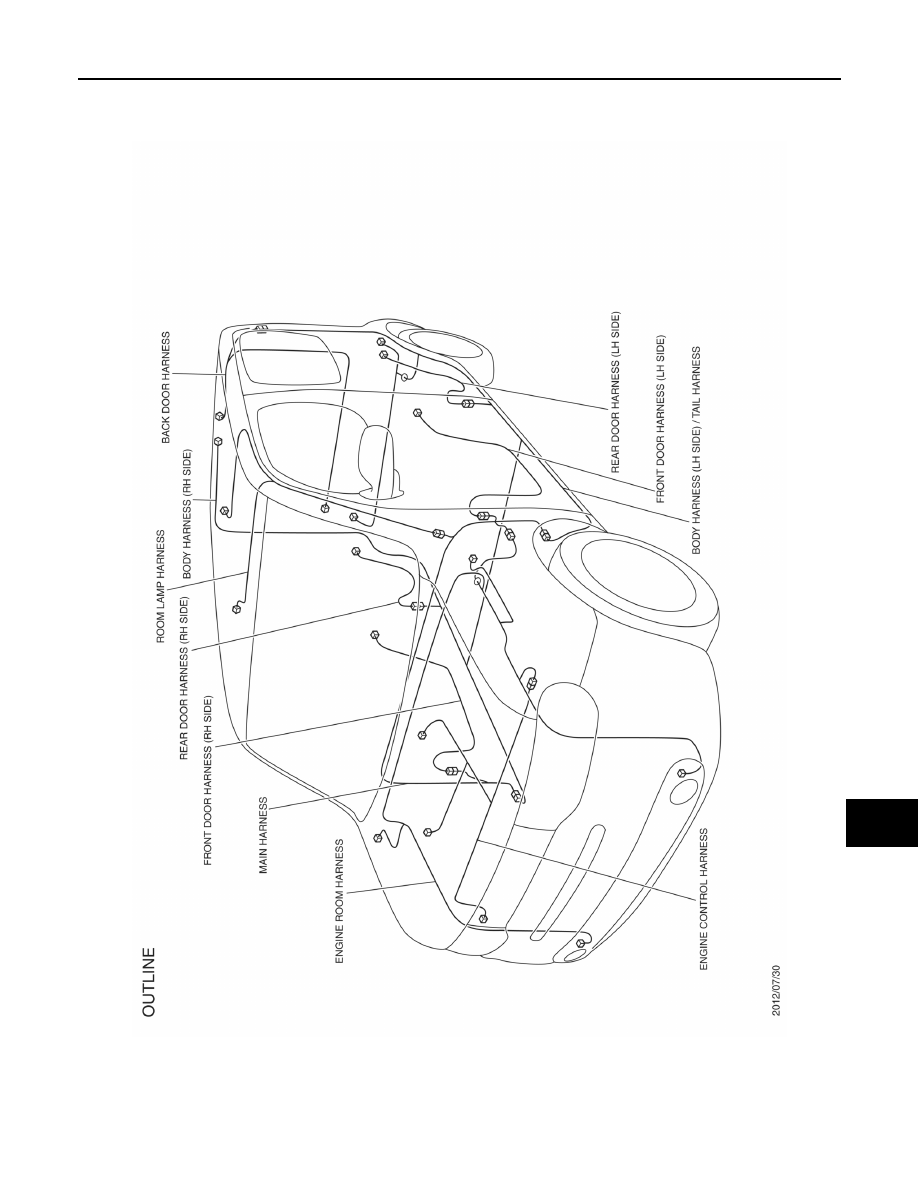

Outline

INFOID:0000000009945585

JRMIC2011GB

PG-60

< DTC/CIRCUIT DIAGNOSIS >

[POWER SUPPLY & GROUND CIRCUIT]

HARNESS LAYOUT

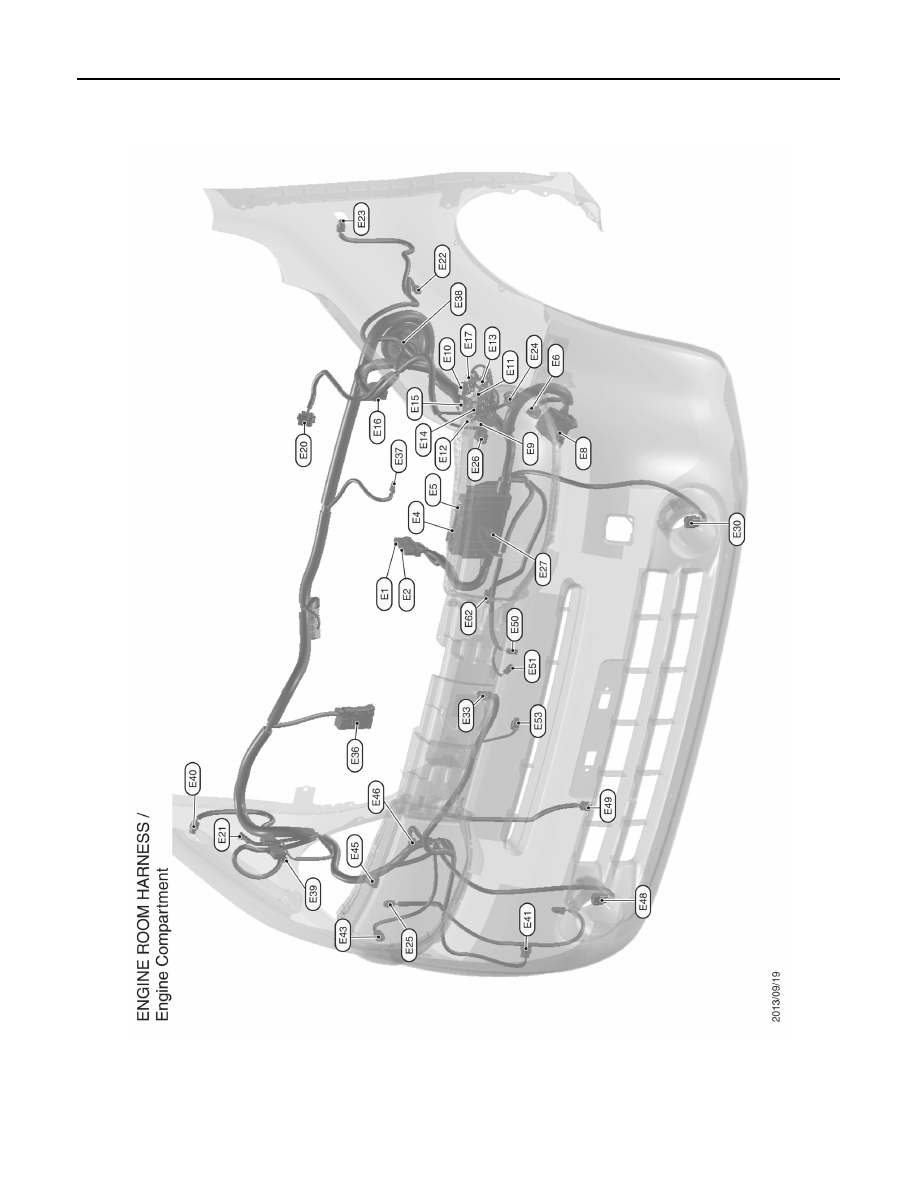

Engine Room Harness

INFOID:0000000009945586

ENGINE COMPARTMENT

JRMIC3911GB
