Nissan Cube. Manual - part 742

PG

POWER SUPPLY ROUTING CIRCUIT

PG-49

< DTC/CIRCUIT DIAGNOSIS >

[POWER SUPPLY & GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

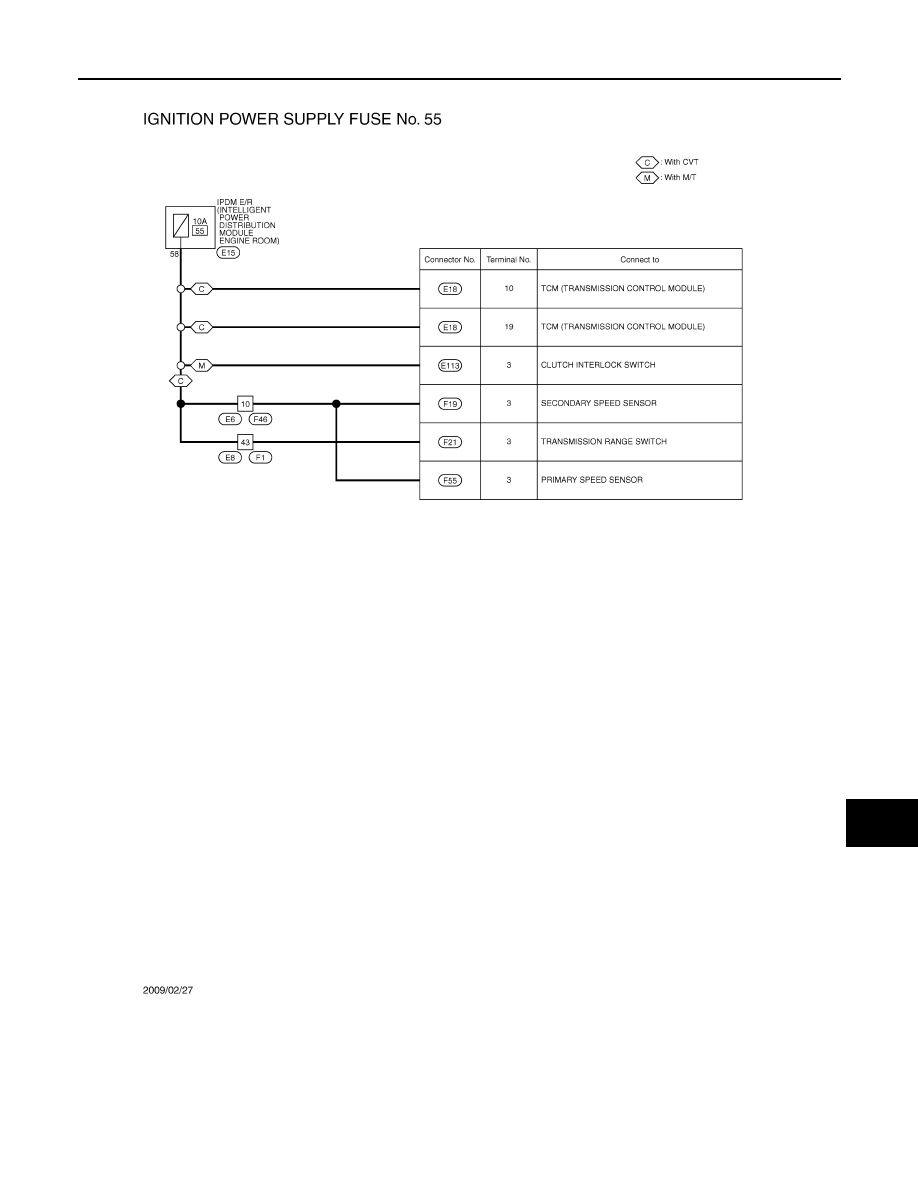

Wiring Diagram - IGNITION POWER SUPPLY FUSE No. 55 -

INFOID:0000000009945577

JCMWM4154GB

PG-50

< DTC/CIRCUIT DIAGNOSIS >

[POWER SUPPLY & GROUND CIRCUIT]

POWER SUPPLY ROUTING CIRCUIT

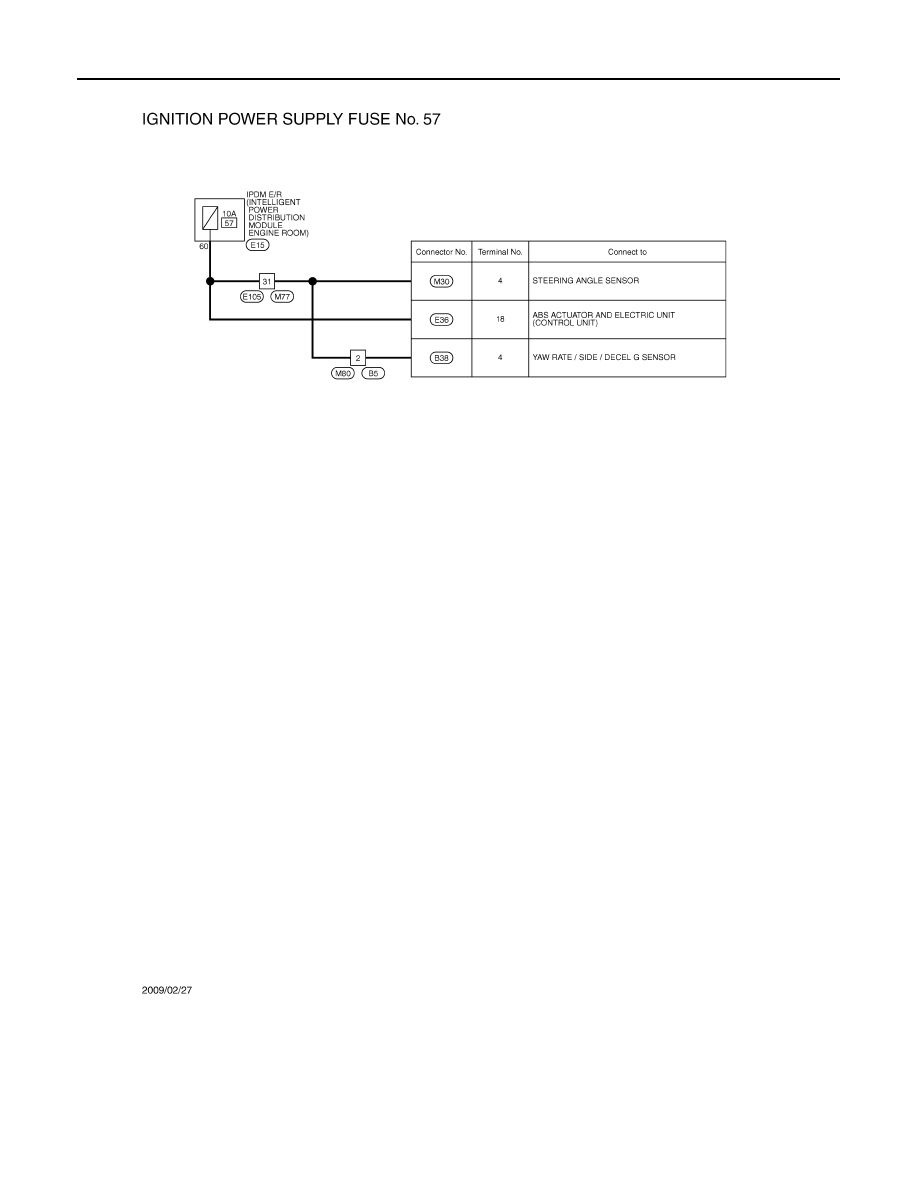

Wiring Diagram - IGNITION POWER SUPPLY FUSE No. 57 -

INFOID:0000000009945578

JCMWM4157GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-51

< DTC/CIRCUIT DIAGNOSIS >

[POWER SUPPLY & GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

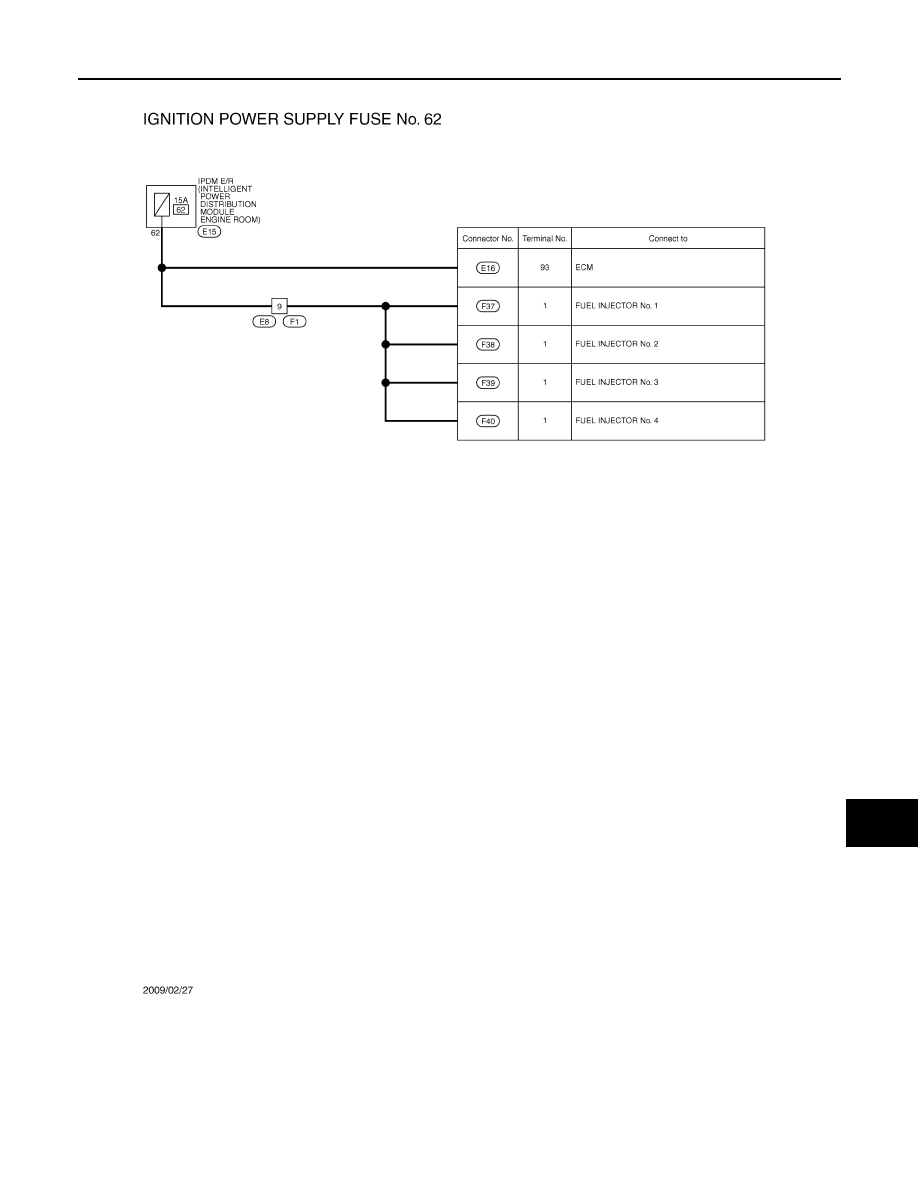

Wiring Diagram - IGNITION POWER SUPPLY FUSE No. 62 -

INFOID:0000000009945579

JCMWM4159GB

PG-52

< DTC/CIRCUIT DIAGNOSIS >

[POWER SUPPLY & GROUND CIRCUIT]

POWER SUPPLY ROUTING CIRCUIT

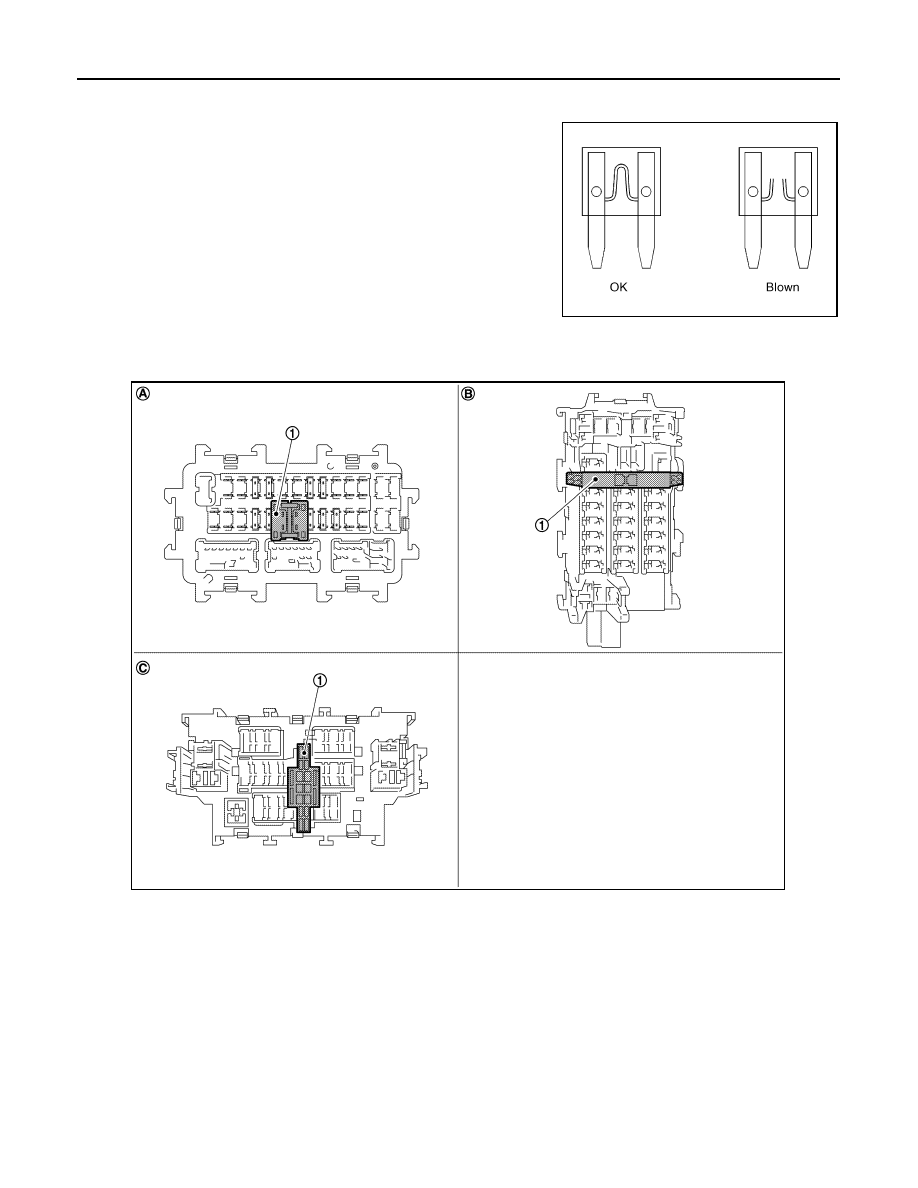

Fuse

INFOID:0000000009945580

• If fuse is blown, be sure to eliminate cause of malfunction before

installing new fuse.

• Use fuse of specified rating. Never use fuse of more than specified

rating.

• Do not partially install fuse; always insert it into fuse holder prop-

erly.

• Remove fuse for “ELECTRICAL PARTS (BAT)” if vehicle is not

used for a long period of time.

EXTENDED STORAGE FUSE SWITCH (IF EQUIPPED)

The following switch may be mounted on the fuse block (Junction Box) for transportation and storage.

• Remove the extended storage fuse switch when replacing the fuse of extended storage fuse switch.
• Remove the extended storage fuse switch if it causes the interference when the fuse or the other fuses is

checked.

How To Extended Storage Fuse Switch ON/OFF

CAUTION:

• Turn the ignition switch OFF when operating the extended storage fuse switch.
• Under normal conditions, keep the extended storage fuse switch in ON state. Never operate the

extended storage fuse switch except when necessary.

CEL083

1.

Extended storage fuse switch

A.

Type A

B.

Type B

C.

Type C

JSMIA0793ZZ
