Nissan Cube. Manual - part 721





PCS

BCM (BODY CONTROL MODULE)

PCS-109

< ECU DIAGNOSIS INFORMATION >

[POWER DISTRIBUTION SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

CONFIRM ID1

The key ID that the key slot receives is not recognized by the first key ID
registered to BCM.

Yet

The key ID that the key slot receives is recognized by the first key ID reg-
istered to BCM.

Done

NOT REGISTERED

BCM detects registered key ID, or BCM does not detect key ID.

ID OK

BCM detects non-registration key ID.

ID NG

TP 4

The ID of fourth key is not registered to BCM

Yet

The ID of fourth key is registered to BCM

Done

TP 3

The ID of third key is not registered to BCM

Yet

The ID of third key is registered to BCM

Done

TP 2

The ID of second key is not registered to BCM

Yet

The ID of second key is registered to BCM

Done

TP 1

The ID of first key is not registered to BCM

Yet

The ID of first key is registered to BCM

Done

AIR PRESS FL

Ignition switch ON (Only when the signal from the transmitter is received)

Air pressure of front

LH tire

AIR PRESS FR

Ignition switch ON (Only when the signal from the transmitter is received)

Air pressure of front

RH tire

AIR PRESS RR

Ignition switch ON (Only when the signal from the transmitter is received)

Air pressure of rear

RH tire

AIR PRESS RL

Ignition switch ON (Only when the signal from the transmitter is received)

Air pressure of rear

LH tire

ID REGST FL1

ID of front LH tire transmitter is registered

Done

ID of front LH tire transmitter is not registered

Yet

ID REGST FR1

ID of front RH tire transmitter is registered

Done

ID of front RH tire transmitter is not registered

Yet

ID REGST RR1

ID of rear RH tire transmitter is registered

Done

ID of rear RH tire transmitter is not registered

Yet

ID REGST RL1

ID of rear LH tire transmitter is registered

Done

ID of rear LH tire transmitter is not registered

Yet

WARNING LAMP

Tire pressure indicator OFF

Off

Tire pressure indicator ON

On

BUZZER

Tire pressure warning alarm is not sounding

Off

Tire pressure warning alarm is sounding

On

Monitor Item

Condition

Value/Status

PCS-110

< ECU DIAGNOSIS INFORMATION >

[POWER DISTRIBUTION SYSTEM]

BCM (BODY CONTROL MODULE)

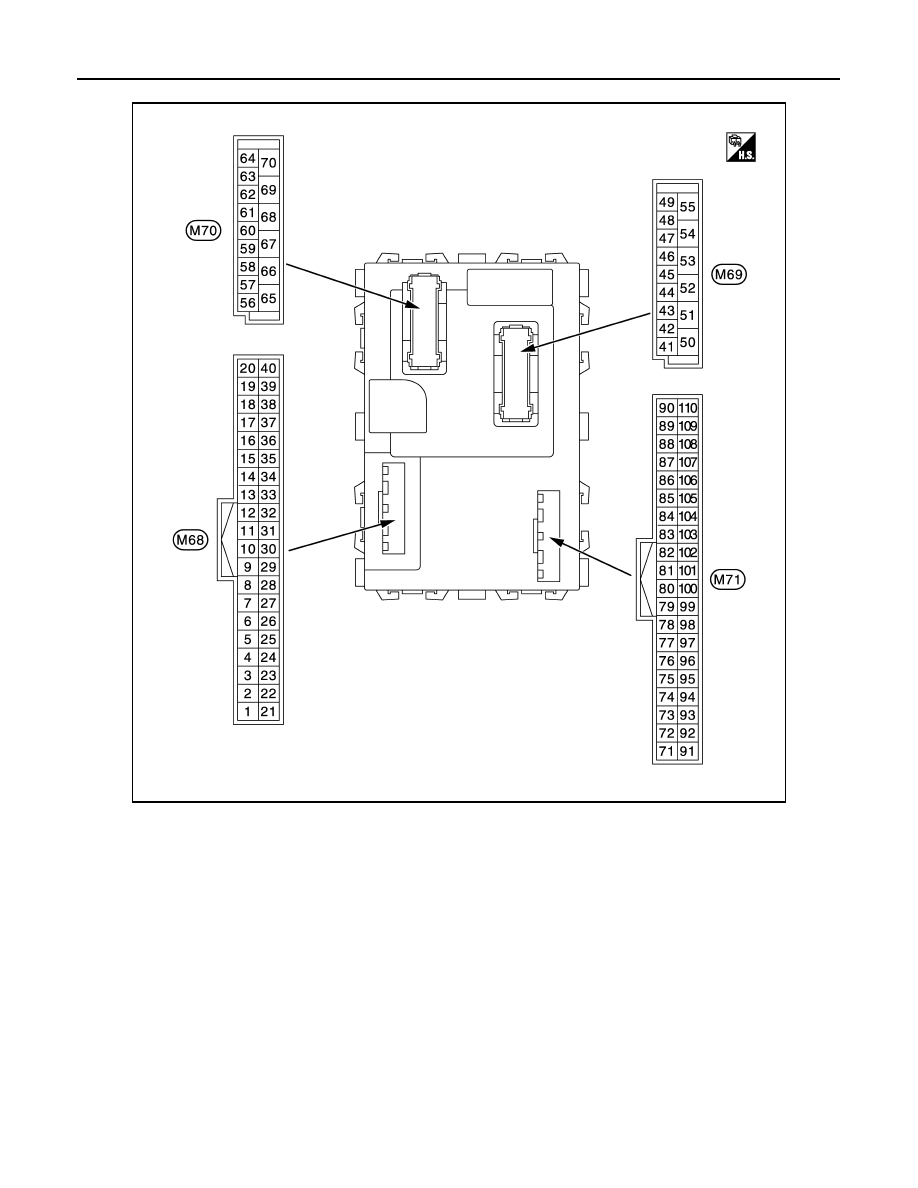

TERMINAL LAYOUT

NOTE:

Connector color

• M68, M70: Black
• M69, M71: White

PHYSICAL VALUES

JPMIA1438ZZ

PCS

BCM (BODY CONTROL MODULE)

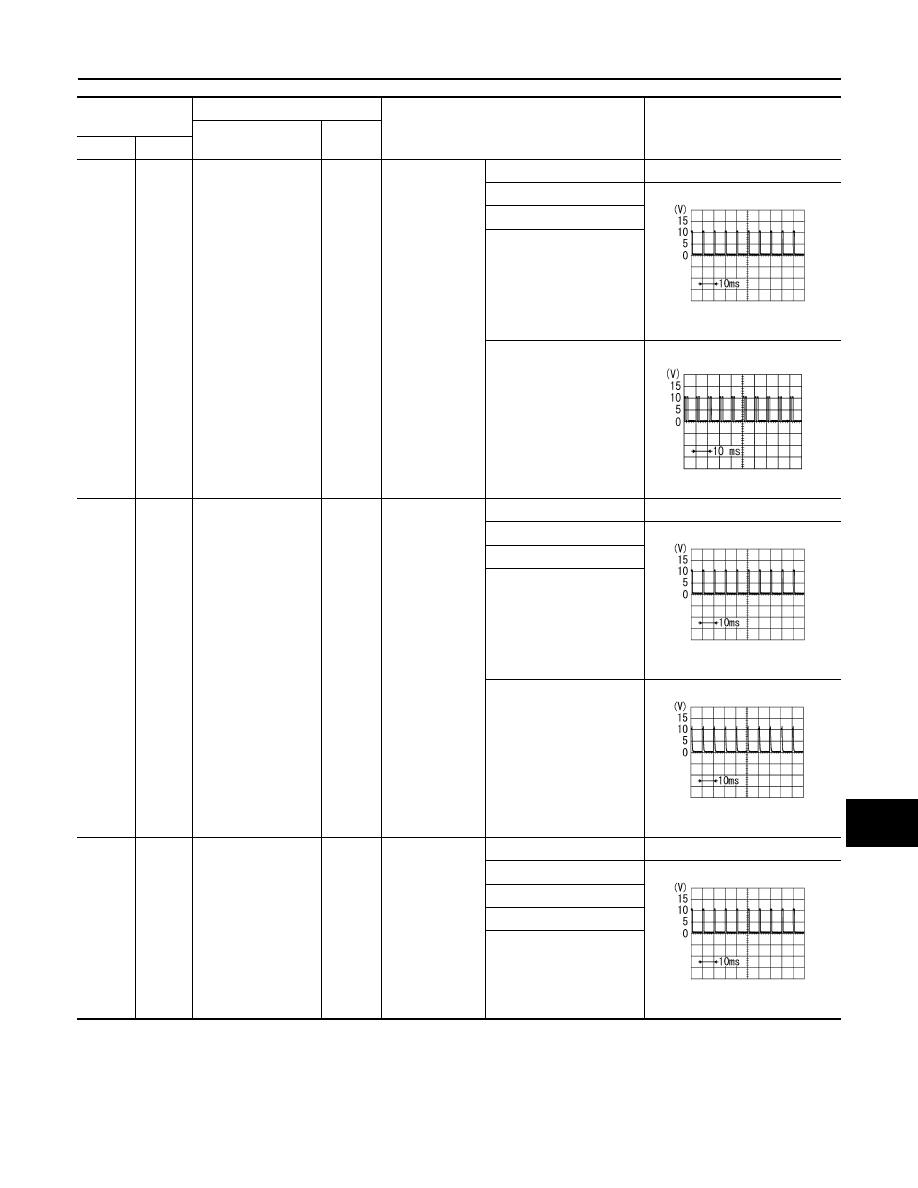

PCS-111

< ECU DIAGNOSIS INFORMATION >

[POWER DISTRIBUTION SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

2

(BR/W)

Ground

Combination switch
INPUT 5

Input

Combination
switch
(Wiper intermit-
tent dial 4)

All switch OFF

0 V

Turn signal switch RH

1.0 V

Lighting switch HI

Lighting switch 1ST

Lighting switch 2ND

2.0 V

3

(GR)

Ground

Combination switch
INPUT 4

Input

Combination
switch
(Wiper intermit-
tent dial 4)

All switch OFF

0 V

Turn signal switch LH

1.0 V

Lighting switch PASS

Lighting switch 2ND

Front fog lamp switch ON

0.8 V

4

(L/Y)

Ground

Combination switch
INPUT 3

Input

Combination
switch
(Wiper intermit-
tent dial 4)

All switch OFF

0 V

Front wiper switch LO

1.0 V

Front wiper switch MIST

Front wiper switch INT

Lighting switch AUTO

PKIB4958J

JPMIA0342JP

PKIB4958J

PKIB4956J

PKIB4958J

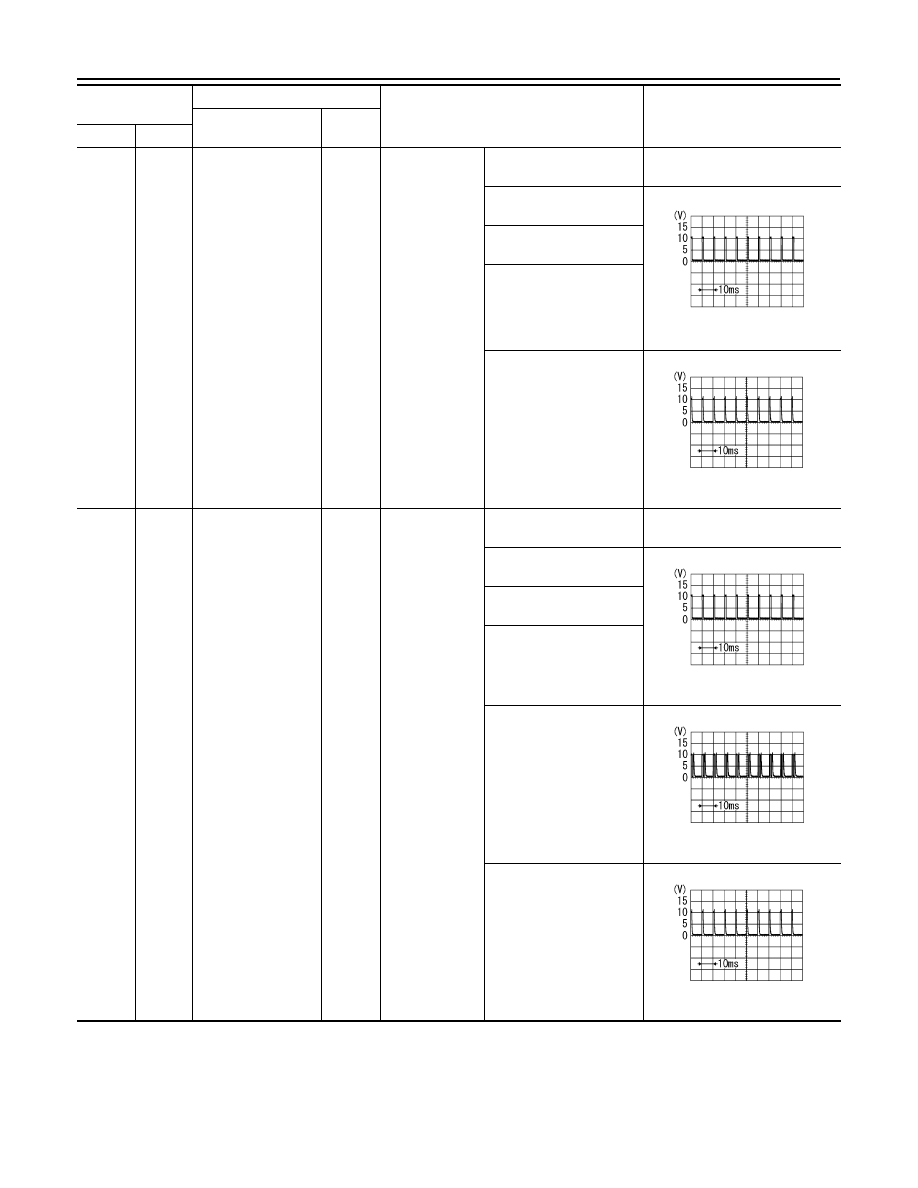

PCS-112

< ECU DIAGNOSIS INFORMATION >

[POWER DISTRIBUTION SYSTEM]

BCM (BODY CONTROL MODULE)

5

(G)

Ground

Combination switch
INPUT 2

Input

Combination
switch

All switch OFF
(Wiper intermittent dial 4)

0 V

Front washer switch
(Wiper intermittent dial 4)

1.0 V

Rear washer ON
(Wiper intermittent dial 4)

Any of the condition below
with all switch OFF
• Wiper intermittent dial 1
• Wiper intermittent dial 5
• Wiper intermittent dial 6

Rear wiper switch ON
(Wiper intermittent dial 4)

0.8 V

6

(L/R)

Ground

Combination switch
INPUT 1

Input

Combination
switch

All switch OFF
(Wiper intermittent dial 4)

0 V

Front wiper switch HI
(Wiper intermittent dial 4)

1.0 V

Rear wiper switch INT
(Wiper intermittent dial 4)

Wiper intermittent dial 3
(All switch OFF)

Any of the condition below
with all switch OFF
• Wiper intermittent dial 1
• Wiper intermittent dial 2

1.9 V

Any of the condition below
with all switch OFF
• Wiper intermittent dial 6
• Wiper intermittent dial 7

0.8 V

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

PKIB4958J

PKIB4956J

PKIB4958J

PKIB4952J

PKIB4956J
