POWER DISTRIBUTION SYSTEM

PCS-69

< SYSTEM DESCRIPTION >

[POWER DISTRIBUTION SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

• Operating with Intelligent Key on door lock
Press push-button ignition switch and ignition switch will change to ACC position from OFF position.

POWER SUPPLY POSITION CHANGE TABLE BY PUSH-BUTTON IGNITION SWITCH OPERA-
TION

The power supply position changing operation can be performed with the following operations.
NOTE:
• When an Intelligent Key is within the detection area of inside key antenna and when Intelligent Key backside

is contacted to push-button ignition switch, it is equivalent to the operations below.

• When starting the engine, the BCM monitors under the engine start conditions,
- Brake pedal operating condition
- Selector lever position
- Vehicle speed

Vehicle speed: less than 4 km/h (2.5 MPH)

Vehicle speed: 4 km/h (2.5 MPH) or more

Emergency stop operation

• Press and hold the push-button ignition switch for 2 seconds or more.

• Press the push-button ignition switch 3 times or more within 1.5 seconds.

Power supply position

Engine start/stop condition

Push-button ignition switch

operation frequency

CVT models

M/T models

Selector lever position

Brake pedal operation

condition

Clutch pedal operation

condition

OFF

 ACC

Not depressed

Not depressed

1

OFF

 ACC

 ON

Not depressed

Not depressed

2

OFF

 ACC

 ON

 OFF

Not depressed

Not depressed

3

OFF

 START

ACC

 START

ON

 START

P or N position

Depressed

Depressed

1

Engine is running

 OFF

1

Power supply position

Engine start/stop condition

Push-button ignition switch

operation frequency

CVT models

M/T models

Selector lever position

Brake pedal operation

condition

Clutch pedal opera-

tion condition

Engine is running

 ACC

Emergency stop operation

Engine stall return operation
while driving

N position

Not depressed

Depressed

1

PCS-70

< SYSTEM DESCRIPTION >

[POWER DISTRIBUTION SYSTEM]

POWER DISTRIBUTION SYSTEM

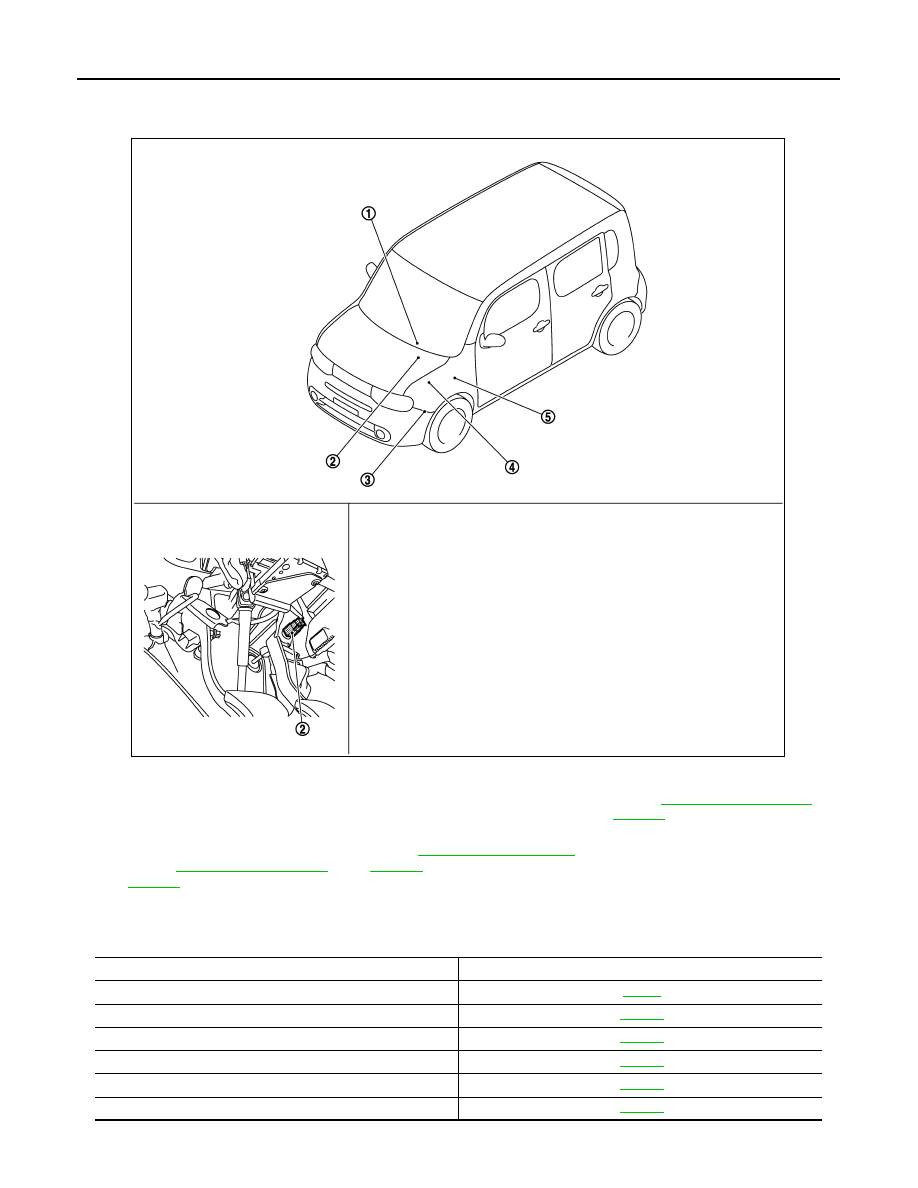

Component Parts Location

INFOID:0000000009945046

Component Description

INFOID:0000000009945047

1.

Push-button ignition switch M101

2.

Stop lamp switch E115

3.

Transmission range switch F21
Refer to

TM-71, "Component Parts

Location"

4.

IPDM E/R E10, E11, E12, E13, E15,
E17
Refer to

PCS-5, "Component Parts

Location"

5.

BCM M68, M70, M71
Refer to

BCS-10, "Component Parts

Location"

JMMIA0044ZZ

BCM

Reference

IPDM E/R

PCS-6

Ignition relay (Built-in IPDM E/R)

PCS-83

Ignition relay

PCS-83

Accessory relay

PCS-77

Blower relay

PCS-80

Stop lamp switch

SEC-46

PCS

POWER DISTRIBUTION SYSTEM

PCS-71

< SYSTEM DESCRIPTION >

[POWER DISTRIBUTION SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

Transmission range switch

SEC-62

Push-button ignition switch

PCS-87

BCM

Reference

PCS-72

< SYSTEM DESCRIPTION >

[POWER DISTRIBUTION SYSTEM]

DIAGNOSIS SYSTEM (BCM)

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM

COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

INFOID:0000000010269401

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.

×

: Applicable item

FREEZE FRAME DATA (FFD)

The BCM records the following vehicle condition at the time a particular DTC is detected, and displays on
CONSULT.

Diagnosis mode

Function Description

Work Support

Changes the setting for each system function.

Self Diagnostic Result

Displays the diagnosis results judged by BCM.

CAN Diag Support Monitor

Monitors the reception status of CAN communication viewed from BCM.

Data Monitor

The BCM input/output signals are displayed.

Active Test

The signals used to activate each device are forcibly supplied from BCM.

Ecu Identification

The BCM part number is displayed.

Configuration

• Read and save the vehicle specification.
• Write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

Work Support

Data Monitor

Active Test

Door lock

DOOR LOCK

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps

FLASHER

×

×

×

Automatic air conditioner

AIR CONDITONER

×

• Intelligent Key system
• Engine start system

INTELLIGENT KEY

×

×

×

Combination switch

COMB SW

×

Body control system

BCM

×

NVIS - NATS

IMMU

×

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Back door

TRUNK

×

Vehicle security system

THEFT ALM

×

×

×

RAP system

RETAINED PWR

×

Signal buffer system

SIGNAL BUFFER

×

×

TPMS

TPMS (AIR PRESSURE MONITOR)

×

×

×
