Nissan Cube. Manual - part 686





MWI-68

< ECU DIAGNOSIS INFORMATION >

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

*1: CVT models
*2: M/T models

51

(R)

Ground

Headlamp LO (LH)

Output

Ignition
switch
ON

Lighting switch OFF

0 V

Lighting switch 2ND

Battery voltage

52

(P)

Ground

Headlamp LO (RH)

Output

Ignition
switch
ON

Lighting switch OFF

0 V

Lighting switch 2ND

Battery voltage

54

(GR)

Ground

Throttle control motor
relay power supply

Output

Ignition switch OFF
(More than a few seconds after turn-
ing ignition switch OFF)

0 V

• Ignition switch ON
• Ignition switch OFF

(For a few seconds after turning ig-
nition switch OFF)

Battery voltage

55

(P)

Ground

Fuel pump power sup-
ply

Output

Approximately 1 second or more than
after turning the ignition switch ON

0 V

• Approximately 1 second after turn-

ing the ignition switch ON

• Engine running

Battery voltage

56

(SB)

Ground

A/C relay power supply

Output

Engine
running

A/C switch OFF

0 V

A/C switch ON
(A/C compressor is oper-
ating)

Battery voltage

57

(G)

Ground

Throttle control motor
relay control

Output

Ignition switch ON

 OFF

0 - 1.0 V

Battery voltage

0 V

Ignition switch ON

0 - 1.0 V

58

(R)

Ground

Ignition relay power
supply

Output

Ignition switch OFF

0 V

Ignition switch ON

Battery voltage

59

(Y)

Ground

Ignition relay power
supply

Output

Ignition switch OFF

0 V

Ignition switch ON

Battery voltage

60

(V)

Ground

Ignition relay power
supply

Output

Ignition switch OFF

0 V

Ignition switch ON

Battery voltage

61

(W)

Ground

Ignition relay power
supply

Output

Ignition switch OFF

0 V

Ignition switch ON

Battery voltage

62

(L)

Ground

Ignition relay power
supply

Output

Ignition switch OFF

0 V

Ignition switch ON

Battery voltage

64

*1

(R)

Ground

CVT shift selector
(Detention switch)

Input

Ignition
switch
ON

Select lever P

0 V

Select lever in any posi-
tion other than P

Battery voltage

66

(L)

Ground

Push-button ignition
switch

Input

Press the push-button ignition switch

0 V

Release the push-button ignition
switch

Battery voltage

69

(O)

Ground

Ignition relay monitor

Input

Ignition switch OFF or ACC

Battery voltage

Ignition switch ON

0 V

Terminal NO.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

MWI

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

MWI-69

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

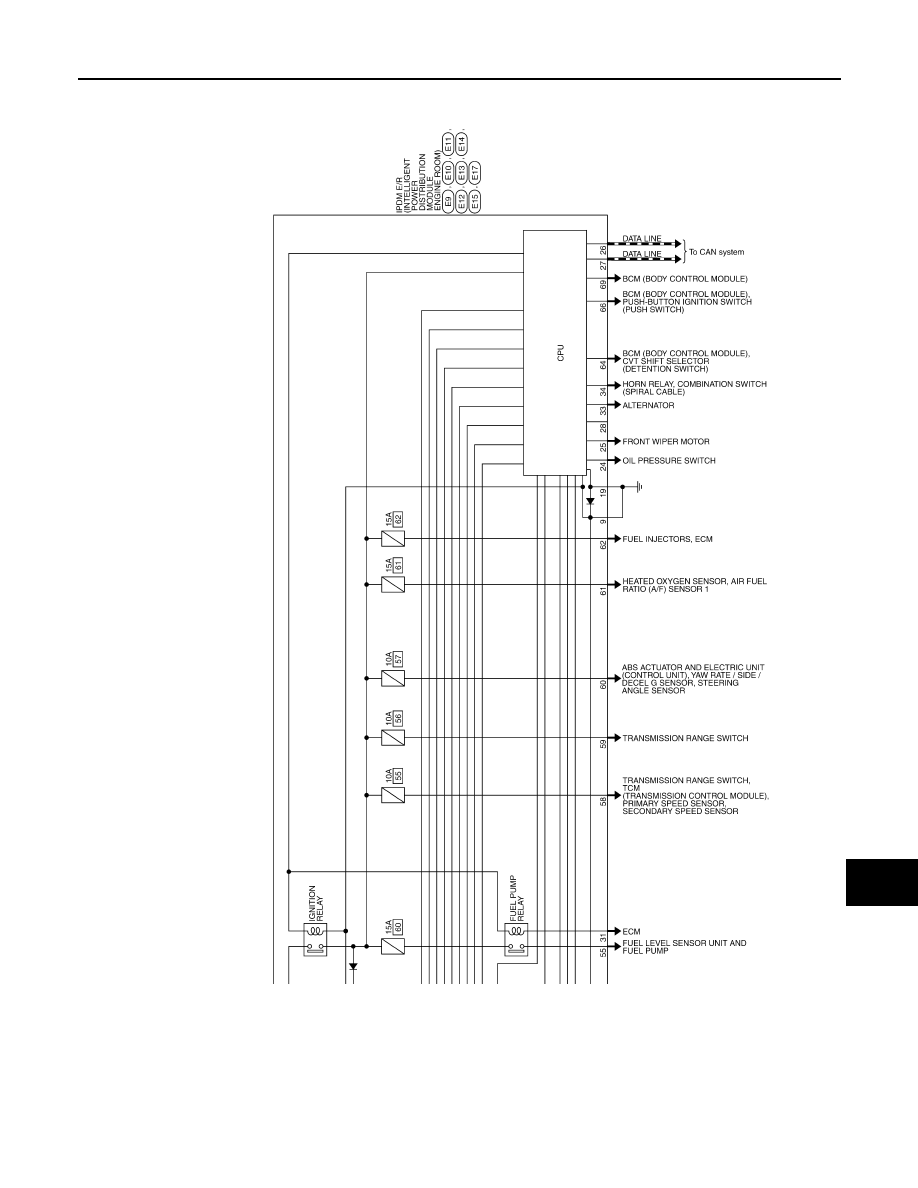

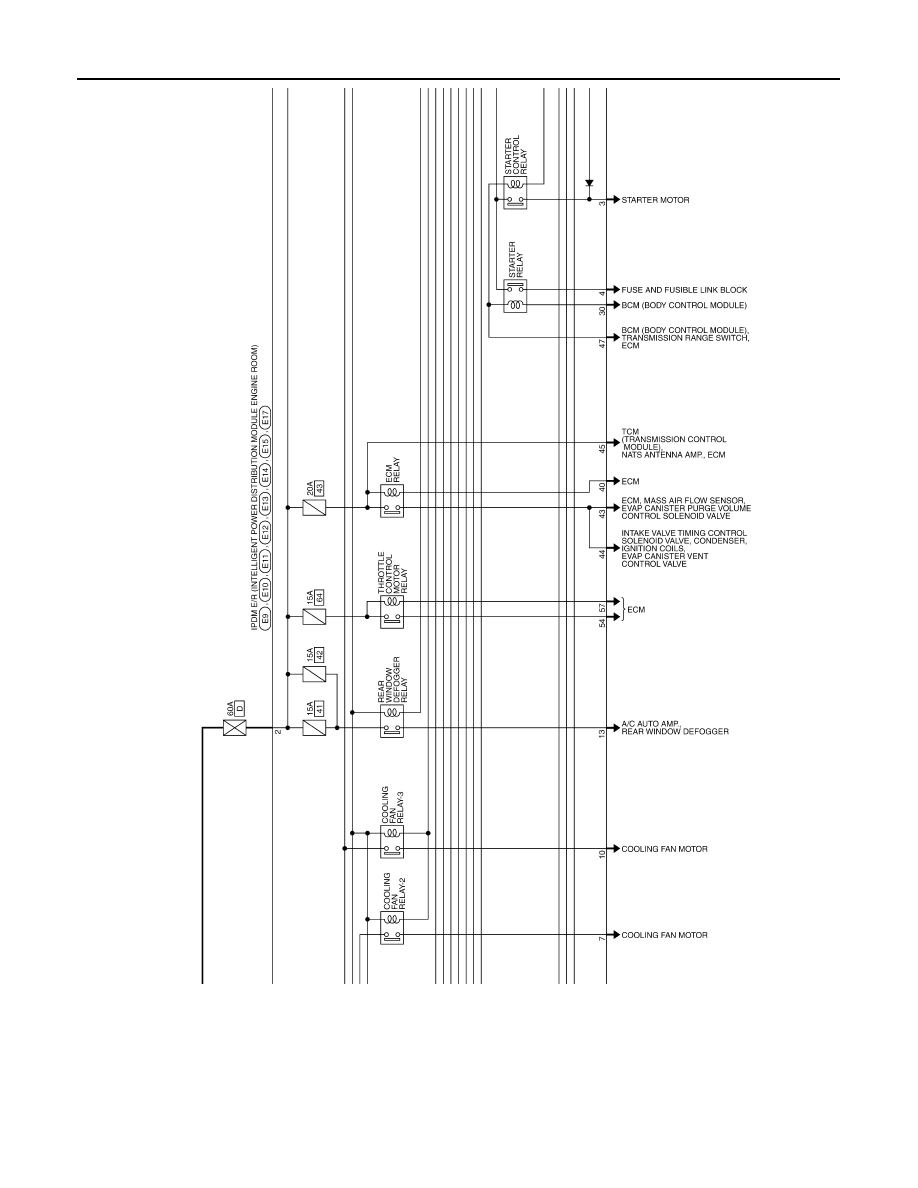

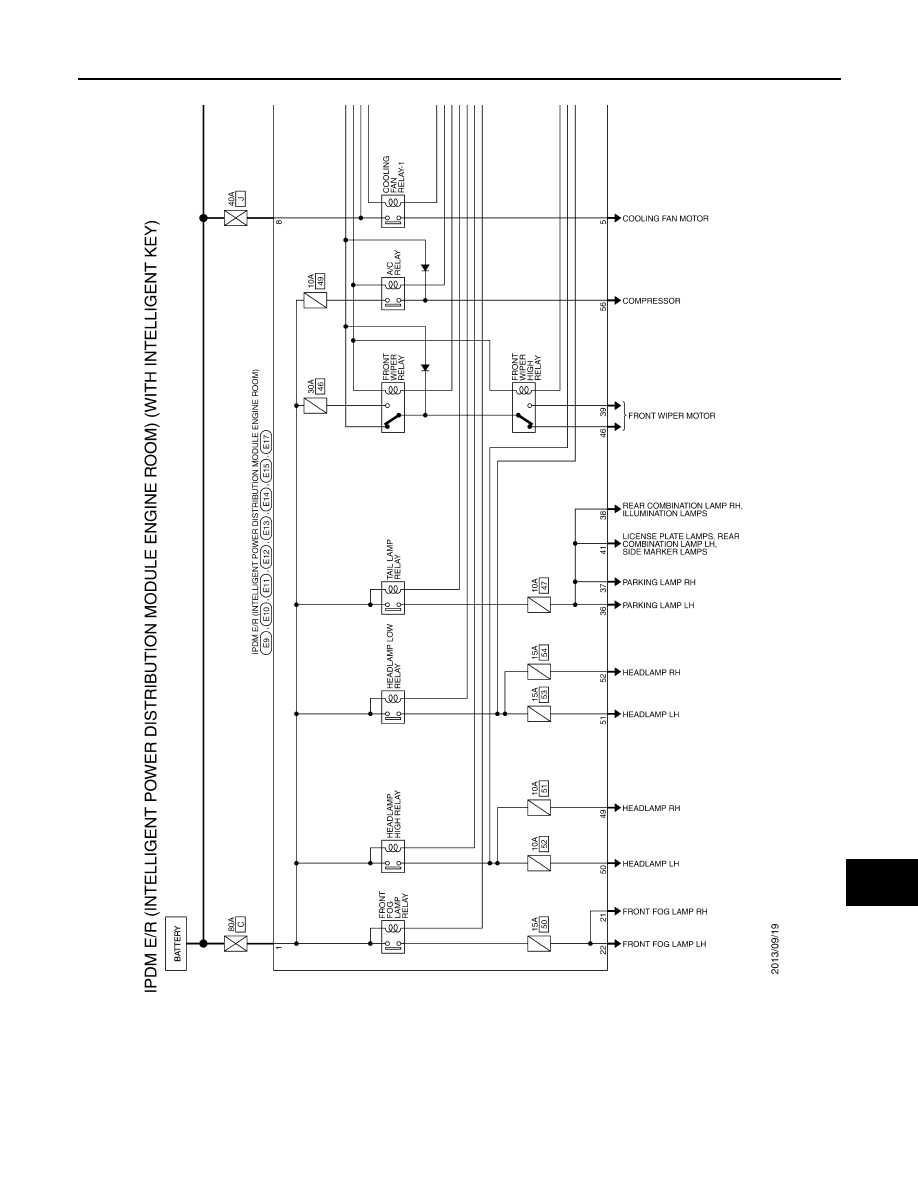

WITH INTELLIGENT KEY : Wiring Diagram — IPDM E/R —

INFOID:0000000010247956

JRMWE7720GB

MWI-70

< ECU DIAGNOSIS INFORMATION >

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

JRMWE7721GB

MWI

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

MWI-71

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

JRMWE7722GB
