MWI-52

< ECU DIAGNOSIS INFORMATION >

COMBINATION METER

19

(PU/W)

Ground

Ambient sensor signal

Input

Ignition
switch
ON

Changes depending to am-
bient temperature.

20

(R/W)

Ground

Ambient sensor ground

—

Ignition
switch
ON

—

0  V

21

(B)

Ground

Ground

—

Ignition
switch
ON

—

0  V

22

(B)

Ground

Ground

—

Ignition
switch
ON

—

0  V

23

(B)

Ground

Ground

—

Ignition
switch
ON

—

0  V

24

(PU)

Ground

Fuel level sensor signal
ground

—

Ignition
switch
ON

—

0  V

25

(B)

Ground

VDC ground

—

Ignition
switch
ON

—

0  V

27

(LG/R)

Ground

Battery power supply

Input

Ignition
switch
OFF

—

Battery voltage

28

(GR)

Ground

Ignition signal

Input

Ignition
switch
ON

—

Battery voltage

29

(BR)

Ground

Passenger seat belt warn-
ing signal

Input

Ignition
switch
ON

• When getting in the pas-

senger seat.

• When passenger seat

belt is fastened.

12 V

• When getting in the pas-

senger seat.

• When passenger seat

belt is unfastened.

0 V

31

(R)

Ground

A/C auto amp. connection
recognition signal

Input

Ignition
switch
ON

—

5  V

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

–

Signal name

Input/

Output

JSNIA0014GB

MWI

COMBINATION METER

MWI-53

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

• *1: With NAVI
• *2: Without NAVI

35

(BR)

Ground

Engine coolant tempera-
ture signal

Output

Ignition
switch
ON

Engine idling [Approximate-
ly 20

°

C (68

°

F)]

Engine idling [Approximate-
ly 80

°

C (176

°

F)]

0 V

38

(GR)

Ground

Alternator signal

Input

Ignition
switch
ON

Charge warning lamp ON

0 V

Charge warning lamp OFF

12 V

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

–

Signal name

Input/

Output

PKID0590E

SKIB3651J

MWI-54

< ECU DIAGNOSIS INFORMATION >

COMBINATION METER

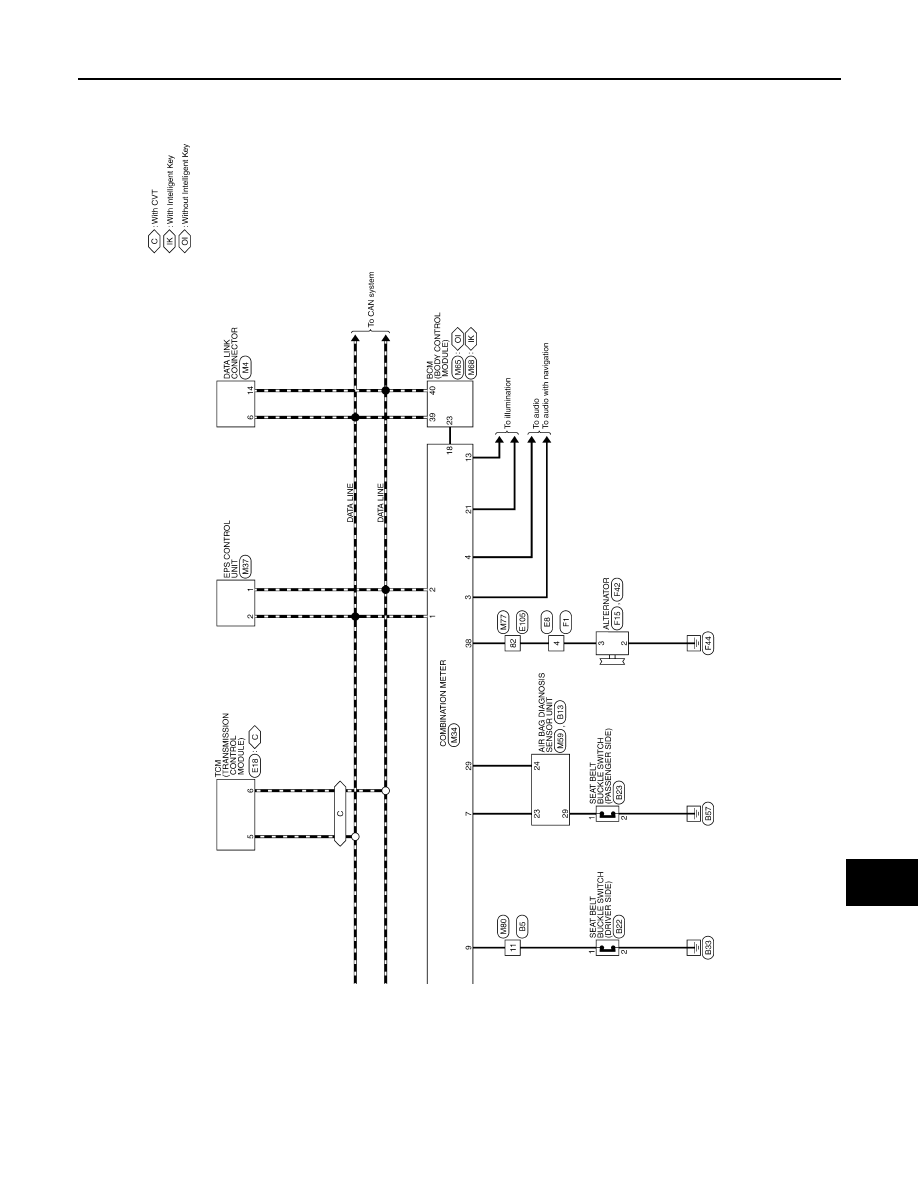

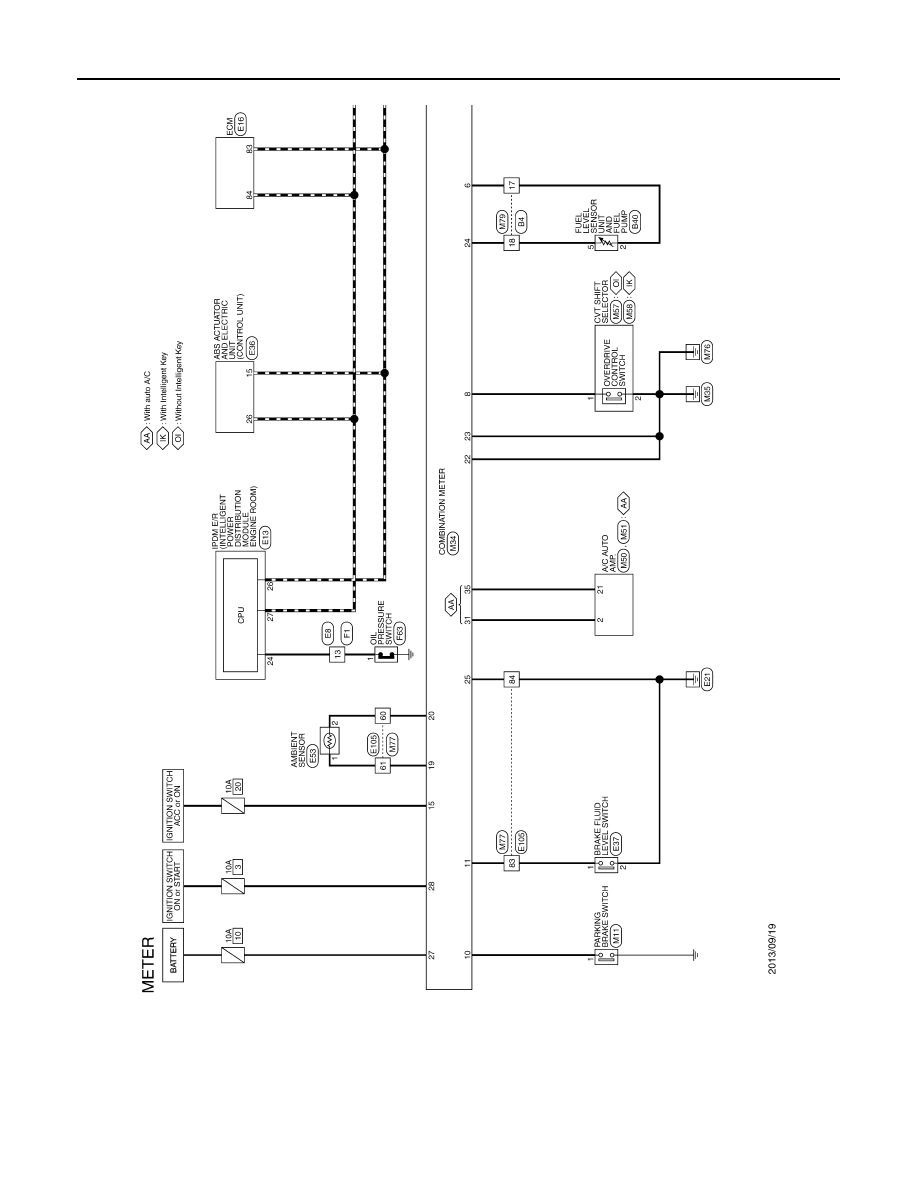

Wiring Diagram - METER -

INFOID:0000000009945724

JRNWD0572GB

MWI

COMBINATION METER

MWI-55

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

JRNWD0573GB
