DIAGNOSIS SYSTEM (BCM) (WITH INTELLIGENT KEY SYSTEM)

ACTIVE TEST

BATTERY SAVER

BATTERY SAVER : CONSULT Function (BCM - BATTERY SAVER)

INFOID:0000000009950926

WORK SUPPORT

REQ SW-RL
[On/Off]

NOTE:
This item is displayed, but cannot be monitored

PUSH SW
[On/Off]

Indicates [On/Off] condition of push-button ignition switch

UNLK SEN -DR
[On/Off]

Indicates [On/Off] condition of driver door UNLOCK status

DOOR SW-DR
[On/Off]

Indicated [On/Off] condition of front door switch (driver side)

DOOR SW-AS
[On/Off]

Indicated [On/Off] condition of front door switch (passenger side)

DOOR SW-RR
[On/Off]

Indicated [On/Off] condition of rear door switch RH

DOOR SW- RL
[On/Off]

Indicated [On/Off] condition of rear door switch LH

DOOR SW- BK
[On/Off]

Indicated [On/Off] condition of back door switch

CDL LOCK SW
[On/Off]

Indicated [On/Off] condition of lock signal from door lock unlock switch

CDL UNLOCK SW
[On/Off]

Indicated [On/Off] condition of unlock signal from door lock unlock switch

KEY CYL LK-SW
[On/Off]

Indicated [On/Off] condition of lock signal from door key cylinder

KEY CYL UN-SW
[On/Off]

Indicated [On/Off] condition of unlock signal from door key cylinder

TRNK/HAT MNTR
[On/Off]

NOTE:
This item is displayed, but cannot be monitored

RKE-LOCK
[On/Off]

Indicates [On/Off] condition of LOCK signal from Intelligent Key

RKE-UNLOCK
[On/Off]

Indicates [On/Off] condition of UNLOCK signal from Intelligent Key

Monitor item

[Unit]

Description

Test item

Operation

Description

INT LAMP

On

Outputs the interior room lamp control signal.

Off

Stops the interior room lamp control signal.

Service item

Setting item

Setting

ROOM LAMP TIMER SET

MODE 1

30 min.

Sets the interior room lamp battery saver timer operating
time.
NOTICE:
The factor setting is 10 minutes. The setting cannot be re-
turned to the factory setting, when the setting is changed
once.

MODE 2

60 min.

MODE 3

15 min.

BATTERY SAVER SET

On*

With the exterior lamp battery saver function

Off

Without the exterior lamp battery saver function

DIAGNOSIS SYSTEM (BCM) (WITH INTELLIGENT KEY SYSTEM)

INL-17

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

*:Factory setting

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

ACTIVE TEST

ROOM LAMP BAT SAV SET

On*

With the interior room lamp battery saver function

Off

Without the interior room lamp battery saver function

Service item

Setting item

Setting

Monitor item

[Unit]

Description

REQ SW-DR
[On/Off]

Indicated [On/Off] condition of door request switch (driver side)

REQ SW-AS
[On/Off]

Indicated [On/Off] condition of door request switch (passenger side)

REQ SW-RR
[On/Off]

NOTE:
This item is displayed, but cannot be monitored

REQ SW-RL
[On/Off]

NOTE:
This item is displayed, but cannot be monitored

PUSH SW
[On/Off]

Indicates [On/Off] condition of push-button ignition switch

UNLK SEN -DR
[On/Off]

Indicates [On/Off] condition of driver door UNLOCK status

DOOR SW-DR
[On/Off]

Indicated [On/Off] condition of front door switch (driver side)

DOOR SW-AS
[On/Off]

Indicated [On/Off] condition of front door switch (passenger side)

DOOR SW-RR
[On/Off]

Indicated [On/Off] condition of rear door switch RH

DOOR SW- RL
[On/Off]

Indicated [On/Off] condition of rear door switch LH

DOOR SW- BK
[On/Off]

Indicated [On/Off] condition of back door switch

CDL LOCK SW
[On/Off]

Indicated [On/Off] condition of lock signal from door lock unlock switch

CDL UNLOCK SW
[On/Off]

Indicated [On/Off] condition of unlock signal from door lock unlock switch

KEY CYL LK-SW
[On/Off]

Indicated [On/Off] condition of lock signal from door key cylinder

KEY CYL UN-SW
[On/Off]

Indicated [On/Off] condition of unlock signal from door key cylinder

TRNK/HAT MNTR
[On/Off]

NOTE:
This item is displayed, but cannot be monitored

RKE-LOCK
[On/Off]

Indicates [On/Off] condition of LOCK signal from Intelligent Key

RKE-UNLOCK
[On/Off]

Indicates [On/Off] condition of UNLOCK signal from Intelligent Key

Test item

Operation

Description

BATTERY SAVER

Off

Cuts the interior room lamp power supply.

On

Outputs the interior room lamp power supply.

INL-18

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM) (WITHOUT INTELLIGENT KEY SYSTEM)

DIAGNOSIS SYSTEM (BCM) (WITHOUT INTELLIGENT KEY SYSTEM)

COMMON ITEM

COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

INFOID:0000000010262816

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.

×

: Applicable item

INT LAMP

Diagnosis mode

Function Description

Work Support

Changes the setting for each system function.

Self Diagnostic Result

Displays the diagnosis results judged by BCM.

CAN Diag Support Monitor

Monitors the reception status of CAN communication viewed from BCM.

Data Monitor

The BCM input/output signals are displayed.

Active Test

The signals used to activate each device are forcibly supplied from BCM.

Ecu Identification

The BCM part number is displayed.

Configuration

• Read and save the vehicle specification.
• Write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

Work Support

Data Monitor

Active Test

Door lock

DOOR LOCK

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp control

INT LAMP

×

×

×

Remote keyless entry system

MULTI REMOTE ENT

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps

FLASHER

×

×

Manual air conditioner

AIR CONDITONER

×

×

Combination switch

COMB SW

×

Body control system

BCM

×

NVIS - NATS

IMMU

×

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Back door

TRUNK

×

Vehicle security system

THEFT ALM

×

×

×

RAP system

RETAINED PWR

×

×

Signal buffer system

SIGNAL BUFFER

×

×

TPMS

TPMS (AIR PRESSURE MONITOR)

×

×

×

Panic alarm system

PANIC ALARM

×

DIAGNOSIS SYSTEM (BCM) (WITHOUT INTELLIGENT KEY SYSTEM)

INL-19

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

INT LAMP : CONSULT Function (BCM - INT LAMP)

INFOID:0000000009950928

WORK SUPPORT

*: Factory setting

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

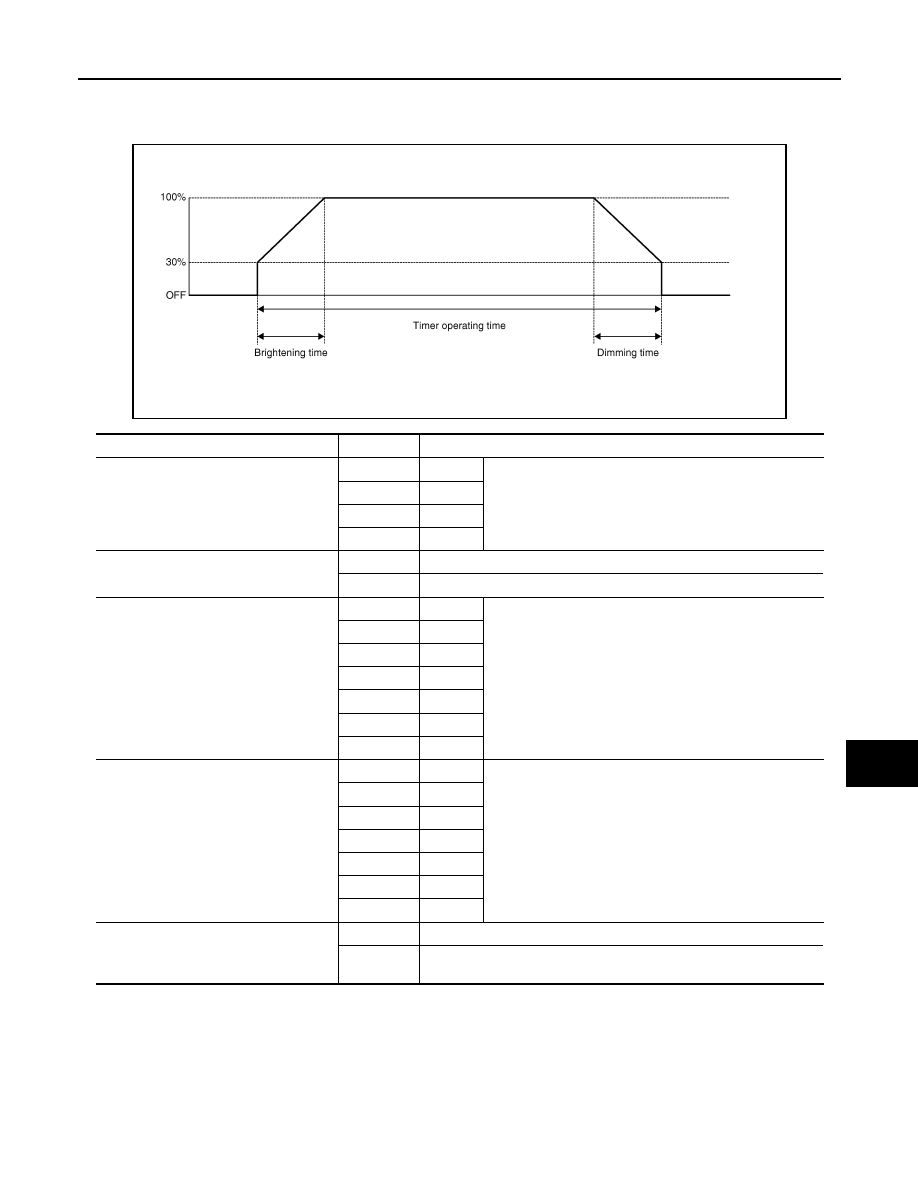

JPLIA0093GB

Service item

Setting item

Setting

ROOM LAMP TIMER SET

MODE 1

0 sec.

Sets the interior room lamp ON time. (Timer operating time)

MODE 2

7.5 sec.

MODE 3*

15 sec.

MODE 4

30 sec.

SET I/L D-UNLCK INTCON

On*

With the interior room lamp timer function

Off

Without the interior room lamp timer function

ROOM LAMP ON TIME SET

MODE 1

0.5 sec.

Sets the interior room lamp gradual brightening time.

MODE 2*

1 sec.

MODE 3

2 sec.

MODE 4

3 sec.

MODE 5

4 sec.

MODE 6

5 sec.

MODE 7

0 sec.

ROOM LAMP OFF TIME SET

MODE 1

0.5 sec.

Sets the interior room lamp gradual dimming time.

MODE 2*

1 sec.

MODE 3

2 sec.

MODE 4

3 sec.

MODE 5

4 sec.

MODE 6

5 sec.

MODE 7

0 sec.

R LAMP TIMER LOGIC SET

MODE 1*

Interior room lamp timer activates with synchronizing all doors.

MODE 2

Interior room lamp timer activates with synchronizing the driver door
only.
