HAC-210

< REMOVAL AND INSTALLATION >

[MANUAL AIR CONDITIONING]

DOOR CABLE

DOOR CABLE

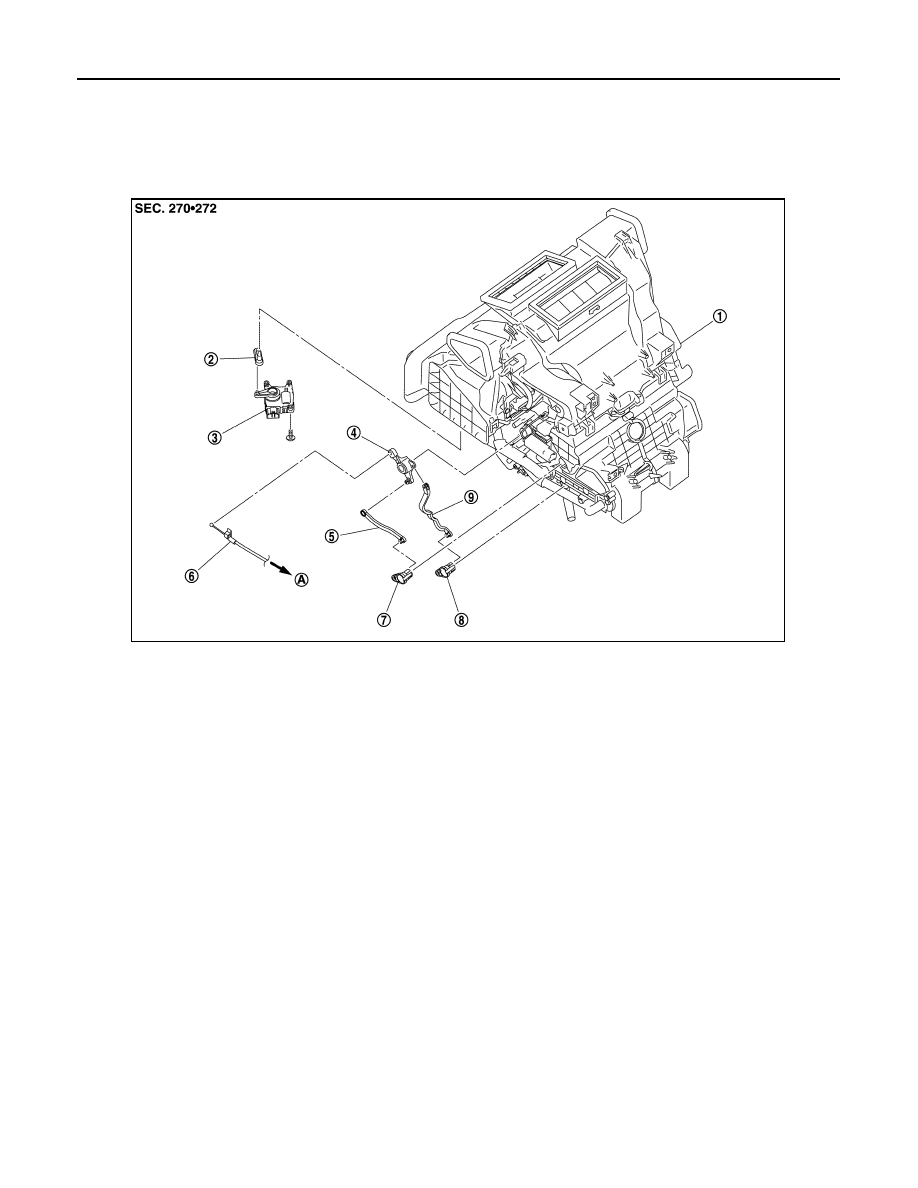

Exploded View

INFOID:0000000009951117

LEFT SIDE

RIGHT SIDE

1.

A/C unit assembly

2.

Intake door lever

3.

Intake door motor

4.

Air mix door link

5.

Upper air mix door rod

6.

Air mix door cable

7.

Upper air mix door lever

8.

Lower air mix door lever

9.

Lower air mix door rod

A.

To A/C control

JPIIA1724ZZ

DOOR CABLE

HAC-211

< REMOVAL AND INSTALLATION >

[MANUAL AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

MODE DOOR CABLE

MODE DOOR CABLE : Removal and Installation

INFOID:0000000009951118

1.

Disconnect mode door cable from A/C control. Refer to

HAC-203, "Exploded View"

.

2.

Remove glove box assembly. Refer to

IP-13, "Exploded View"

.

3.

Remove the clamp (A) in the direction shown by the arrow, and
the remove mode door cable (1) from the A/C unit assembly.

INSTALLATION

Installation is basically the reverse order of removal.

AIR MIX DOOR CABLE

AIR MIX DOOR CABLE : Removal and Installation

INFOID:0000000009951119

1.

Disconnect air mix door cable from A/C control. Refer to

HAC-203, "Exploded View"

.

1.

A/C unit assembly

2.

Main link

3.

Mode door cable

4.

Plate

5.

Mode door link

6.

Sub defroster door link

7.

Sub defroster door rod

8.

Sub defroster door lever

9.

Plate

10. Center ventilator and defroster door

link

11.

Center ventilator and defroster door
rod

12. Center ventilator and defroster door

lever

A.

To A/C control

JPIIA1723ZZ

JPIIA1738ZZ

HAC-212

< REMOVAL AND INSTALLATION >

[MANUAL AIR CONDITIONING]

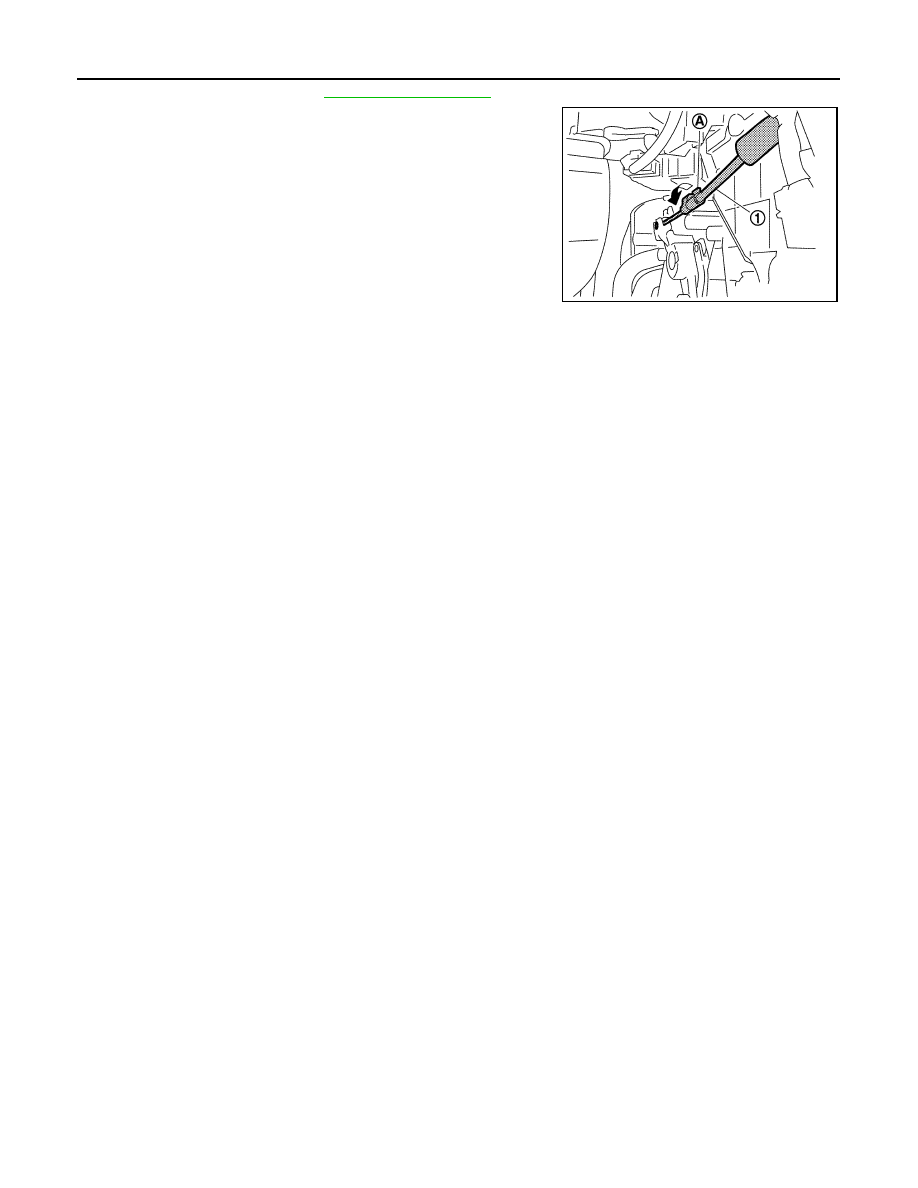

DOOR CABLE

2.

Remove foot duct LH. Refer to

VTL-7, "Exploded View"

.

3.

Remove the clamp (A) in the direction shown by the arrow, and
then remove air mix door cable (1) from the A/C unit assembly.

INSTALLATION

Installation is basically the reverse order of removal.

JPIIA1739ZZ

HRN-1

DRIVER CONTROLS

C

D

E

F

G

H

I

J

K

M

SECTION

HRN

A

B

HRN

N

O

P

CONTENTS

HORN

DTC/CIRCUIT DIAGNOSIS  ..........................

2

HORN ..................................................................

2

Wiring Diagram - HORN -  .........................................

2

PRECAUTION ...............................................

5

PRECAUTIONS ...................................................

5

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ..................................................................

5

Precautions for Removing of Battery Terminal .........

5

REMOVAL AND INSTALLATION  ................

6

HORN .................................................................

6

Exploded View ..........................................................

6

Removal and Installation  ..........................................

6
