BLOWER FAN ON SIGNAL

Without Intelligent Key

Is inspection result normal?

YES

>> GO TO 3.

NO

>> Repair the harness or connector.

3.

CHECK CONTINUITY BETWEEN FAN SWITCH AND GROUND

Check continuity between fan switch harness connector and the ground.

Is inspection result normal?

YES

>> Replace the BCM. Refer to

BCS-155, "Exploded View"

.

NO

>> Repair the harness or connector.

Fan switch

BCM

Continuity

Connector

Terminal

Connector

Terminal

M73

6

M65

28

Existed

Fan switch

—

Continuity

Connector

Terminal

M73

6

Ground

Not existed

MANUAL AIR CONDITIONING SYSTEM

HAC-167

< DTC/CIRCUIT DIAGNOSIS >

[MANUAL AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

MANUAL AIR CONDITIONING SYSTEM

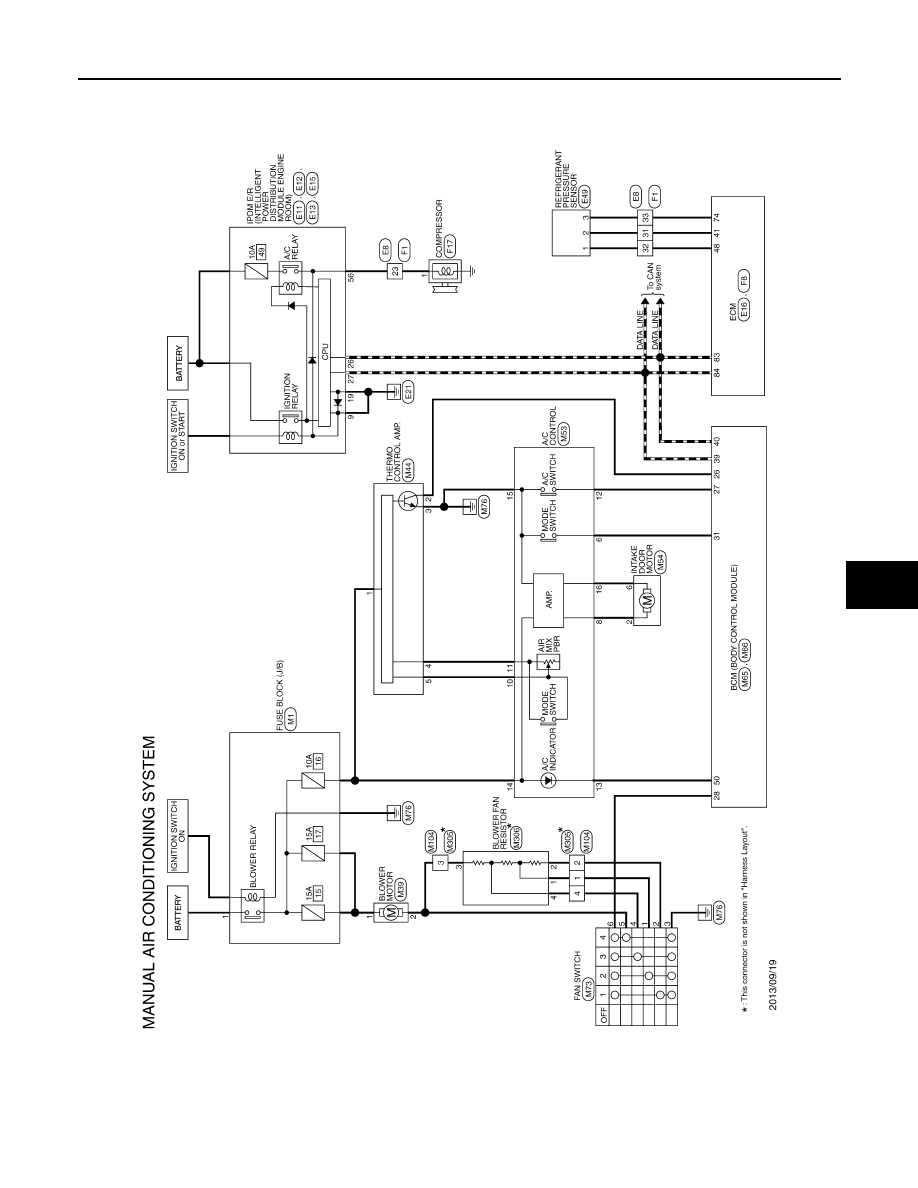

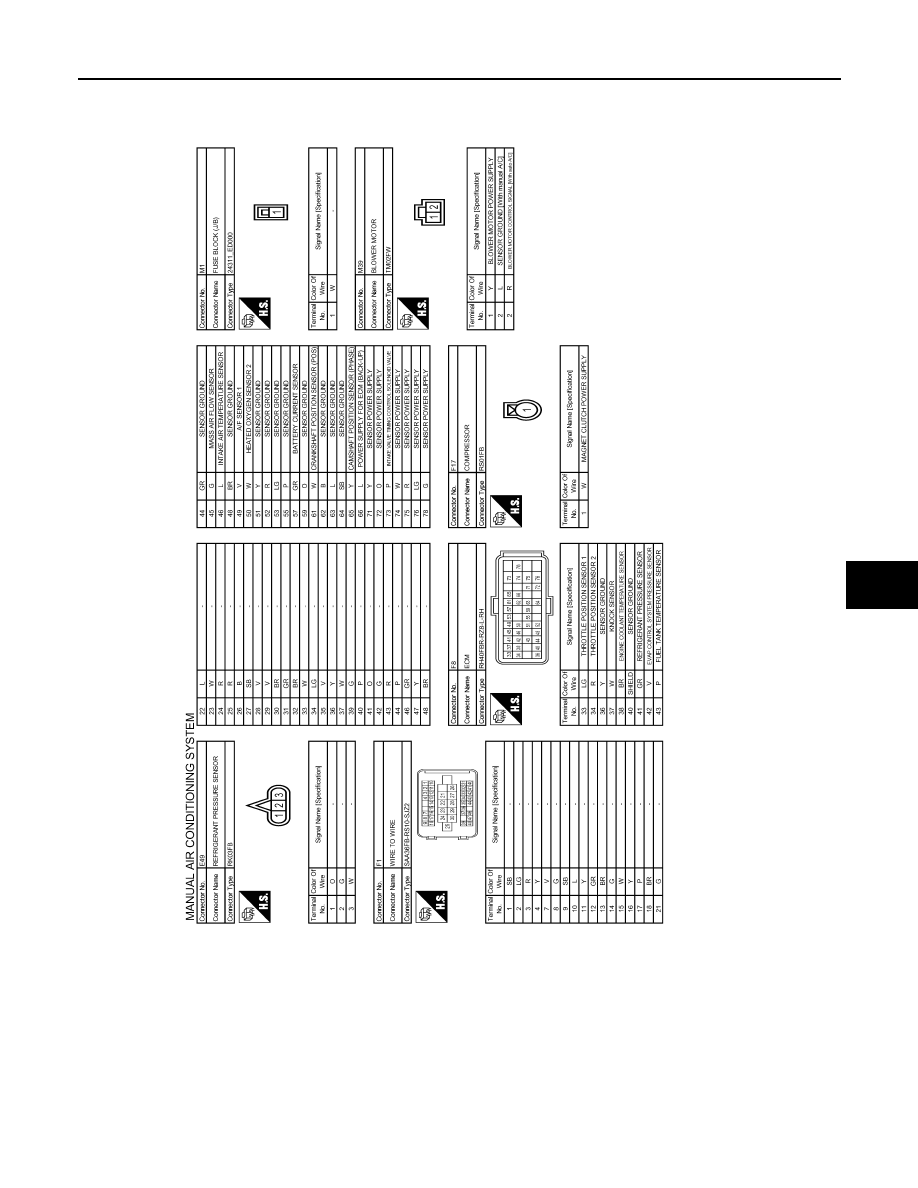

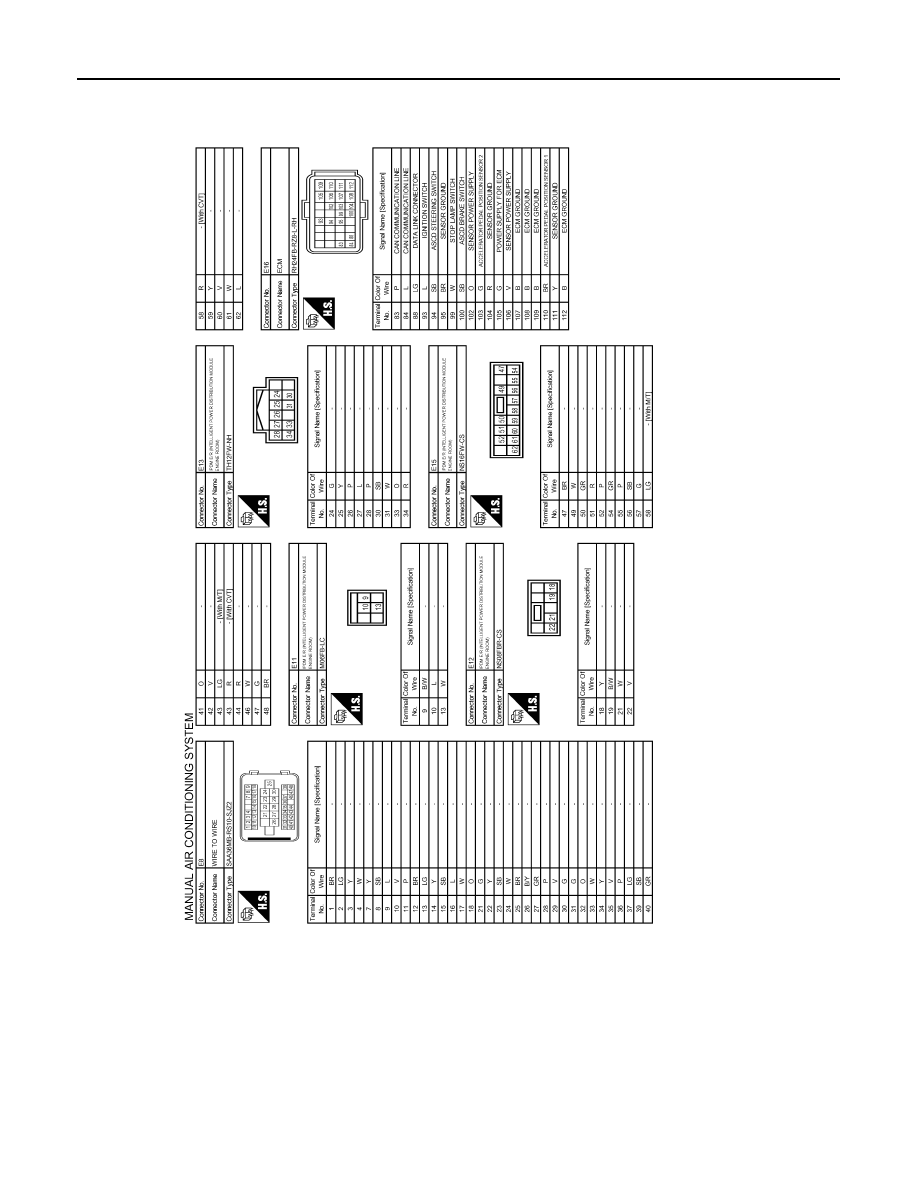

Wiring Diagram — MANUAL AIR CONDITIONING SYSTEM —
