Nissan Cube. Manual - part 573





HAC-130

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

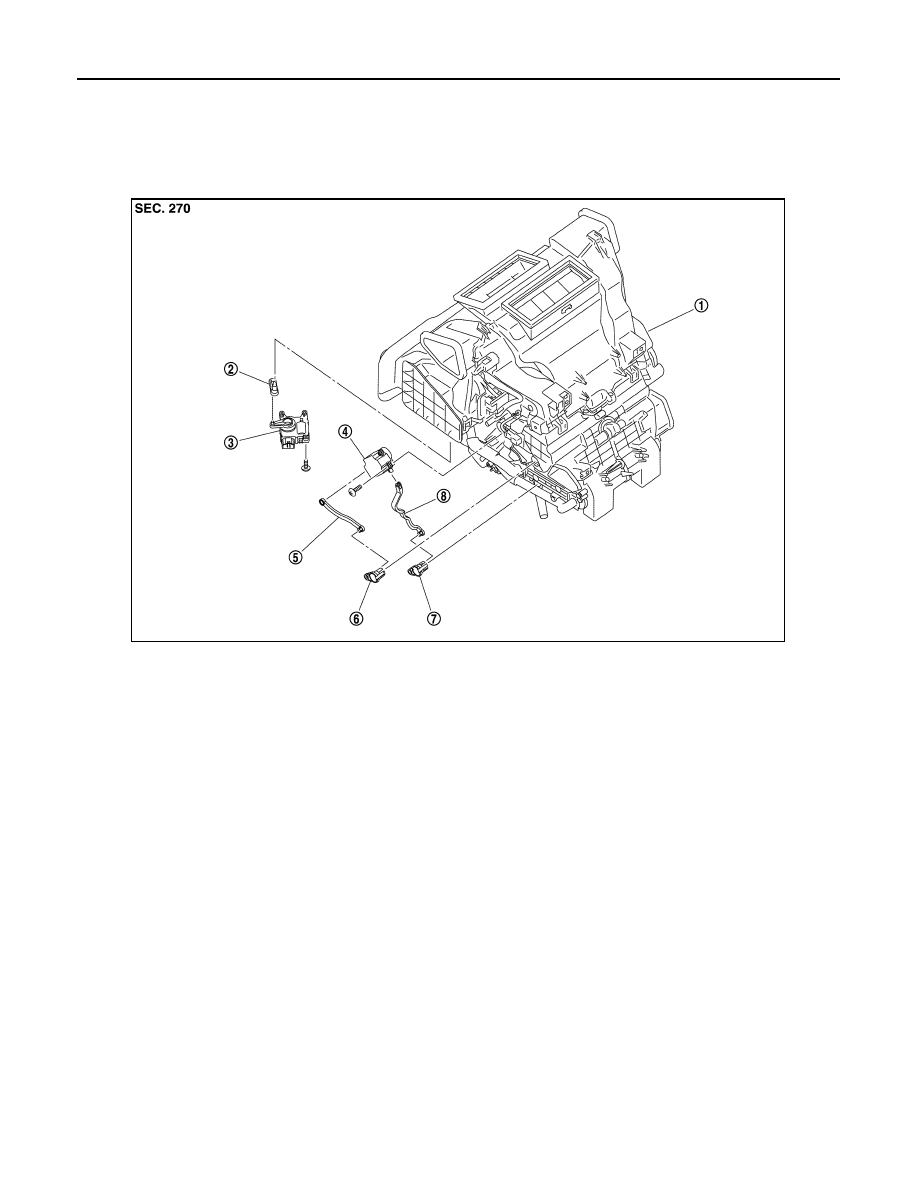

DOOR MOTOR

DOOR MOTOR

Exploded View

INFOID:0000000009951047

LEFT SIDE

RIGHT SIDE

1.

A/C unit assembly

2.

Intake door lever

3.

Intake door motor

4.

Air mix door motor

5.

Upper air mix door rod

6.

Upper air mix door lever

7.

Lower air mix door lever

8.

Lower air mix door rod

JPIIA1722ZZ

DOOR MOTOR

HAC-131

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

INTAKE DOOR MOTOR

INTAKE DOOR MOTOR : Removal and Installation

INFOID:0000000009951048

REMOVAL

1.

Remove air mix door motor. Refer to

HAC-130, "Exploded View"

2.

Remove mounting screws (A), and then remove intake door
motor (1).

3.

Disconnect intake door motor connector.

INSTALLATION

Installation is basically the reverse order of removal.

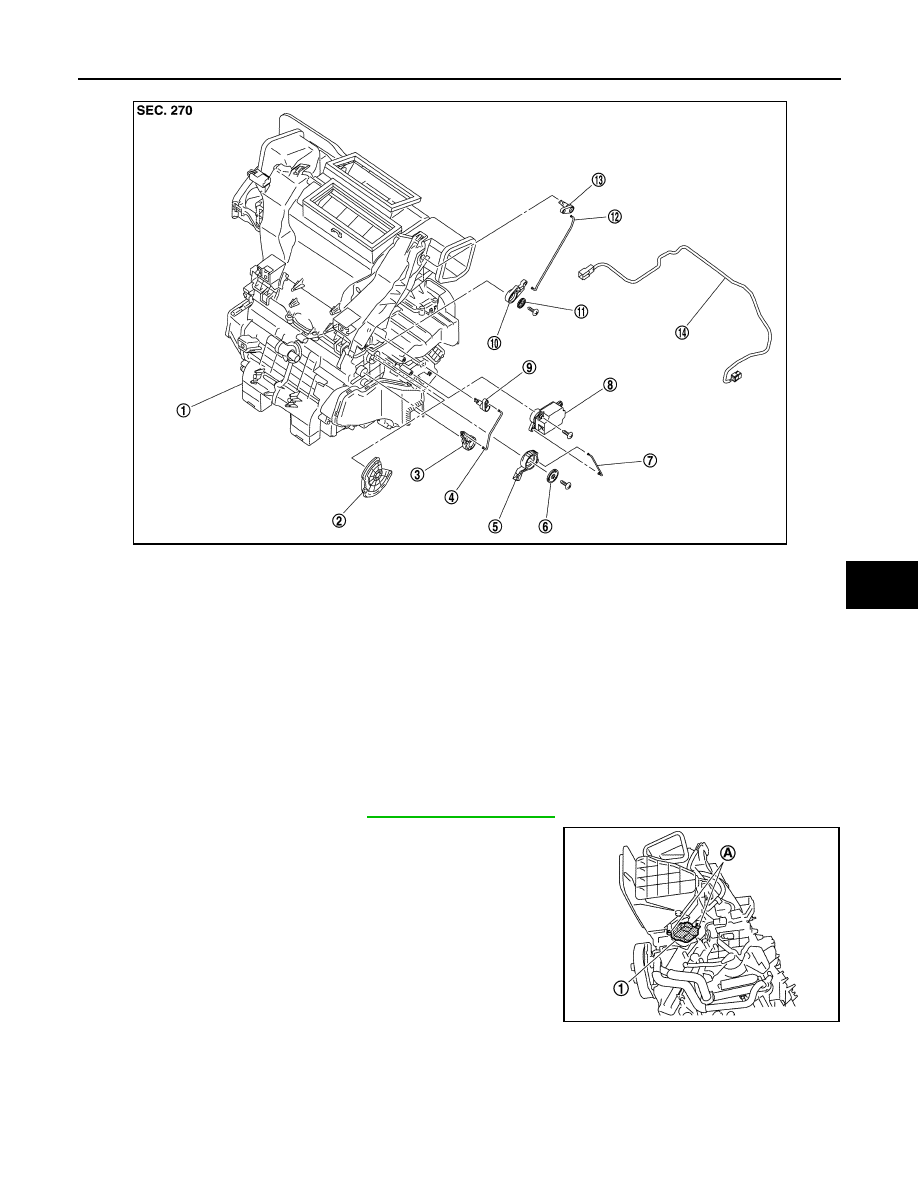

MODE DOOR MOTOR

1.

A/C unit assembly

2.

Main link

3.

Sub defroster door link

4.

Sub defroster door rod

5.

Mode link

6.

Plate

7.

Mode link rod

8.

Mode door motor

9.

Sub defroster door lever

10. Center ventilator and defroster door

link

11.

Plate

12. Center ventilator and defroster door

rod

13. Center ventilator and defroster door

lever

14.

Sub harness (mode door motor)

JPIIA1721ZZ

JPIIA1732ZZ

HAC-132

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

DOOR MOTOR

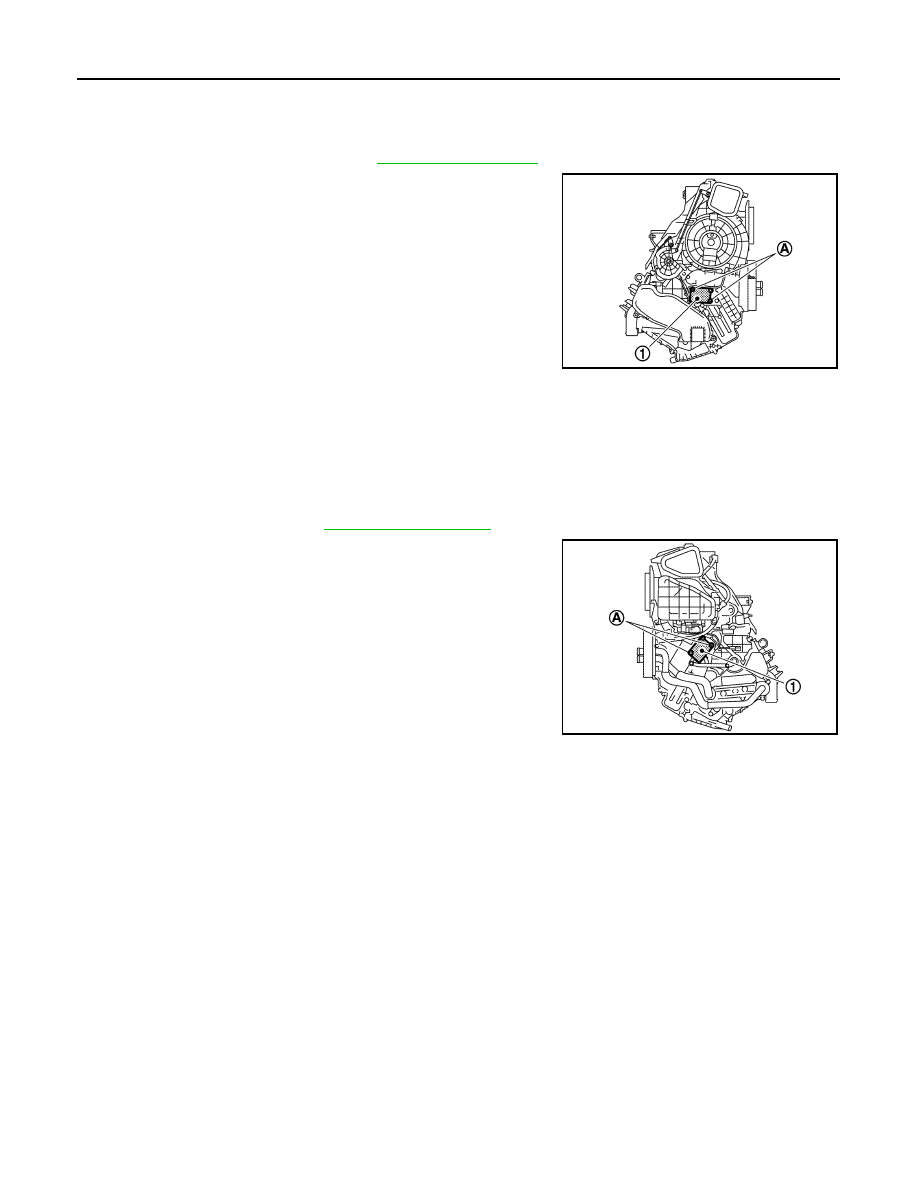

MODE DOOR MOTOR : Removal and Installation

INFOID:0000000009951049

REMOVAL

1.

Remove globe box assembly. Refer to

IP-13, "Exploded View"

2.

Remove mounting screws (A), and then remove mode door
motor (1).

3.

Disconnect mode door motor connector.

INSTALLATION

Installation is basically the reverse order of removal.

AIR MIX DOOR MOTOR

AIR MIX DOOR MOTOR : Removal and Installation

INFOID:0000000009951050

REMOVAL

1.

Remove foot duct LH. Refer to

VTL-7, "Exploded View"

2.

Remove mounting screws (A), and then remove air mix door
motor (1).

3.

Disconnect air mix door motor connector.

INSTALLATION

Installation is basically the reverse order of removal.

JPIIA1733ZZ

JPIIA1734ZZ

DIAGNOSIS AND REPAIR WORKFLOW

HAC-133

< BASIC INSPECTION >

[MANUAL AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

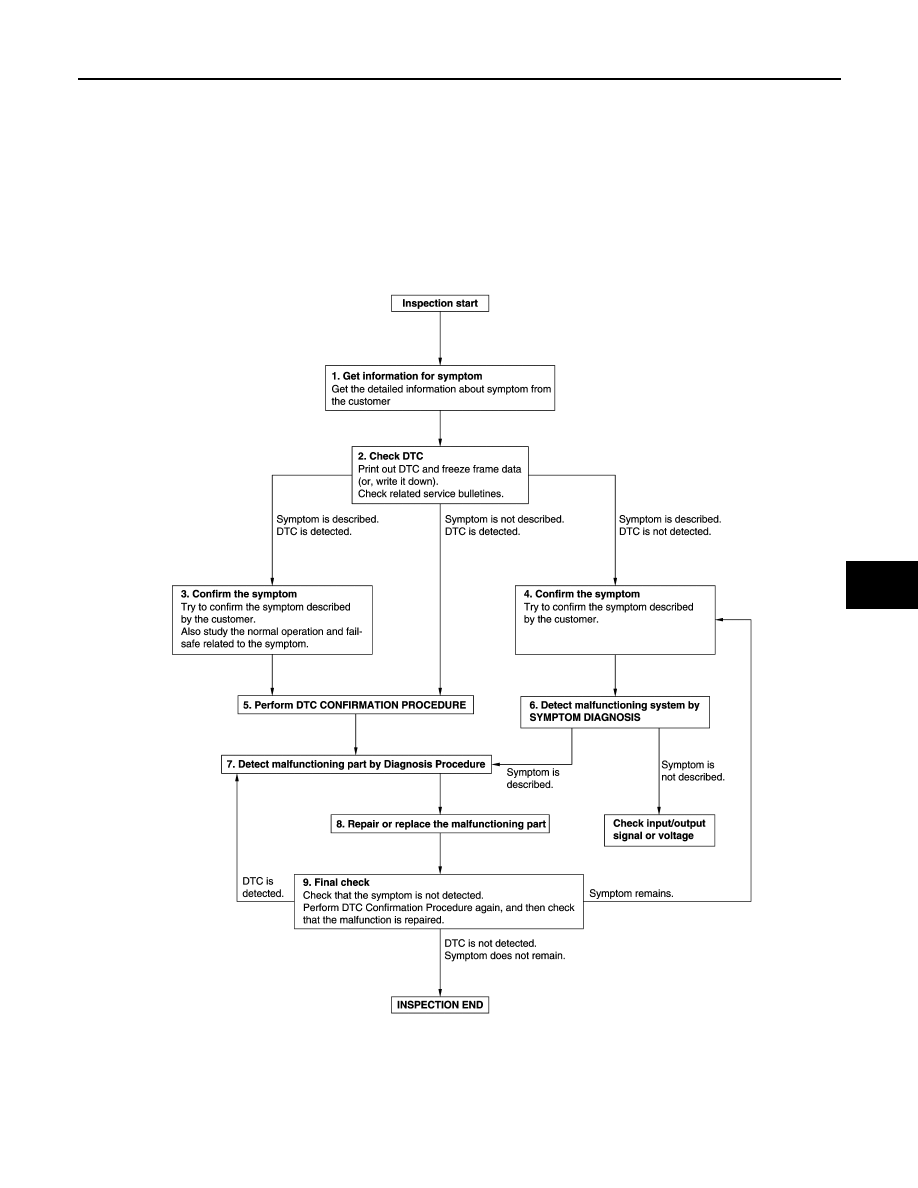

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000009951051

OVERALL SEQUENCE

DETAILED FLOW

JMKIA8652GB
