A/C CONTROL (A/C AUTO AMP.)

REMOVAL AND INSTALLATION

A/C CONTROL (A/C AUTO AMP.)

Exploded View

INFOID:0000000009951033

Removal and Installation

INFOID:0000000009951034

REMOVAL

1.

Remove A/C finisher. Refer to

IP-13, "Exploded View"

.

2.

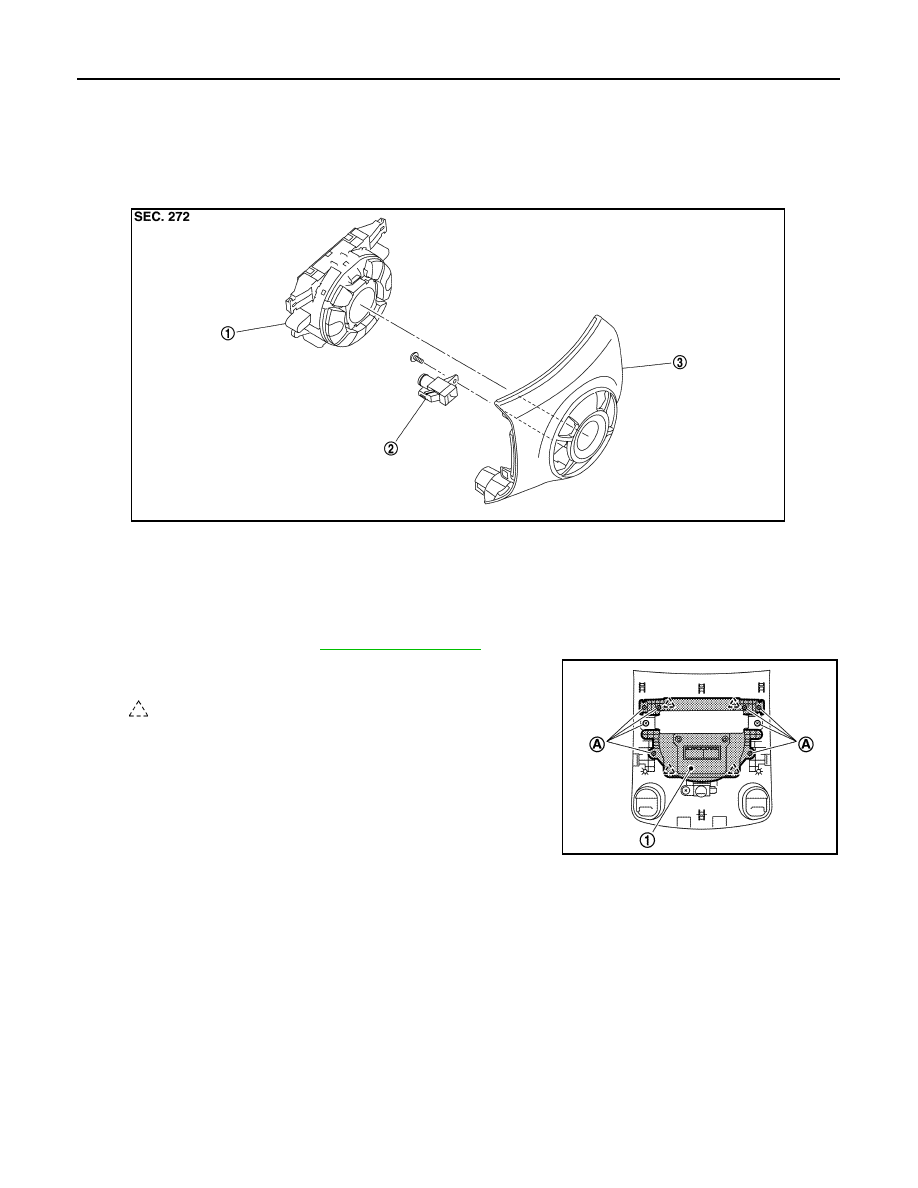

Remove mounting screws (A).

3.

Disengage the pawls, and then remove A/C control (1) from A/C
finisher.

INSTALLATION

Installation is basically the reverse order of removal.

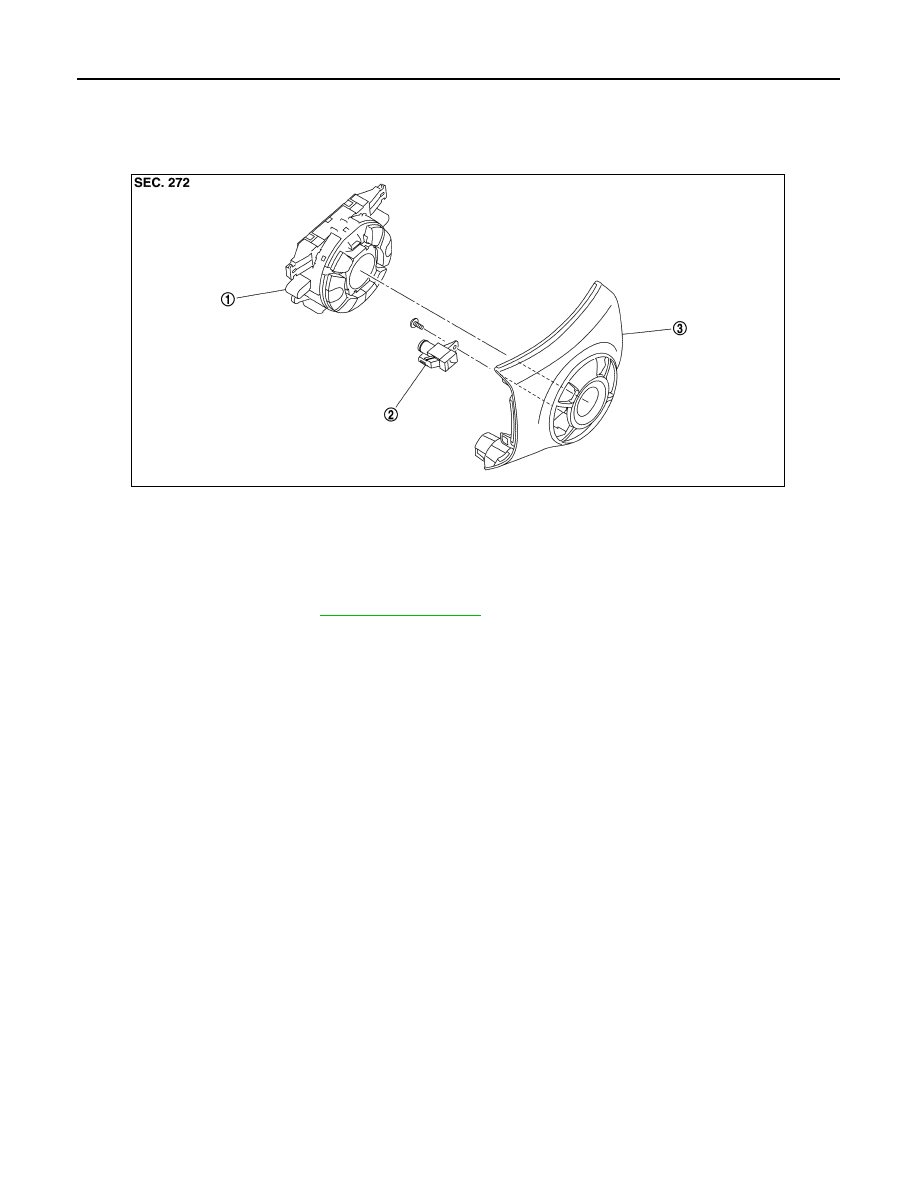

1.

A/C control

2.

In-vehicle sensor

3.

A/C finisher

JPIIA1725ZZ

: Pawl

JPIIA1726ZZ

AMBIENT SENSOR

HAC-123

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

AMBIENT SENSOR

Exploded View

INFOID:0000000009951035

Removal and Installation

INFOID:0000000009951036

REMOVAL

1.

Remove the bumper fascia. Refer to

EXT-11, "Exploded View"

.

2.

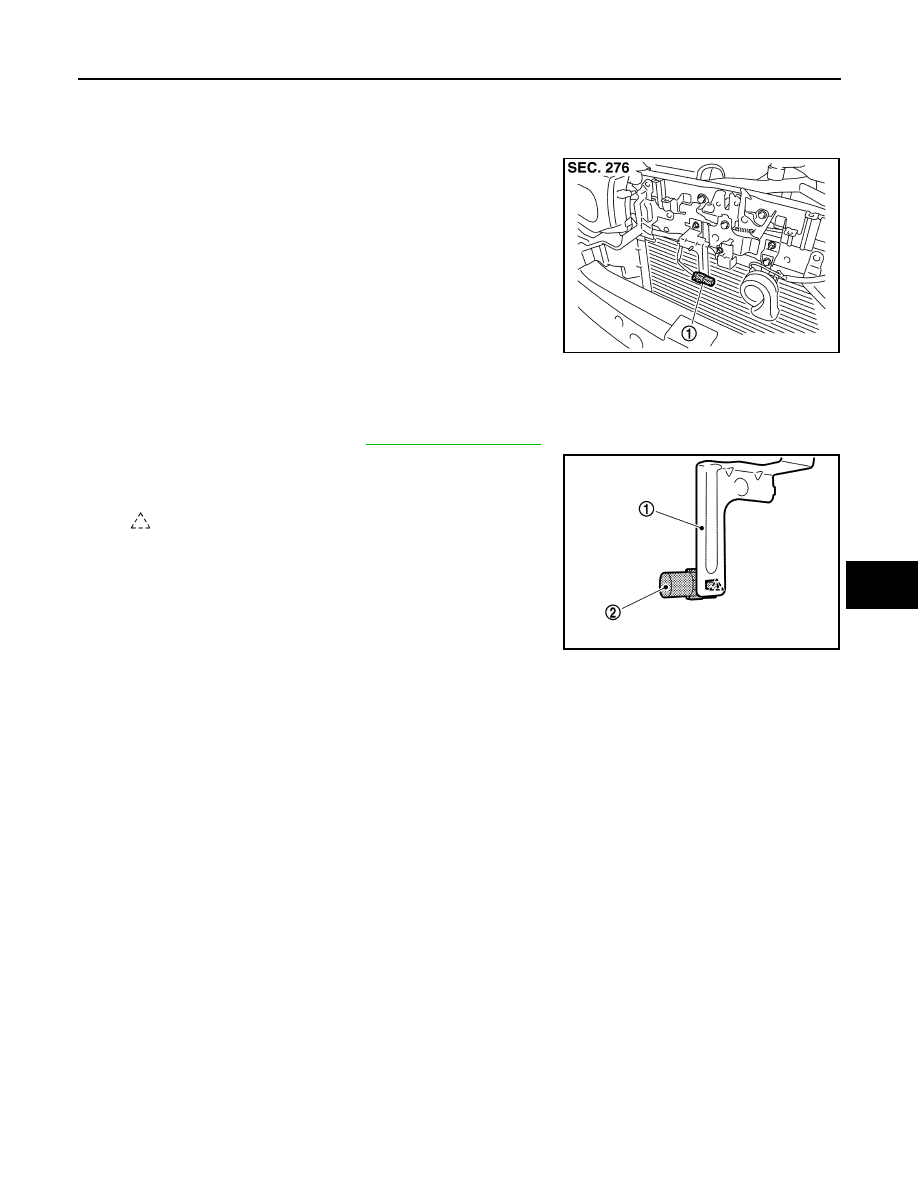

Disengage the pawl, and then remove ambient sensor (2) from
bracket (1).

3.

Disconnect ambient sensor connector, and then remove the
ambient sensor.

INSTALLATION

Installation is basically the reverse order of removal.

1.

Ambient sensor

JPIIA1727ZZ

: Pawl

JPIIA1728ZZ

HAC-124

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

IN-VEHICLE SENSOR

IN-VEHICLE SENSOR

Exploded View

INFOID:0000000009951037

Removal and Installation

INFOID:0000000009951038

REMOVAL

1.

Remove A/C finisher. Refer to

IP-13, "Exploded View"

.

2.

Remove mounting screw, and then remove in-vehicle sensor from A/C finisher.

INSTALLATION

Installation is basically the reverse order of removal.

1.

A/C control

2.

In-vehicle sensor

3.

A/C finisher

JPIIA1725ZZ

SUNLOAD SENSOR

HAC-125

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

SUNLOAD SENSOR

Exploded View

INFOID:0000000009951039

Removal and Installation

INFOID:0000000009951040

REMOVAL

1.

Insert the appropriate tool into the clearance between sunload sensor and instrument panel assembly to
pull out sunload sensor upward.

2.

Disconnect sunload sensor connector to remove sunload sensor.

INSTALLATION

Installation is basically the reverse order of removal.

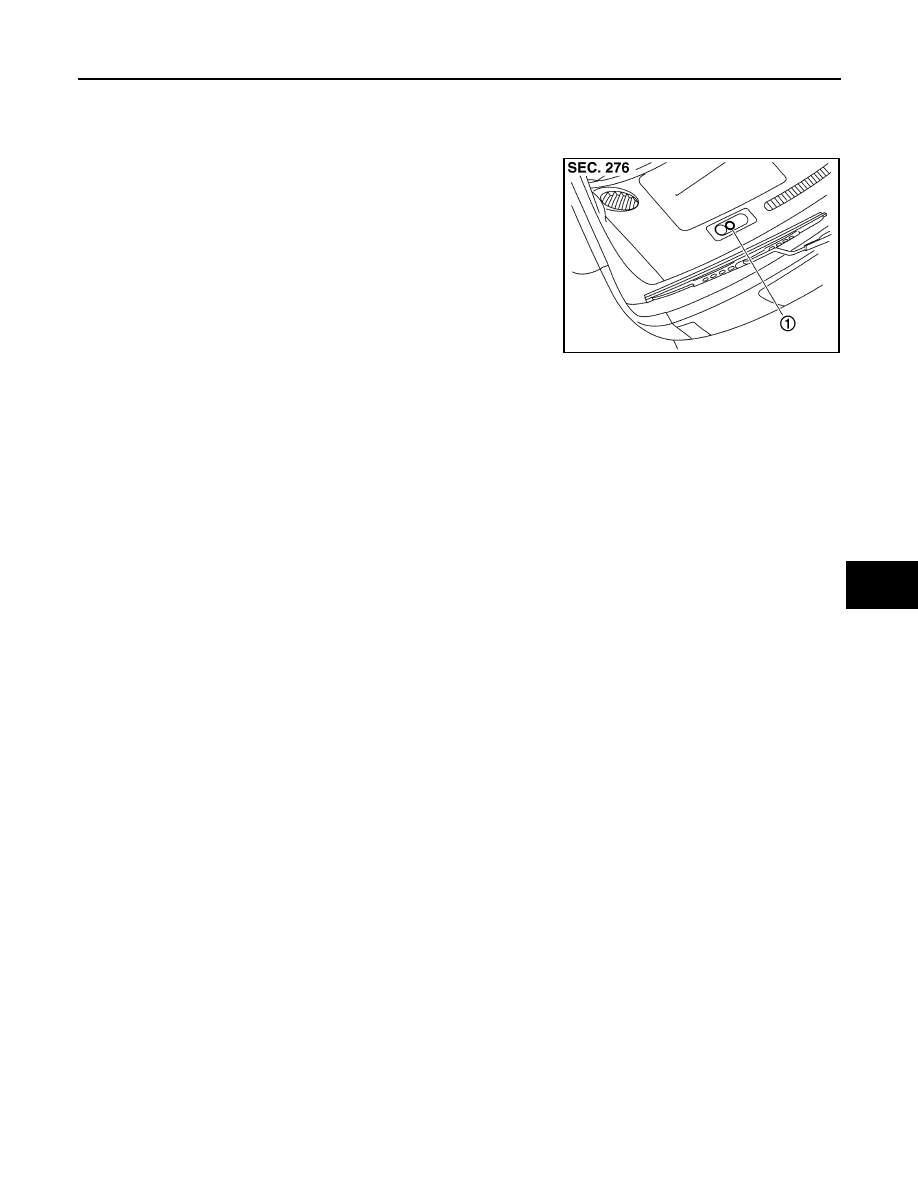

1.

Sunload sensor

JPIIA1754ZZ
