Nissan Cube. Manual - part 536

COMPRESSOR

HA-33

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

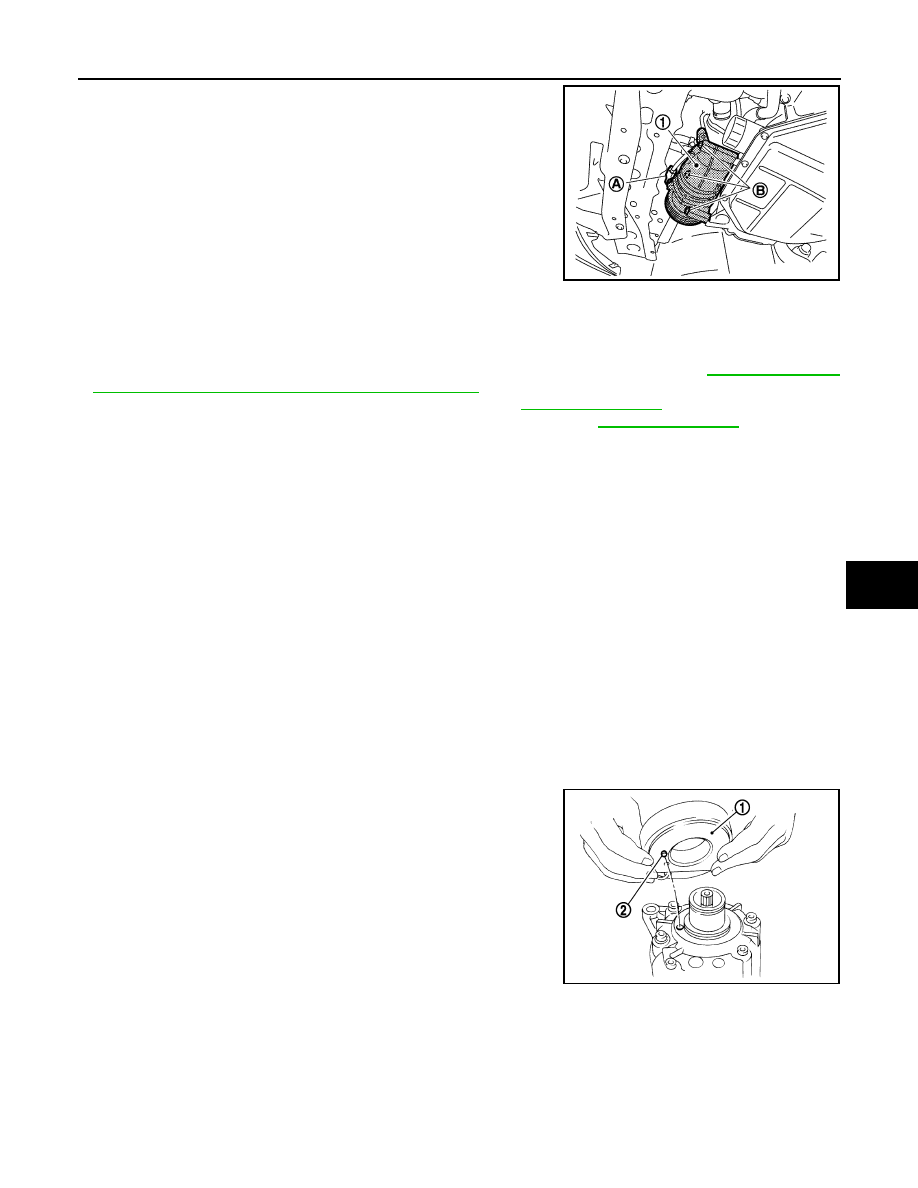

5.

Disconnect compressor (magnet clutch) connector (A).

6.

Remove mounting bolts (B), and then remove compressor (1)
form the vehicle.

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:

• Replace O-rings with new ones. Then apply compressor oil to them when installing.
• Perform lubricant adjusting procedure before installing new compressor. Refer to

HA-27, "Lubricant

Adjusting Procedure for Compressor Replacement"

.

• Check for leakages when recharging refrigerant. Refer to

HA-22, "Leak Test"

.

• Check tension of the drive belt after installing compressor. Refer to

EM-13, "Checking"

.

MAGNET CLUTCH

MAGNET CLUTCH : Removal and Installation

INFOID:0000000009950350

REMOVAL

Overhaul

1.

Fix clutch disc.

2.

Remove center bolt, and then remove clutch disc.

3.

Remove snap ring using external snap ring pliers.

4.

Position center pulley puller on the end of the drive shaft, and remove pulley assembly using any commer-
cially available pulley puller.
To prevent pulley groove from being deformed, puller claws should be positioned into the edge of the pul-
ley assembly.

5.

Disconnect field coil harness connector from compressor unit.

6.

Remove snap ring using external snap ring pliers, and then remove field coil.

INSTALLATION

1.

Install field coil (1).
Be sure to align the coil’s pin (2) with the hole in the compres-
sor’s front head.

2.

Connect field coil harness connector to compressor unit.

JPIIA1699ZZ

JMIIA0575ZZ

HA-34

< REMOVAL AND INSTALLATION >

COMPRESSOR

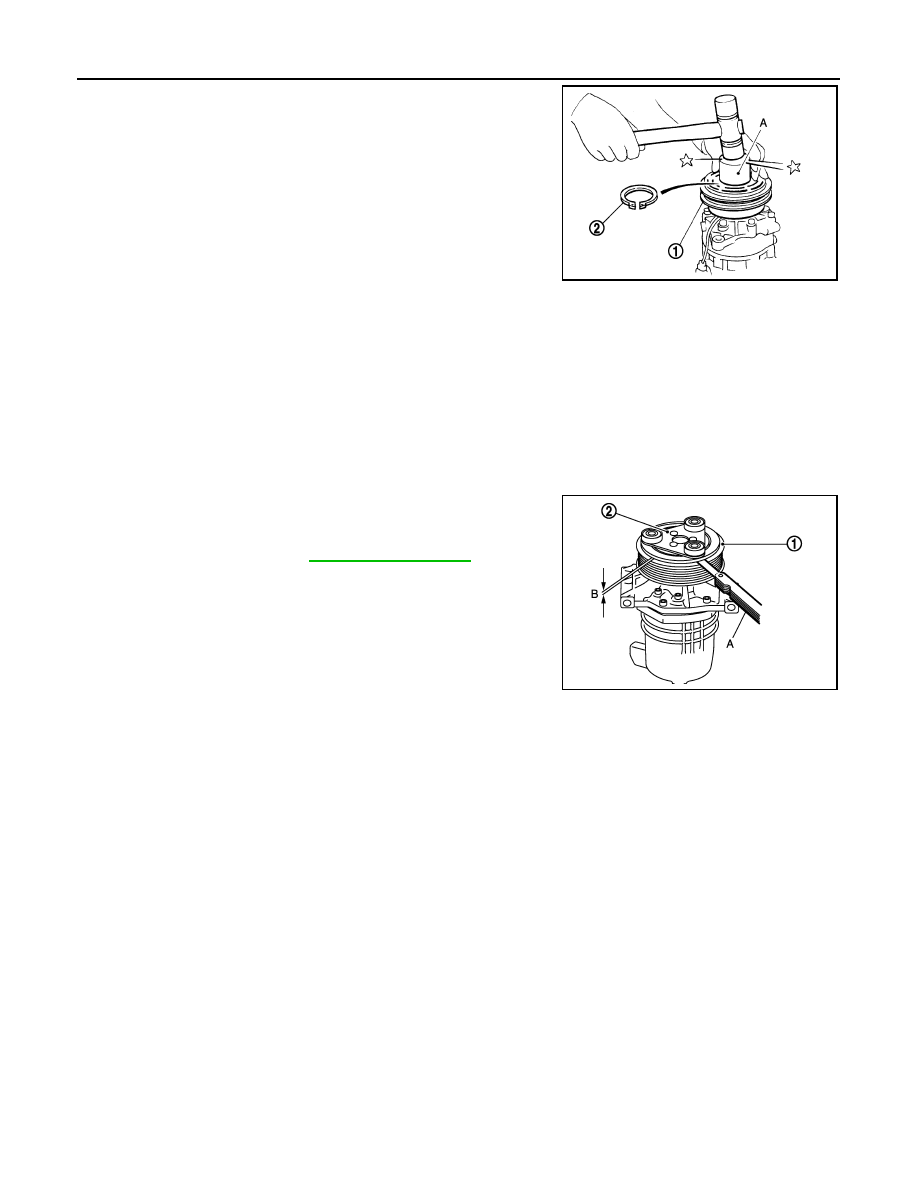

3.

Install pulley assembly (1) using pulley installer
(SST:KV99106200) (A) and a hand press, and then install snap
ring (2) using snap ring pliers.

4.

Install clutch disc on drive shaft, together with original shim(s). Press clutch disc down by hand.

5.

Tighten center bolt to the specified torque while fixing clutch disc not to rotate.
After tightening the bolt, check that the pulley rotates smoothly.

Break-in Operation

When replacing compressor clutch assembly, always perform the break-in operation, by engaging and disen-
gaging the clutch approximately 30-times. Break-in operation increases the level of transmitted torque.

Inspection

INFOID:0000000009950351

CHECK DISC TO PULLEY CLEARANCE

Check the clearance (B) between pulley assembly (1) and clutch
disc (2) along the entire periphery with a feeler gauge (A).

Replace compressor if specified clearance is not obtained.

JMIIA0576ZZ

Clearance

: Refer to

HA-51, "Compressor"

.

JPIIA1566ZZ

COOLER PIPE AND HOSE

HA-35

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

COOLER PIPE AND HOSE

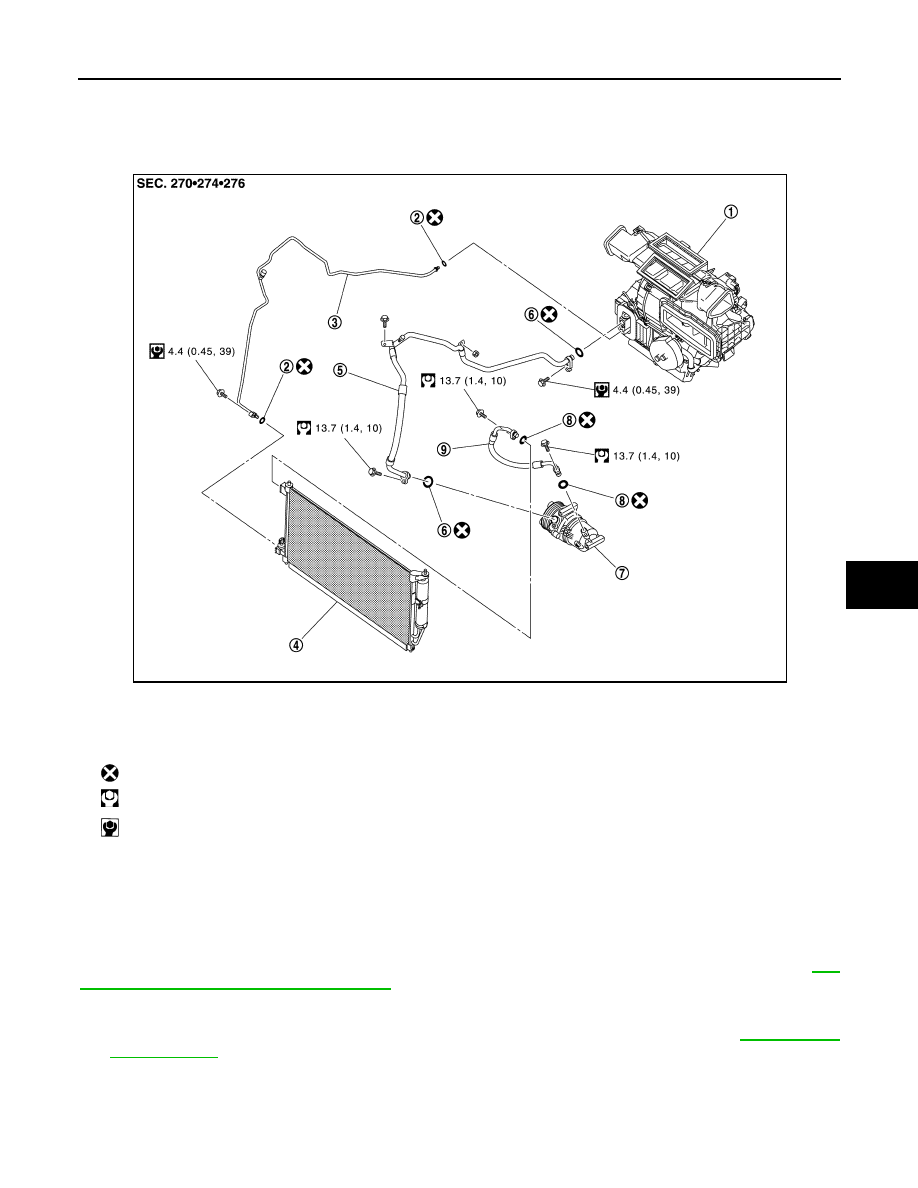

Exploded View

INFOID:0000000009950352

HIGH-PRESSURE FLEXIBLE HOSE

HIGH-PRESSURE FLEXIBLE HOSE : Removal and Installation

INFOID:0000000009950353

CAUTION:

Perform lubricant return operation before each refrigeration system disassembly. However, if a large
amount of refrigerant or lubricant is detected, never perform lubricant return operation. Refer to

HA-

26, "Perform Lubricant Return Operation"

.

REMOVAL

1.

Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant. Refer to

HA-24, "Recy-

cle Refrigerant"

.

1.

A/C unit assembly

2.

O-ring

3.

High-pressure pipe

4.

Condenser

5.

Low-pressure flexible hose

6.

O-ring

7.

Compressor

8.

O-ring

9.

High-pressure flexible hose

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

: N·m (kg-m, in-lb)

JPIIA1693GB

HA-36

< REMOVAL AND INSTALLATION >

COOLER PIPE AND HOSE

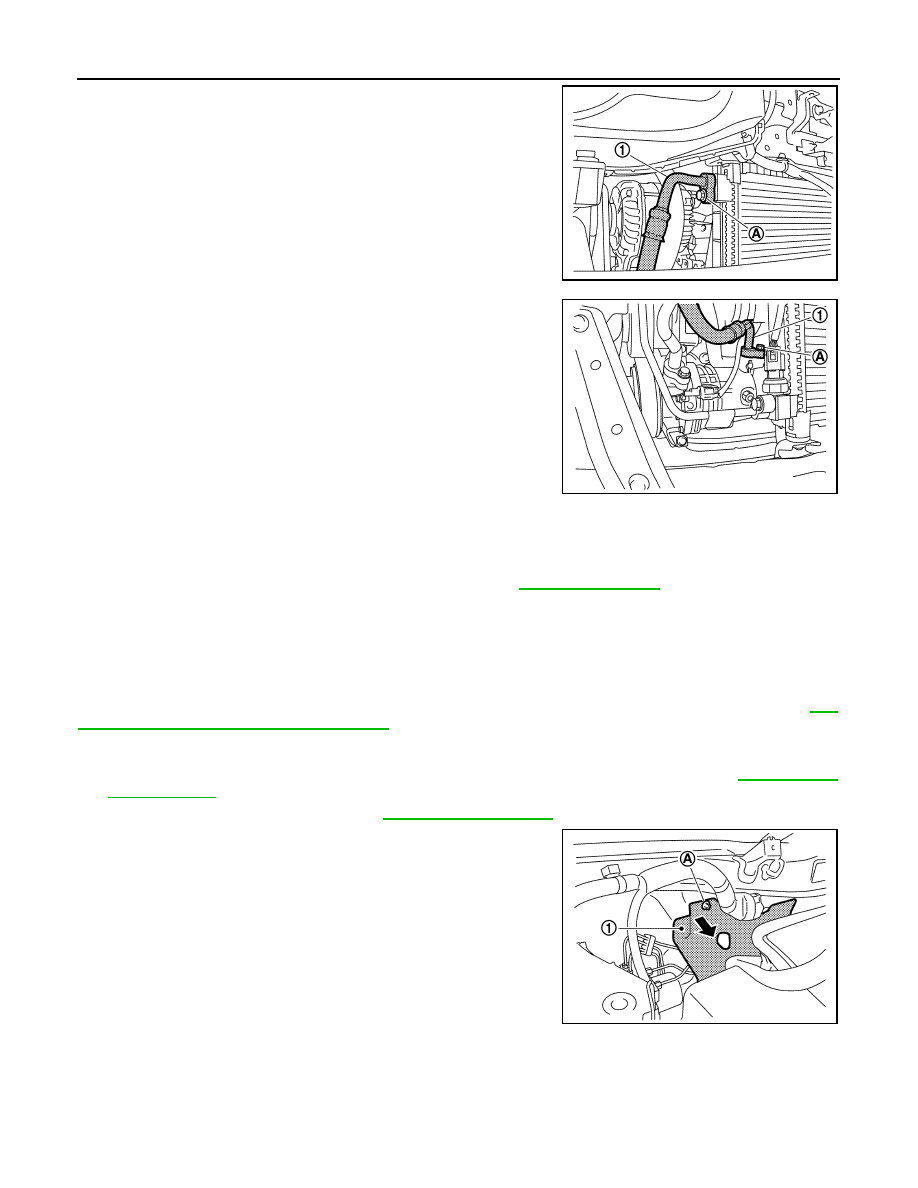

2.

Remove mounting bolt (A), and then disconnect high-pressure
flexible hose (1) from the condenser.

CAUTION:

Cap or wrap the joint of the A/C piping and condenser with
suitable material such as vinyl tape to avoid the entry of air.

3.

Remove mounting bolt (A), and then disconnect high-pressure
flexible hose (1) from the compressor.

CAUTION:

Cap or wrap the joint of the A/C piping and compressor with
suitable material such as vinyl tape to avoid the entry of air.

4.

Remove high-pressure flexible hose from the vehicle.

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:

• Replace O-rings with new ones. Then apply compressor oil to them when installing.
• Check for leakages when recharging refrigerant. Refer to

HA-22, "Leak Test"

.

LOW-PRESSURE FLEXIBLE HOSE

LOW-PRESSURE FLEXIBLE HOSE : Removal and Installation

INFOID:0000000009950354

CAUTION:

Perform lubricant return operation before each refrigeration system disassembly. However, if a large
amount of refrigerant or lubricant is detected, never perform lubricant return operation. Refer to

HA-

26, "Perform Lubricant Return Operation"

.

REMOVAL

1.

Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant. Refer to

HA-24, "Recy-

cle Refrigerant"

.

2.

Remove upper torque rod RH. Refer to

EM-74, "Exploded View"

.

3.

Remove mounting nut (A), and lower dash insulator (1) a posi-
tion without the hindrance for work.

4.

Remove the mounting bolt and nut installed in low-pressure flexible hose from the vehicle.

JPIIA1700ZZ

JPIIA1701ZZ

JPIIA1702ZZ
