Nissan Cube. Manual - part 521

GI-52

< BASIC INSPECTION >

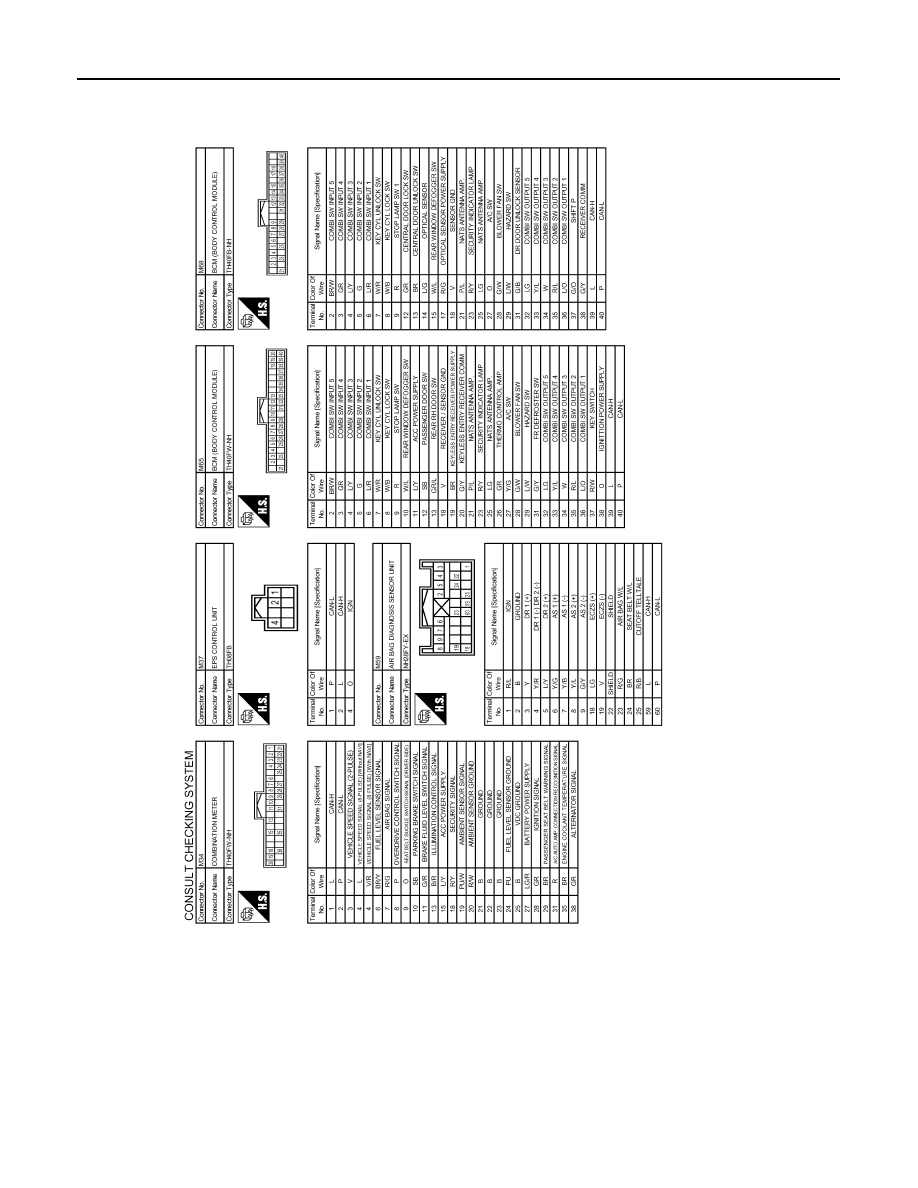

CONSULT/GST CHECKING SYSTEM

JRAWC0878GB

INSPECTION AND ADJUSTMENT

GI-53

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

INSPECTION AND ADJUSTMENT

ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL

ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL : Re-
quired Procedure After Battery Disconnection

INFOID:0000000009947066

*: Not equipped.

SYSTEM

ITEM

REFERENCE

Automatic air conditioning sys-
tem

Temperature setting trimmer

HAC-10, "Temperature Setting Trimmer"

Foot position setting trimmer*

—

Inlet port memory function

HAC-11, "Inlet Port Memory Function"

Inlet port memory function (FRE)*

—

Inlet port memory function (REC)*

—

Gas sensor sensitivity adjustment function*

—

Auto intake switch interlocking movement change*

—

Clean switch interlocking movement change*

—

Automatic drive positioner*

Automatic drive positioner system

—

Power window control

Power window control system

PWC-5, "ADDITIONAL SERVICE WHEN RE-

MOVING BATTERY NEGATIVE TERMINAL :

Sunroof system

Sunroof system

—

Sunshade system

Sunshade system

—

Rear view monitor

Rear view monitor predictive course line center po-
sition adjustment

—

Around view monitor*

Predictive course line center position adjustment

—

Automatic back door system*

Automatic back door system

—

Engine oil level read*

Engine oil level read

—

GW-1

BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY

C

D

E

F

G

H

I

J

L

M

SECTION

GW

A

B

GW

N

O

P

CONTENTS

GLASS & WINDOW SYSTEM

SYMPTOM DIAGNOSIS ...............................

SQUEAK AND RATTLE TROUBLE DIAG-
NOSES ................................................................

Work Flow .................................................................

Inspection Procedure ................................................

Diagnostic Worksheet ...............................................

PRECAUTION ...............................................

PRECAUTIONS ...................................................

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

Precautions for Removing of Battery Terminal .........

Precaution for Procedure without Cowl Top Cover

Handling for Adhesive and Primer ............................

PREPARATION ...........................................

PREPARATION ..................................................

Special Service Tools ............................................

Commercial Service Tools .....................................

REMOVAL AND INSTALLATION ...............

WINDSHIELD GLASS ........................................

Exploded View ........................................................

Removal and Installation .........................................

Inspection ................................................................

SIDE WINDOW GLASS ....................................

Exploded View .........................................................

Removal and Installation .........................................

Inspection ................................................................

BACK DOOR WINDOW GLASS ......................

Exploded View .........................................................

Removal and Installation .........................................

Inspection ................................................................

FRONT DOOR GLASS .....................................

Exploded View .........................................................

Removal and Installation .........................................

Inspection and Adjustment ......................................

FRONT REGULATOR .......................................

Exploded View .........................................................

Removal and Installation .........................................

Disassembly and Assembly .....................................

Inspection and Adjustment ......................................

REAR DOOR GLASS .......................................

Exploded View .........................................................

Removal and Installation .........................................

Inspection and Adjustment ......................................

REAR REGULATOR .........................................

Exploded View .........................................................

Removal and Installation .........................................

Disassembly and Assembly .....................................

Inspection and Adjustment ......................................

GW-2

< SYMPTOM DIAGNOSIS >

SQUEAK AND RATTLE TROUBLE DIAGNOSES

SYMPTOM DIAGNOSIS

SQUEAK AND RATTLE TROUBLE DIAGNOSES

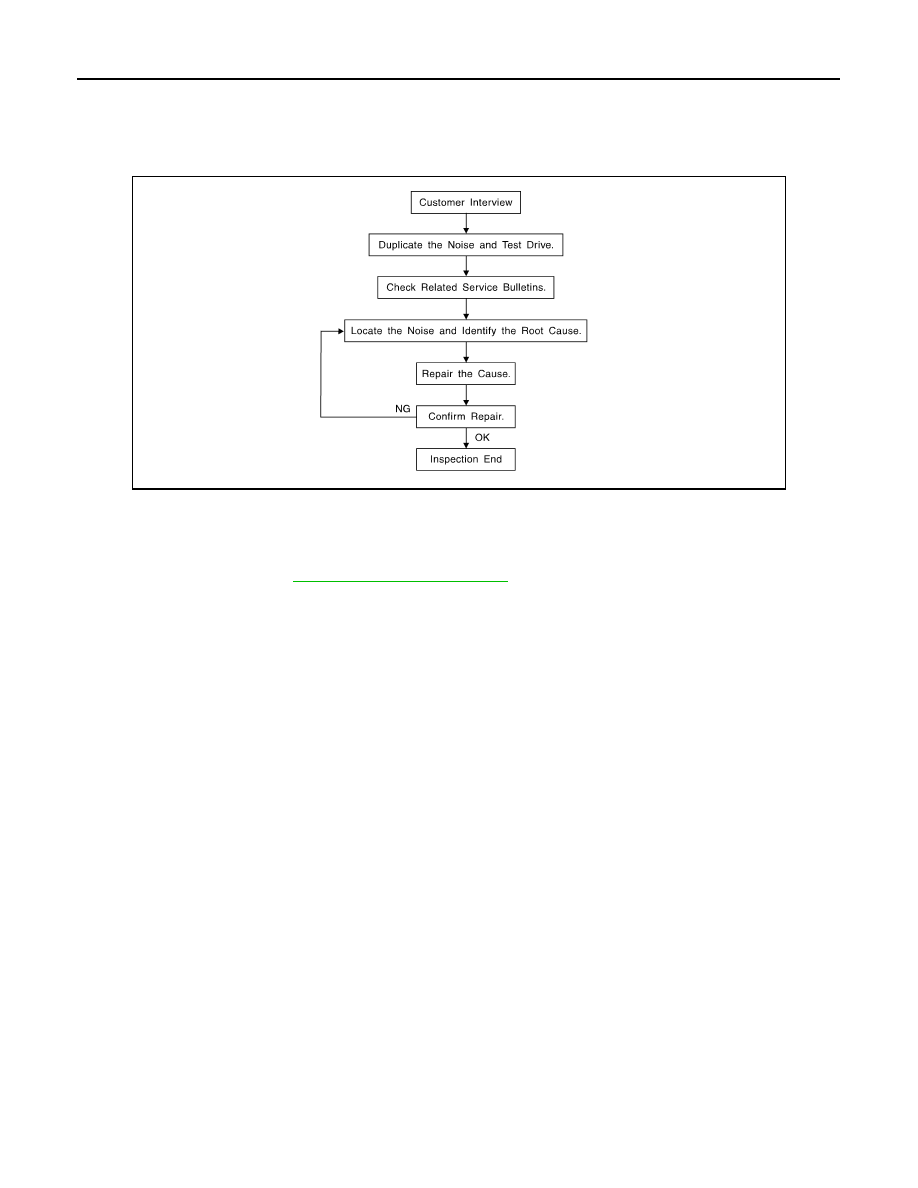

Work Flow

INFOID:0000000009949291

CUSTOMER INTERVIEW

Interview the customer if possible, to determine the conditions that exist when the noise occurs. Use the Diag-
nostic Worksheet during the interview to document the facts and conditions when the noise occurs and any
customer comments. Refer to

GW-6, "Diagnostic Worksheet"

. This information is necessary to duplicate the

conditions that exist when the noise occurs.
• The customer may not be able to provide a detailed description or the location of the noise. Attempt to obtain

all the facts and conditions that exist when the noise occurs (or does not occur).

• If there is more than one noise in the vehicle, perform a diagnosis and repair the noise that the customer is

concerned about. This can be accomplished by performing a test drive with the customer.

• After identifying the type of noise, isolate the noise in terms of its characteristics. The noise characteristics

are provided so that the customer, service adviser, and technician use the same language when describing
the noise.

• Squeak – (Like tennis shoes on a clean floor)

Squeak characteristics include the light contact / fast movement / brought on by road conditions / hard sur-
faces = high-pitched noise / softer surfaces = low-pitched noises / edge to surface = chirping

• Creak – (Like walking on an old wooden floor)

Creak characteristics include firm contact / slow movement/twisting with a rotational movement / pitch
dependent on materials / often brought on by activity.

• Rattle – (Like shaking a baby rattle)

Rattle characteristics include fast repeated contact / vibration or similar movement / loose parts/missing clip
or fastener / incorrect clearance.

• Knock – (Like a knock on a door)

Knock characteristics include hollow sounds / sometimes repeating / often brought on by driver action.

• Tick – (Like a clock second hand)

Tick characteristics include gentle contacting of light materials / loose components / can be caused by driver
action or road conditions.

• Thump – (Heavy, muffled knock noise)

Thump characteristics include softer knock / dull sounds often brought on by activity.

• Buzz – (Like a bumblebee)

Buzz characteristics include high frequency rattle / firm contact.

• Often the degree of acceptable noise level varies depending upon the person. A noise that a technician may

judge as acceptable may be very irritating to a customer.

• Weather conditions, especially humidity and temperature, may have a great effect on noise level.

DUPLICATE THE NOISE AND TEST DRIVE

SBT842
