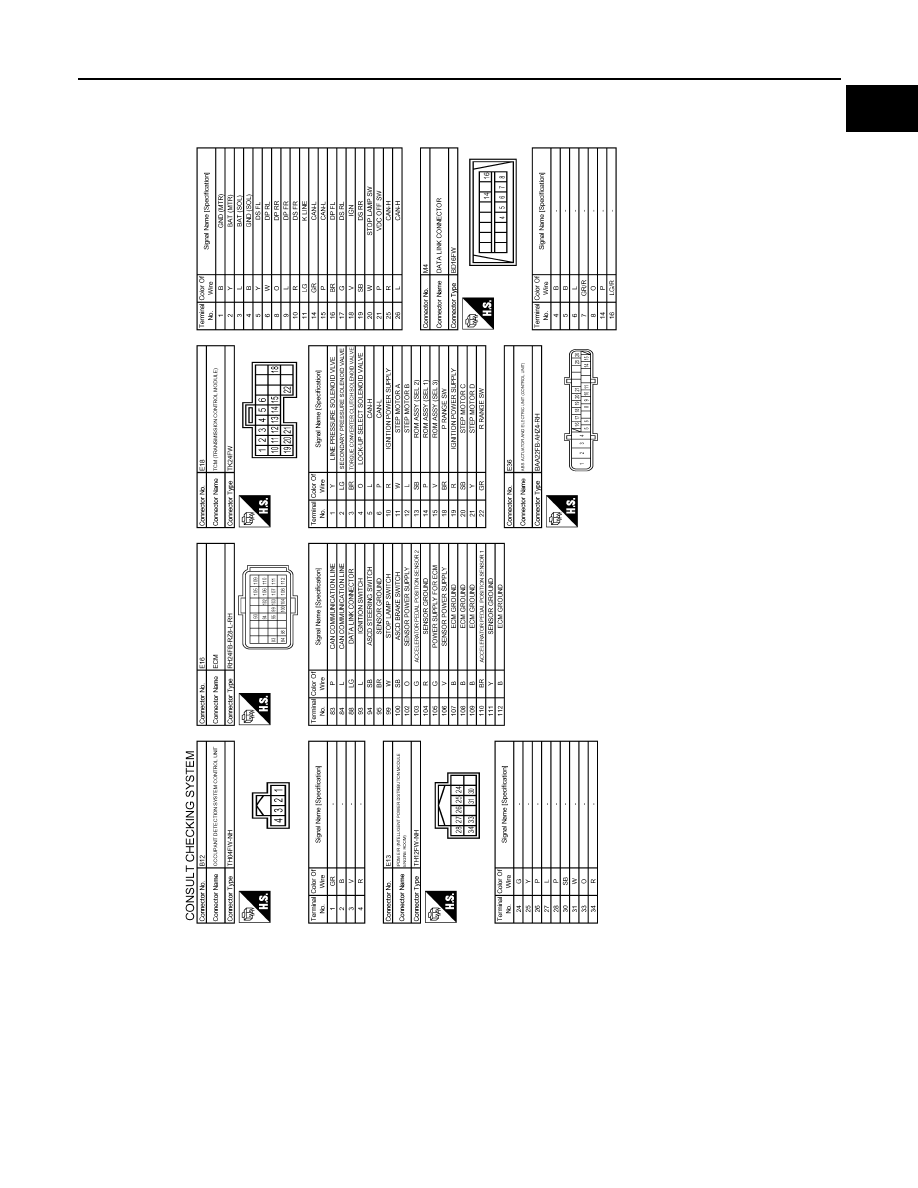

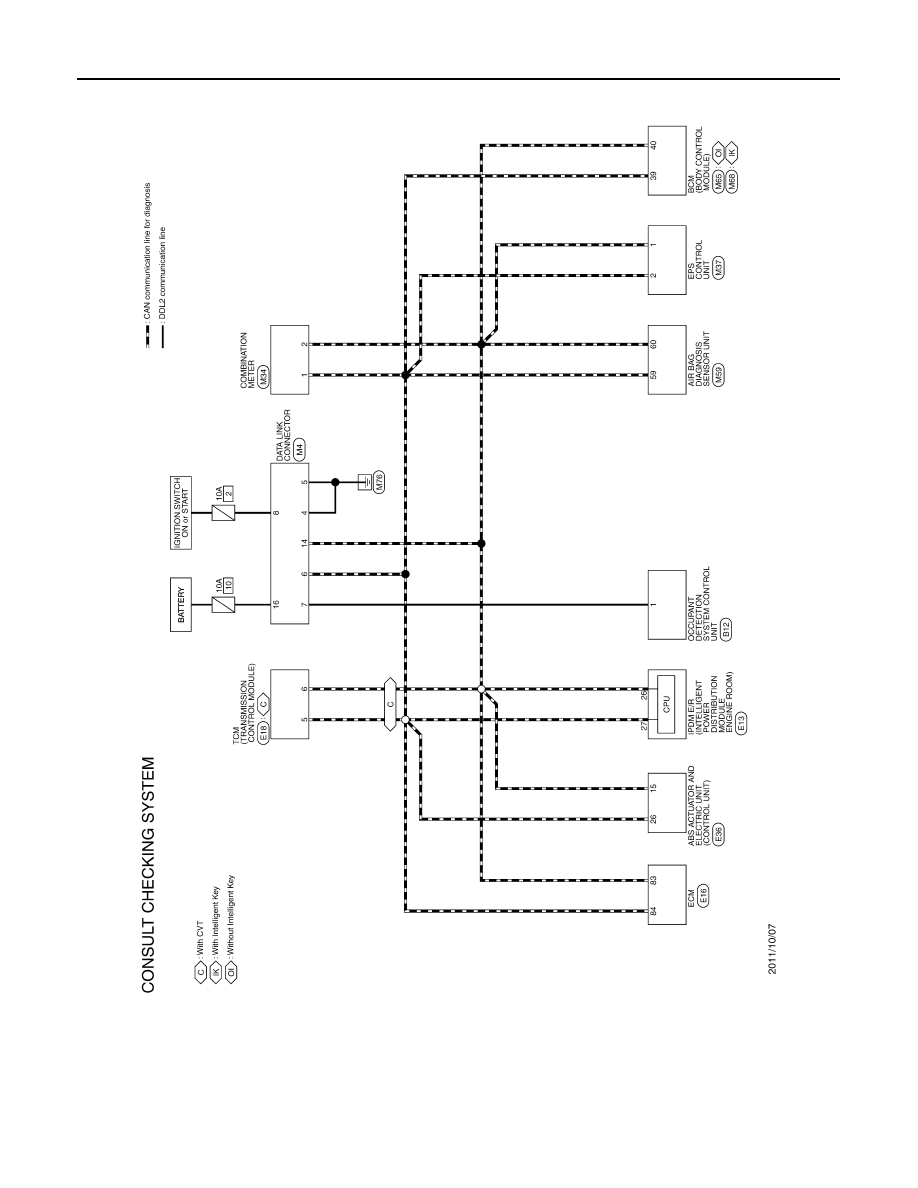

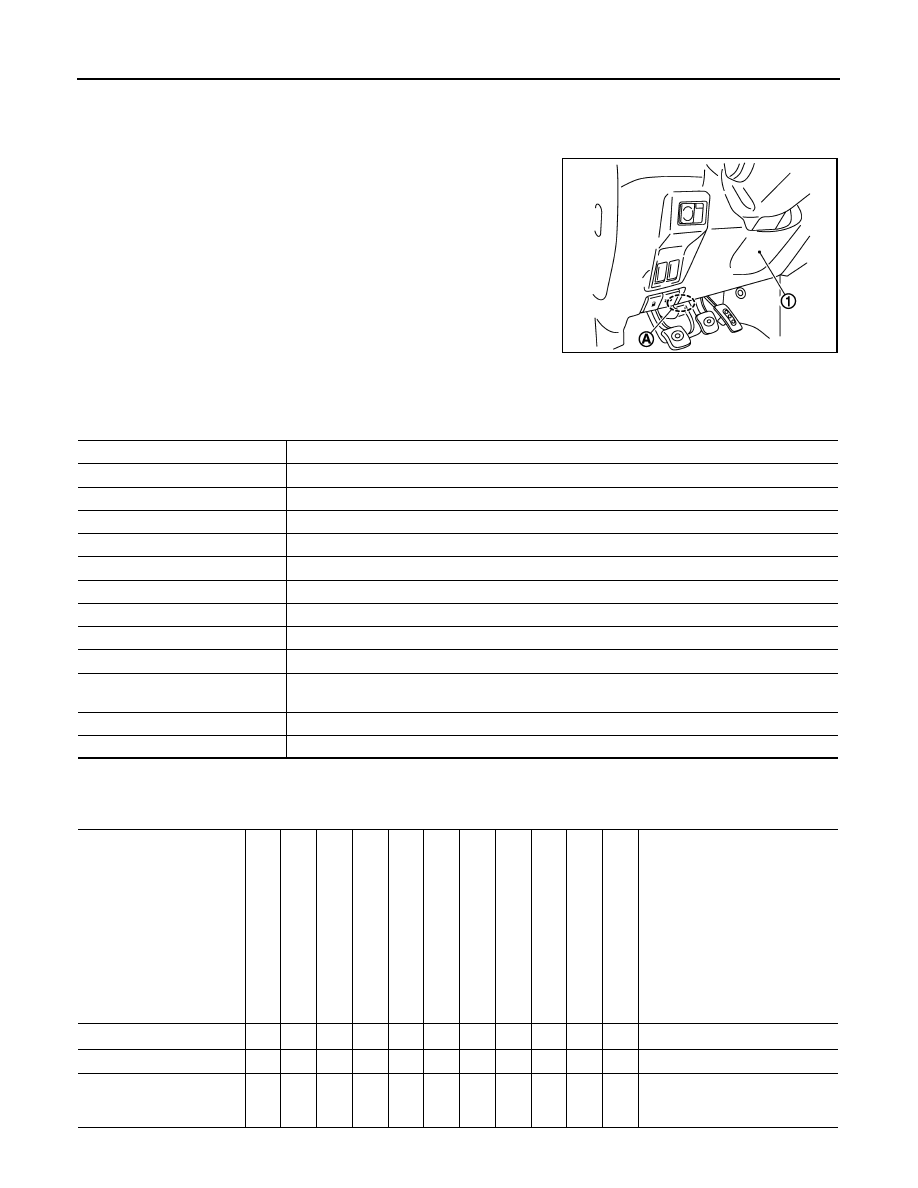

GI-48 < BASIC INSPECTION > CONSULT/GST CHECKING SYSTEM CONSULT/GST CHECKING SYSTEM Description INFOID:0000000009947062 • When CONSULT/GST is connected with a data link connector (A) equipped on the vehicle side, it will communicate with the control • Refer to “CONSULT Software Operation Manual” for more informa- tion. CONSULT Function and System Application*1 INFOID:0000000009947063 FUNCTION *: Permanent DTC is not applied for regions where it is not mandated. SYSTEM APPLICATION *1 1 : Instrument lower panel LH JPAIA0582ZZ Mode Function All DTC Reading Display all DTCs or diagnostic items that all ECUs are recording and judging. Work Support This mode enables a technician to adjust some devices faster and more accurately. Self Diagnostic Results Retrieve DTC from ECU and display diagnostic items. Data Monitor Monitor the input/output signal of the control unit in real time. CAN Diagnosis This mode displays a network diagnosis result about CAN by diagram. CAN Diagnosis Support Monitor It monitors the status of CAN communication. Active Test Send the drive signal from CONSULT to the actuator. The operation check can be performed. ECU Identification Display the ECU identification number (part number etc.) of the selected system. Configuration Function to READ/WRITE vehicle configuration. SRT&P-DTC Confirmation The state of System Readiness Test (SRT) items, the presence or absence of permanent DTC*, DTC work support DTC reproduction procedure can be performed speedily and precisely. Others Other results or histories, etc. that are recorded in ECU are displayed. System All DTC Reading W o rk Su pp ort Sel f Di ag nos ti c Re su lt s Da ta Mo ni tor CAN Diagnosis CAN Di ag no si s S u p port M o n ito r Ac ti ve T e st ECU Id en tifi ca tio n Co nf ig u rat io n SR T&P-DTC Conf irmati on DTC work support Ot he rs ENGINE x x x x x x x x - x *2 x - TRANSMISSION x x x x x x - x - - - • CALIB DATA AIR BAG x - x - x - - x - - - • TROUBLE DIAG RECORD |
