FAX-4

< PRECAUTION >

PRECAUTIONS

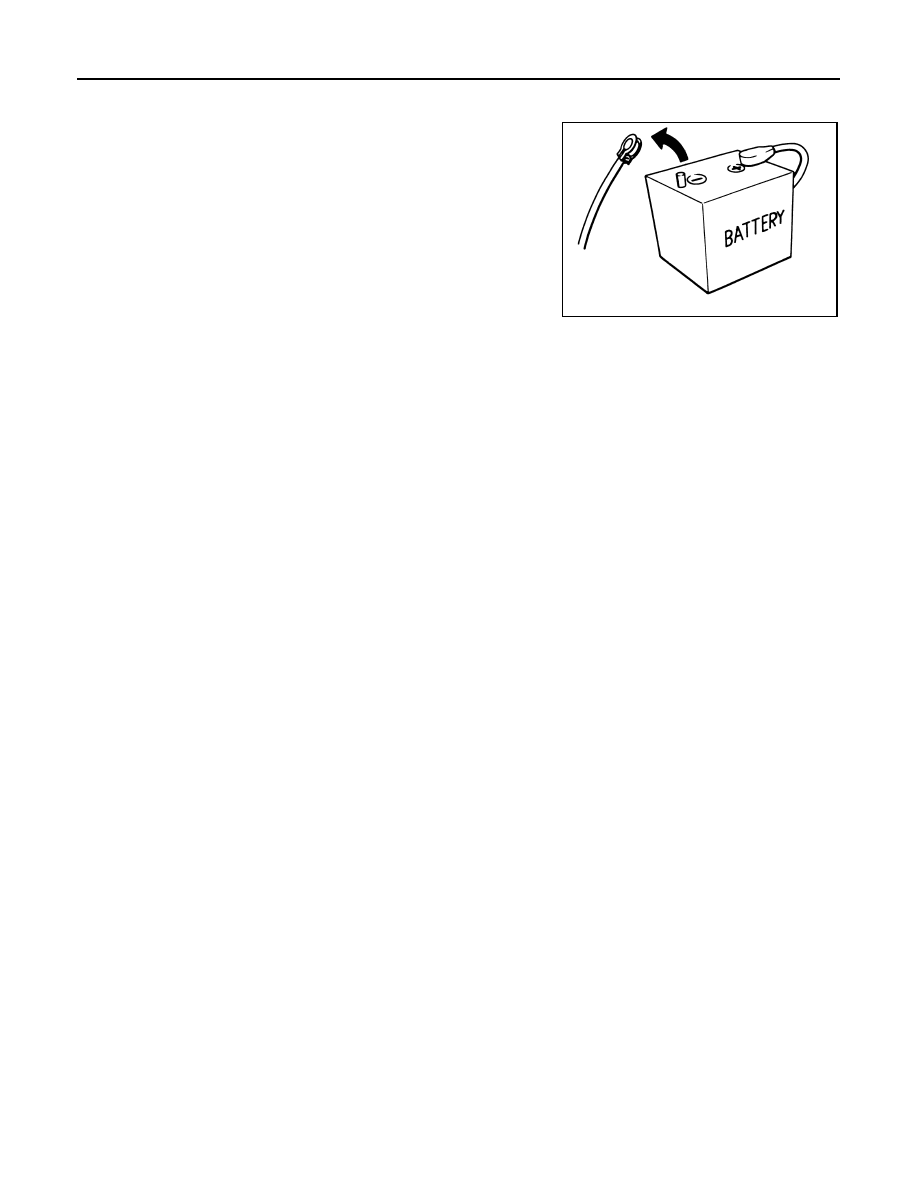

Precautions for Removing of Battery Terminal

INFOID:0000000010078183

•  When removing the 12V battery terminal, turn OFF the ignition

switch and wait at least 30 seconds.
NOTE:
ECU may be active for several tens of seconds after the ignition
switch is turned OFF. If the battery terminal is removed before ECU
stops, then a DTC detection error or ECU data corruption may
occur.

•  For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be
detected.

•  After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

SEF289H

PREPARATION

FAX-5

< PREPARATION >

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

PREPARATION

PREPARATION

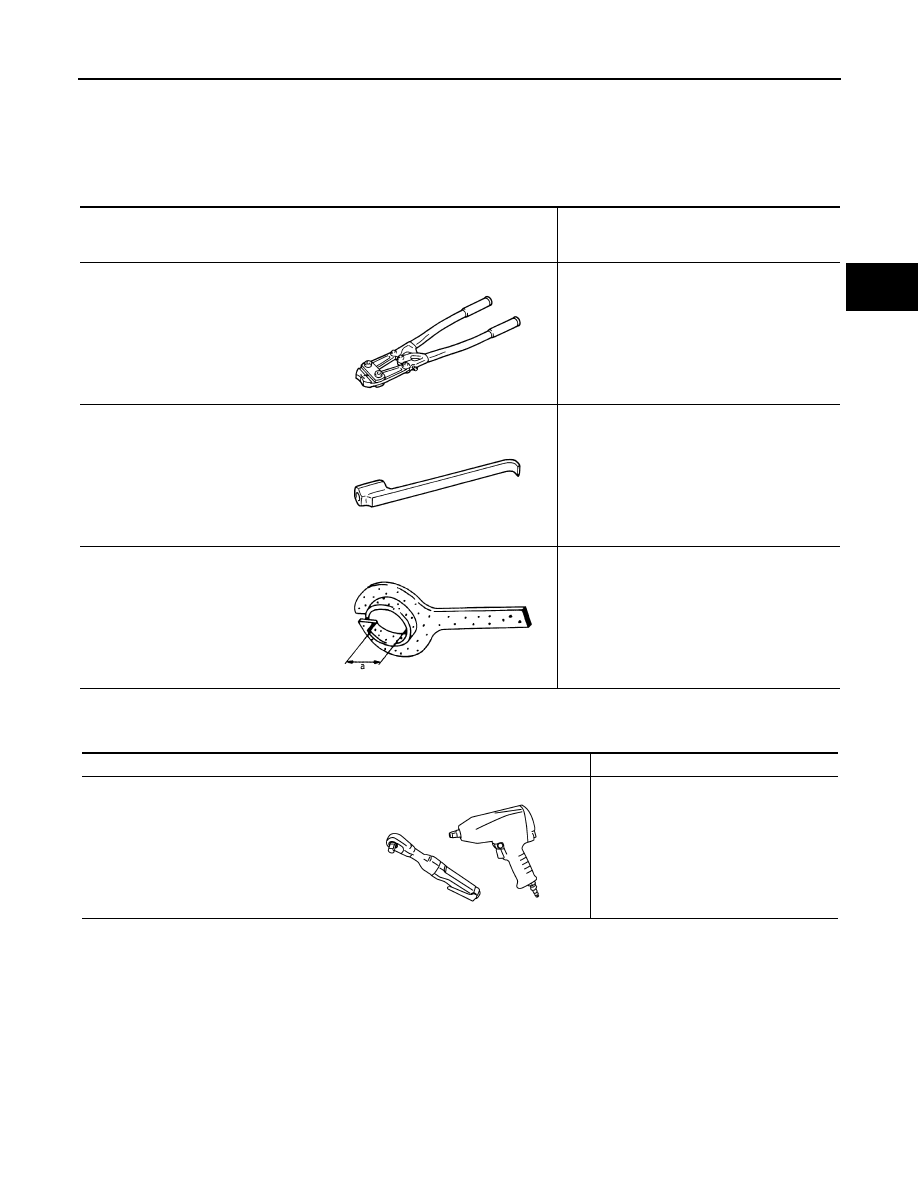

Special Service Tool

INFOID:0000000009948787

The actual shapes of Kent-More tools may differ from those of special service tools illustrated here.

Commercial Service Tool

INFOID:0000000009948788

Tool number
(Kent-More No.)
Tool name

Description

KV40107300
(

—

)

Boot band crimping tool

Installing boot band

KV40107500
(

—

)

Drive shaft attachment

Removing drive shaft

KV38107900
(

—

)

Protector
a: 32 mm (1.26 in) dia.

Installing drive shaft

ZZA1229D

ZZA1230D

PDIA1183J

Tool name

Description

Power tool

Loosening bolts and nuts

PBIC0190E

FAX-6

< PREPARATION >

PREPARATION

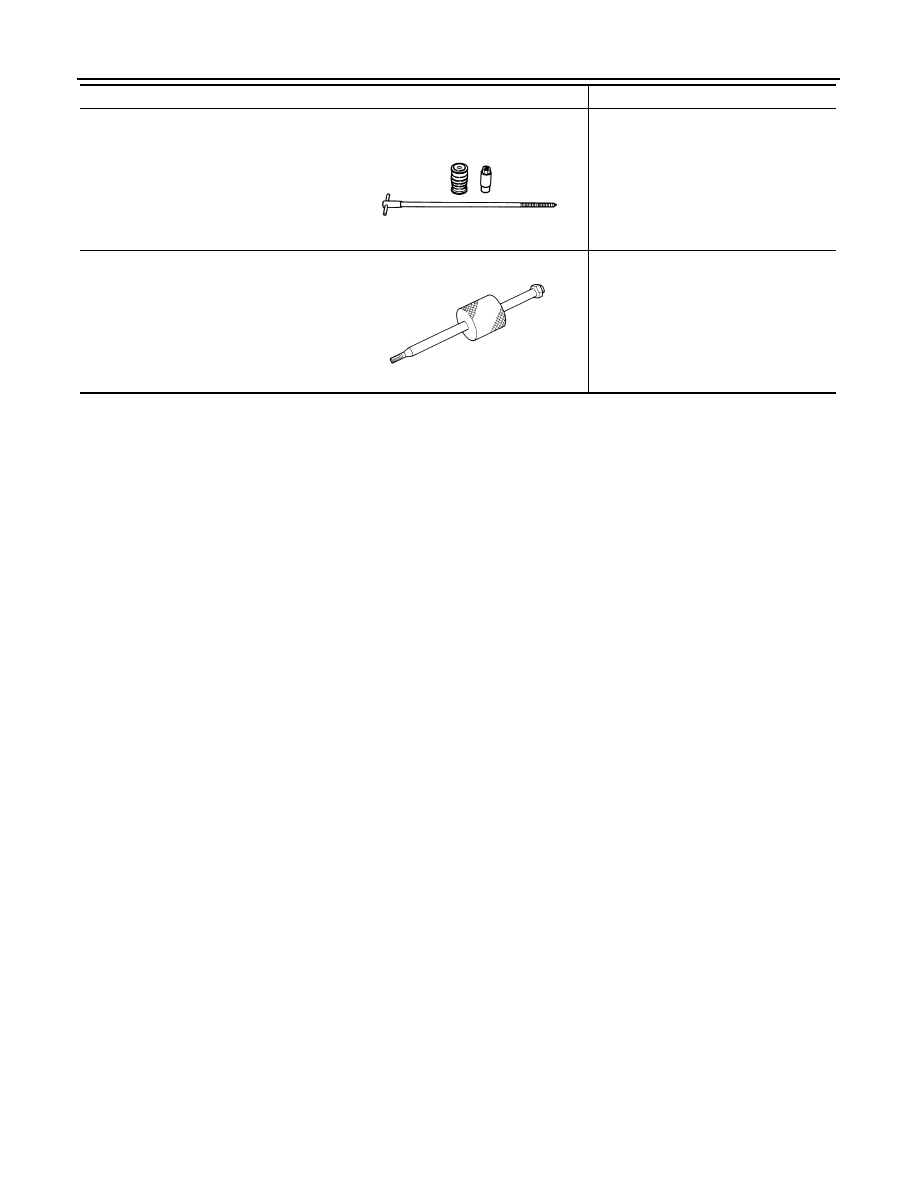

Drive shaft puller

Removing drive shaft joint sub assembly

Sliding hummer

Removing drive shaft

Tool name

Description

JPDIG0152ZZ

ZZA0023D

FRONT WHEEL HUB AND KNUCKLE

FAX-7

< PERIODIC MAINTENANCE >

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

PERIODIC MAINTENANCE

FRONT WHEEL HUB AND KNUCKLE

Inspection

INFOID:0000000009948789

COMPONENT PART

Check that the mounting conditions (looseness, backlash) of each component and component conditions
(wear, damage) are normal.

WHEEL HUB AND BEARING ASSEMBLY

Check the following items, and replace the part if necessary.
• Move wheel hub and bearing assembly in the axial direction by hand. Check there is no looseness of wheel

bearing.

• Rotate wheel hub and bearing assembly and check there is no unusual noise or other irregular conditions. If

there is any of irregular conditions, replace wheel hub and bearing assembly.

Axial end play

: Refer to

FAX-27, "Wheel Bearing"

.
