EC-406

< DTC/CIRCUIT DIAGNOSIS >

[MR18DE]

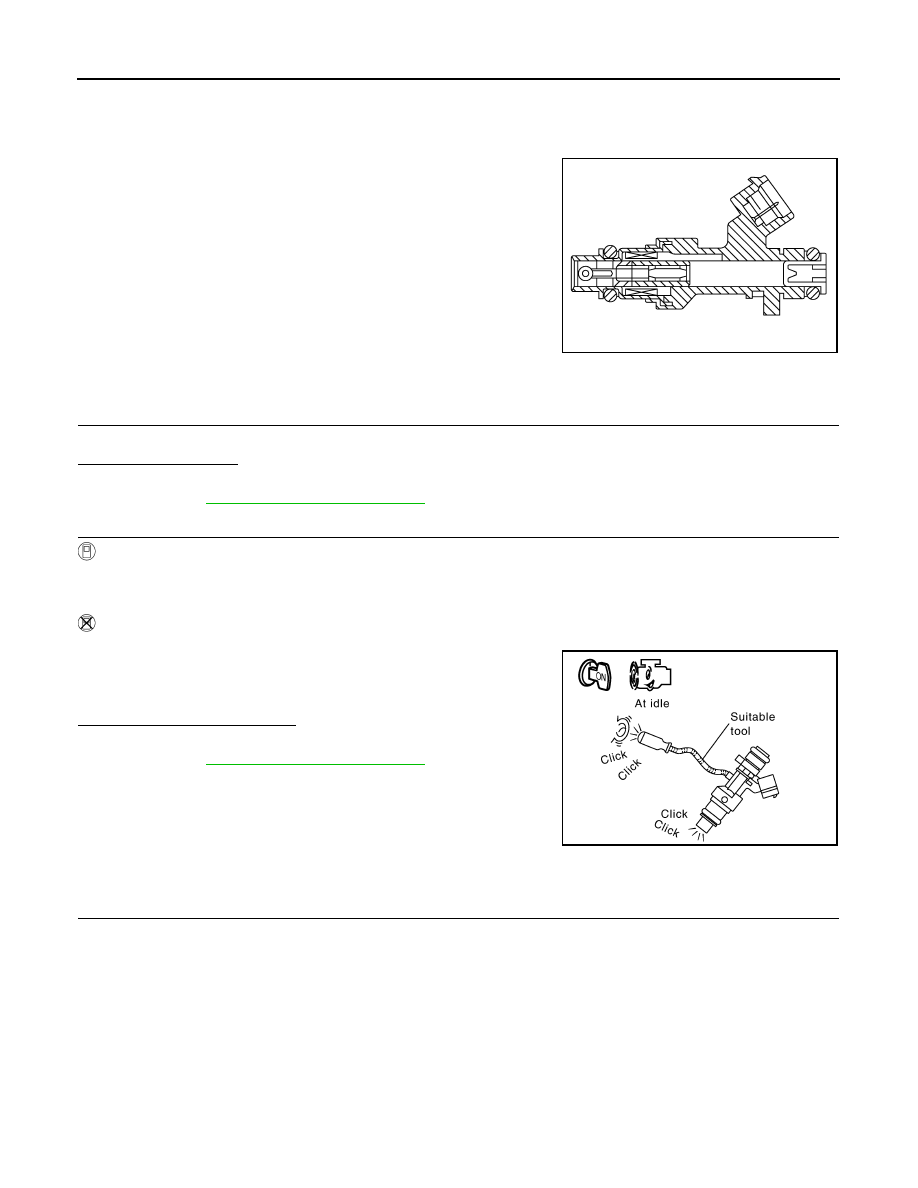

FUEL INJECTOR

FUEL INJECTOR

Description

INFOID:0000000009947551

The fuel injector is a small, precise solenoid valve. When the ECM
supplies a ground to the fuel injector circuit, the coil in the fuel injec-
tor is energized. The energized coil pulls the ball valve back and
allows fuel to flow through the fuel injector into the intake manifold.
The amount of fuel injected depends upon the injection pulse dura-
tion. Pulse duration is the length of time the fuel injector remains
open. The ECM controls the injection pulse duration based on
engine fuel needs.

Component Function Check

INFOID:0000000009947552

1.

INSPECTION START

Turn ignition switch to START.
Is any cylinder ignited?

YES

>> GO TO 2.

NO

>> Go to

EC-406, "Diagnosis Procedure"

.

2.

CHECK FUEL INJECTOR FUNCTION

With CONSULT

1.

Start engine.

2.

Perform “POWER BALANCE” in “ACTIVE TEST” mode with CONSULT.

3.

Make sure that each circuit produces a momentary engine speed drop.

Without CONSULT

1.

Let engine idle.

2.

Listen to each fuel injector operating sound.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Go to

EC-406, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009947553

1.

CHECK FUEL INJECTOR POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect fuel injector harness connector.

3.

Turn ignition switch ON.

4.

Check the voltage between fuel injector harness connector and ground.

PBIA9664J

Clicking noise should be heard.

PBIB3332E

FUEL INJECTOR

EC-407

< DTC/CIRCUIT DIAGNOSIS >

[MR18DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

DETECT MALFUNCTIONING PART

Check the following.
• IPDM E/R harness connector E15
• 15 A fuse (No. 62)
• Harness for open or short between fuel injector and fuse

>> Repair open circuit or short to ground or short to power in harness or connectors.

3.

CHECK FUEL INJECTOR OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check the continuity between fuel injector harness connector and ECM harness connector.

4.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair open circuit or short to ground or short to power in harness or connectors.

4.

CHECK FUEL INJECTOR

Refer to

EC-407, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace malfunctioning fuel injector. Refer to

EM-35, "Exploded View"

.

5.

CHECK INTERMITTENT INCIDENT

Refer to

GI-40, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> Replace IPDM E/R. Refer to

PCS-34, "Removal and Installation"

 (With I-KEY) or

PCS-64,

"Removal and Installation"

 (Without I-KEY).

NO

>> Repair open circuit or short to ground or short to power in harness or connectors.

Component Inspection

INFOID:0000000009947554

1.

CHECK FUEL INJECTOR

1.

Turn ignition switch OFF.

2.

Disconnect fuel injector harness connector.

Fuel injector

Ground

Voltage

Cylinder

Connector

Terminal

1

F37

1

Ground

Battery voltage

2

F38

1

3

F39

1

4

F40

1

Fuel injector

ECM

Continuity

Cylinder

Connector

Terminal

Connector

Terminal

1

F37

2

F7

31

Existed

2

F38

2

30

3

F39

2

29

4

F40

2

25

EC-408

< DTC/CIRCUIT DIAGNOSIS >

[MR18DE]

FUEL INJECTOR

3.

Check resistance between fuel injector terminals as per the following.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace malfunctioning fuel injector. Refer to

EM-35, "Exploded View"

.

Terminals

Resistance

1 and 2

11.1 - 14.5

Ω

 [at 10 - 60

°

C (50 -

140

°

F)]

FUEL PUMP

EC-409

< DTC/CIRCUIT DIAGNOSIS >

[MR18DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

FUEL PUMP

Description

INFOID:0000000009947555

*: ECM determines the start signal status by the signals of engine speed and battery voltage.

The ECM activates the fuel pump for several seconds after the ignition switch is turned ON to improve engine
start ability. If the ECM receives a engine speed signal from the camshaft position sensor (PHASE), it knows
that the engine is rotating, and causes the pump to operate. If the engine speed signal is not received when
the ignition switch is ON, the engine stalls. The ECM stops pump operation and prevents battery discharging,
thereby improving safety. The ECM does not directly drive the fuel pump. It controls the ON/OFF fuel pump
relay, which in turn controls the fuel pump.

Component Function Check

INFOID:0000000009947556

1.

CHECK FUEL PUMP FUNCTION

1.

Turn ignition switch ON.

2.

Pinch fuel feed hose (1) with two fingers.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>>

EC-409, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009947557

1.

CHECK FUEL PUMP POWER SUPPLY CIRCUIT-I

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Turn ignition switch ON.

4.

Check the voltage between ECM harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> GO TO 2.

2.

CHECK FUEL PUMP POWER SUPPLY CIRCUIT-II

Sensor

Input signal to ECM

ECM function

Actuator

Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)

Engine speed*

Fuel pump control

Fuel pump relay

↓

Fuel pump

Battery

Battery voltage*

Condition

Fuel pump operation

Ignition switch is turned to ON.

Operates for 1 second.

Engine running and cranking

Operates.

When engine is stopped

Stops in 1.5 seconds.

Except as shown above

Stops.

Fuel pressure pulsation should be felt on the fuel feed
hose for 1 second after ignition switch is turned ON.

JMBIA2314ZZ

ECM

Ground

Voltage

Connector

Terminal

F7

23

Ground

Battery voltage
