P1217 ENGINE OVER TEMPERATURE

*1: Turn the ignition switch ON.

*2: Engine running at 3,000 rpm for 10 minutes.

*3: Drive at 90 km/h (56 MPH) for 30 minutes and then let idle for 10 minutes.

*4: After 60 minutes of cool down time.

For more information, refer to

CO-4, "Troubleshooting Chart"

.

>> INSPECTION END

OFF

11

• Cylinder head

• Straight gauge feeler

gauge

0.1 mm (0.004 in) Maxi-
mum distortion (warp-
ing)

EM-67, "Disassembly
and Assembly"

12

• Cylinder block and

pistons

• Visual

No scuffing on cylinder
walls or piston

EM-95, "Inspection"

Engine

Step

Inspection item

Equipment

Standard

Reference page

P1225 TP SENSOR

EC-331

< DTC/CIRCUIT DIAGNOSIS >

[MR18DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

P1225 TP SENSOR

Description

INFOID:0000000009947451

Electric throttle control actuator consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds to
the throttle valve movement.

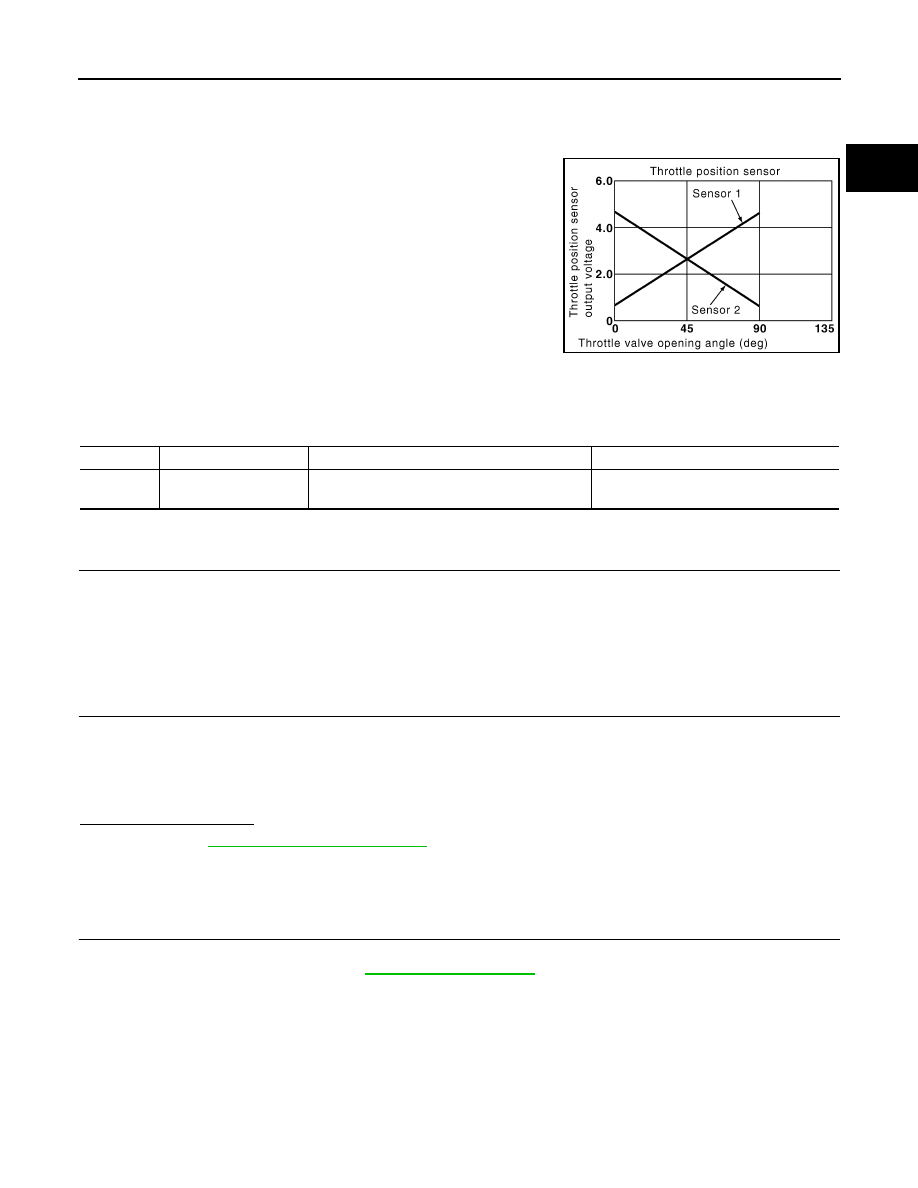

The throttle position sensor has two sensors. These sensors are a
kind of potentiometer which transform the throttle valve position into
output voltage, and emit the voltage signals to the ECM. The ECM
judges the current opening angle of the throttle valve from these sig-
nals and controls the throttle valve opening angle in response to
driving conditions via the throttle control motor.

DTC Logic

INFOID:0000000009947452

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10 V at idle.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Turn ignition switch ON.

2.

Turn ignition switch OFF and wait at least 10 seconds.

3.

Turn ignition switch ON.

4.

Check 1st trip DTC.

Is 1st trip DTC detected?

YES

>> Go to

EC-331, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000009947453

1.

CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY

1.

Turn ignition switch OFF.

2.

Remove the intake air duct. Refer to

EM-24, "Exploded View"

.

PBIB0145E

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P1225

Closed throttle position
learning performance

Closed throttle position learning value is excessively
low.

• Electric throttle control actuator

(TP sensor 1 and 2)

EC-332

< DTC/CIRCUIT DIAGNOSIS >

[MR18DE]

P1225 TP SENSOR

3.

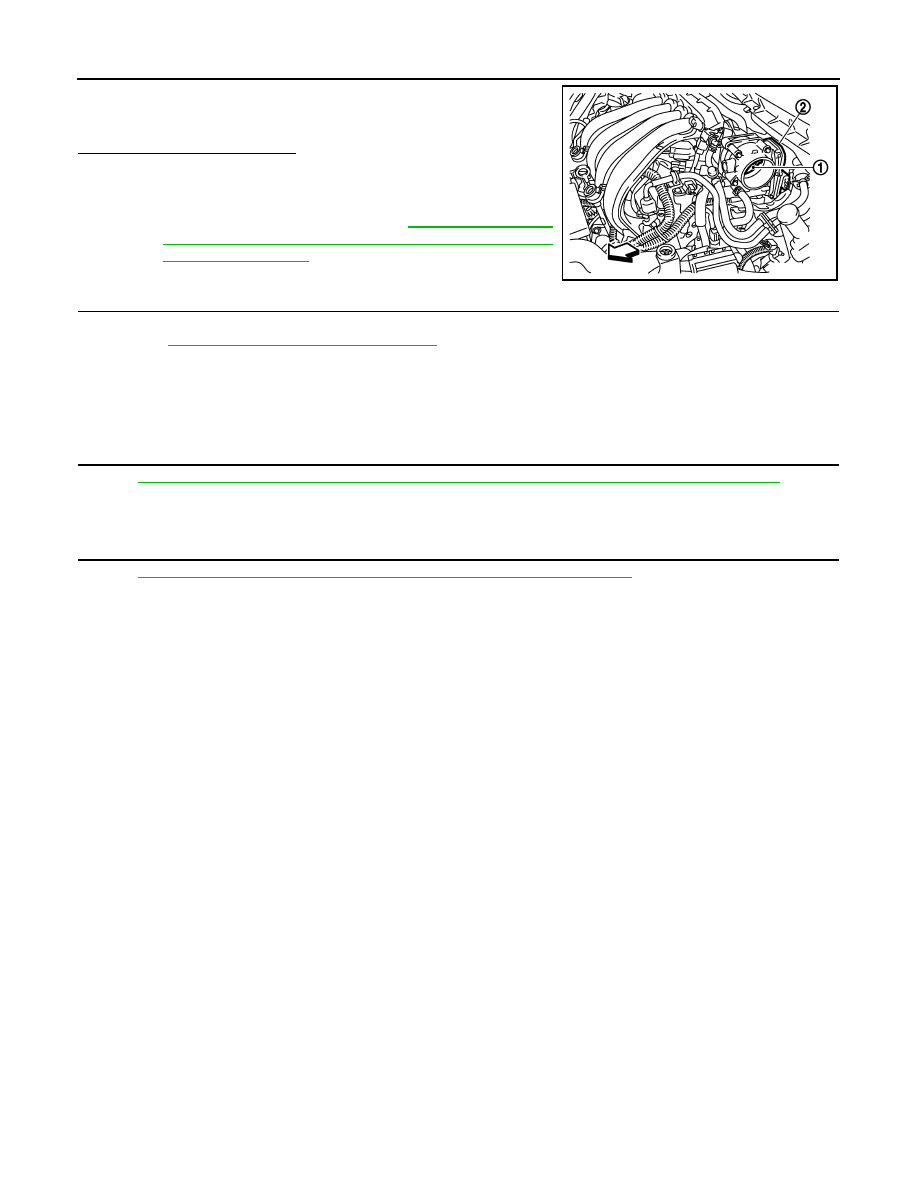

Check if foreign matter is caught between the throttle valve (1)
and the housing.

-

Electric throttle control actuator (2)

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Remove the foreign matter and clean the electric throttle

control actuator inside, and then perform throttle valve
closed position learning. Refer to

EC-19, "THROTTLE

VALVE CLOSED POSITION LEARNING : Special
Repair Requirement"

.

2.

REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR

1.

Replace electric throttle control actuator.

2.

Perform

EC-332, "Special Repair Requirement"

.

>> INSPECTION END

Special Repair Requirement

INFOID:0000000009947454

1.

PERFORM THROTTLE VALVE CLOSED POSITION LEARNING

Refer to

EC-19, "THROTTLE VALVE CLOSED POSITION LEARNING : Special Repair Requirement"

.

>> GO TO 2.

2.

PERFORM IDLE AIR VOLUME LEARNING

Refer to

EC-20, "IDLE AIR VOLUME LEARNING : Special Repair Requirement"

.

>> END

JMBIA2312ZZ

P1226 TP SENSOR

EC-333

< DTC/CIRCUIT DIAGNOSIS >

[MR18DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

P1226 TP SENSOR

Description

INFOID:0000000009947455

Electric throttle control actuator consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds to
the throttle valve movement.
The throttle position sensor has two sensors. These sensors are a
kind of potentiometer which transform the throttle valve position into
output voltage, and emit the voltage signals to the ECM. The ECM
judges the current opening angle of the throttle valve from these sig-
nals and controls the throttle valve opening angle in response to
driving conditions via the throttle control motor.

DTC Logic

INFOID:0000000009947456

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10 V at idle.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Turn ignition switch ON.

2.

Turn ignition switch OFF, wait at least 10 seconds.

3.

Turn ignition switch ON.

4.

Repeat steps 2 and 3 for 32 times.

5.

Check 1st trip DTC.

Is 1st trip DTC detected?

YES

>> Go to

EC-333, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000009947457

1.

CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY

1.

Turn ignition switch OFF.

2.

Remove the intake air duct. Refer to

EM-24, "Exploded View"

.

PBIB0145E

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P1226

Closed throttle position
learning performance

Closed throttle position learning is not performed
successfully, repeatedly.

• Electric throttle control actuator

(TP sensor 1 and 2)
