EC-46

< SYSTEM DESCRIPTION >

[MR18DE]

MULTIPORT FUEL INJECTION SYSTEM

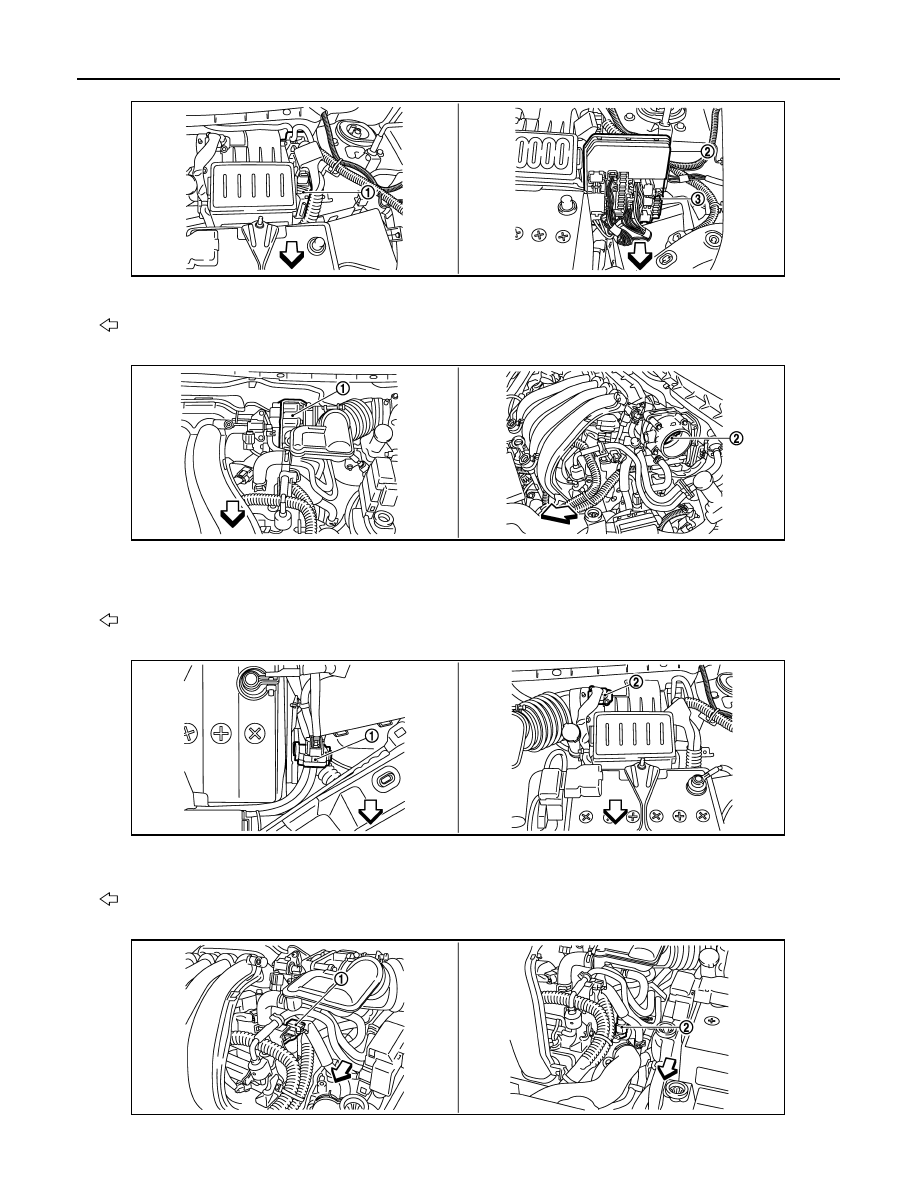

1.

ECM

2.

IPDM E/R

3.

Fuel pump fuse (15 A)

Vehicle front

1.

Electric throttle control actuator
(with built-in position sensor, throttle
control motor)

2.

Throttle valve

Vehicle front

1.

Battery current sensor

2.

Mass air flow sensor
(with Intake air temperature sensor)

Vehicle front

JMBIA2297ZZ

JMBIA2298ZZ

JMBIA2299ZZ

JMBIA2300ZZ

MULTIPORT FUEL INJECTION SYSTEM

EC-47

< SYSTEM DESCRIPTION >

[MR18DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

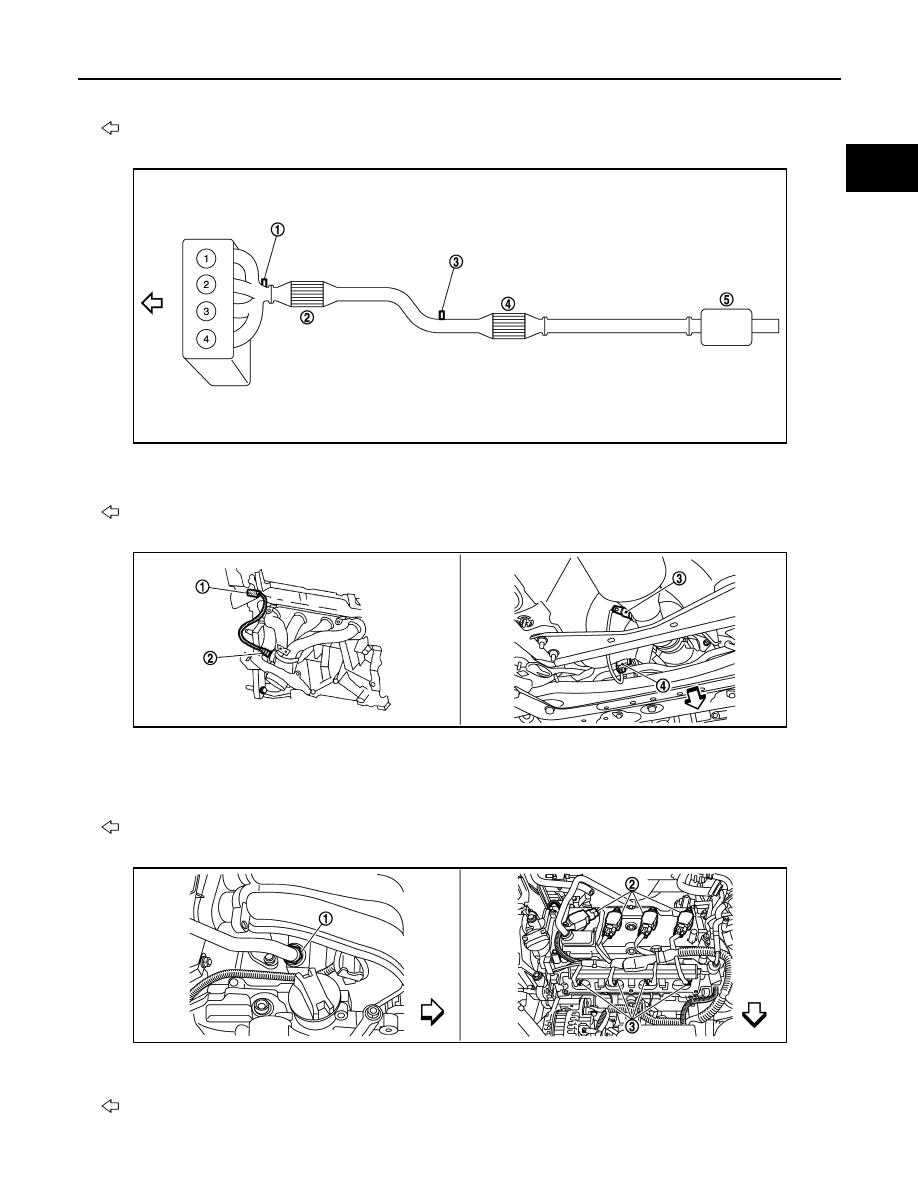

1.

Camshaft position sensor (PHASE)

2.

Engine coolant temperature sensor

Vehicle front

1.

Air fuel ratio (A/F) sensor 1

2.

Three way catalyst (Manifold)

3.

Heated oxygen sensor 2

4.

Three way catalyst (under floor)

5.

Muffler

Vehicle front

1.

Air fuel ratio (A/F) sensor 1 harness
connector

2.

Air fuel ratio (A/F) sensor 1

3.

Heated oxygen sensor 2

4.

Heated oxygen sensor 2 harness
connector

Vehicle front

1.

PCV valve

2.

Ignition coil (with power transistor)
and spark plug

3.

Fuel injector

Vehicle front

JMBIA2192ZZ

JMBIA2301ZZ

JMBIA2302ZZ

EC-48

< SYSTEM DESCRIPTION >

[MR18DE]

MULTIPORT FUEL INJECTION SYSTEM

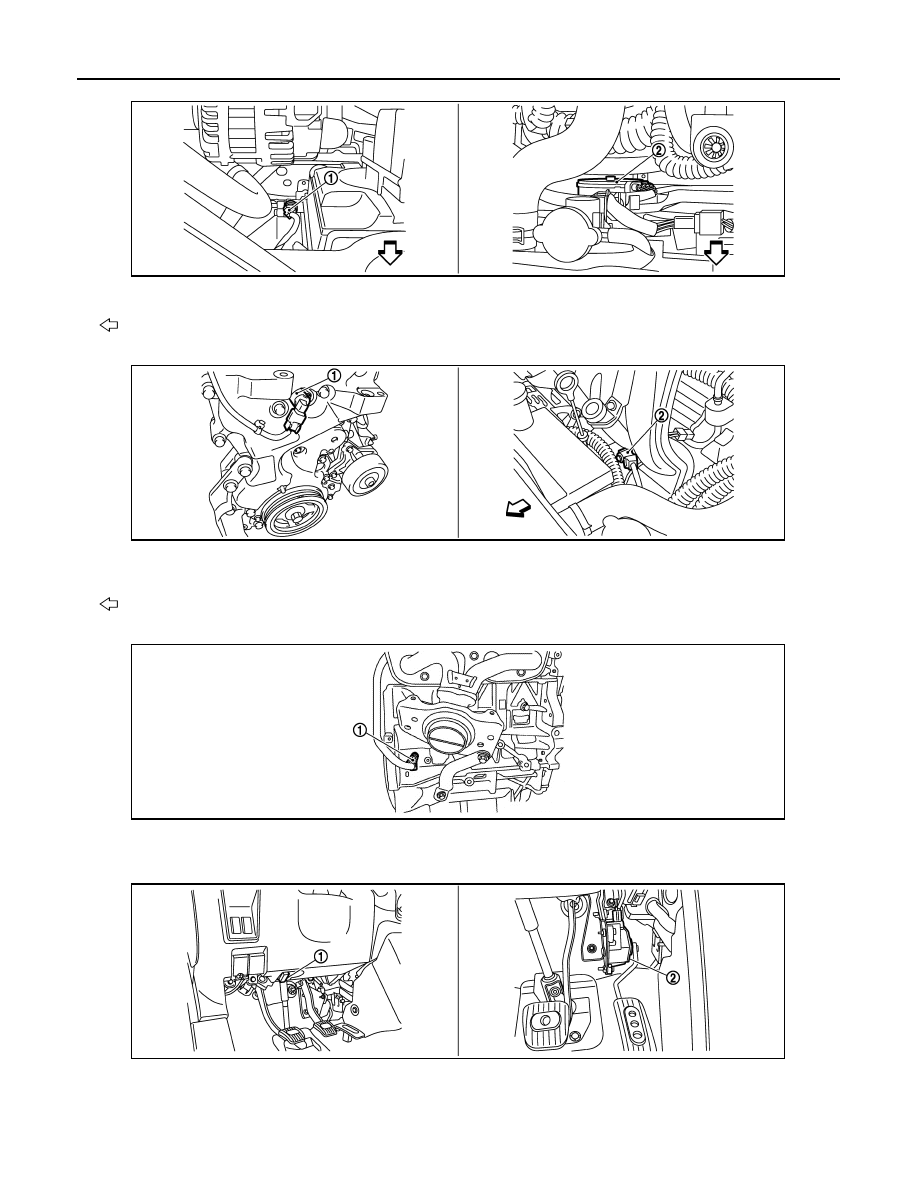

1.

Refrigerant pressure sensor

2.

Cooling fan motor

Vehicle front

1.

Intake valve timing control solenoid
valve

2.

Knock sensor

Vehicle front

1.

Crankshaft position sensor (POS)

1.

Data link connector

2.

Accelerator pedal position sensor

JMBIA2303ZZ

JMBIA2304ZZ

JMBIA2305ZZ

JMBIA2306ZZ

MULTIPORT FUEL INJECTION SYSTEM

EC-49

< SYSTEM DESCRIPTION >

[MR18DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

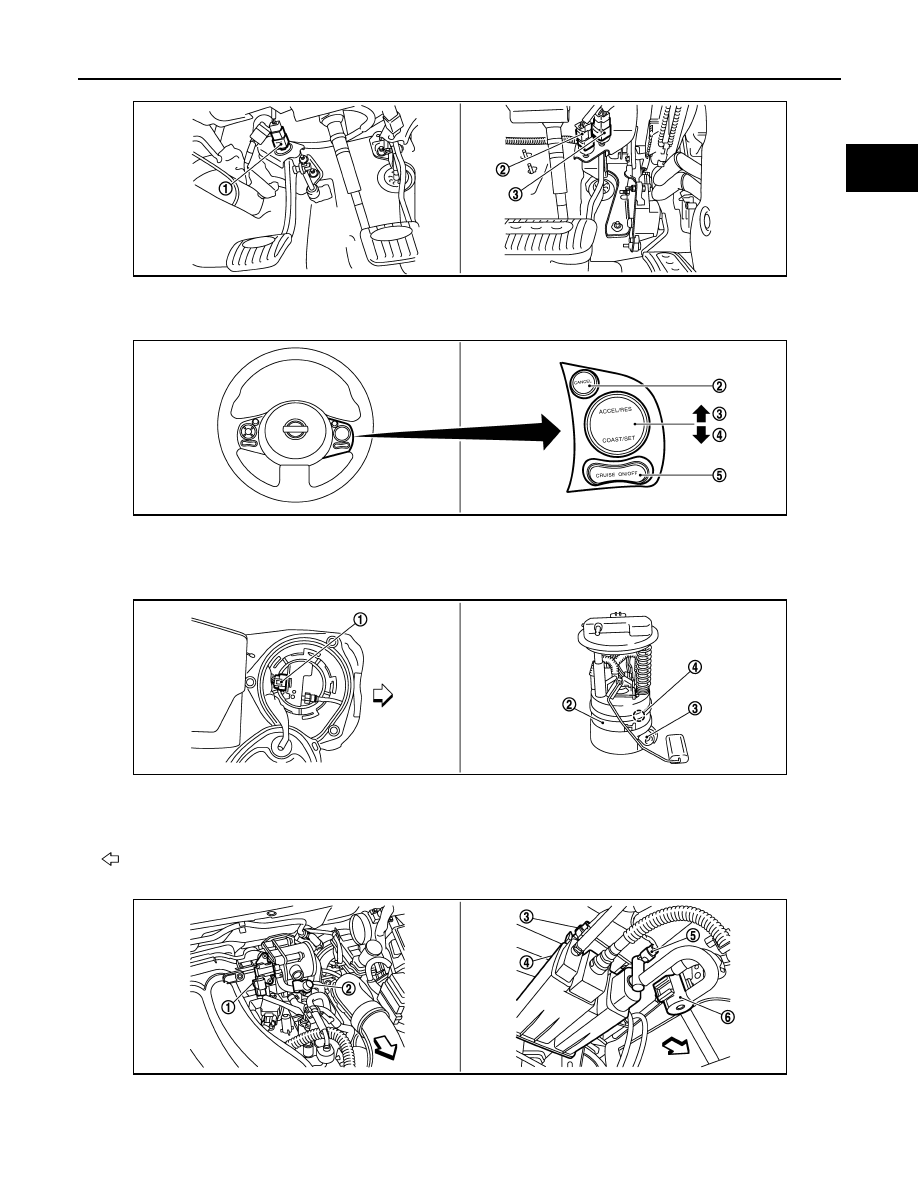

1.

ASCD clutch switch

2.

ASCD brake switch

3.

Stop lamp switch

1.

ASCD steering switch

2.

CANCEL switch

3.

RESUME/ACCELERATE switch

4.

SET/COST switch

5.

MAIN switch

1.

Fuel level sensor unit and fuel pump
harness connector

2.

Fuel level sensor unit and fuel pump 3.

Fuel pressure regulator

4.

Fuel tank temperature sensor

Vehicle front

1.

EVAP canister purge volume control
solenoid valve

2.

EVAP service port

3.

EVAP control system pressure sen-
sor

JMBIA2307ZZ

JMBIA2308ZZ

JMBIA2309ZZ

JMBIA2310ZZ
