DLK-378

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

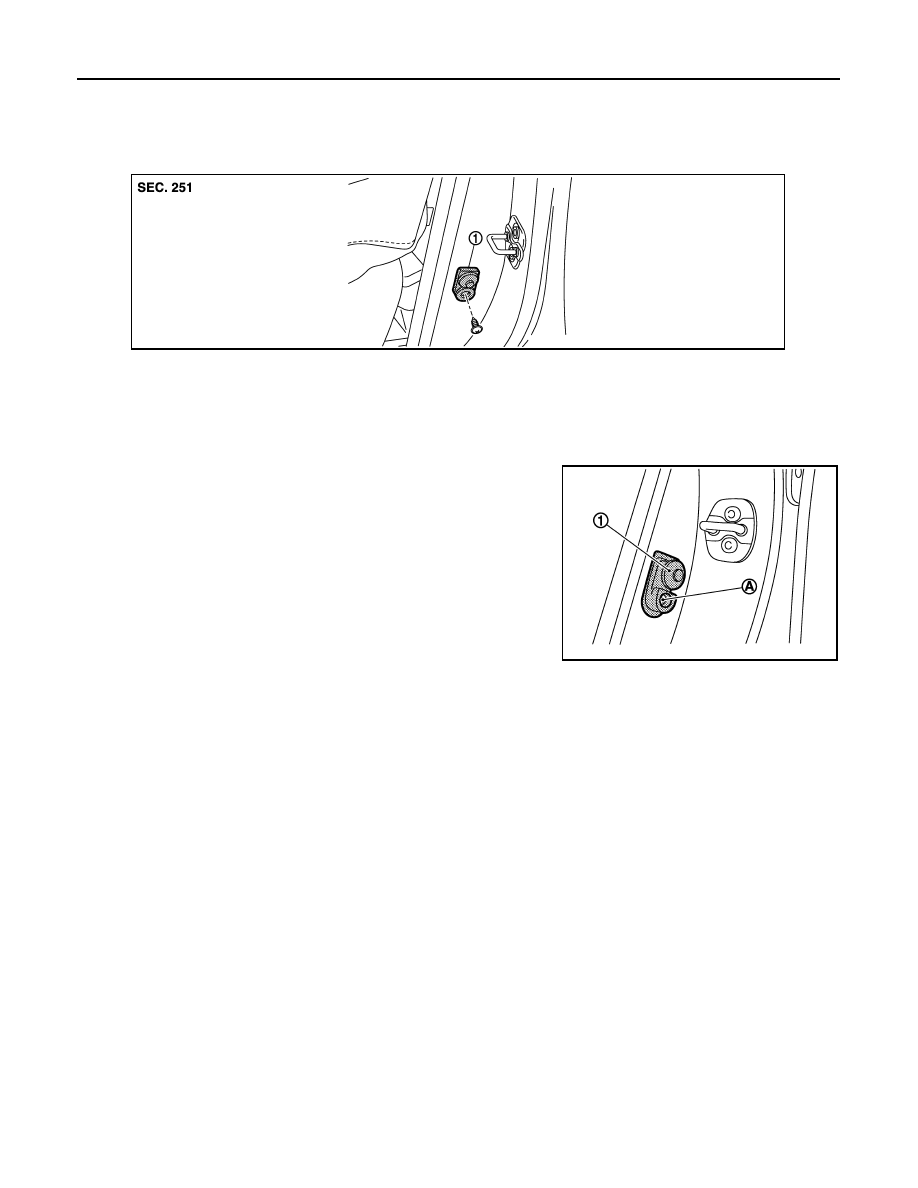

DOOR SWITCH

DOOR SWITCH

Exploded View

INFOID:0000000009950837

Removal and Installation

INFOID:0000000009950838

REMOVAL

1.

Remove the door switch mounting bolt (A), and then remove
door switch (1).

INSTALLATION

Install in the reverse order of removal.

1.

Door switch

JMKIA2180ZZ

JMKIA0171ZZ

REMOTE KEYLESS ENTRY RECEIVER

DLK-379

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

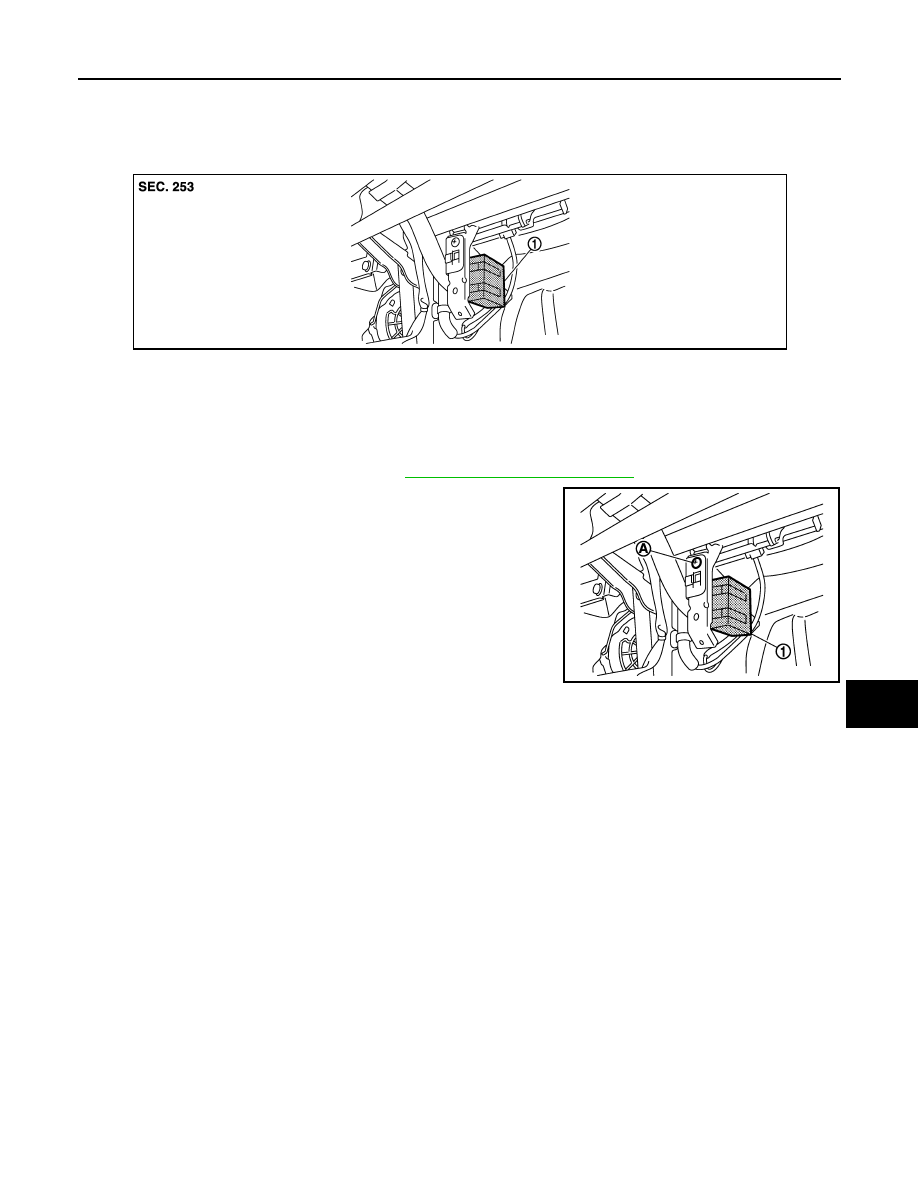

REMOTE KEYLESS ENTRY RECEIVER

Exploded View

INFOID:0000000009950839

Removal and Installation

INFOID:0000000009950840

REMOVAL

1.

Remove the glove box assembly. Refer to

IP-14, "Removal and Installation"

.

2.

Remove the remote keyless entry receiver mounting bolt (A),
and then remove remote keyless entry receiver (1).

INSTALLATION

Install in the reverse order of removal.

1.

Remote keyless entry receiver

JMKIA4338ZZ

JMKIA4337ZZ

DLK-380

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

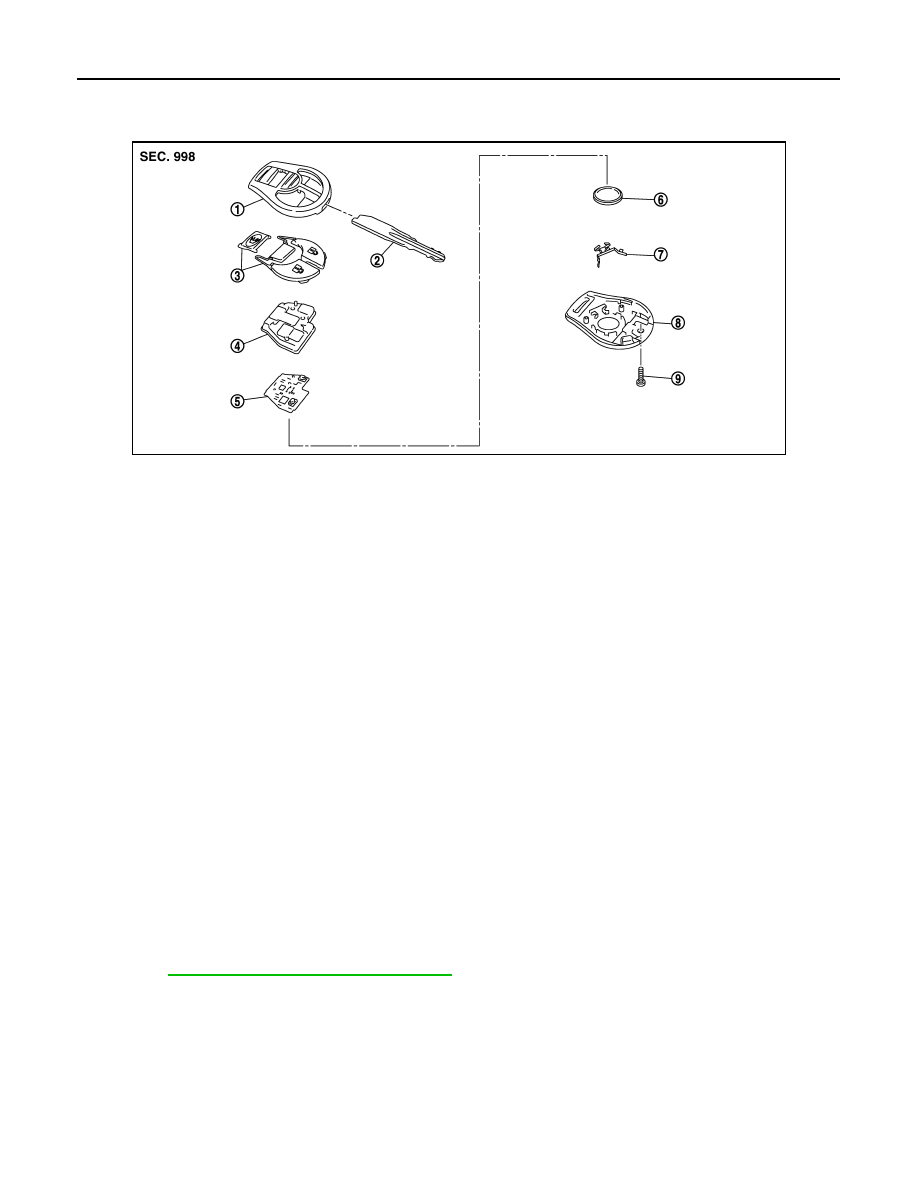

KEYFOB BATTERY

KEYFOB BATTERY

Exploded View

INFOID:0000000009950841

Removal and Installation

INFOID:0000000009950842

REMOVAL

1.

Remove screw (9) on the rear of keyfob.

2.

Place the key with the lower case (8) facing up. Set a screw-driver wrapped with tape between upper case
(1) and lower case (8) and then separate the lower case (8) from the upper case (1).

CAUTION:

• Do not touch the circuit board or battery terminal.
• The keyfob is water-resistant. However, if it does get wet, immediately wipe it dry.

3.

When replacing the circuit board assembly, remove circuit board assembly from the upper case (1).
[Circuit board assembly: Switch rubber (4) + Board surface (5)]

CAUTION:

Do not touch the printed circuits directly.

4.

Remove the battery (6) from the lower case (8) and replace it.

CAUTION:

When replacing battery, keep dirt, grease, and other foreign materials off the electrode contact
area.

5.

After replacement, fit the lower and upper cases together, part (4), (7) and tighten with the screw.

CAUTION:

After replacing the battery, Be sure to check that door locking operates normally using the keyfob.
Refer to

DLK-271, "Component Function Check"

.

INSTALLATION

Install in the reverse order of removal.

JMKIA1442ZZ

1.

Upper case

2.

Key

3.

Switch cover

4.

Switch rubber

5.

Board surface

6.

Battery

7.

plate

8.

Lower case

9.

Screw

Battery replacement

: Coin-type lithium battery
(CR1620)

EC-1

ENGINE

C

D

E

F

G

H

I

J

K

L

M

SECTION

EC

A

EC

N

O

P

CONTENTS

ENGINE CONTROL SYSTEM

MR18DE

BASIC INSPECTION  ....................................

8

DIAGNOSIS AND REPAIR WORK FLOW  .........

8

Work Flow  .................................................................

8

Diagnostic Work Sheet ............................................

11

INSPECTION AND ADJUSTMENT ....................

13

BASIC INSPECTION  .................................................

13

BASIC INSPECTION : Special Repair Require-
ment ........................................................................

13

ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT  ........................................................

16

ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT : Description  ................................

16

ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT : Special Repair Requirement  .....

16

IDLE SPEED  ..............................................................

18

IDLE SPEED : Description  ......................................

18

IDLE SPEED : Special Repair Requirement  ...........

18

IGNITION TIMING ......................................................

18

IGNITION TIMING : Description ..............................

18

IGNITION TIMING : Special Repair Requirement

....

18

VIN REGISTRATION  .................................................

18

VIN REGISTRATION : Description  .........................

18

VIN REGISTRATION : Special Repair Require-
ment ........................................................................

19

ACCELERATOR PEDAL RELEASED POSITION
LEARNING ................................................................

19

ACCELERATOR PEDAL RELEASED POSITION
LEARNING : Description .........................................

19

ACCELERATOR PEDAL RELEASED POSITION
LEARNING : Special Repair Requirement  ..............

19

THROTTLE VALVE CLOSED POSITION LEARN-
ING .............................................................................

19

THROTTLE VALVE CLOSED POSITION
LEARNING : Description  .........................................

19

THROTTLE VALVE CLOSED POSITION
LEARNING : Special Repair Requirement  ..............

19

IDLE AIR VOLUME LEARNING  ................................

20

IDLE AIR VOLUME LEARNING : Description  .........

20

IDLE AIR VOLUME LEARNING : Special Repair
Requirement ............................................................

20

MIXTURE RATIO SELF-LEARNING VALUE
CLEAR .......................................................................

22

MIXTURE RATIO SELF-LEARNING VALUE
CLEAR : Description ................................................

22

MIXTURE RATIO SELF-LEARNING VALUE
CLEAR : Special Repair Requirement .....................

22

HOW TO SET SRT CODE  ................................

23

Description ...............................................................

23

SRT Set Driving Pattern  ..........................................

24

Work Procedure .......................................................

26

HOW TO ERASE PERMANENT DTC  ..............

29

Description ...............................................................

29

Work Procedure (Group A) ......................................

30

Work Procedure (Group B) ......................................

32

SYSTEM DESCRIPTION  .............................

35

ENGINE CONTROL SYSTEM  ..........................

35

System Diagram .....................................................

35

System Description ..................................................

36

Component Parts Location ....................................

36

Component Description  ...........................................

41

MULTIPORT FUEL INJECTION SYSTEM  .......

42

System Diagram .....................................................

42

System Description ..................................................

42

Component Parts Location ....................................

45

Component Description  ...........................................

50

ELECTRIC IGNITION SYSTEM  ........................

51
