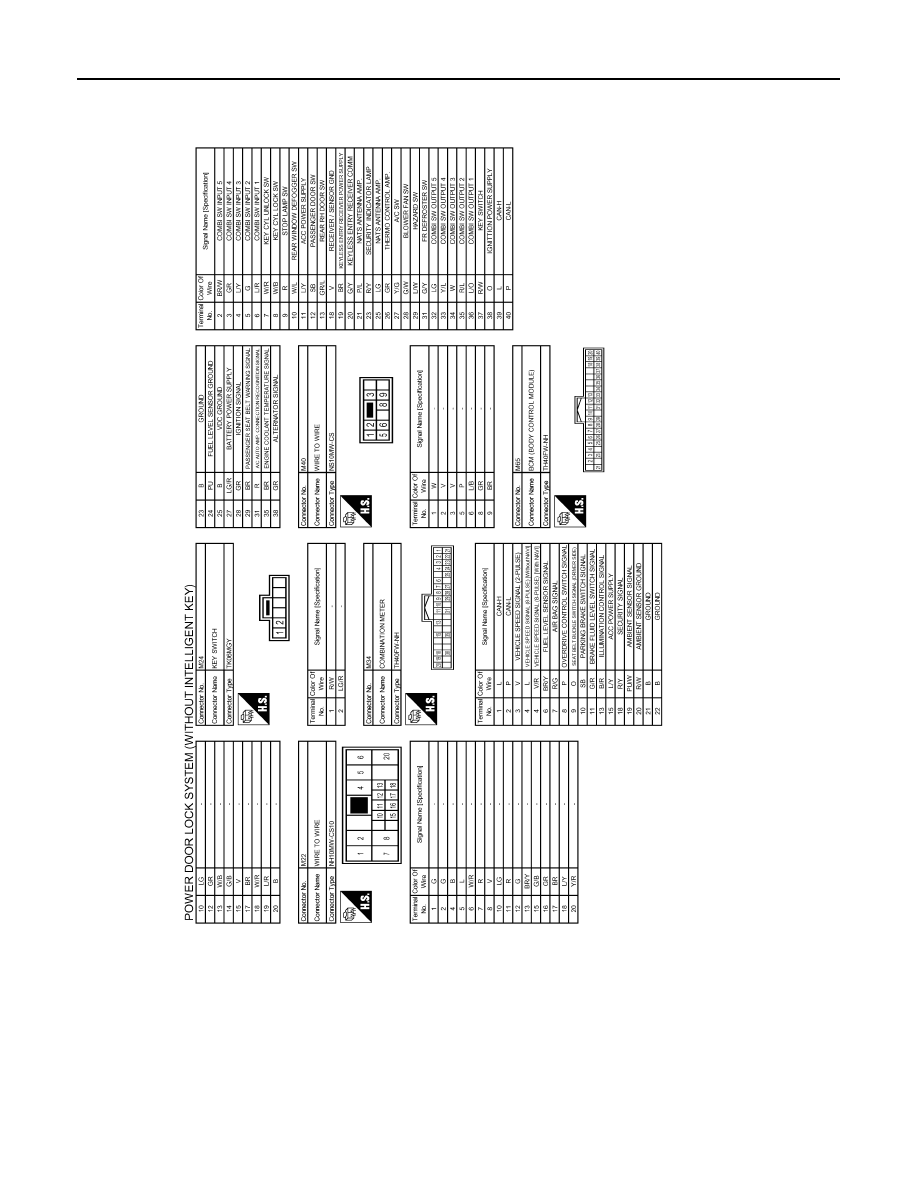

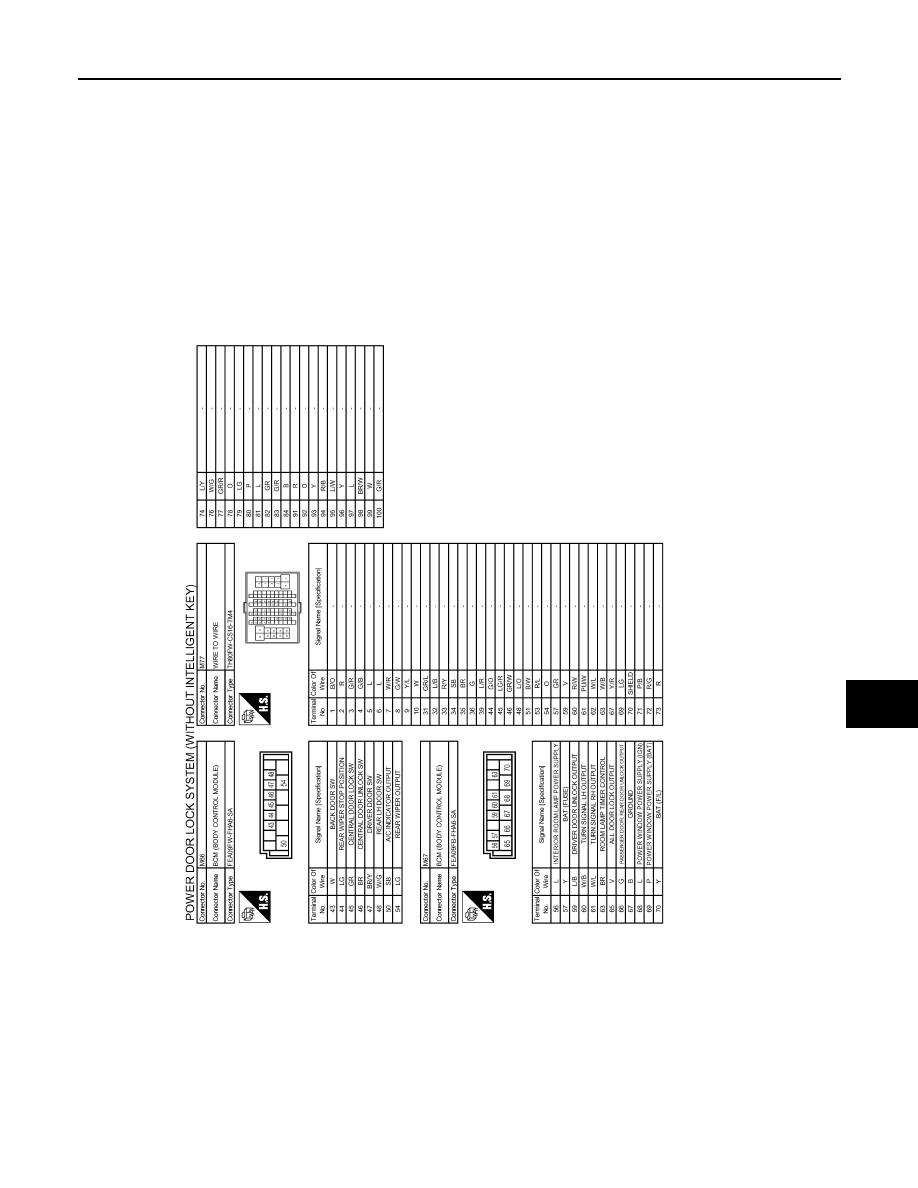

POWER DOOR LOCK SYSTEM

JRKWC9319GB

POWER DOOR LOCK SYSTEM

DLK-279

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

JRKWC9320GB

DLK-280

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

REMOTE KEYLESS ENTRY SYSTEM

REMOTE KEYLESS ENTRY SYSTEM

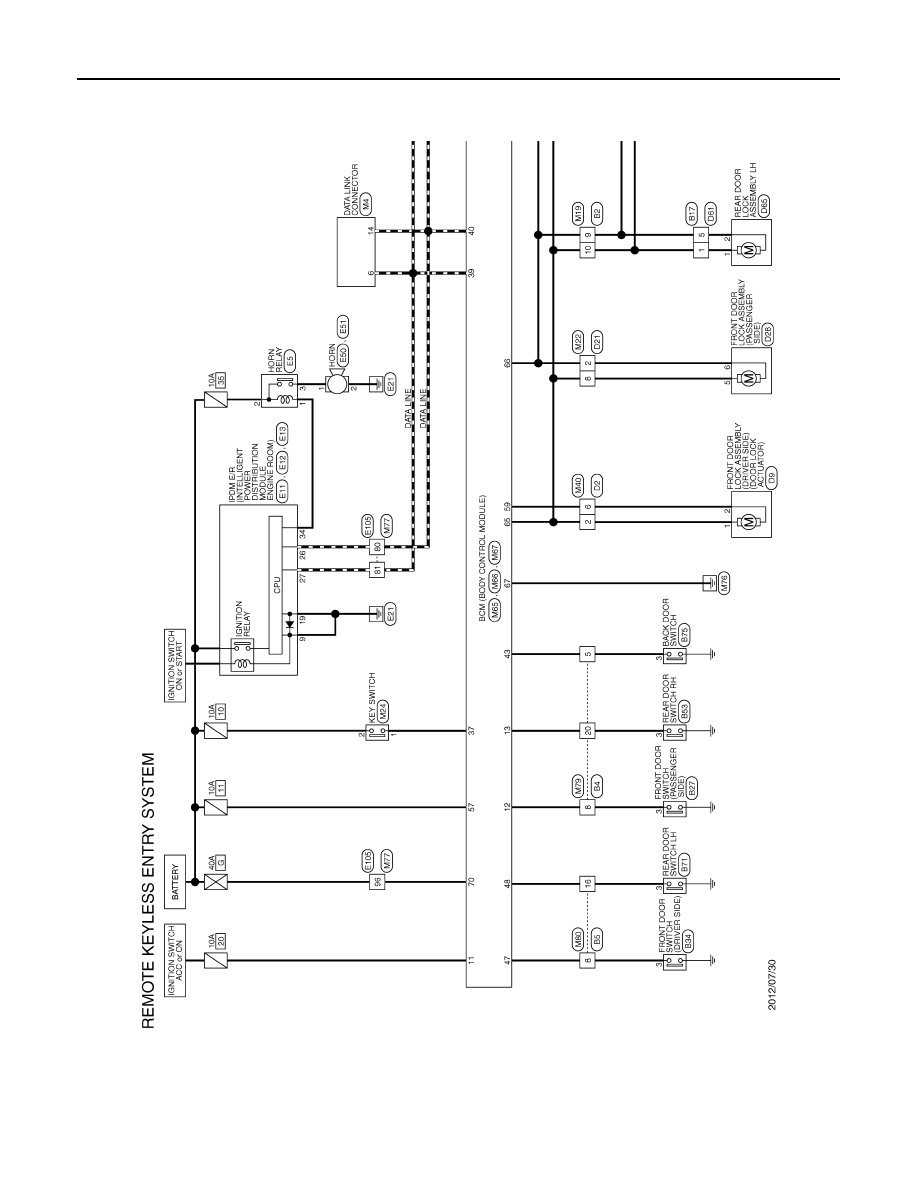

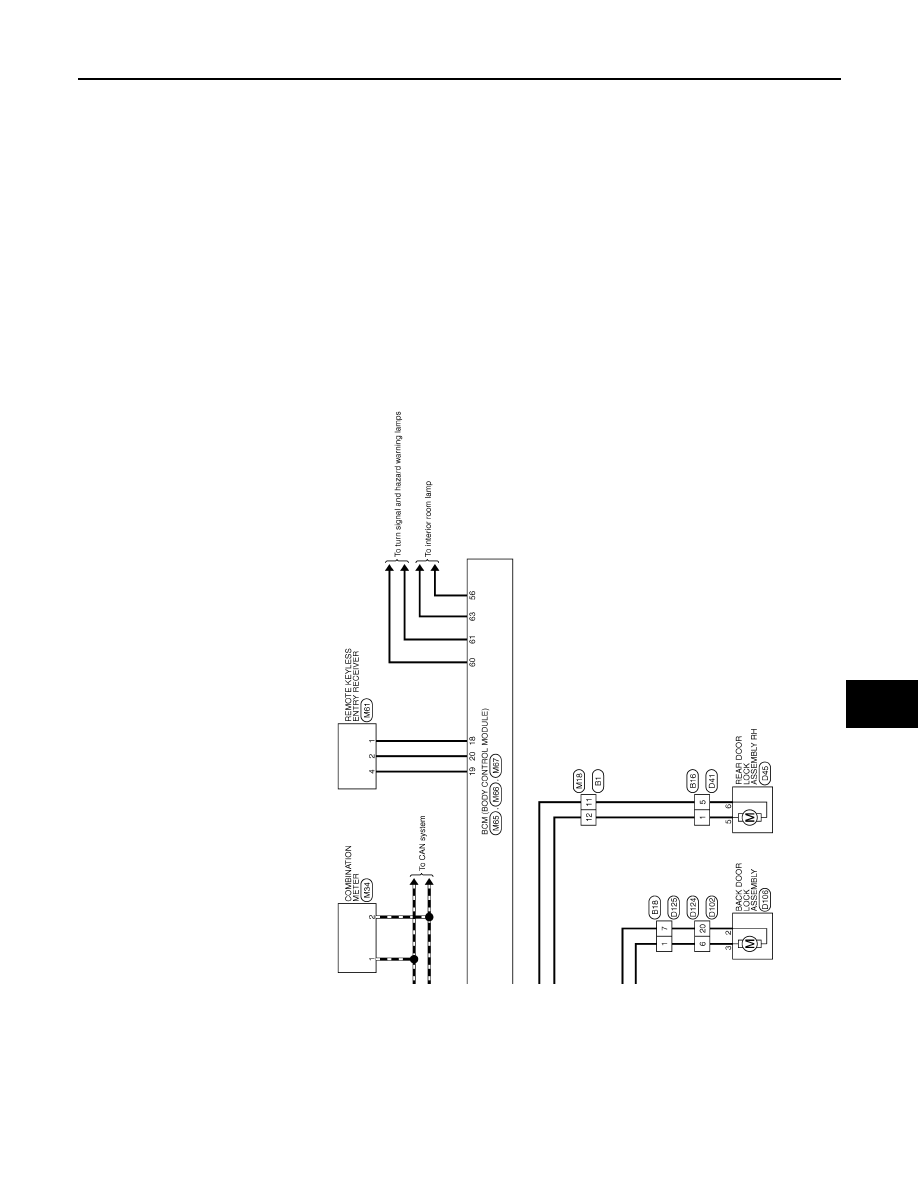

Wiring Diagram - REMOTE KEYLESS ENTRY SYSTEM -

INFOID:0000000009950737

JRKWC2336GB

REMOTE KEYLESS ENTRY SYSTEM

DLK-281

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

JRKWC2337GB
