INSIDE KEY ANTENNA

INSIDE KEY ANTENNA

INSTRUMENT CENTER

INSTRUMENT CENTER : Exploded View

INFOID:0000000009950664

INSTRUMENT CENTER : Removal and Installation

INFOID:0000000009950665

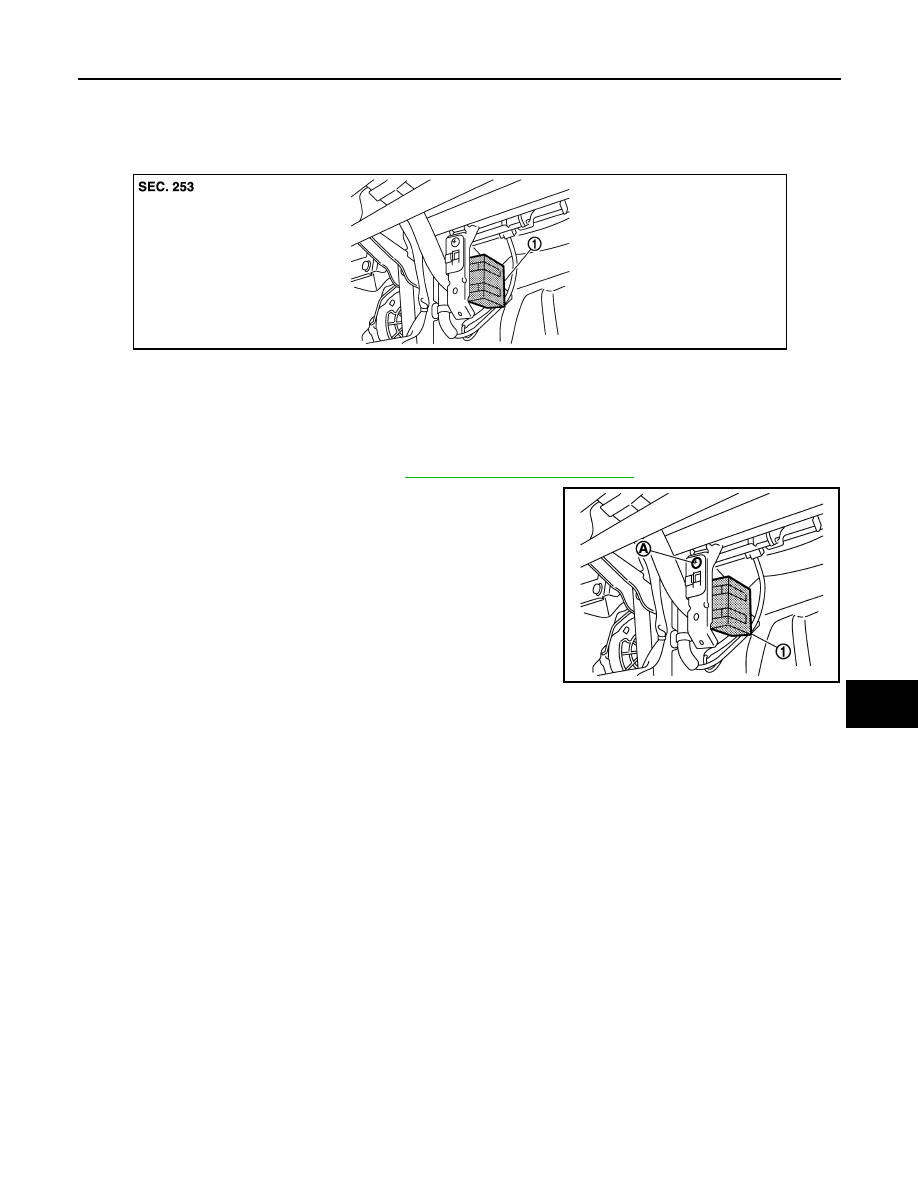

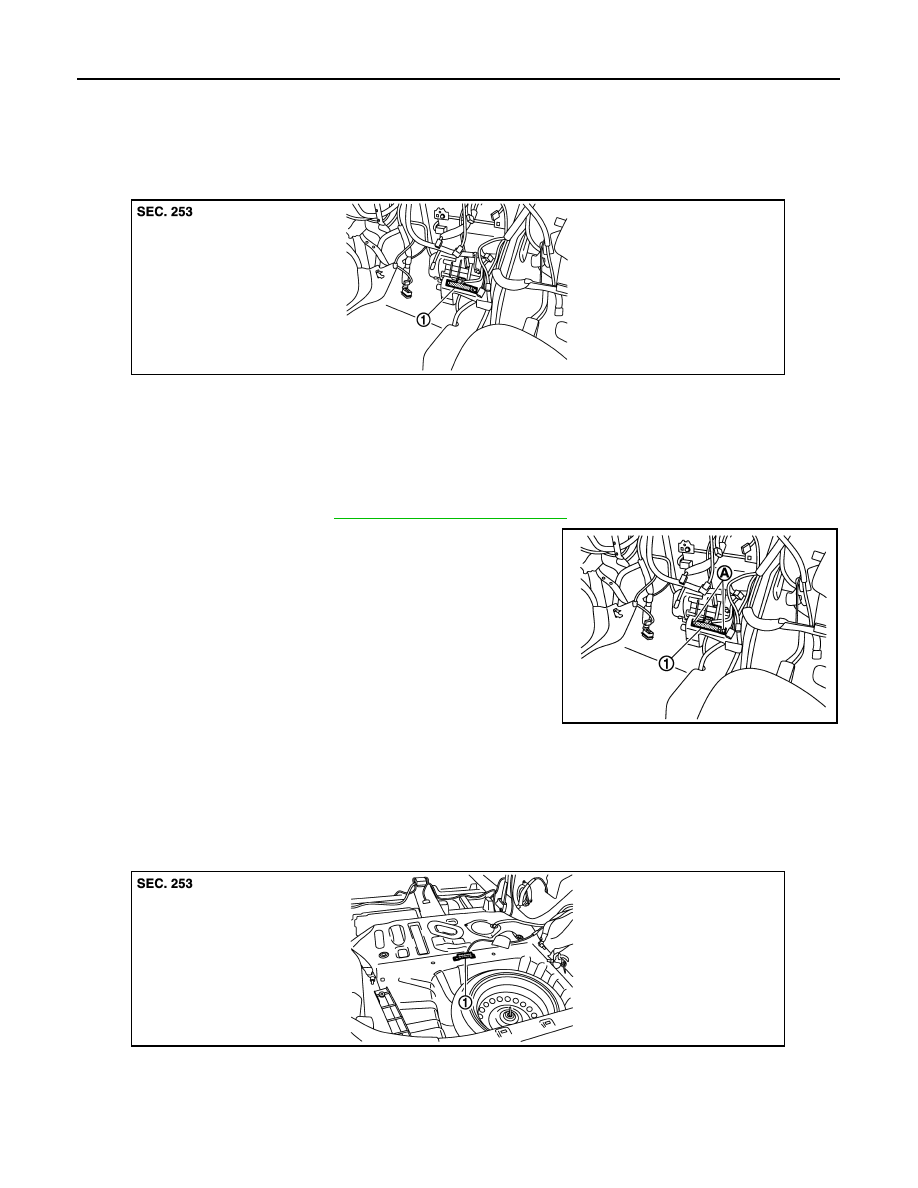

REMOVAL

1.

Remove the audio unit. Refer to

AV-61, "Removal and Installation"

.

2.

Remove the inside key antenna (instrument center) mounting
screw (A), and then remove inside key antenna (instrument cen-
ter) (1).

INSTALLATION

Install in the reverse order of removal.

LUGGAGE ROOM

LUGGAGE ROOM : Exploded View

INFOID:0000000009950666

1.

Inside key antenna (instrument cen-
ter)

JMKIA4012ZZ

JMKIA4013ZZ

1.

Inside key antenna (luggage room)

JMKIA4014ZZ

INSIDE KEY ANTENNA

DLK-227

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

LUGGAGE ROOM : Removal and Installation

INFOID:0000000009950667

REMOVAL

1.

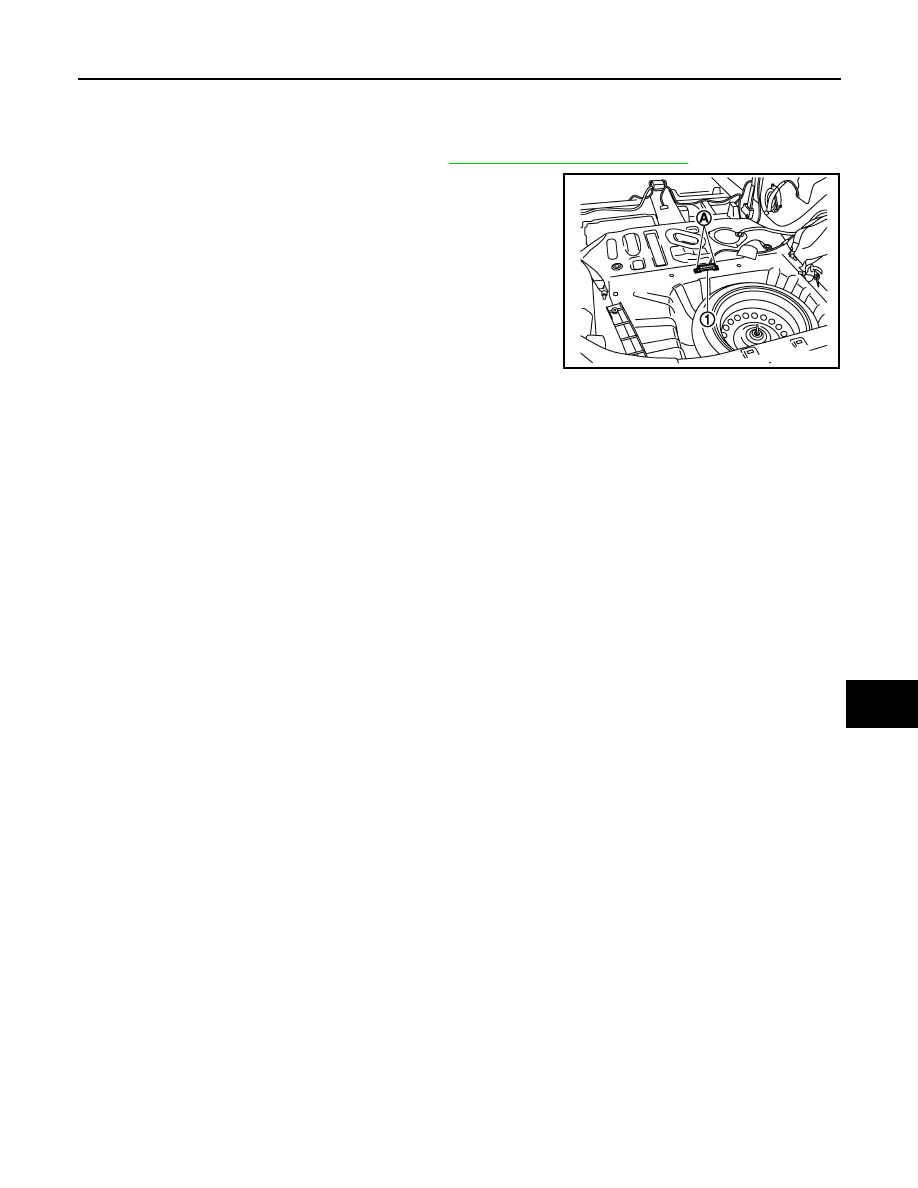

Remove the luggage floor finisher front. Refer to

INT-24, "Removal and Installation"

.

2.

Remove the inside key antenna (luggage room) mounting clip
(A), and then remove inside key antenna (luggage room) (1).

INSTALLATION

Install in the reverse order of removal.

JMKIA4015ZZ

DLK-228

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

INTELLIGENT KEY WARNING BUZZER

INTELLIGENT KEY WARNING BUZZER

Exploded View

INFOID:0000000009950668

Removal and Installation

INFOID:0000000009950669

REMOVAL

1.

Remove the front bumper. Refer to

EXT-12, "Removal and Installation"

.

2.

Remove the Intelligent Key warning buzzer mounting bolt (A),
and then remove the Intelligent Key warning buzzer (1).

INSTALLATION

Install in the reverse order of removal.

1.

Intelligent Key warning buzzer

JMKIA4016ZZ

JMKIA4017ZZ

REMOTE KEYLESS ENTRY RECEIVER

DLK-229

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

REMOTE KEYLESS ENTRY RECEIVER

Exploded View

INFOID:0000000009950670

Removal and Installation

INFOID:0000000009950671

REMOVAL

1.

Remove the glove box assembly. Refer to

IP-14, "Removal and Installation"

.

2.

Remove the remote keyless entry receiver mounting bolt (A),
and then remove remote keyless entry receiver (1).

INSTALLATION

Install in the reverse order of removal.

1.

Remote keyless entry receiver

JMKIA4338ZZ
