Nissan Cube. Manual - part 238





DLK-218

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

REAR DOOR LOCK

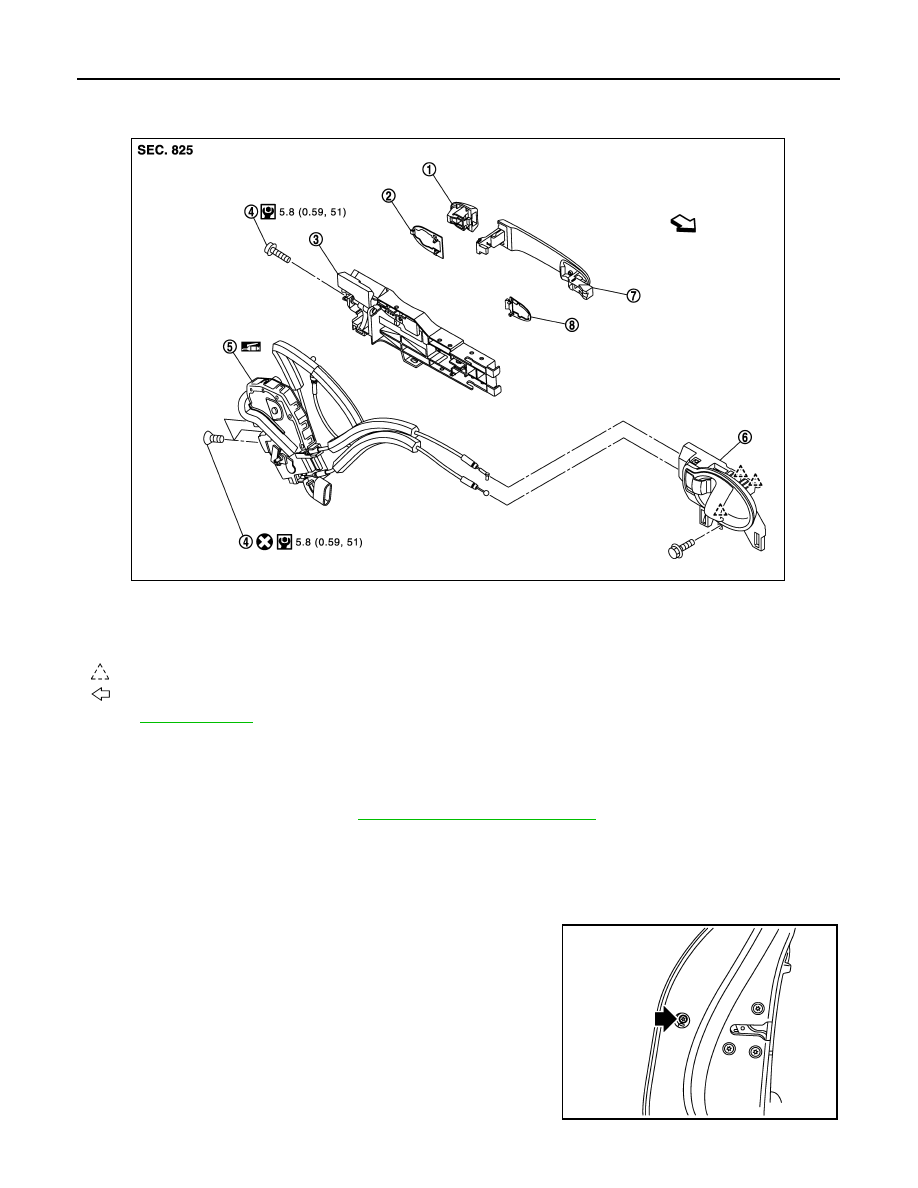

OUTSIDE HANDLE : Exploded View

INFOID:0000000009950653

OUTSIDE HANDLE : Removal and Installation

INFOID:0000000009950654

REMOVAL

1.

Remove rear door finisher. Refer to

INT-14, "Removal and Installation"

.

2.

Fully close rear door glass.

3.

Remove sealing screen.
NOTE:
Cut the butyl-tape so that some parts of the butyl-tape do not remain on the sealing screen, if the sealing
screen is reused.

4.

Remove door side grommet, and loosen TORX bolt from grom-
met hole.

1.

Outside handle escutcheon

2.

Rear gasket

3.

Outside handle bracket

4.

TORX bolt

5.

Door lock assembly

6.

Inside handle

7.

Outside handle

8.

Front gasket

: Pawl

: Vehicle front

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA3961GB

JMKIA1467ZZ

REAR DOOR LOCK

DLK-219

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

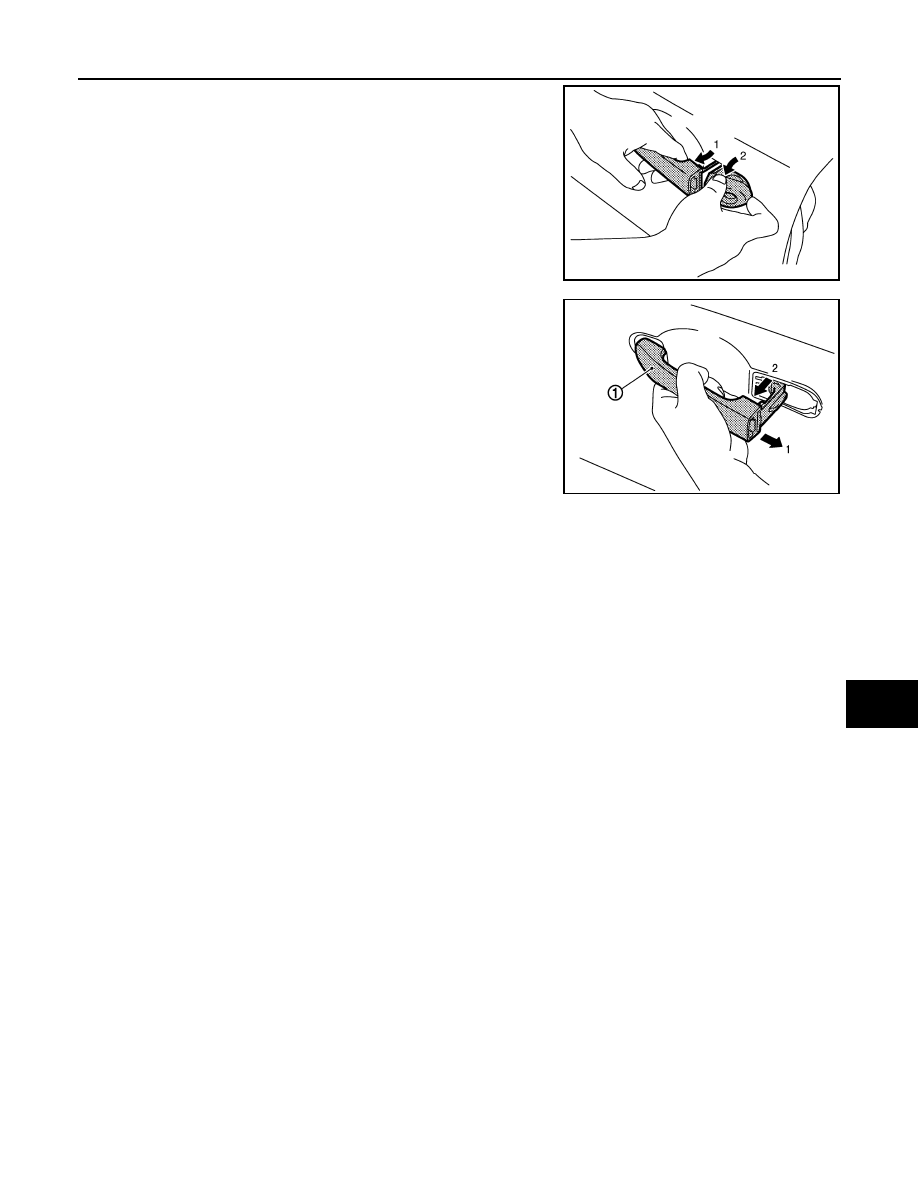

5.

While pulling outside handle, remove outside handle escutch-
eon.

6.

While pulling outside handle (1), slide toward rear of vehicle to
remove outside handle.

7.

Remove front gasket and rear gasket.

8.

While pulling outside handle bracket, slide toward rear of vehicle to remove outside handle bracket.

9.

Reach in to separate outside handle cable connection on outside handle bracket.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Check door open/close, lock/unlock operation after installation.
• Check door lock cable is properly engaged with outside handle bracket.

JMKIA0560ZZ

JMKIA0524ZZ

DLK-220

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

BACK DOOR LOCK

BACK DOOR LOCK

DOOR LOCK

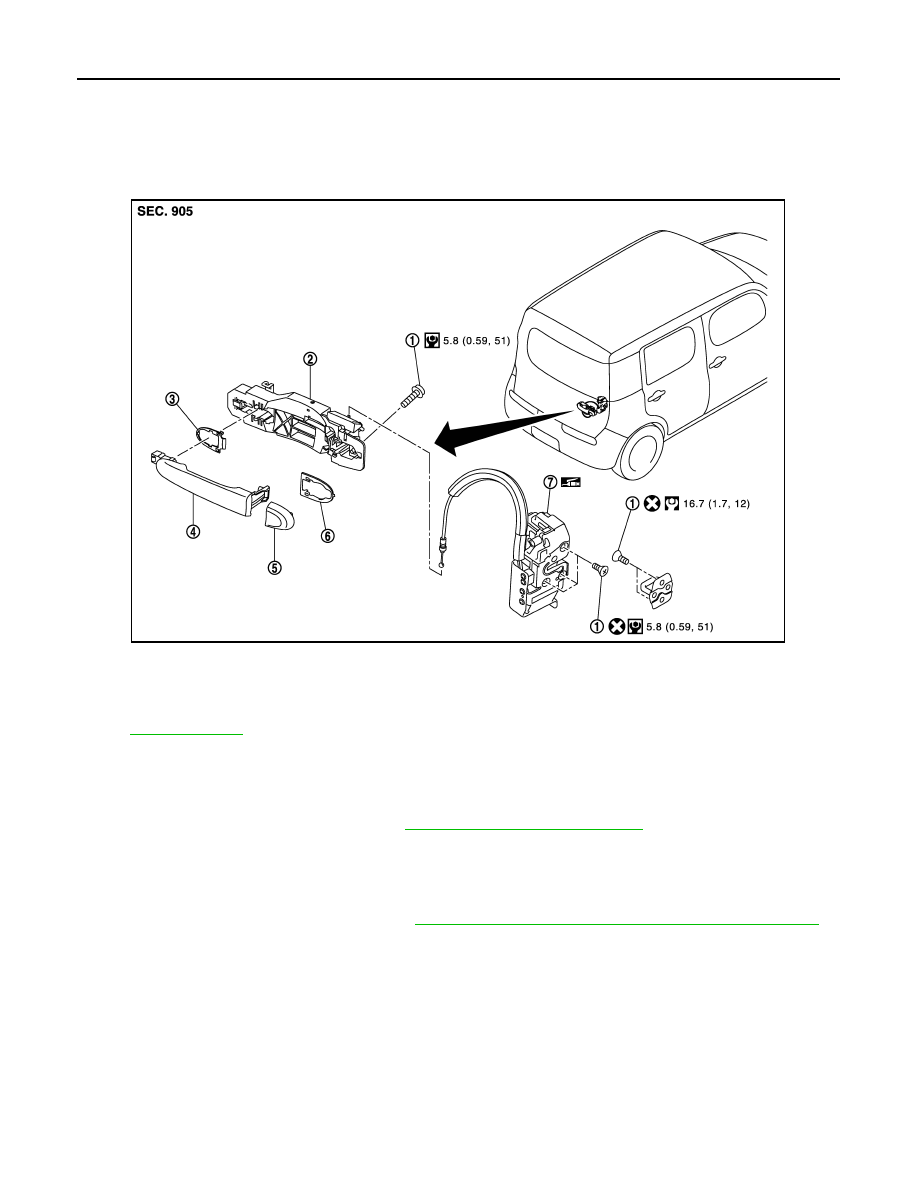

DOOR LOCK : Exploded View

INFOID:0000000009950655

DOOR LOCK : Removal and Installation

INFOID:0000000009950656

REMOVAL

1.

Remove back door finisher lower. Refer to

INT-27, "Removal and Installation"

.

2.

Remove sealing screen.
NOTE:
Cut the butyl-tape so that some parts of the butyl-tape do not remain on the sealing screen, if the sealing
screen is reused.

3.

Remove back door outside handle. Refer to

DLK-221, "OUTSIDE HANDLE : Removal and Installation"

4.

Remove back door lock assembly mounting bolts.

5.

Disconnect harness connector from back door lock assembly.

6.

Remove back door lock assembly.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Check back door open/close, lock/unlock operation after installation.
• Check door lock cable is properly engaged with outside handle bracket.

OUTSIDE HANDLE

JMKIA3962GB

1.

TORX bolt

2.

Outside handle bracket

3.

Rear gasket

4.

Outside handle

5.

Outside handle escutcheon

6.

Front gasket

7.

Back door lock assembly

Refer to

GI-4, "Components"

 for symbols in the figure.

BACK DOOR LOCK

DLK-221

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

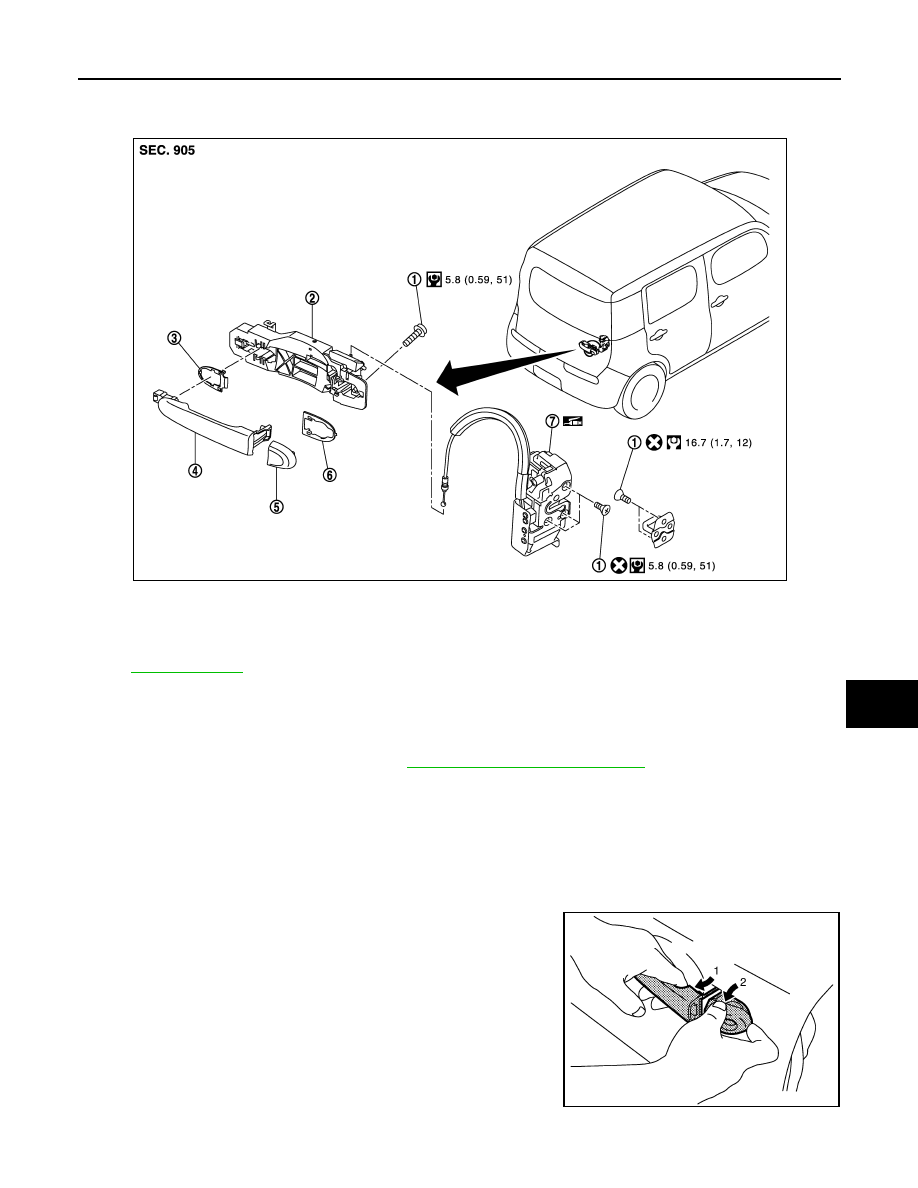

OUTSIDE HANDLE : Exploded View

INFOID:0000000009950657

OUTSIDE HANDLE : Removal and Installation

INFOID:0000000009950658

REMOVAL

1.

Remove back door finisher lower. Refer to

INT-27, "Removal and Installation"

.

2.

Remove sealing screeen.
NOTE:
Cut the butyl-tape so that some parts of the butyl-tape do not remain on the sealing screen, if the sealing
screen is reused.

3.

Disconnect back door antenna and back door request switch connector and remove harness clamp (with
intelligent key system) on outside handle bracket.

4.

Remove mounting bolt of outside handle bracket.

5.

While pulling outside handle, remove outside habdle escutch-
eon.

JMKIA3962GB

1.

TORX bolt

2.

Outside handle bracket

3.

Rear gasket

4.

Outside handle

5.

Outside handle escutcheon

6.

Front gasket

7.

Back door lock assembly

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA0560ZZ
