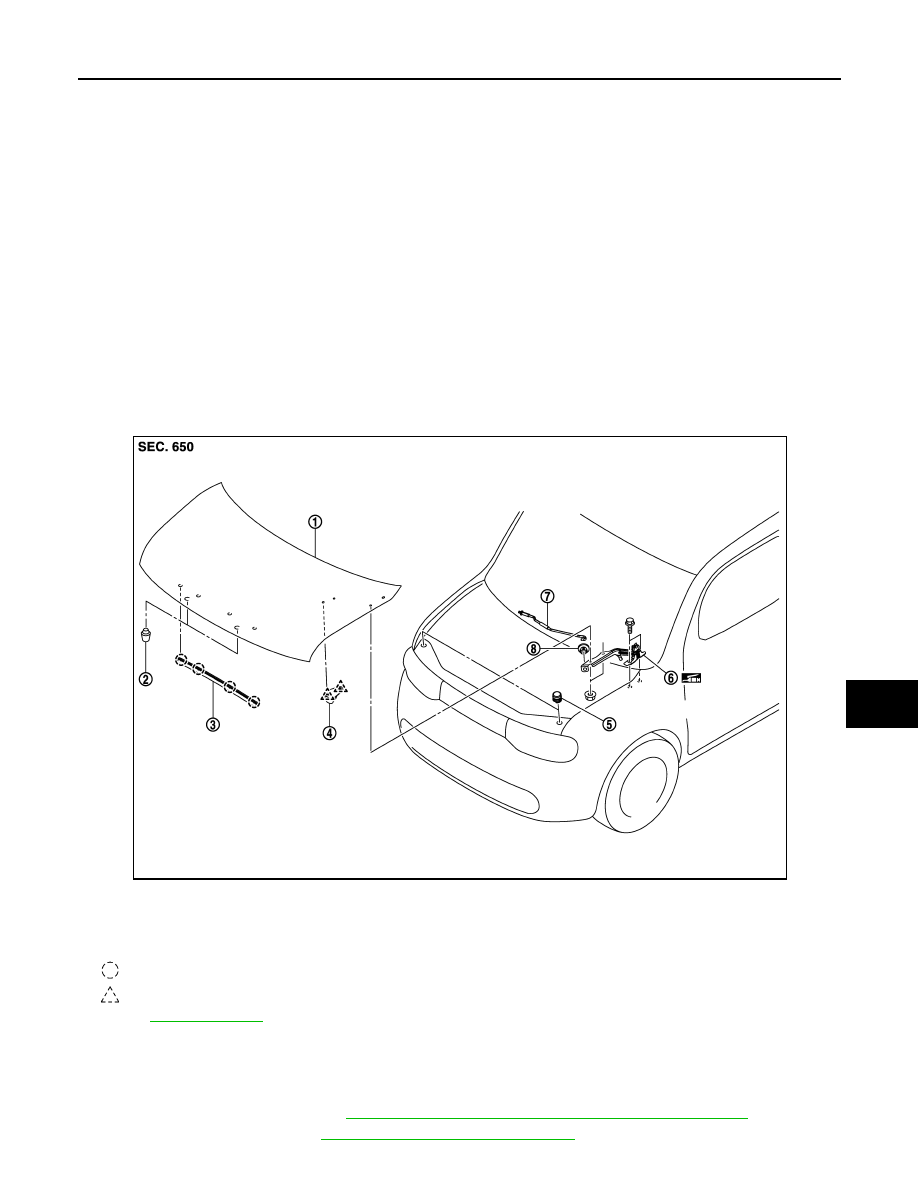

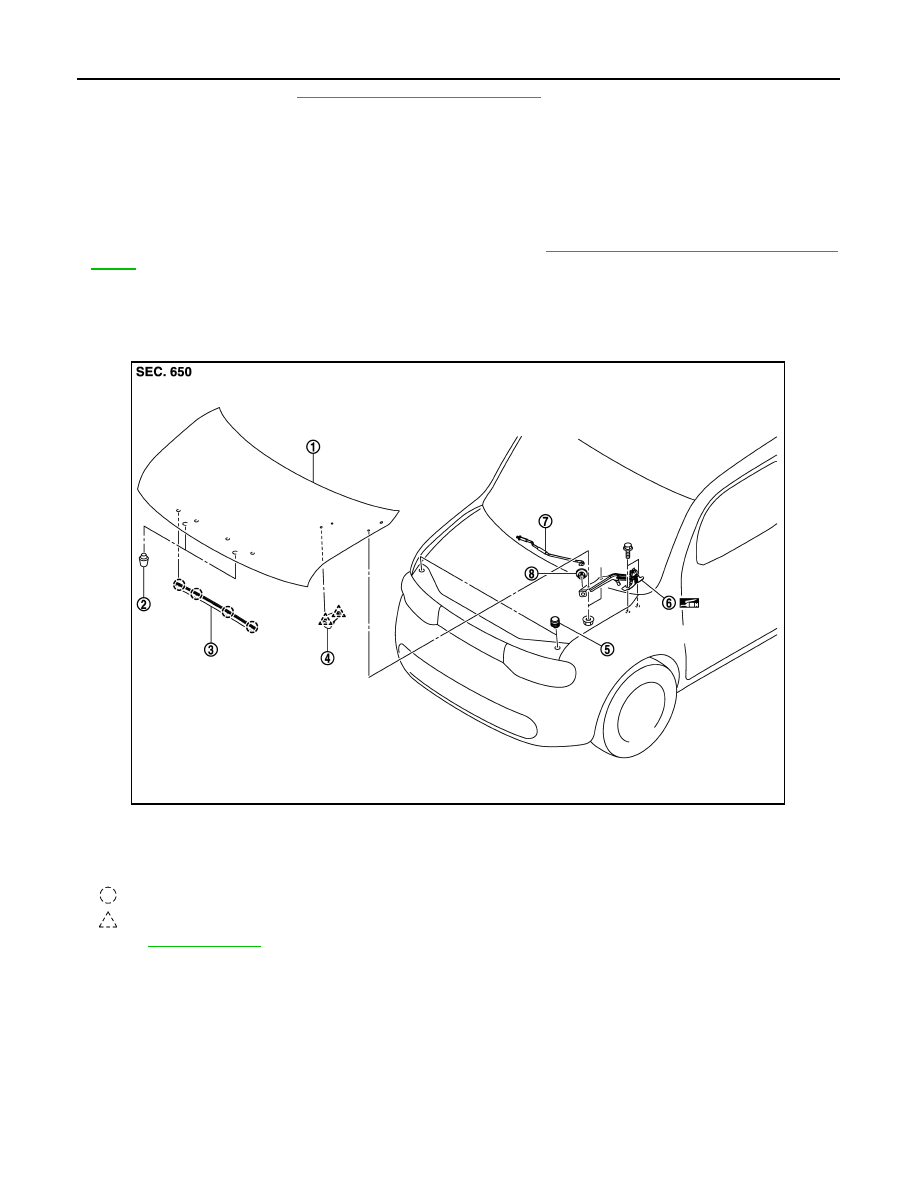

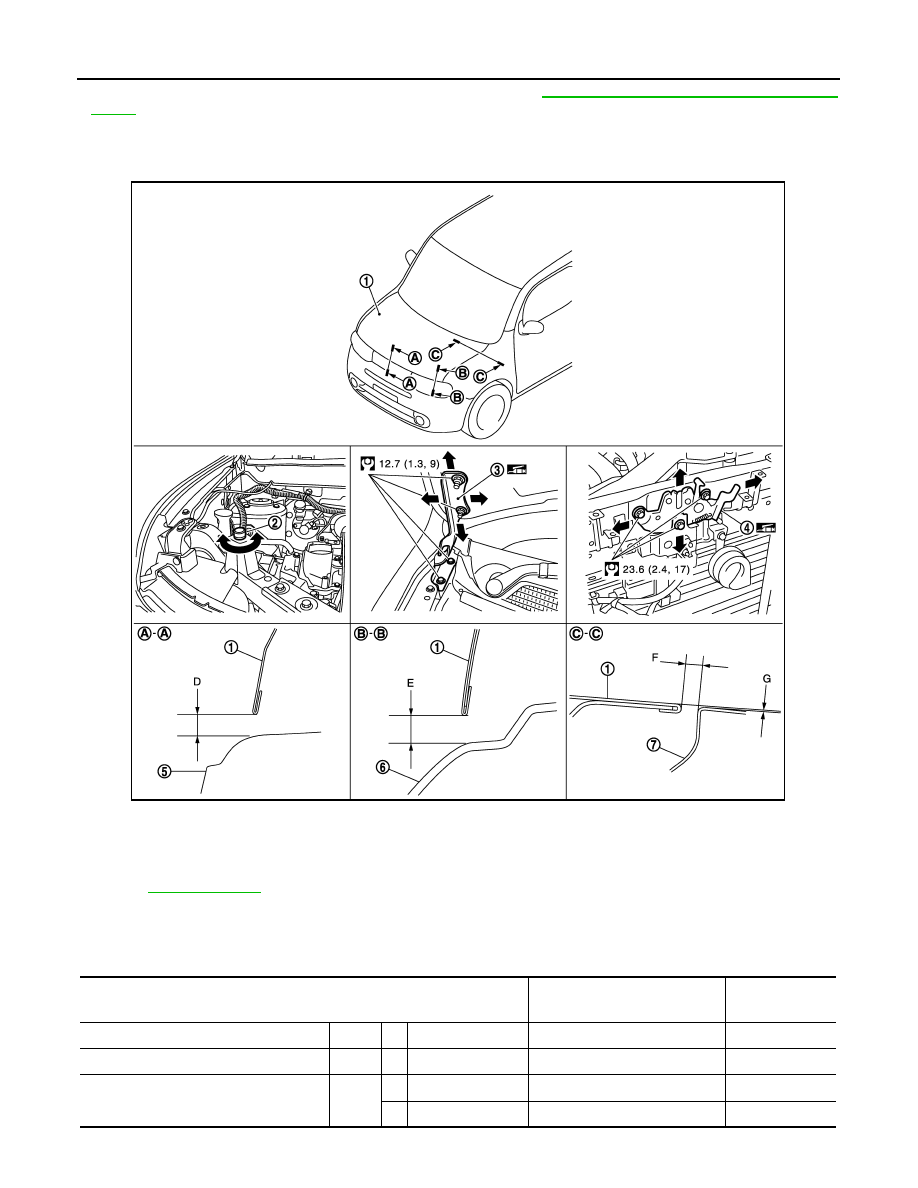

DLK-182 < REMOVAL AND INSTALLATION > [WITH INTELLIGENT KEY SYSTEM] HOOD • After installing, perform hood fitting adjustment. Refer to DLK-182, "HOOD ASSEMBLY : Adjust- HOOD ASSEMBLY : Adjustment INFOID:0000000009950600 Check the clearance and the surface height between hood and each part by visually and touching. Unit: mm (in) 1. Hood assembly 2. Hood bumper rubber 3. Hood hinge 4. Hood lock assembly 5. Front grille 6. Front combination lamp 7. Front fender Refer to for symbols in the figure. Portion Standard Difference (RH/LH) Hood – Front grille A – A D Clearance 6.0 – 10.0 (0.236 – 0.394) < 2.0 (0.079) Hood – Front combination lamp B – B E Clearance 6.0 – 10.0 (0.236 – 0.394) < 2.0 (0.079) Hood – Front fender C – C F Clearance 2.5 – 4.5 (0.098 – 0.177) < 1.0 (0.039) G Surface height - 1.0 – 1.0 (- 0.039 – 0.039) — JMKIA3826GB |
