INTELLIGENT KEY SYSTEM

*: M/T models do not apply.

LIST OF OPERATION RELATED PARTS

Parts marked with

×

 are the parts related to operation.

Warning/Information functions

“KEY” warn-

ing lamp

Shift P

warning

lamp

Warning chime

Engine start

operation in-

dicator lamp

Combination

meter buzzer

Intelligent

Key warning

buzzer

Intelligent Key system malfunction

Indicate

—

—

—

—

OFF position warning

For internal

—

—

Activate

—

—

For external*

—

—

—

Activate

—

P position warning*

For internal

Blink (yellow)

Indicate

Activate

—

—

For external

—

—

Active

—

ACC warning*

—

—

Activate

—

—

Take away warning

Door is open to close

Blink (yellow)

—

Activate

Activate

—

Door is open

—

—

—

—

Push-ignition switch opera-
tion

—

Activate

—

—

Door lock operation warning

—

—

—

Activate

—

Key ID warning

Blink (yellow)

—

—

—

—

Engine start information

—

—

—

—

Indicate

Intelligent Key low battery warning

Blink (green)

—

—

—

—

Warning function

In

tel

lig

en

t Ke

y

Ig

nit

ion

 s

w

itc

h

Do

or sw

itch

Do

or re

qu

es

t sw

it

ch

In

sid

e ke

y an

ten

na

O

ut

s

id

e ke

y

a

nt

en

na

In

tel

lig

en

t Ke

y

warn

ing

 b

u

zze

r

Com

b

in

a

tio

n m

e

te

r wa

rni

n

g

 bu

zz

er

CAN co

mm

un

ic

ati

o

n

 sys

tem

BCM

Dete

nt

io

n s

w

itc

h

“KEY” w

a

rni

n

g

lamp

Intelligent Key system malfunction

×

×

×

OFF position warning

For internal

×

×

×

×

For external

×

×

×

P position warning

×

×

×

×

×

×

ACC warning

×

×

×

×

×

Take away warning

Door is open or close

×

×

×

×

×

×

×

Door is open

×

×

×

×

×

Push-button ignition switch operation

×

×

×

×

×

×

Door lock operation warning

×

×

×

×

×

×

×

Key ID warning

×

×

×

×

Engine start information

Ignition switch is ON position

×

×

×

×

×

×

Ignition switch is except ON position

×

×

×

×

×

Intelligent Key low battery warning

×

×

×

×

INTELLIGENT KEY SYSTEM

DLK-35

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

WARNING FUNCTION : Component Parts Location

INFOID:0000000009950458

1.

CVT shift selector (detention
switch)*

2.

Remote keyless entry receiver

3.

Push-button ignition switch

4.

Intelligent Key warning buzzer

5.

Inside key antenna (instrument cen-
ter)

6.

Combination meter

JMKIA4006ZZ

DLK-36

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

INTELLIGENT KEY SYSTEM

*: With CVT models

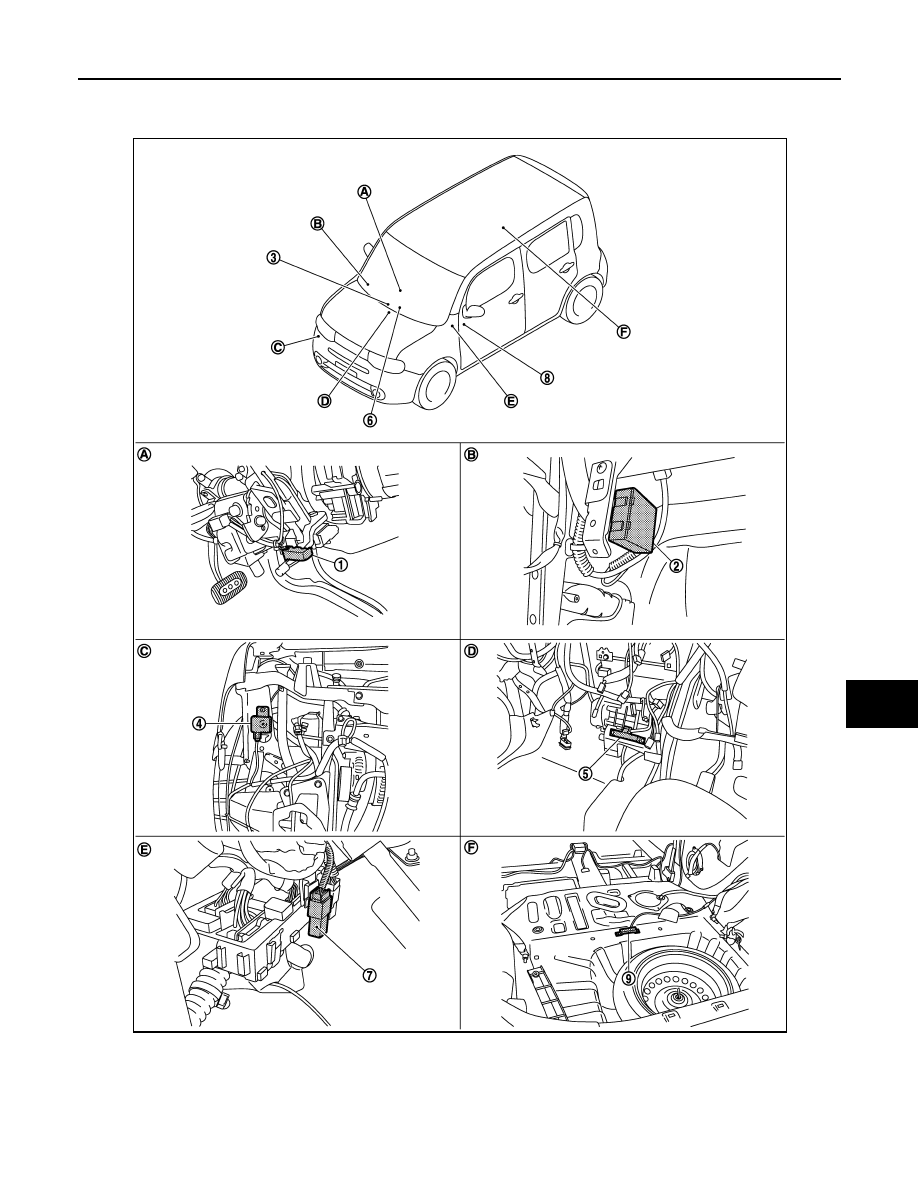

7.

Back door lock actuator relay

8.

BCM
Refer to

BCS-88, "Removal and In-

stallation"

9.

Inside key antenna (luggage room)

A.

Integrated in CVT shift selector

B.

View with glove box assembly re-
moved

C.

View with front bumper removed

D.

Behind the audio unit

E.

Behind the instrument lower panel
LH (Left side)

F.

View with rear seat removed

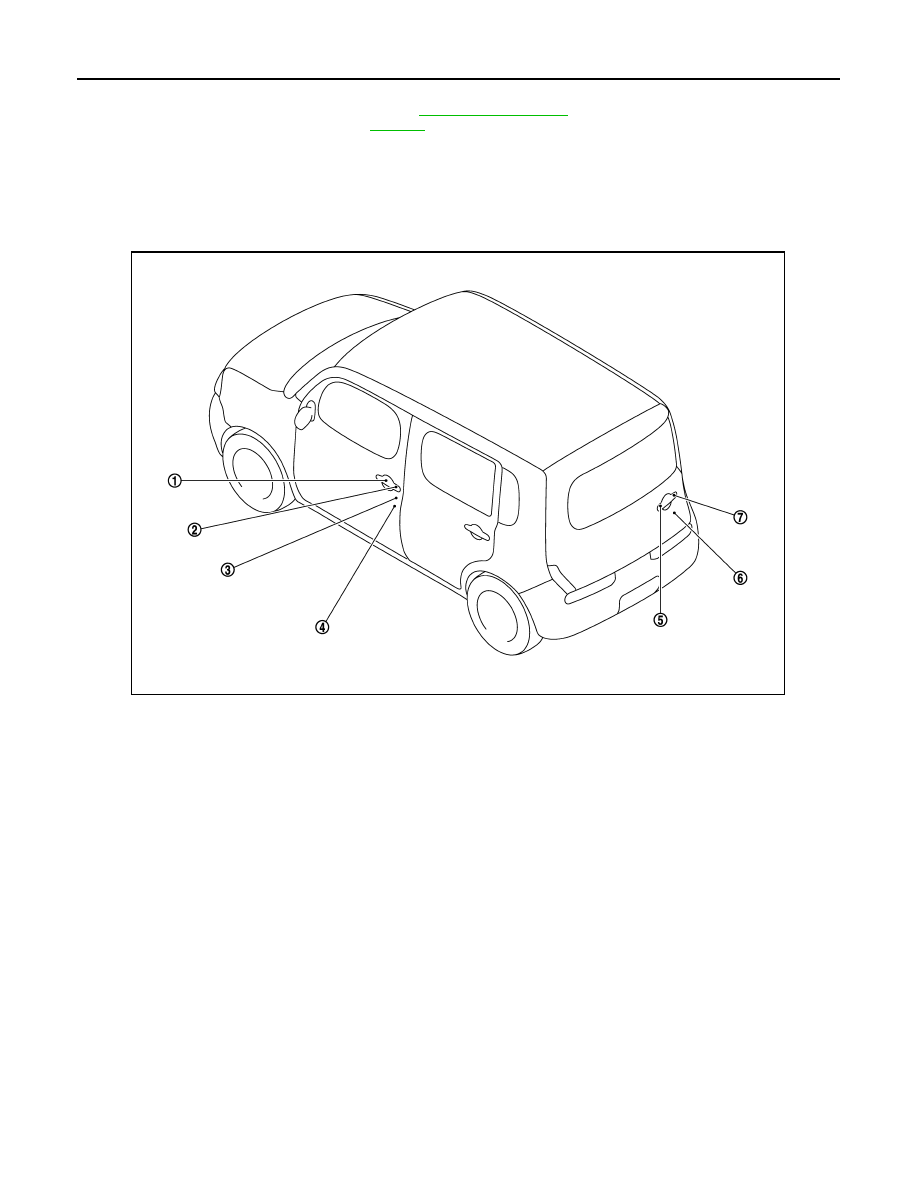

1.

Outside key antenna (driver side)

2.

Front door request switch (driver
side)

3.

Front door lock assembly (driver
side)

4.

Front door switch (driver side)

5.

Outside antenna (back door)

6.

Back door lock assembly

7.

Back door request switch

JMKIA4336ZZ

DIAGNOSIS SYSTEM (BCM)

DLK-37

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM

COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

INFOID:0000000010254846

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.

×

: Applicable item

FREEZE FRAME DATA (FFD)

The BCM records the following vehicle condition at the time a particular DTC is detected, and displays on
CONSULT.

Diagnosis mode

Function Description

Work Support

Changes the setting for each system function.

Self Diagnostic Result

Displays the diagnosis results judged by BCM.

CAN Diag Support Monitor

Monitors the reception status of CAN communication viewed from BCM.

Data Monitor

The BCM input/output signals are displayed.

Active Test

The signals used to activate each device are forcibly supplied from BCM.

Ecu Identification

The BCM part number is displayed.

Configuration

• Read and save the vehicle specification.
• Write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

Work Support

Data Monitor

Active Test

Door lock

DOOR LOCK

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps

FLASHER

×

×

×

Automatic air conditioner

AIR CONDITONER

×

• Intelligent Key system
• Engine start system

INTELLIGENT KEY

×

×

×

Combination switch

COMB SW

×

Body control system

BCM

×

NVIS - NATS

IMMU

×

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Back door

TRUNK

×

Vehicle security system

THEFT ALM

×

×

×

RAP system

RETAINED PWR

×

Signal buffer system

SIGNAL BUFFER

×

×

TPMS

TPMS (AIR PRESSURE MONITOR)

×

×

×
