INTELLIGENT KEY SYSTEM

• Then, if an UNLOCK signal is transmitted from Intelligent Key again within 60 seconds, all other doors are

unlocked.

Selective unlock operation mode can be changed using “DOOR LOCK-UNLOCK SET” mode in “WORK SUP-
PORT”. Refer to

DLK-38, "DOOR LOCK : CONSULT Function (BCM - DOOR LOCK)"

.

HAZARD AND HORN REMINDER FUNCTION

When doors are locked or unlocked by Intelligent Key, BCM blinks hazard warning lamps as a reminder and
transmits horn chirp signal to IPDM E/R. IPDM E/R sounds horn as a reminder.

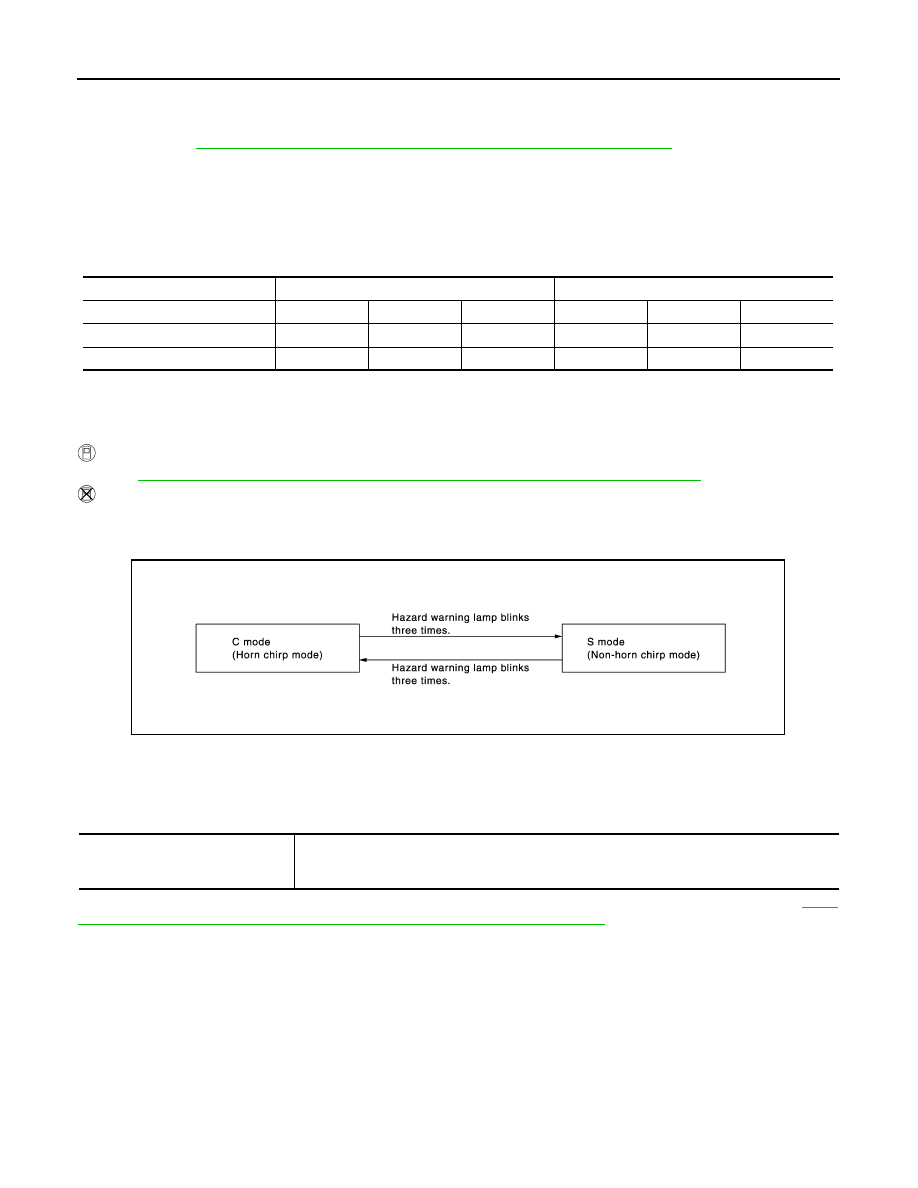

The hazard and horn reminder has a horn chirp mode (C mode) and a non-horn chirp mode (S mode).

Operating Function of Hazard and Horn Reminder

Hazard and horn reminder does not operate in the following condition.
• Ignition switch position is ON
• Door is open (only lock operation)
How to change hazard and horn reminder mode

With CONSULT

Refer to

DLK-40, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY)"

.

Without CONSULT

When LOCK and UNLOCK signals are sent from the Intelligent Key for more than 2 seconds at the same time,
the hazard and horn reminder mode is changed and hazard warning lamp blinks and horn sounds as per the
following items:

AUTO DOOR LOCK FUNCTION

After door is unlocked by Intelligent Key button operation and if 60 seconds or more passes without performing
the following operation, all doors are automatically locked. However, operation check function does not acti-
vate.

Auto door lock mode can be changed by the “AUTO LOCK SET” mode in “WORK SUPPORT”. Refer to

DLK-

40, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY)"

.

LIST OF OPERATION RELATED PARTS

Parts marked with

×

 are the parts related to operation.

C mode

S mode

Intelligent Key operation

Lock

Unlock

Trunk open

Lock

Unlock

Trunk open

Hazard warning lamp blinks

Twice

Once

—

Twice

—

—

Horn sound

Once

—

—

—

—

—

JMKIA2755GB

Operating condition

• Door switch is ON (door is open)
• Door is locked
• Push switch is pressed

INTELLIGENT KEY SYSTEM

DLK-27

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Remote keyless entry functions

In

te

lli

gen

t K

e

y

Do

or swi

tch

Do

or lo

ck

 ac

tu

at

o

r

In

te

lli

gen

t K

e

y warn

in

g b

u

zze

r

CAN c

o

m

m

uni

ca

tio

n

 sy

st

em

BCM

Com

b

ina

tio

n me

ter

Hazard warning

lamp

Horn

IPDM

 E/

R

Door lock/unlock function by remote control button

×

×

×

×

×

Hazard and horn reminder function

×

×

×

×

×

×

×

×

Selective unlock function

×

×

×

×

×

Auto door lock function

×

×

×

DLK-28

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

INTELLIGENT KEY SYSTEM

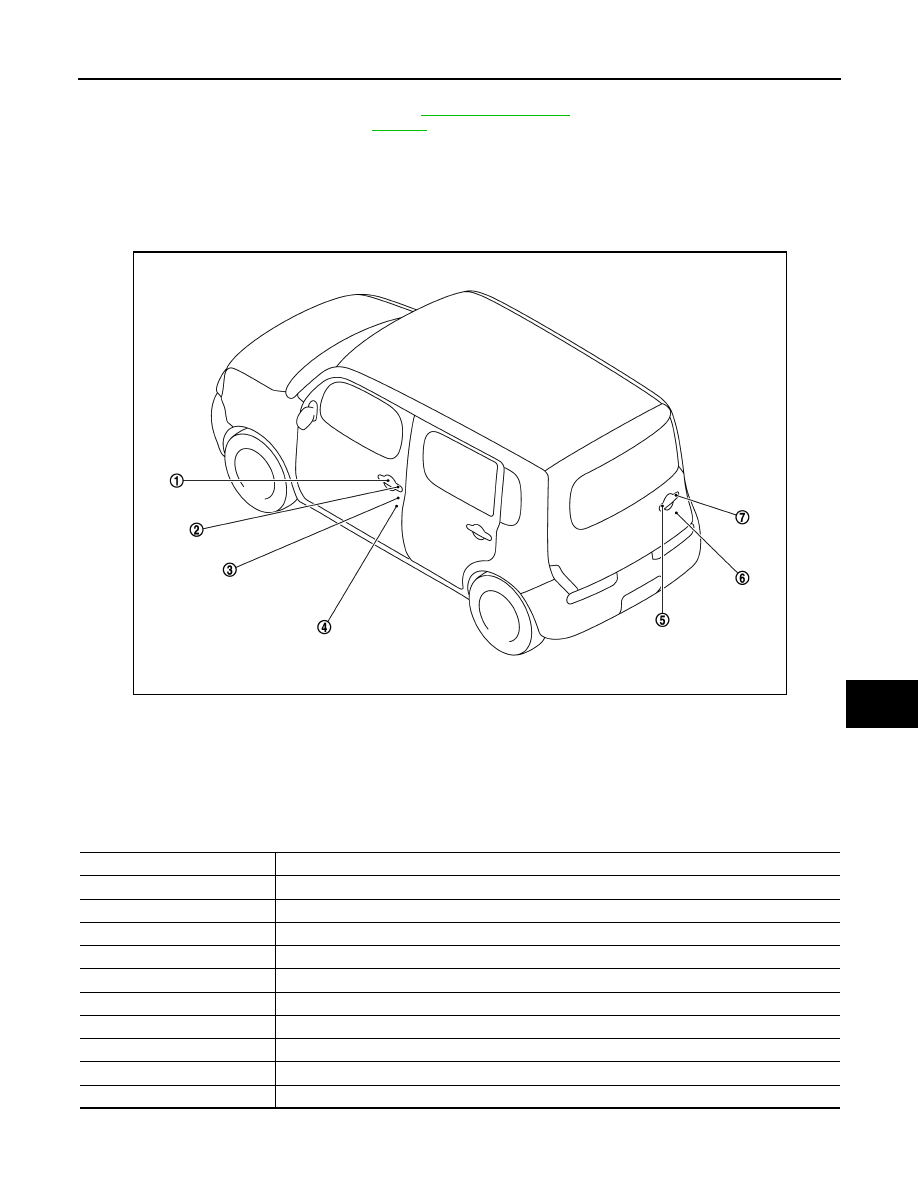

REMOTE KEYLESS ENTRY FUNCTION : Component Parts Location

INFOID:0000000009950452

1.

CVT shift selector (detention
switch)*

2.

Remote keyless entry receiver

3.

Push-button ignition switch

4.

Intelligent Key warning buzzer

5.

Inside key antenna (instrument cen-
ter)

6.

Combination meter

JMKIA4006ZZ

INTELLIGENT KEY SYSTEM

DLK-29

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

*: With CVT models

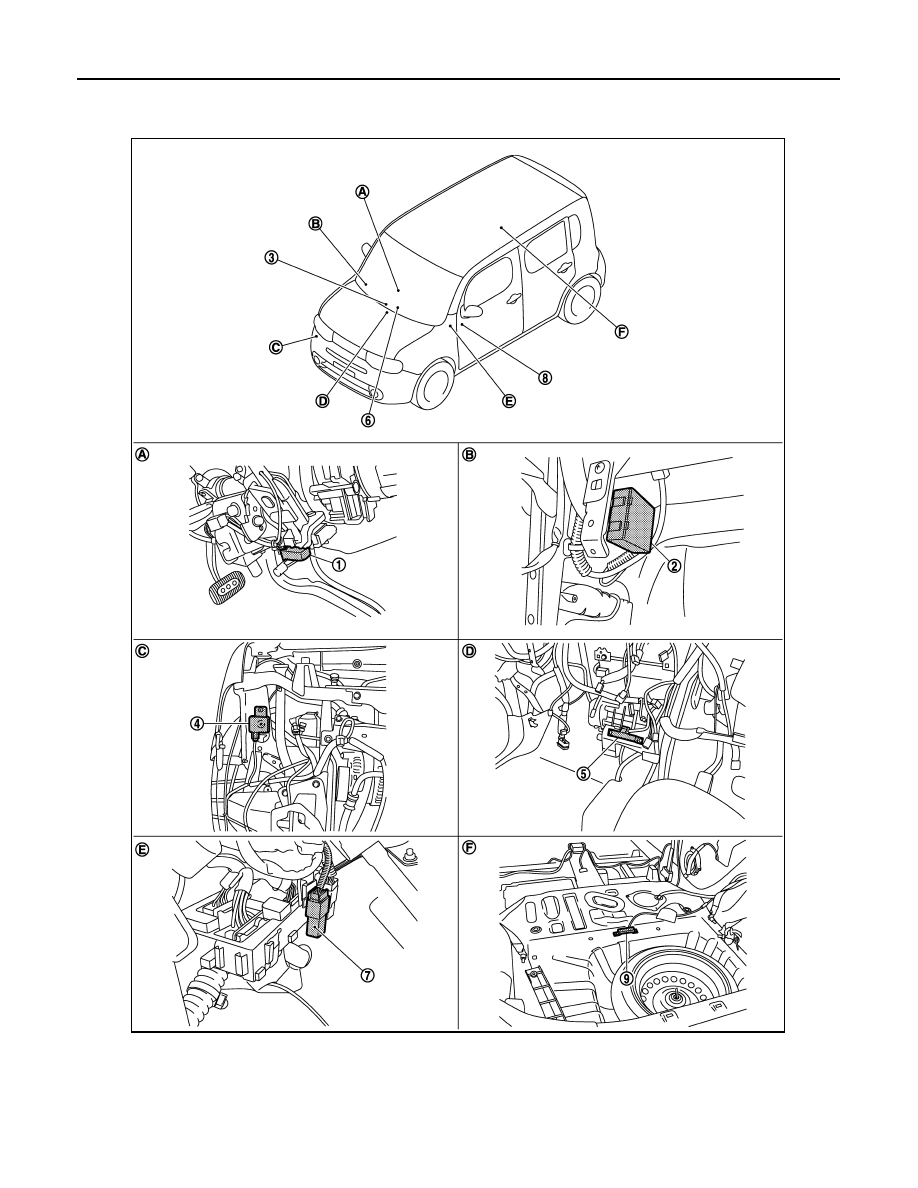

REMOTE KEYLESS ENTRY FUNCTION : Component Description

INFOID:0000000009950453

KEY REMINDER FUNCTION

7.

Back door lock actuator relay

8.

BCM
Refer to

BCS-88, "Removal and In-

stallation"

9.

Inside key antenna (luggage room)

A.

Integrated in CVT shift selector

B.

View with glove box assembly re-
moved

C.

View with front bumper removed

D.

Behind the audio unit

E.

Behind the instrument lower panel
LH (Left side)

F.

View with rear seat removed

1.

Outside key antenna (driver side)

2.

Front door request switch (driver
side)

3.

Front door lock assembly (driver
side)

4.

Front door switch (driver side)

5.

Outside antenna (back door)

6.

Back door lock assembly

7.

Back door request switch

JMKIA4336ZZ

Item

Function

BCM

Controls the door lock function and trunk open function

IPDM E/R

Sounds horn and blinks head lamp via CAN communication between BCM

Door lock actuator

Outputs lock/unlock signal from BCM and locks/unlocks each door

Door switch

Inputs door open/close condition to BCM

Remote keyless entry receiver

Receives lock/unlock signal from the Intelligent Key, and then transmits to BCM

Intelligent Key

Transmits button operation to remote keyless entry receiver

Back door lock actuator relay

Controls back door lock/unlock operation

Push-button ignition switch

Input push-button ignition switch ON/OFF condition to BCM

Intelligent Key warning buzzer

Warns the user of the lock/unlock condition and inappropriate operations with the buzzer sound

Hazard warning lamp

Warns the user of the door lock/unlock condition and in appropriate operations with the lamps blink
