INTELLIGENT KEY SYSTEM

AUTO DOOR LOCK FUNCTION

After door is unlocked by door request switch operation and if 60 seconds or more passes without performing
the following operation, all doors are automatically locked. However, operation check function does not acti-
vate.

Auto door lock mode can be changed by the “AUTO LOCK SET” mode in “WORK SUPPORT”. Refer to

DLK-

40, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY)"

.

LIST OF OPERATION RELATED PARTS

Parts marked with

×

 are the parts related to operation.

Operating condition

• Door switch is ON (door is open)
• Door is locked
• Push switch is pressed

Door lock function

In

tel

lig

en

t Ke

y

Re

mo

te

 ke

yl

es

s en

try rec

e

ive

r

Do

or swi

tch

Doo

r re

qu

es

t s

w

itc

h

Do

or l

o

c

k ac

tu

at

o

r

In

si

de

 ke

y

an

ten

na

Out

s

id

e ke

y ant

en

na

In

tel

lig

en

t Ke

y warn

ing

 b

u

zze

r

CAN co

mm

un

ic

at

io

n

 s

ys

tem

BCM

Hazard warning

lamp

Pu

sh

-bu

tto

n i

g

n

iti

on

swi

tch

Co

mb

in

at

io

n

 met

e

r

Door lock/unlock function

×

×

×

×

×

×

×

×

Hazard and buzzer reminder function

×

×

×

×

×

Selective unlock function

×

×

×

×

×

×

Auto door lock function

×

×

×

×

INTELLIGENT KEY SYSTEM

DLK-23

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

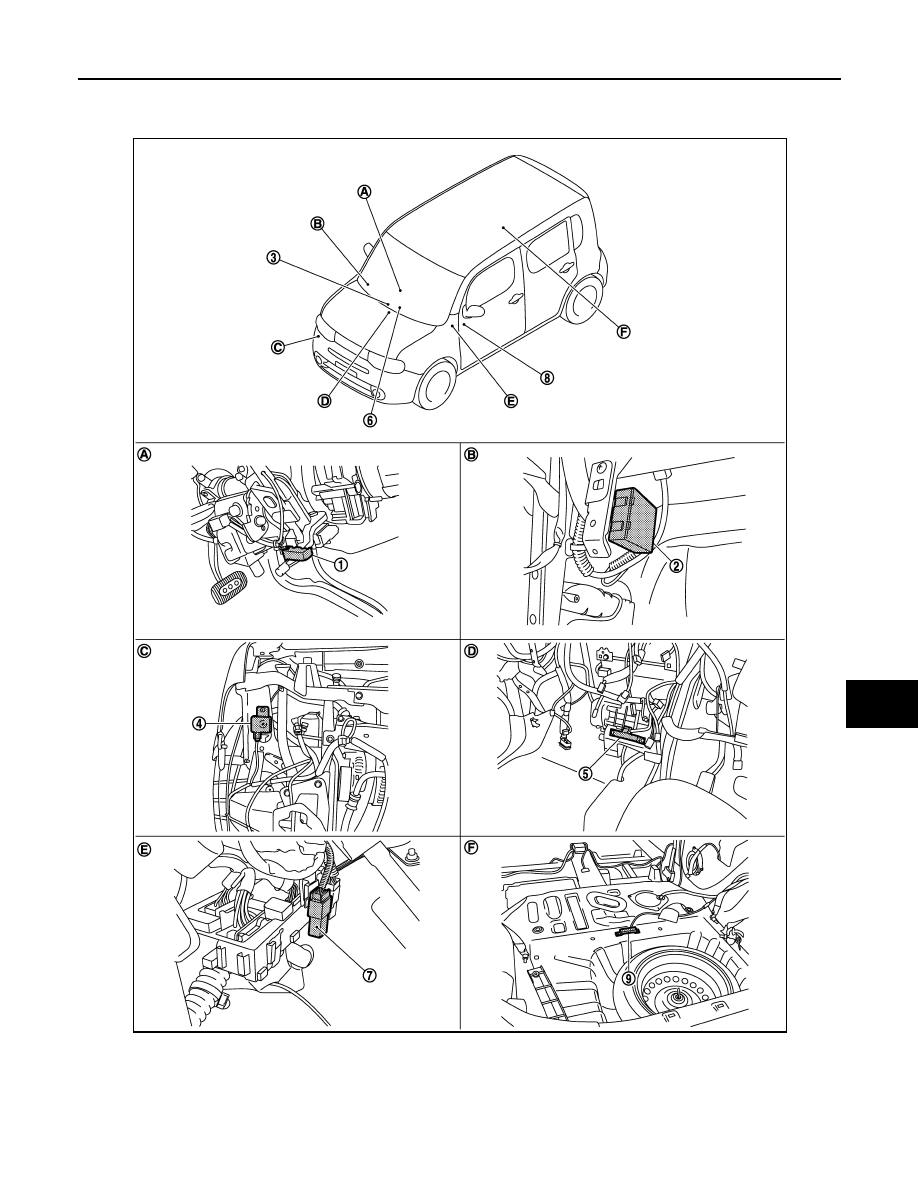

DOOR LOCK FUNCTION : Component Parts Location

INFOID:0000000009950448

1.

CVT shift selector (detention
switch)*

2.

Remote keyless entry receiver

3.

Push-button ignition switch

4.

Intelligent Key warning buzzer

5.

Inside key antenna (instrument cen-
ter)

6.

Combination meter

JMKIA4006ZZ

DLK-24

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

INTELLIGENT KEY SYSTEM

*: With CVT models

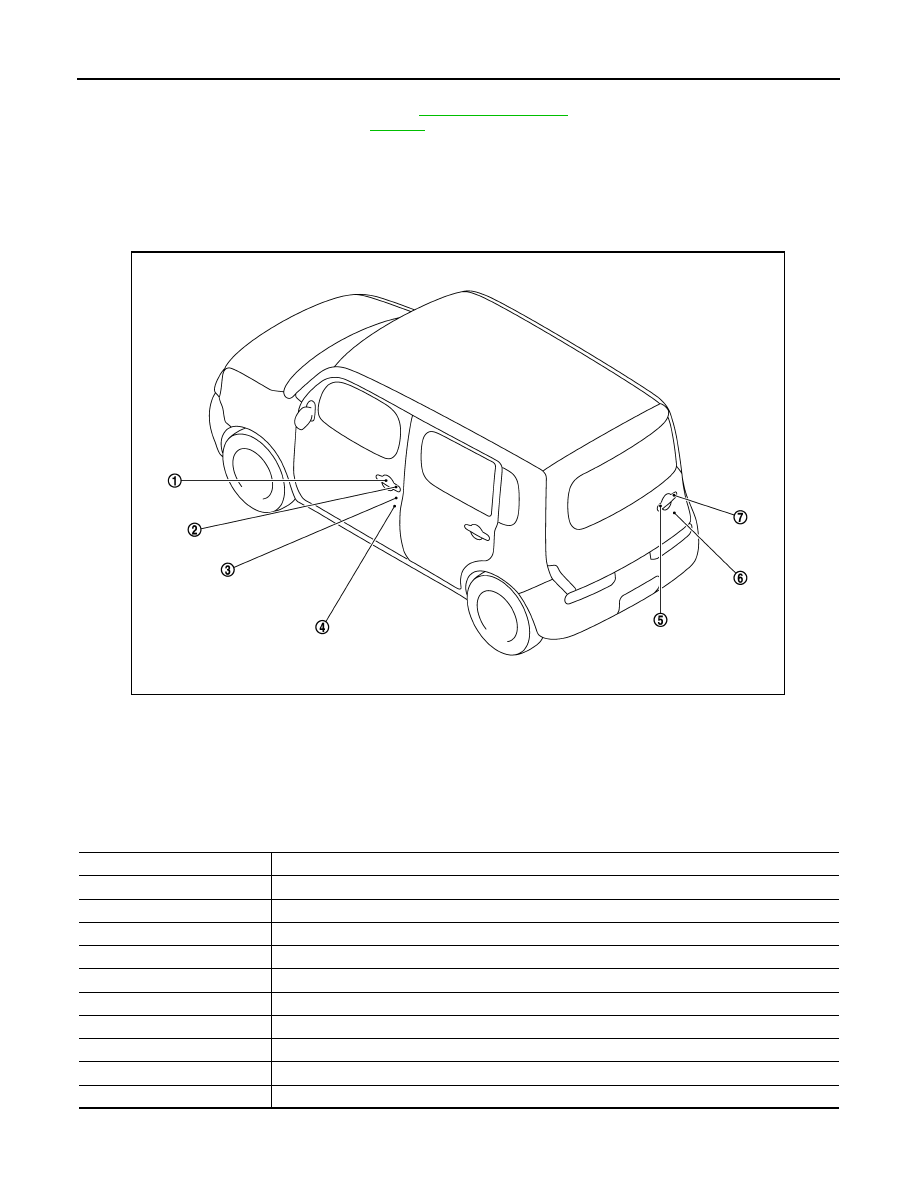

DOOR LOCK FUNCTION : Component Description

INFOID:0000000009950449

7.

Back door lock actuator relay

8.

BCM
Refer to

BCS-88, "Removal and In-

stallation"

9.

Inside key antenna (luggage room)

A.

Integrated in CVT shift selector

B.

View with glove box assembly re-
moved

C.

View with front bumper removed

D.

Behind the audio unit

E.

Behind the instrument lower panel
LH (Left side)

F.

View with rear seat removed

1.

Outside key antenna (driver side)

2.

Front door request switch (driver
side)

3.

Front door lock assembly (driver
side)

4.

Front door switch (driver side)

5.

Outside antenna (back door)

6.

Back door lock assembly

7.

Back door request switch

JMKIA4336ZZ

Item

Function

BCM

Controls the door lock function

Door lock actuator

Inputs lock/unlock signal from BCM and locks/unlocks each door

Door switch

Inputs door open/close condition to BCM

Remote keyless entry receiver

Receives lock/unlock signal from the Intelligent Key, and then transmits to BCM

Door request switch

Inputs lock/unlock operation to BCM

Intelligent Key

Transmits button operation to remote keyless entry receiver

Outside key antenna

Detects if Intelligent Key is outside the vehicle

Inside key antenna

Detects if Intelligent Key is inside the vehicle

Push-button ignition switch

Inputs push-button ignition switch ON/OFF condition to BCM

Intelligent Key warning buzzer

Warns the user of the lock/unlock condition and inappropriate operations with the buzzer sound

INTELLIGENT KEY SYSTEM

DLK-25

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

REMOTE KEYLESS ENTRY FUNCTION

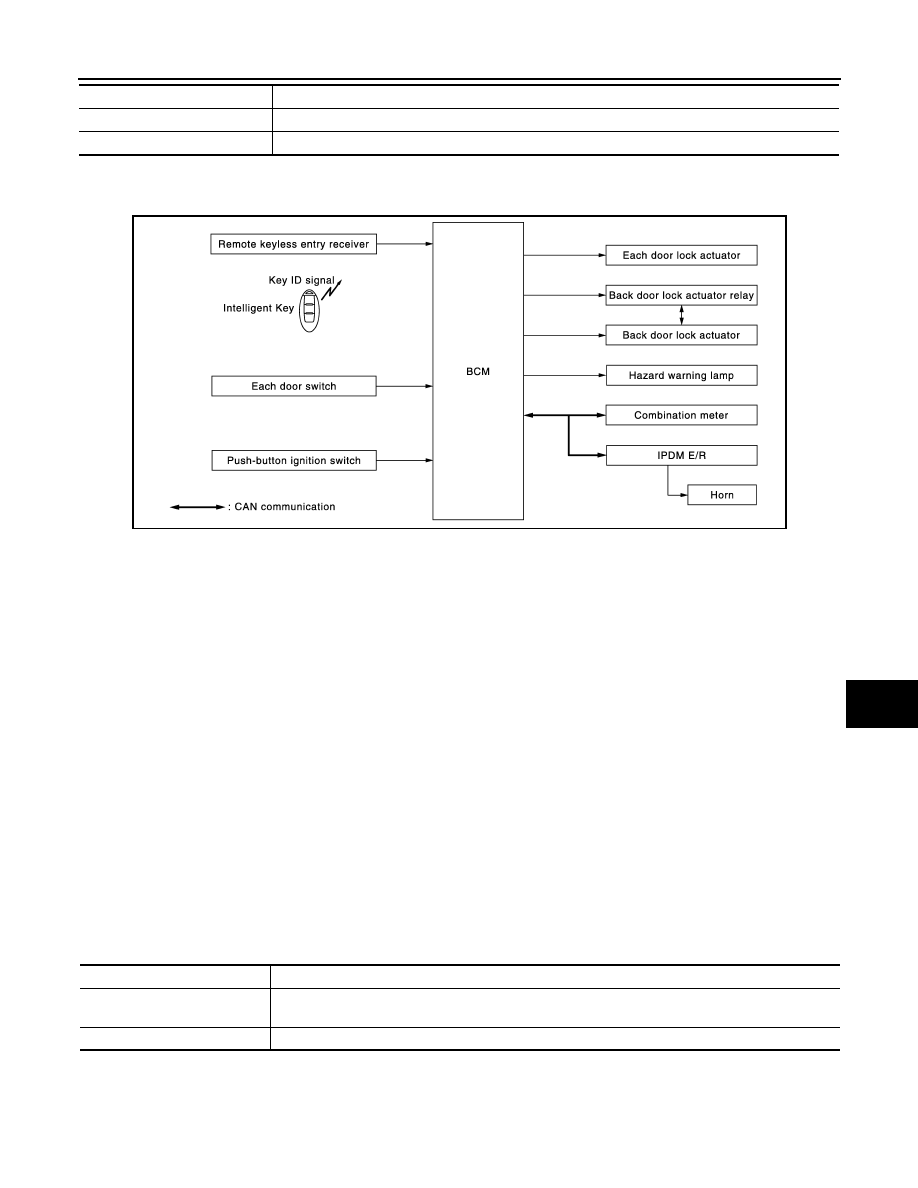

REMOTE KEYLESS ENTRY FUNCTION : System Diagram

INFOID:0000000009950450

REMOTE KEYLESS ENTRY FUNCTION : System Description

INFOID:0000000009950451

The Intelligent Key has the same functions as the remote control entry system. Therefore, it can be used in the
same manner as the remote controller by operating the door lock/unlock button.

OPERATION

Remote keyless entry system controls operation of the following items.
• Door lock/unlock
• Selective unlock
• Hazard and horn reminder
• Auto door lock

OPERATION AREA

To check that the Intelligent Key works normally, use within 1 m (3 ft) range of each doors, however the opera-
ble range may differ according to surroundings.

DOOR LOCK/UNLOCK FUNCTION

• When door lock/unlock button of the Intelligent Key is pressed, lock signal or unlock signal transmitted from

Intelligent Key to BCM via remote keyless entry receiver.

• When BCM receives the door lock/unlock signal, it operates all door lock actuators and the hazard lamp

(lock: 2 times, unlock: 1 time) and horn chirp signal to IPDM E/R at the same time as a reminder.

• IPDM E/R honks horn (lock: 2 times) as a reminder

OPERATION CONDITION

SELECTIVE UNLOCK FUNCTION

• When an LOCK signal is transmitted from Intelligent Key, all doors are locked.
• When an UNLOCK signal is transmitted from Intelligent Key once, driver side door is unlocked.

Back door lock actuator relay

Controls the back door lock/unlock operation

Hazard warning lamp

Warns the user of the door lock/unlock condition and in appropriate operations with the lamps blink

Item

Function

JMKIA4010GB

Remote controller operation

Operation condition

Lock

• Panic alarm is not activated
• P position warning is not activated

Unlock

Panic alarm is not activated
