DIAGNOSIS SYSTEM (IPDM E/R)

DEF-15

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

WITHOUT INTELLIGENT KEY

WITHOUT INTELLIGENT KEY : Diagnosis Description

INFOID:0000000010246426

AUTO ACTIVE TEST

Description

In auto active test mode, the IPDM E/R sends a drive signal to the following systems to check their operation.
• Oil pressure warning lamp
• Rear window defogger
• Front wiper (LO, HI)
• Parking lamps
• Side marker lamp
• License plate lamps
• Tail lamps
• Front fog lamps
• Headlamps (LO, HI)
• A/C compressor (magnet clutch)
• Cooling fan

Operation Procedure

1.

Close the hood and lift the wiper arms from the windshield. (Prevent windshield damage due to wiper
operation)
NOTE:
When auto active test is performed with hood opened, sprinkle water on windshield beforehand.

2.

Turn the ignition switch OFF.

3.

Turn the ignition switch ON, and within 20 seconds, press the driver door switch 10 times. Then turn the
ignition switch OFF.

CAUTION:

Close passenger door.

4.

Turn the ignition switch ON within 10 seconds. After that the horn sounds once and the auto active test
starts.

5.

The oil pressure warning lamp starts blinking when the auto active test starts.

6.

After a series of the following operations is repeated 3 times, auto active test is completed.

NOTE:
When auto active test mode has to be cancelled halfway through test, turn the ignition switch OFF.

CAUTION:

• If auto active test mode cannot be actuated, check door switch system. Refer to

DLK-55,

"Component Function Check"

.

• Do not start the engine.

Inspection in Auto Active Test Mode

When auto active test mode is actuated, the following 6 steps are repeated 3 times.

EXTERNAL LAMPS

Off

OFF

TAIL

Operates the tail lamp relay.

Lo

Operates the headlamp low relay.

Hi

Operates the headlamp low relay and ON/OFF the headlamp high relay at 1 sec-
ond intervals.

Fog

Operates the front fog lamp relay.

Test item

Operation

Description

Operation
sequence

Inspection location

Operation

A

Oil pressure warning lamp

Blinks continuously during operation of auto active test

1

Rear window defogger

10 seconds

2

Front wiper

LO for 5 seconds

 HI for 5 seconds

DEF-16

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (IPDM E/R)

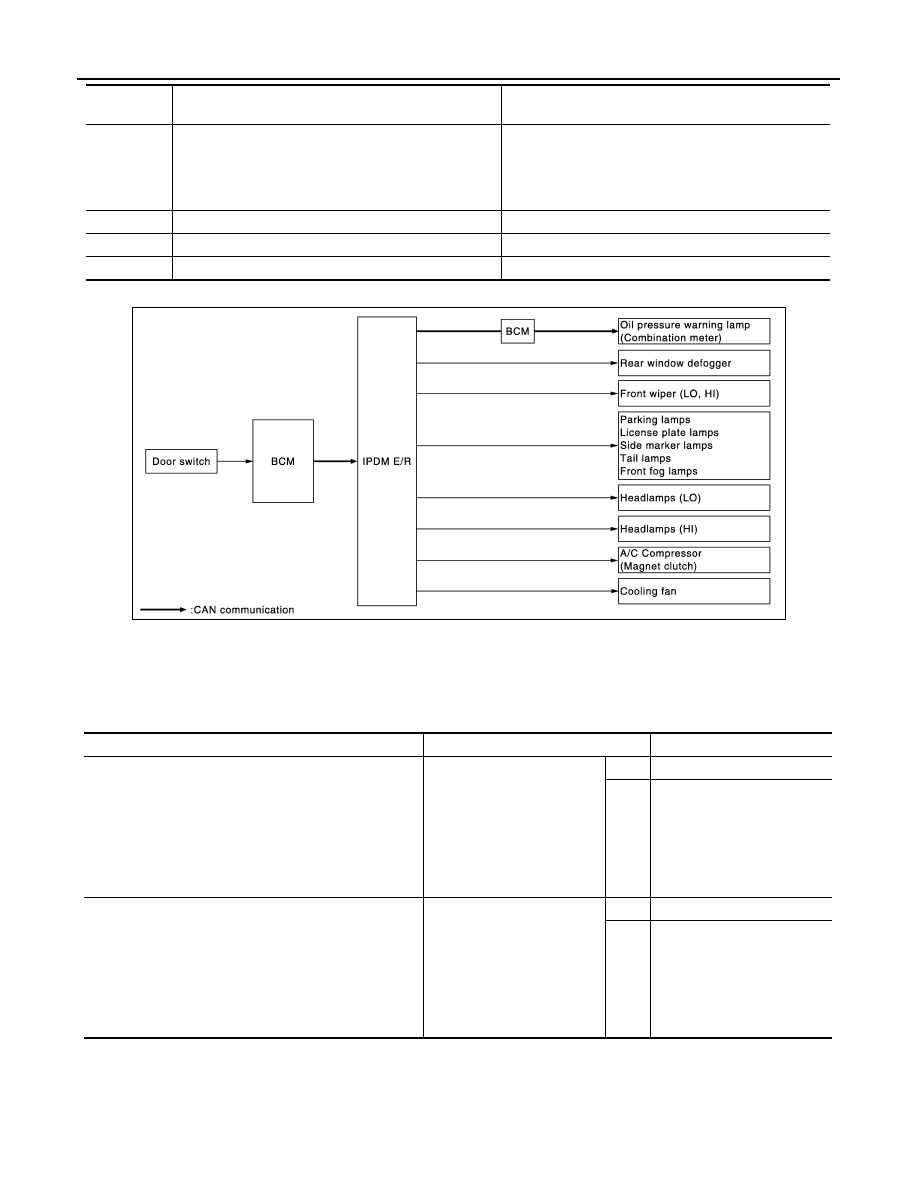

Concept of auto active test

• IPDM E/R starts the auto active test with the door switch signals transmitted by BCM via CAN communica-

tion. Therefore, the CAN communication line between IPDM E/R and BCM is considered normal if the auto
active test starts successfully.

• The auto active test facilitates troubleshooting if any systems controlled by IPDM E/R cannot be operated.

Diagnosis chart in auto active test mode

3

• Parking  lamps
• Side marker lamps
• License plate lamps
• Tail lamps
• Front fog lamps

10 seconds

4

Headlamps

LO for 10 seconds

HI ON

 OFF 5 times

5

A/C compressor (magnet clutch)

ON

 OFF 5 times

6

Cooling fan

LO for 5 seconds

 HI for 5 seconds

Operation
sequence

Inspection location

Operation

JPMIA1486GB

Symptom

Inspection contents

Possible cause

Rear window defogger does not operate

Perform auto active test.
Does the rear window defog-
ger operate?

YES

BCM signal input circuit

NO

• Rear window defogger
• Rear window defogger

ground circuit

• Harness or connector be-

tween IPDM E/R and rear
window defogger

• IPDM  E/R

Any of the following components do not operate

• Parking lamps
• Side marker lamps
• License plate lamps
• Tail  lamps
• Front  fog  lamps
• Headlamps (HI, LO)
• Front wiper (HI, LO)

Perform auto active test.
Does the applicable system
operate?

YES

BCM signal input circuit

NO

• Lamp or motor
• Lamp or motor ground cir-

cuit

• Harness or connector be-

tween IPDM E/R and appli-
cable system

• IPDM  E/R

DIAGNOSIS SYSTEM (IPDM E/R)

DEF-17

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

WITHOUT INTELLIGENT KEY : CONSULT Function (IPDM E/R)

INFOID:0000000010246427

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with IPDM E/R.

SELF DIAGNOSTIC RESULT

Refer to

PCS-62, "DTC Index"

.

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

A/C compressor does not operate

Perform auto active test.
Does the magnet clutch oper-
ate?

YES

• A/C amp. signal input circuit
• CAN communication signal

between A/C amp. and
ECM

• CAN communication signal

between ECM and IPDM E/
R

NO

• Magnet clutch
• Harness or connector be-

tween IPDM E/R and mag-
net clutch

• IPDM E/R

Oil pressure warning lamp does not operate

Perform auto active test.
Does the oil pressure warning
lamp blink?

YES

• Harness or connector be-

tween IPDM E/R and oil
pressure switch

• Oil pressure switch
• IPDM E/R

NO

• CAN communication signal

between IPDM E/R and
BCM

• CAN communication signal

between BCM and combi-
nation meter

• Combination meter

Cooling fan does not operate

Perform auto active test.
Does the cooling fan operate?

YES

• ECM signal input circuit
• CAN communication signal

between ECM and IPDM E/
R

NO

• Cooling fan motor
• Harness or connector be-

tween IPDM E/R and cool-
ing fan motor

• IPDM E/R

Symptom

Inspection contents

Possible cause

Diagnosis mode

Description

Ecu Identification

Allows confirmation of IPDM E/R part number.

Self Diagnostic Result

Displays the diagnosis results judged by IPDM E/R.

Data Monitor

Displays the real-time input/output data from IPDM E/R input/output data.

Active Test

IPDM E/R can provide a drive signal to electronic components to check their operations.

CAN Diag Support Monitor

The results of transmit/receive diagnosis of CAN communication can be read.

DEF-18

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (IPDM E/R)

ACTIVE TEST

Monitor Item

[Unit]

MAIN SIG-

NALS

Description

MOTOR FAN REQ
[1/2/3/4]

×

Displays the value of the cooling fan speed request signal received from ECM via
CAN communication.

AC COMP REQ
[Off/On]

×

Displays the status of the A/C compressor request signal received from ECM via
CAN communication.

TAIL&CLR REQ
[Off/On]

×

Displays the status of the position light request signal received from BCM via CAN
communication.

HL LO REQ
[Off/On]

×

Displays the status of the low beam request signal received from BCM via CAN
communication.

HL HI REQ
[Off/On]

×

Displays the status of the high beam request signal received from BCM via CAN
communication.

FR FOG REQ
[Off/On]

×

Displays the status of the front fog light request signal received from BCM via
CAN communication.

FR WIP REQ
[Stop/1LOW/Low/Hi]

×

Displays the status of the front wiper request signal received from BCM via CAN
communication.

WIP AUTO STOP
[STOP P/ACT P]

×

Displays the status of the front wiper auto stop signal judged by IPDM E/R.

WIP PROT
[Off/BLOCK]

×

Displays the status of the front wiper fail-safe operation judged by IPDM E/R.

IGN RLY
[Off/On]

×

Displays the status of the ignition relay judged by IPDM E/R.

INTER/NP SW
[Off/On]

Displays the status of the shift position (CVT models) judged by IPDM E/R.

ST RLY-REQ
[Off/On]

Displays the status of the starter relay status signal received from BCM via CAN
communication.

DTRL REQ
[Off/On]

NOTE:
The item is indicated, but not monitored.

OIL P SW
[Open/Close]

Displays the status of the oil pressure switch judged by IPDM E/R.

HOOD SW
[Off/On]

NOTE:
The item is indicated, but not monitored.

THFT HRN REQ
[Off/On]

Displays the status of the theft warning horn request signal received from BCM
via CAN communication.

HORN CHIRP
[Off/On]

Displays the status of the horn reminder signal received from BCM via CAN com-
munication.

Test item

Operation

Description

HORN

On

Operates horn relay for 20 ms.

FRONT WIPER

Off

OFF

Lo

Operates the front wiper relay.

Hi

Operates the front wiper relay and front wiper high relay.

MOTOR FAN

1

OFF

2

Operates the cooling fan relay (LO operation).

3

Operates the cooling fan relay (HI operation).

4
