CHG-26

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

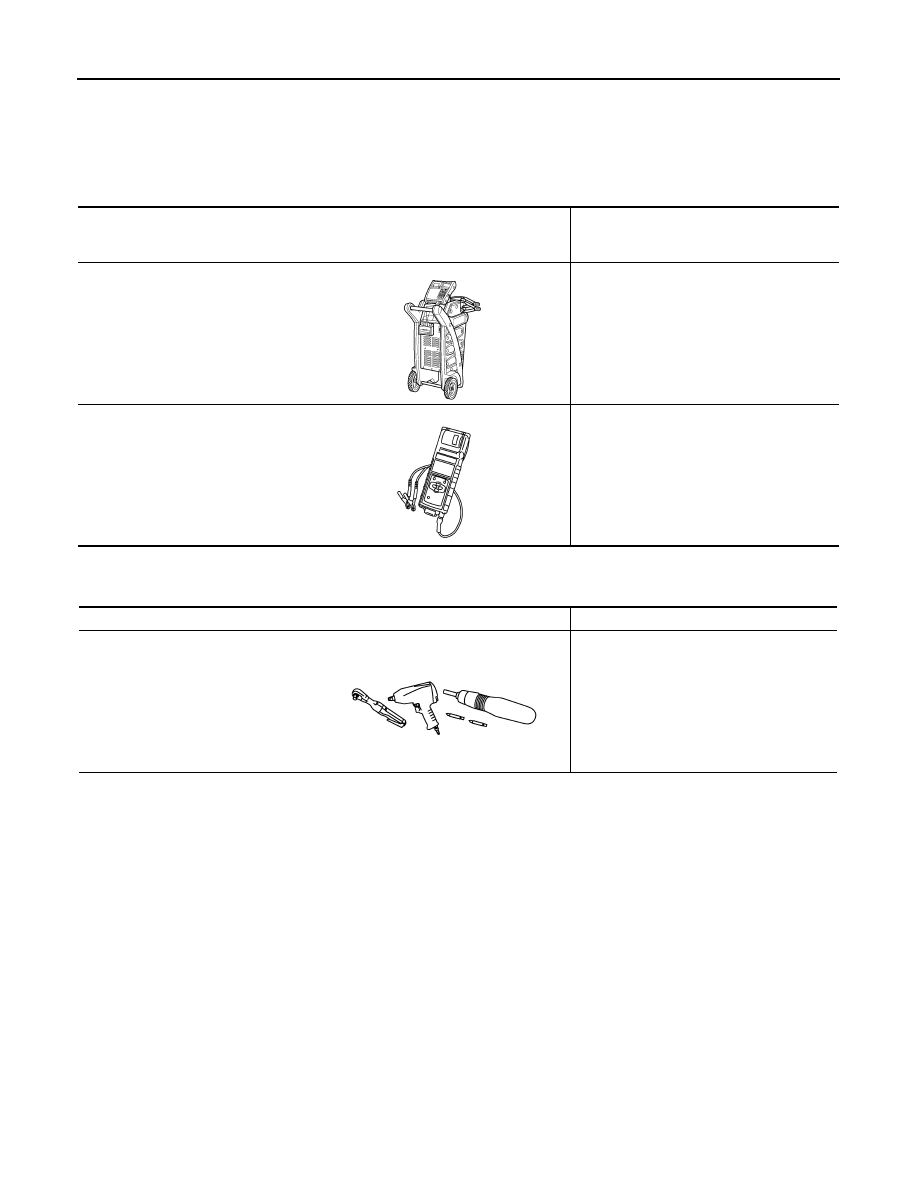

Special Service Tools

INFOID:0000000009945412

Commercial Service Tools

INFOID:0000000009945413

Tool number

(Kent-Moore No.)

Tool name

Description

—
(—) Model GR8-1200 NI
Multitasking battery and electrical di-
agnostic station

Tests batteries, starting and charging sys-
tems and charges batteries.
For operating instructions, refer to diagnos-
tic station instruction manual.

—
(—) Model EXP-800 NI
Battery and electrical diagnostic ana-
lyzer

Tests batteries and charging systems.
For operating instructions, refer to diagnos-
tic analyzer instruction manual.

AWIIA1239ZZ

JSMIA0806ZZ

Tool name

Description

Power tool

Loosening bolts, nuts and screws

PIIB1407E

CHG

CHARGING SYSTEM PRELIMINARY INSPECTION

CHG-27

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

PERIODIC MAINTENANCE

CHARGING SYSTEM PRELIMINARY INSPECTION

Inspection Procedure

INFOID:0000000009945414

1.

CHECK BATTERY TERMINALS CONNECTION

Check if battery terminals are clean and tight.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair battery terminals connection.

2.

CHECK FUSE

Check for blown fuse and fusible link.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Be sure to eliminate the cause of malfunction before installing new fuse.

3.

CHECK “E” TERMINAL CONNECTION(ALTERNATOR GROUND)

Check if “E” terminal (alternator ground) is clean and tight.
Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair “E” terminal (alternator ground) connection.

4.

CHECK DRIVE BELT TENSION

Check drive belt tension. Refer to

EM-13, "Checking"

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Repair as needed.

Unit

Power source (Power supply terminals)

Fuse No.

Alternator

Battery (“S” terminal)

36

Combination meter

Ignition switch ON (“L” terminal)

3

CHG-28

< PERIODIC MAINTENANCE >

POWER GENERATION VOLTAGE VARIABLE CONTROL SYSTEM OPERATION

INSPECTION

POWER GENERATION VOLTAGE VARIABLE CONTROL SYSTEM OPER-
ATION INSPECTION

Inspection Procedure

INFOID:0000000009945415

CAUTION:

When performing this inspection, always use a charged battery that has completed the battery inspec-
tion. (When the charging rate of the battery is low, the response speed of the voltage change will
become slow. This can cause an incorrect inspection.)

1.

CHECK ECM (CONSULT)

Perform ECM self-diagnosis with CONSULT. Refer to

EC-112, "CONSULT Function"

.

Self-diagnostic results content

No malfunction detected>> GO TO 2.
Malfunction detected>> Check applicable parts, and repair or replace corresponding parts.

2.

CHECK OPERATION OF POWER GENERATION VOLTAGE VARIABLE CONTROL SYSTEM

1.

Connect CONSULT and start the engine.

2.

The selector lever is in “P” or “N” position and all of the electric loads and A/C, etc. are turned OFF.

3.

Select “ALTERNATOR DUTY” at “Active Test” of “ENGINE”, and then check the value of “BATTERY
VOLT” monitor when DUTY value of “ALTERNATOR DUTY” is set to 40.0%.

4.

Check the value of “BATTERY VOLT” monitor when DUTY value of “ALTERNATOR DUTY” is set to
80.0%.

Is the measurement value within the specification?

YES

>> INSPECTION END

NO

>> GO TO 3.

3.

CHECK IPDM E/R (CONSULT)

Perform IPDM E/R self-diagnosis with CONSULT. Refer to

PCS-12, "CONSULT Function (IPDM E/R)"

 (with

Intelligent Key System) or

PCS-43, "CONSULT Function (IPDM E/R)"

 (without Intelligent Key System).

Self-diagnostic results content

No malfunction detected>> GO TO 4.
Malfunction detected>> Check applicable parts, and repair or replace corresponding parts.

4.

CHECK HARNESS BETWEEN ALTERNATOR AND IPDM E/R

1.

Turn ignition switch OFF.

2.

Disconnect alternator connector and IPDM E/R connector.

3.

Check continuity between alternator harness connector and IPDM E/R harness connector.

4.

Check continuity between alternator harness connector and ground.

“BATTERY VOLT”

2 seconds after setting the
DUTY value of “ALTERNA-
TOR DUTY” to 40.0%

: 12 - 13.6 V

“BATTERY VOLT”

20 seconds after setting
the DUTY value of “ALTER-
NATOR DUTY” to 80.0%

: +0.5 V or more against
the value of “BATTERY
VOLT” monitor when
DUTY value is 40.0%

Alternator harness connector

IPDM E/R harness connector

Continuity

Connector

Terminal

Connector

Terminal

F15

5

 E13

33

Existed

CHG

POWER GENERATION VOLTAGE VARIABLE CONTROL SYSTEM OPERATION

INSPECTION

CHG-29

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

Is the inspection result normal?

YES

>> Replace IPDM E/R.

NO

>> Repair harness or connector between IPDM E/R and alternator.

Alternator harness connector

Ground

Continuity

Connector

Terminal

F15

5

Not existed
