CHG-18
< DTC/CIRCUIT DIAGNOSIS >
S TERMINAL CIRCUIT
S TERMINAL CIRCUIT

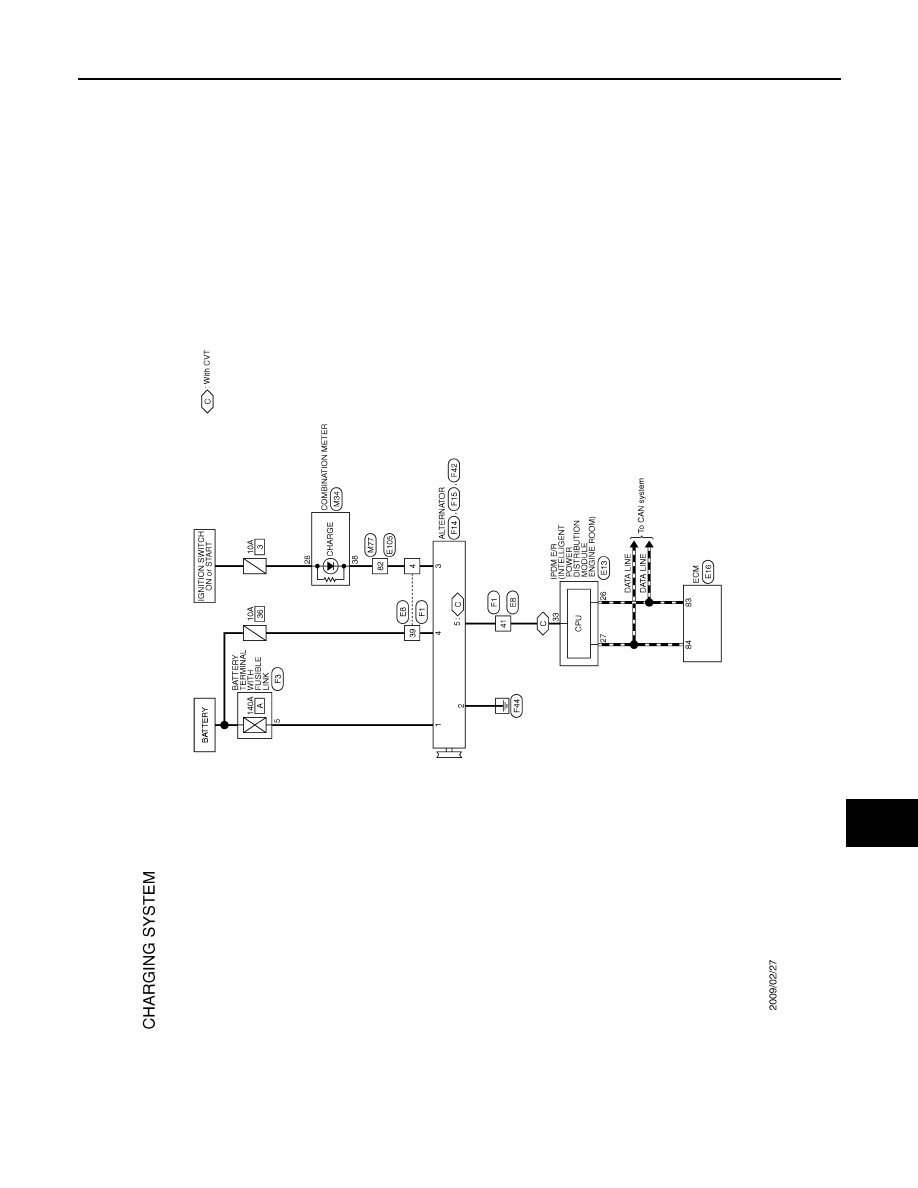

Description
INFOID:0000000009945406
The output voltage of the alternator is controlled by the IC voltage regulator at the “S” terminal detecting the
input voltage.
The “S” terminal circuit detects the battery voltage to adjust the alternator output voltage with the IC voltage
regulator.
Diagnosis Procedure
INFOID:0000000009945407
1.
CHECK “S” TERMINAL CONNECTION
1.
Turn ignition switch OFF.
2.
Check if “S” terminal is clean and tight.
Is the inspection result normal?
YES
>> GO TO 2.
NO
>> Repair “S” terminal connection. Confirm repair by performing complete Charging system test
using EXP-800 NI or GR8-1200 NI (if available). Refer to the applicable Instruction Manual for
proper testing procedures.
2.
CHECK “S” TERMINAL CIRCUIT
Check voltage between alternator harness connector and ground.
Is the inspection result normal?
YES
>> Refer to
CHG-3, "Work Flow (With EXP-800 NI or GR8-1200 NI)"
or
.
NO
>> Check harness for open between alternator and fuse.

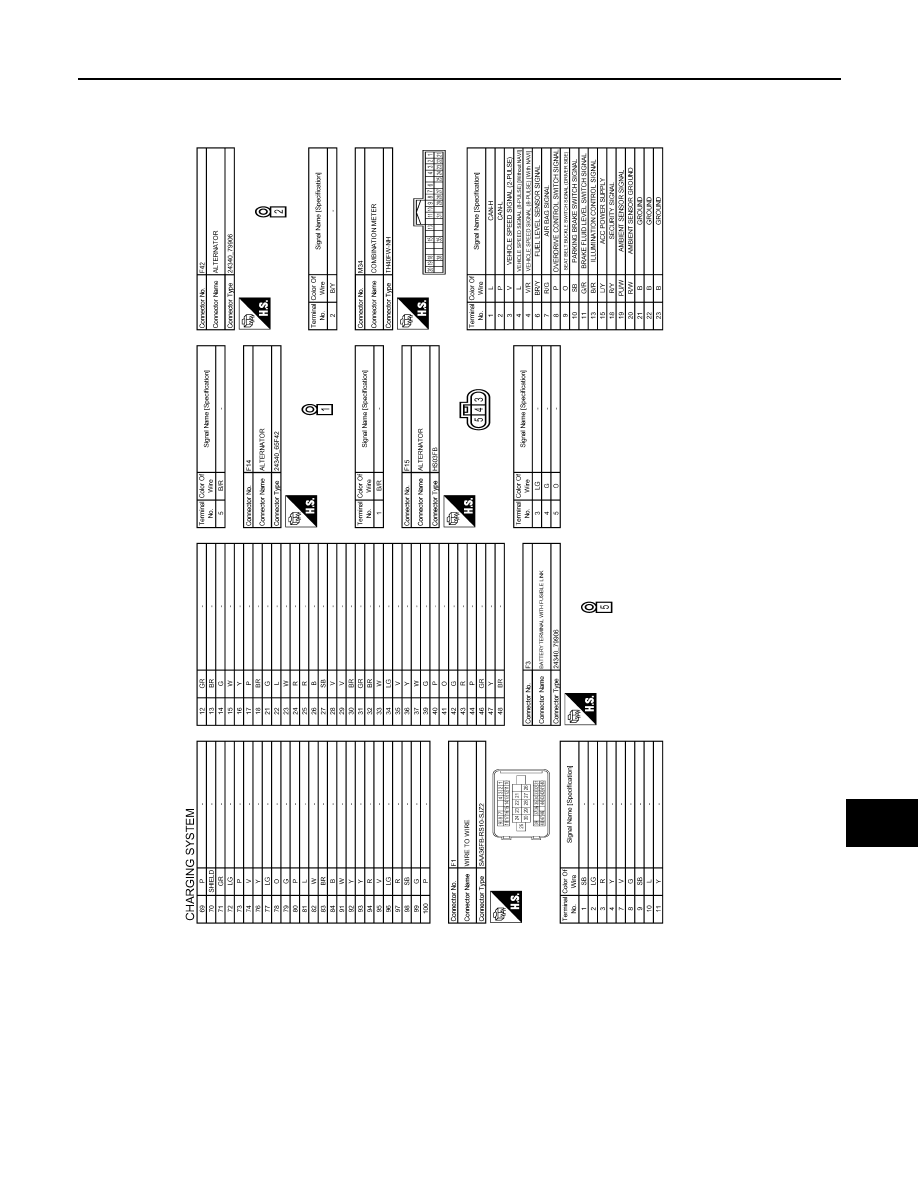

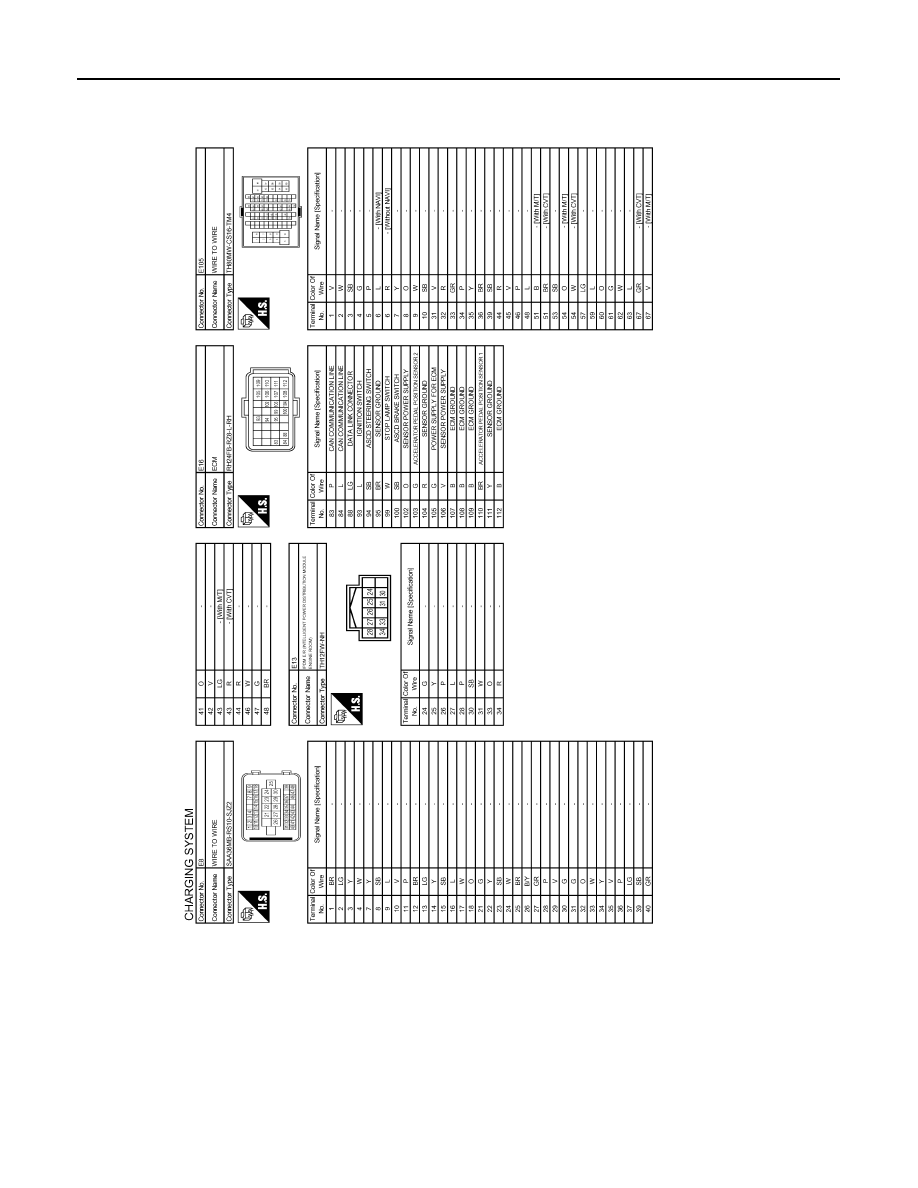

Terminals
Voltage (Approx.)
(+)
(–)
Alternator harness connector
Terminal
F15
4
Ground
Battery voltage
