Nissan Cube. Manual - part 135





CHG-6

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORK FLOW

9.

INSPECTION WITH CHARGE WARNING LAMP (ENGINE AT 3,000 RPM)

Increase and maintain the engine speed at 3,000 rpm.
Does the charge warning lamp remain off?

YES

>> GO TO 11.

NO

>> GO TO 10.

10.

INSPECTION OF ALTERNATOR PULLEY

Check alternator pulley. Refer to

CHG-31, "Inspection"

.

Is alternator pulley normal?

YES

>> Replace alternator. Refer to

CHG-31, "Removal and Installation"

.

NO

>> Repair as needed.

11.

“B” TERMINAL CIRCUIT INSPECTION

Check “B” terminal circuit. Refer to

CHG-14, "Diagnosis Procedure"

.

Is “B” terminal circuit normal?

YES

>> Replace alternator. Refer to

CHG-31, "Removal and Installation"

.

NO

>> Repair as needed.

12.

“B” TERMINAL CIRCUIT INSPECTION

Check “B” terminal circuit. Refer to

CHG-14, "Diagnosis Procedure"

.

Is “B” terminal circuit normal?

YES

>> GO TO 13.

NO

>> Repair as needed.

13.

INSPECTION OF ALTERNATOR PULLEY

Check alternator pulley. Refer to

CHG-31, "Inspection"

.

Is alternator pulley normal?

YES

>> Replace alternator. Refer to

CHG-31, "Removal and Installation"

.

NO

>> Repair as needed.

14.

“S” TERMINAL CIRCUIT INSPECTION

Check “S” terminal circuit. Refer to

CHG-18, "Diagnosis Procedure"

.

Is the “S” terminal circuit normal?

YES

>> Replace alternator. Refer to

CHG-31, "Removal and Installation"

.

NO

>> Repair as needed.

CHG

DIAGNOSIS AND REPAIR WORK FLOW

CHG-7

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

Work Flow (Without EXP-800 NI or GR8-1200 NI)

INFOID:0000000009945391

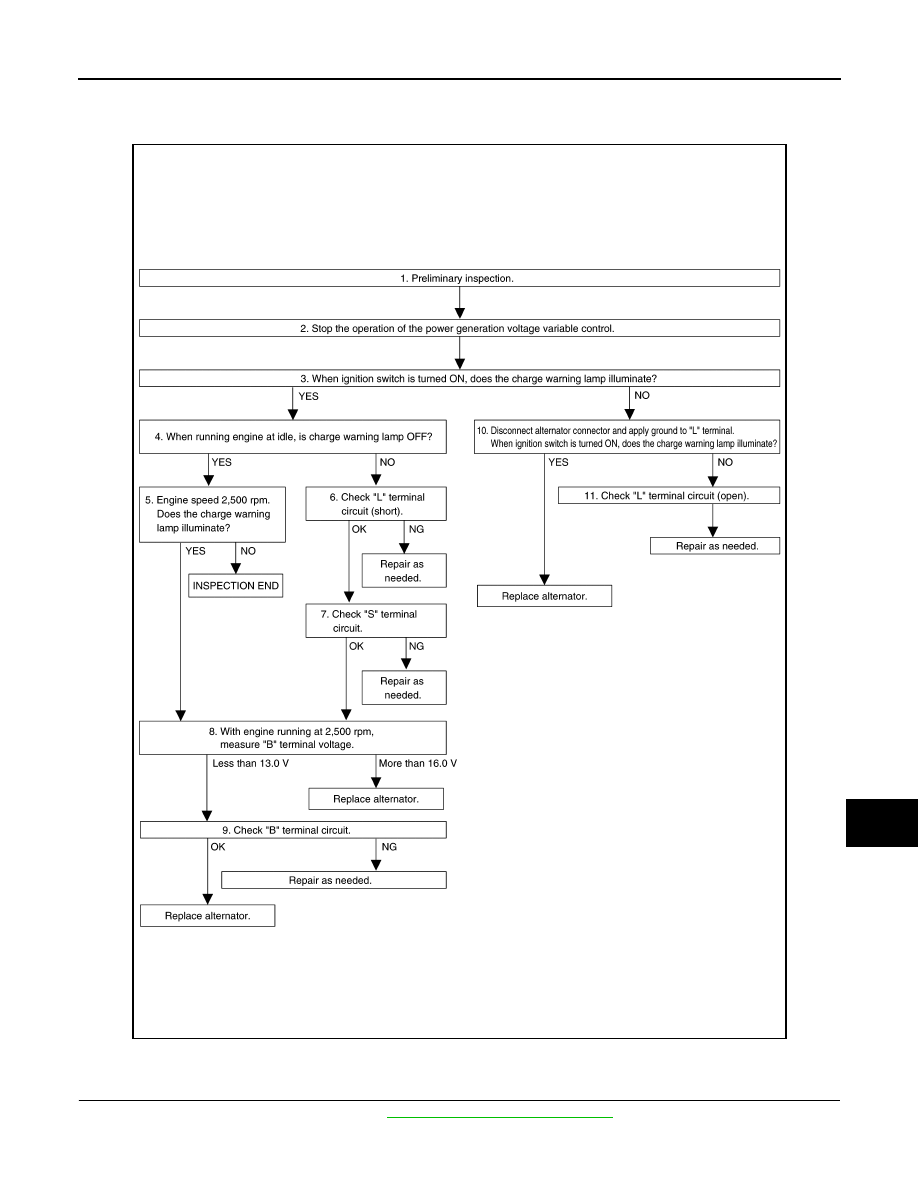

OVERALL SEQUENCE

DETAILED FLOW

1.

PRELIMINARY INSPECTION

Perform the preliminary inspection. Refer to

CHG-27, "Inspection Procedure"

.

JMMIA1148GB

CHG-8

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORK FLOW

>> GO TO 2.

2.

STOP POWER GENERATION VOLTAGE VARIABLE CONTROL SYSTEM

Stop the operation of the power generation voltage variable control in either of the following procedures.
• After selecting “ENGINE” of “SELECT SYSTEM” using CONSULT, set the DUTY value of “ALTERNATOR

DUTY” to 0 % by selecting “ALTERNATOR DUTY” of “Active Test”. Continue “Active Test” until the end of
inspection. (When the DUTY value is 0 or 100 %, the normal power generation is performed according to the
characteristic of the IC regulator of the alternator.)

• Turn the ignition switch OFF, and disconnect the battery current sensor connector. [However, DTC (P1550 -

P1554) of the engine might remain. After finishing the inspection, connect the battery current sensor connec-
tor and erase the self-diagnostic results history of the engine using CONSULT.]

>> GO TO 3.

3.

INSPECTION WITH CHARGE WARNING LAMP (IGNITION SWITCH IS TURNED ON)

When ignition switch is turned ON
Does the charge warning lamp illuminate?

YES

>> GO TO 4.

NO

>> GO TO 10.

4.

INSPECTION WITH CHARGE WARNING LAMP (IDLING)

Start the engine and run it at idle.

Does the charge warning lamp turn OFF?

YES

>> GO TO 5.

NO

>> GO TO 6.

5.

INSPECTION WITH CHARGE WARNING LAMP (ENGINE AT 2,500 RPM)

Increase and maintain the engine speed at 2,500 rpm.

Does the charge warning lamp illuminate?

YES

>> GO TO 8.

NO

>> INSPECTION END

6.

“L” TERMINAL CIRCUIT (SHORT) INSPECTION

Check “L” terminal circuit (short). Refer to

CHG-17, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> Repair as needed.

7.

“S” TERMINAL CIRCUIT INSPECTION

Check “S” terminal circuit. Refer to

CHG-18, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 8.

NO

>> Repair as needed.

8.

MEASURE “B” TERMINAL VOLTAGE

Start engine. With engine running at 2,500 rpm, measure “B” terminal voltage.

What voltage does the measurement result show?

Less than 13.0 V>>GO TO 9.
More than 16.0 V>>Replace alternator. Refer to

CHG-31, "Removal and Installation"

.

9.

“B” TERMINAL CIRCUIT INSPECTION

Check “B” terminal circuit. Refer to

CHG-14, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> Replace alternator. Refer to

CHG-31, "Removal and Installation"

.

NO

>> Repair as needed.

10.

INSPECTION WITH CHARGE WARNING LAMP (IGNITION SWITCH IS ON)

CHG

DIAGNOSIS AND REPAIR WORK FLOW

CHG-9

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

1.

Disconnect alternator connector and apply ground to “L” terminal.

2.

Turn the ignition switch ON.

Does the charge warning lamp illuminate?

YES

>> Replace alternator. Refer to

CHG-31, "Removal and Installation"

.

NO

>> GO TO 11.

11.

CHECK “L” TERMINAL CIRCUIT (OPEN)

Check “L” terminal circuit (open). Refer to

CHG-15, "Diagnosis Procedure"

.

>> Repair as needed.
