BODY ALIGNMENT

BRM-61

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

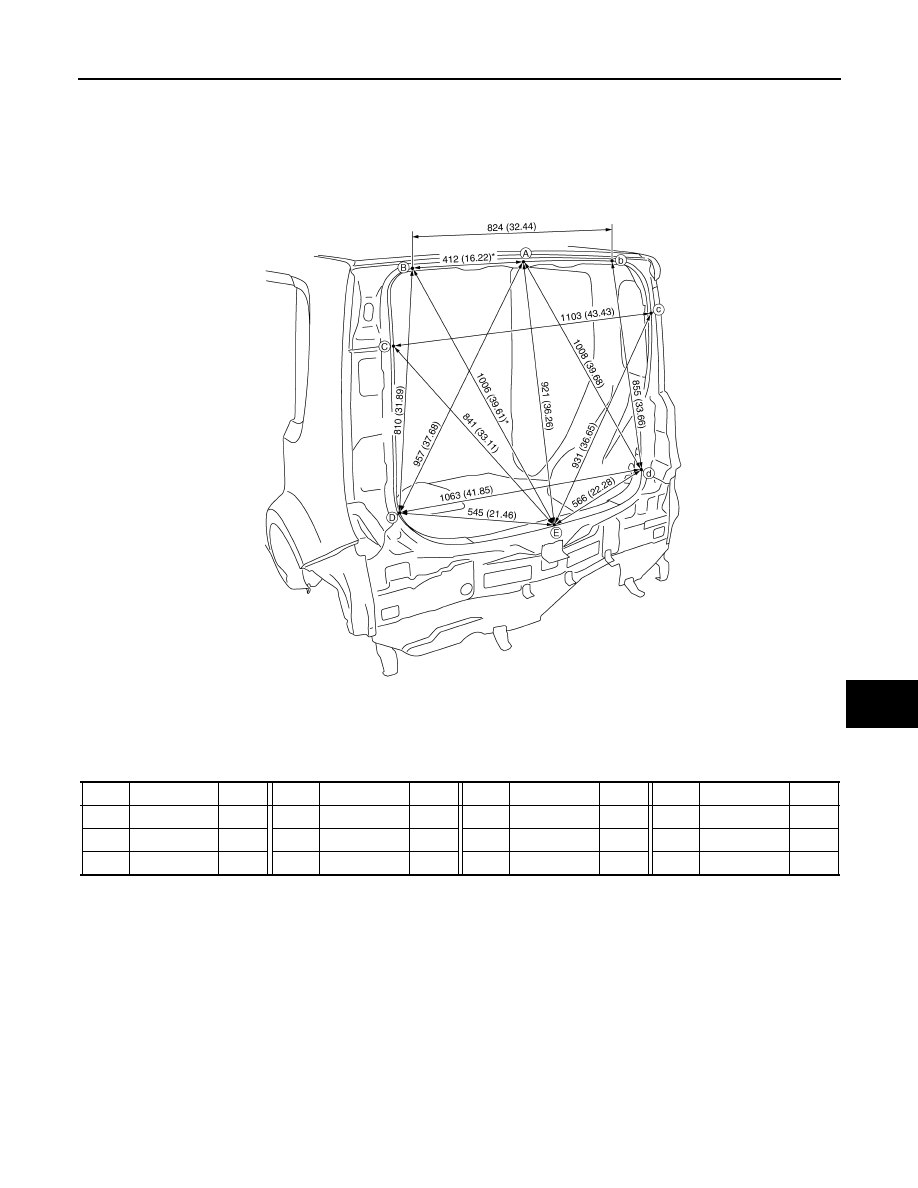

Rear Body

INFOID:0000000009949355

MEASUREMENT

Dimensions marked with

″

*

″

 indicate symmetrically identical dimensions on both the right and left hand of the

vehicle.

«The others»

Unit: mm (in)

MEASUREMENT POINTS

Unit: mm (in)

JSKIA1148GB

Point

Dimension

Memo

Point

Dimension

Memo

Point

Dimension

Memo

Point

Dimension

Memo

A - C

566 (22.28)

b - C

952 (37.48)

C - D

555 (21.85)

c - D

1261 (49.65)

A - c

631 (24.84)

B - d

1277 (50.28)

c - d

639 (25.16)

B - c

1028 (40.47)

b - D

1227 (48.31)

C - d

1210 (47.64)

BRM-62

< SERVICE DATA AND SPECIFICATIONS (SDS)

BODY ALIGNMENT

: Vehicle front

JSKIA1149ZZ

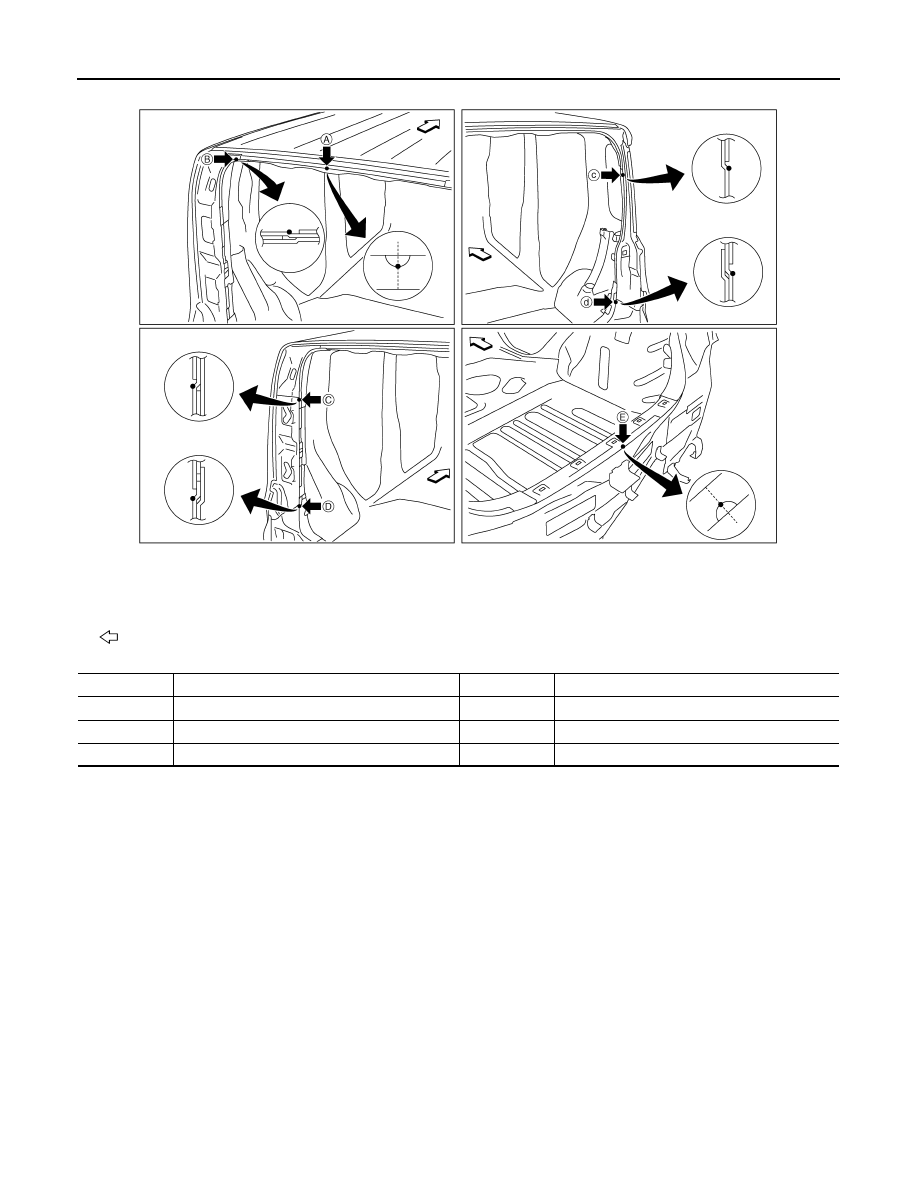

Point

Material

Point

Material

A

Roof flange end of center positioning mark

D, d

Rear combination lamp base joggle

B, b

Upper outer back pillar joggle

E

Rear panel indent of center positioning mark

C, c

Lower outer back pillar joggle

LOCATION OF PLASTIC PARTS

BRM-63

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

LOCATION OF PLASTIC PARTS

Precautions for Plastics

INFOID:0000000009949356

CAUTION:

• When repairing and painting a portion of the body adjacent to plastic parts, consider their characteristics (influence of heat

and solvent) and remove them if necessary or take suitable measures to protect them.

• Plastic parts should be repaired and painted using methods suiting the materials

,

 characteristics.

Abbre-

viation

Material name

Heat resisting

temperature

°

C (

°

F)

Resistance to gasoline and

solvents

Other cautions

PE

Polyethylene

60 (140)

Gasoline and most solvents are
harmless if applied for a very
short time (wipe out quickly).

Flammable

ABS

Acrylonitrile Butadiene Styrene

80 (176)

Avoid gasoline and solvents.

—

EPM/
EPDM

Ethylene Propylene (Diene) co-
polymer

80 (176)

Gasoline and most solvents are
harmless if applied for a very
short time (wipe out quickly).

Flammable

PS

Polystyrene

80 (176)

Avoid solvents.

Flammable

PVC

Poly Vinyl Chloride

80 (176)

Gasoline and most solvents are
harmless if applied for a very
short time (wipe out quickly).

Poisonous gas is emitted
when burned.

TPO

Thermoplastic Olefine

80 (176)

↑

Flammable

AAS

Acrylonitrile Acrylic Styrene

85 (185)

Avoid gasoline and solvents.

—

PMMA

Poly Methyl Methacrylate

85 (185)

↑

—

EVAC

Ethylene Vinyl Acetate

90 (194)

↑

—

PP

Polypropylene

90 (194)

Gasoline and most solvents are
harmless if applied for a very
short time (wipe out quickly).

Flammable, avoid bat-
tery acid.

PUR

Polyurethane

90 (194)

Avoid gasoline and solvents.

—

UP

Unsaturated Polyester

90 (194)

↑

Flammable

ASA

Acrylonitrile Styrene Acrylate

100 (212)

↑

Flammable

PPE

Poly Phenylene Ether

110 (230)

↑

—

TPU

Thermoplastic Urethane

110 (230)

↑

—

PBT+
PC

Poly Butylene Terephthalate +
Polycarbonate

120 (248)

↑

Flammable

PC

Polycarbonate

120 (248)

↑

—

POM

Poly Oxymethylene

120 (248)

↑

Avoid battery acid.

PA

Polyamide

140 (284)

↑

Avoid immersing in wa-
ter.

PBT

Poly Butylene Terephthalate

140 (284)

↑

—

PAR

Polyarylate

180 (356)

↑

—

PET

Polyethylene terephthalate

180 (356)

↑

—

PEI

Polyetherimide

200 (392)

↑

—

BRM-64

< SERVICE DATA AND SPECIFICATIONS (SDS)

LOCATION OF PLASTIC PARTS

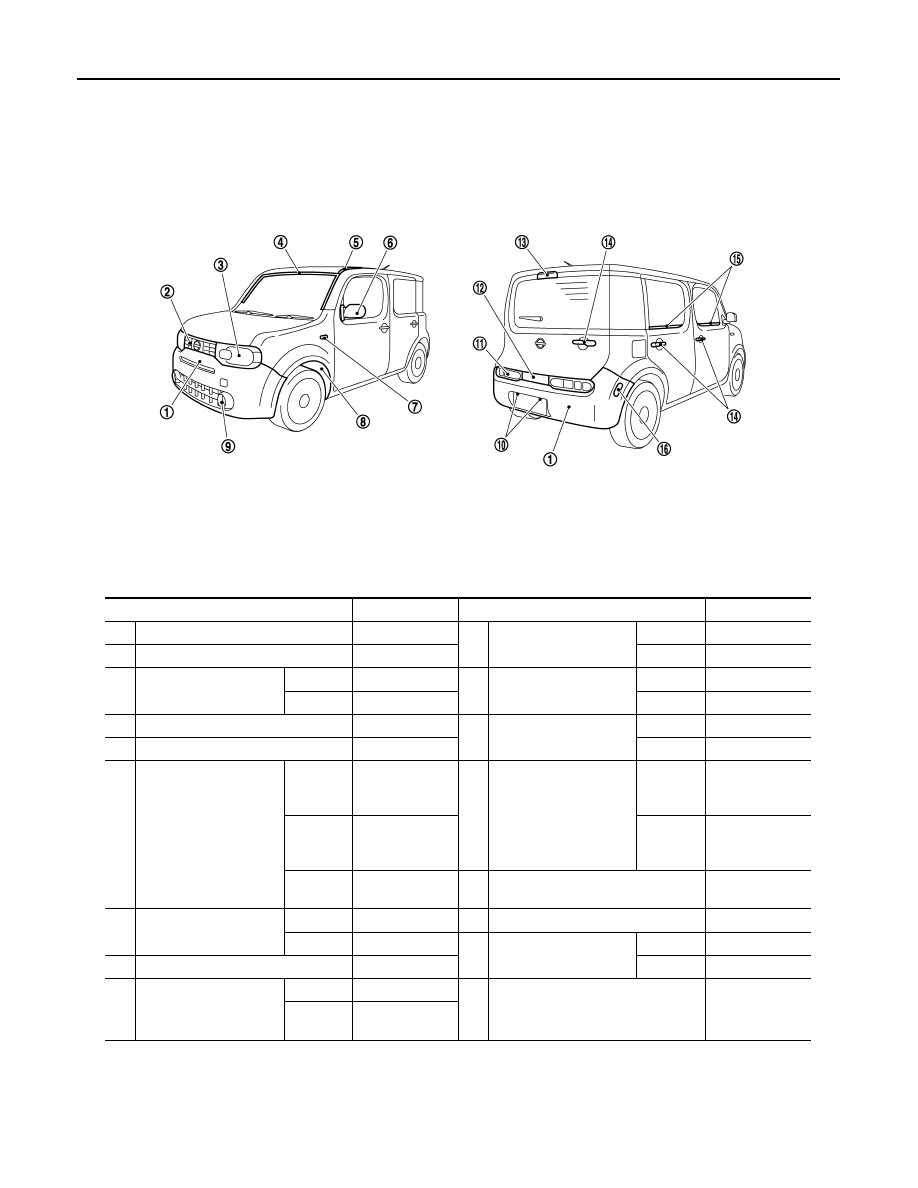

Location of Plastic Parts

INFOID:0000000009949357

Component

Material

Component

Material

1

Bumper fascia

PP + EPM

10

License plate lamp

Lens

PMMA

2

Front grille

ABS

Housing

PC

3

Front combination lamp

Lens

PC

11

Rear combination lamp

Lens

PMMA

Housing

PP

Housing

ASA

4

Windshield molding

PVC

12

Back door finisher

Lens

PMMA

5

Roof side molding

PVC

Housing

ASA

6

Door outside mirror

Cover
(Material
color)

ASA

13

High mount stop lamp

Lens

PC

Cover
(Body
color)

ABS

Housing

PC

Base

PBT + PET +

Glass fiber

14

Door outside handle

PC + PET

7

Side turn signal lamp

Lens

PMMA

15

Door outside molding

PVC + Stainless

Housing

PC + ABS

16

Rear side marker lamp

Lens

PMMA

8

Front fender protector

PP

Housing

ASA

9

Front fog lamp

Lens

Glass

Housing

PBT + ASA +

Glass fiber

JSKIA1179ZZ
