REPLACEMENT OPERATIONS

BRM-49

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

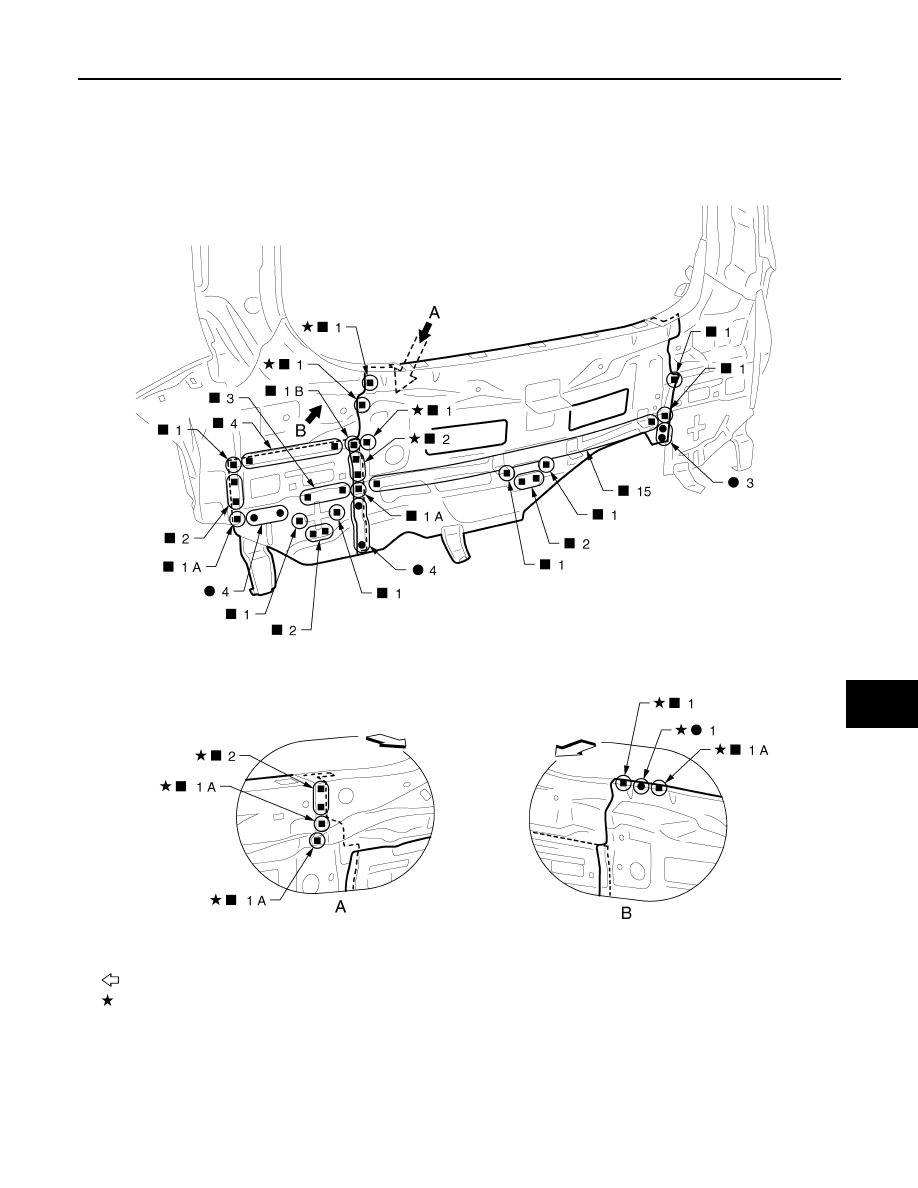

Rear Panel

INFOID:0000000009949347

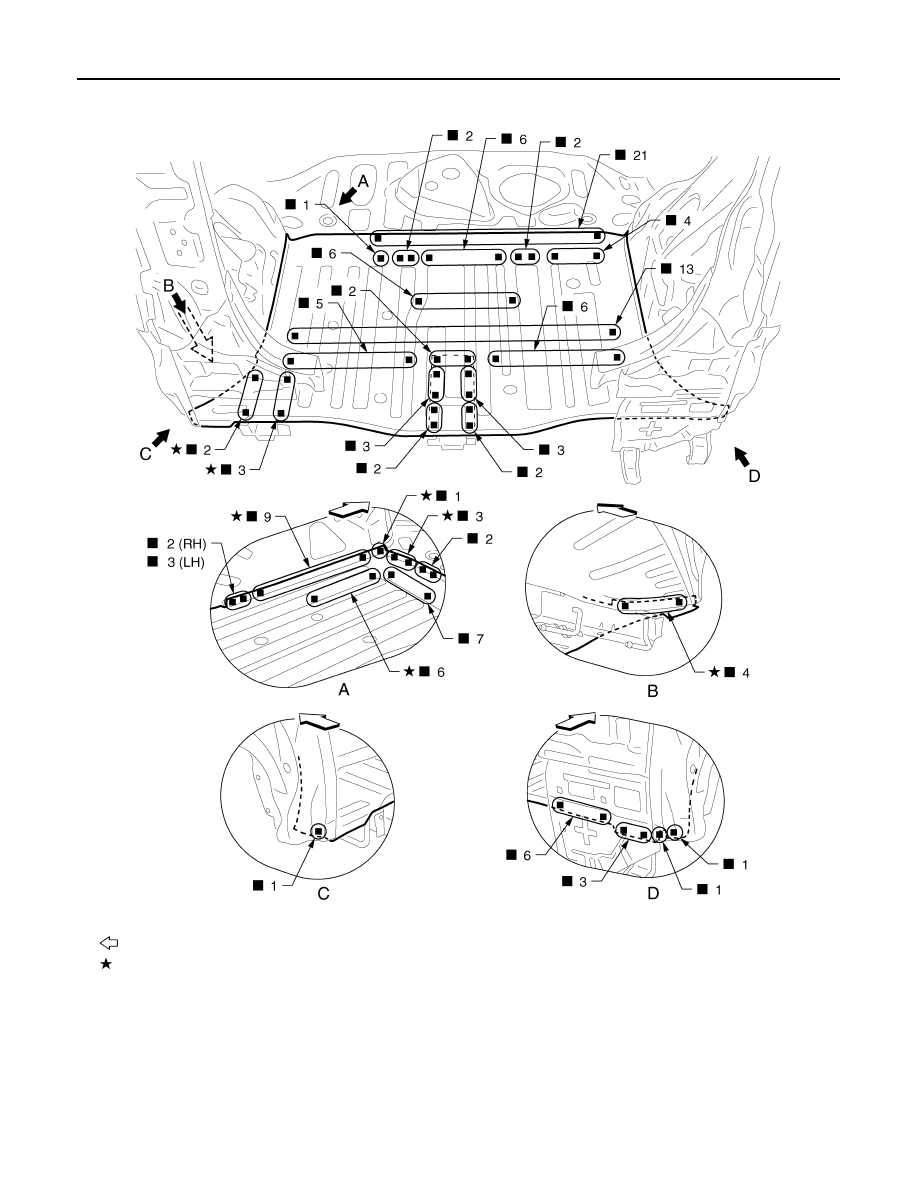

Rear Floor Rear

INFOID:0000000009949348

Work after rear panel is removed.

: Vehicle front

: Welding method and the number of welding points apply to both side of the vehicle.

Replacement parts

z

Rear panel assembly

z

Rear combination lamp base exten-
sion (LH)

JSKIA1173ZZ

BRM-50

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

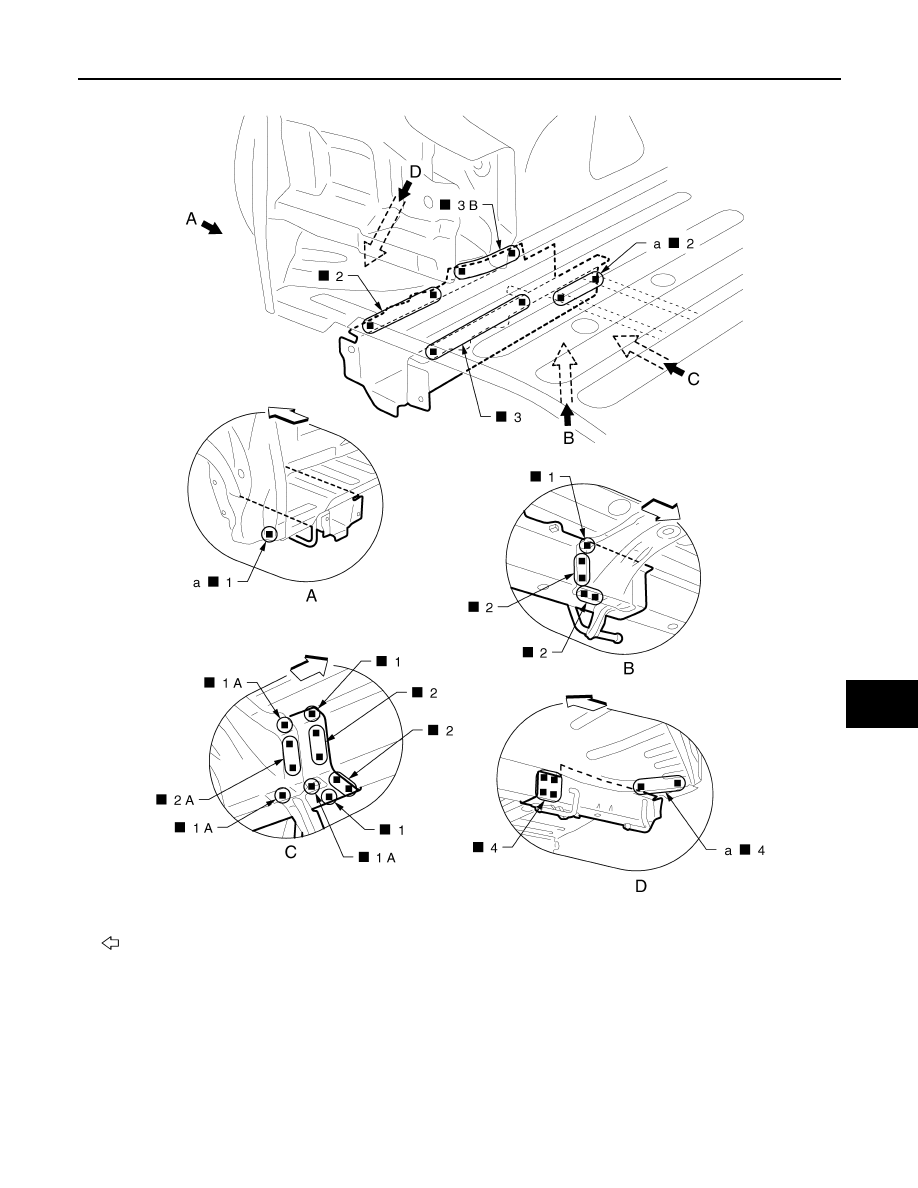

Rear Side Member Extension

INFOID:0000000009949349

Work after rear panel is removed.
Remove the welding point (a) for easier installation.

: Vehicle front

: An equivalent welding portion with the same dimensions is on the opposite side.

Replacement parts

z

Rear floor rear

JSKIA1174GB

REPLACEMENT OPERATIONS

BRM-51

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

: Vehicle front

Replacement parts

z

Rear side member extension (LH)

JSKIA1175ZZ

BRM-52

< SERVICE DATA AND SPECIFICATIONS (SDS)

BODY ALIGNMENT

SERVICE DATA AND SPECIFICATIONS (SDS)

BODY ALIGNMENT

Body Center Marks

INFOID:0000000009949350

A mark is placed on each part of the body to indicate the vehicle center. When repairing the vehicle frame
(members, pillars, etc.) damaged by an accident which it enables more accurate and effective repair by using
these marks together with body alignment specifications.

Unit: mm (in)

: Vehicle front

Points

Portion

Marks

A

Cowl top

Embossment

B

Front roof

Embossment

C

Rear roof

Indent
