BRC-114

< REMOVAL AND INSTALLATION >

[VDC/TCS/ABS]

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

INSTALLATION

Note the following, and install in the reverse order of removal.
• Install, use flare nut crowfoot and torque wrench. Refer to

BR-20, "FRONT : Exploded View"

.

CAUTION:

Never scratch the flare nut and the brake tube.

• Never apply excessive impact to ABS actuator and electric unit (control unit), such as dropping it.
• Never install actuator by holding harness.
• Installing harness connector in the ABS actuator and electric unit (control unit), make sure harness connec-

tor is securely locked.

Adjustment

INFOID:0000000009950053

ADJUSTMENT AFTER INSTALLATION

1.

Refill with new brake fluid and perform the air bleeding. Refer to

BR-11, "Bleeding Brake System"

.

CAUTION:

Never reuse drained brake fluid.

2.

When replacing ABS actuator and electric unit (control unit), make sure adjust neutral position of steering
angle sensor. Refer to

BRC-9, "Description"

.

YAW RATE/SIDE G SENSOR

BRC-115

< REMOVAL AND INSTALLATION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

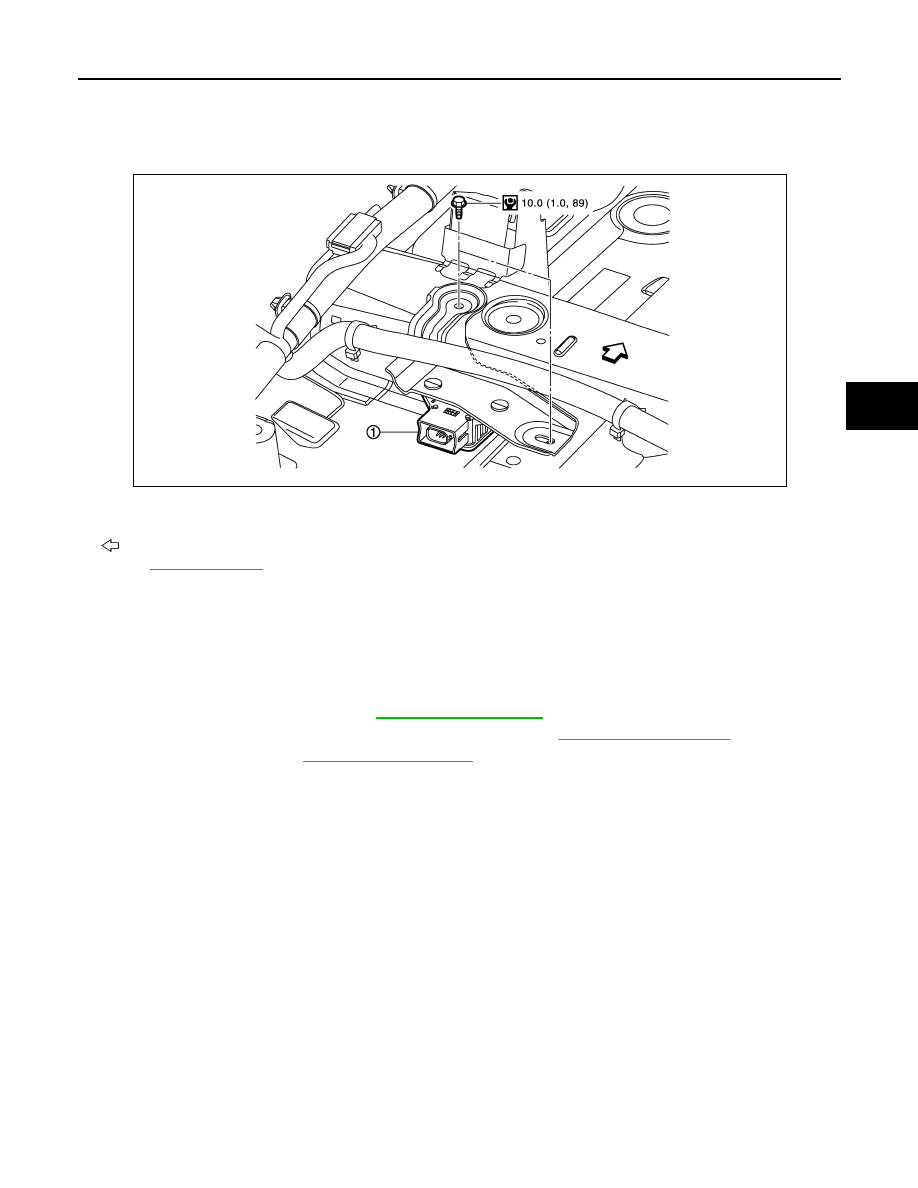

YAW RATE/SIDE G SENSOR

Exploded View

INFOID:0000000009950054

Removal and Installation

INFOID:0000000009950055

REMOVAL

CAUTION:

• Never drop or strike yaw rate/side G sensor, or never use power tool etc., because yaw rate/side G

sensor is sensitive to the impact.

1.

Remove front (left side) seat. Refer to

SE-12, "Exploded View"

.

2.

Remove dash side finisher and front kicking plate inner. Refer to

INT-16, "Exploded View"

.

3.

Remove floor trim. Refer to

INT-19, "Exploded View"

.

4.

Disconnect yaw rate/side G sensor harness connector.

5.

Remove yaw rate/side G sensor.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Never drop or strike yaw rate/side G sensor, or never use power tool etc., because yaw rate/side G sensor is

sensitive to the impact.

1.

Yaw rate/side G sensor

: Vehicle front

Refer to

GI-4, "Components"

 for symbols in the figure.

JPFIC0047GB

BRC-116

< REMOVAL AND INSTALLATION >

[VDC/TCS/ABS]

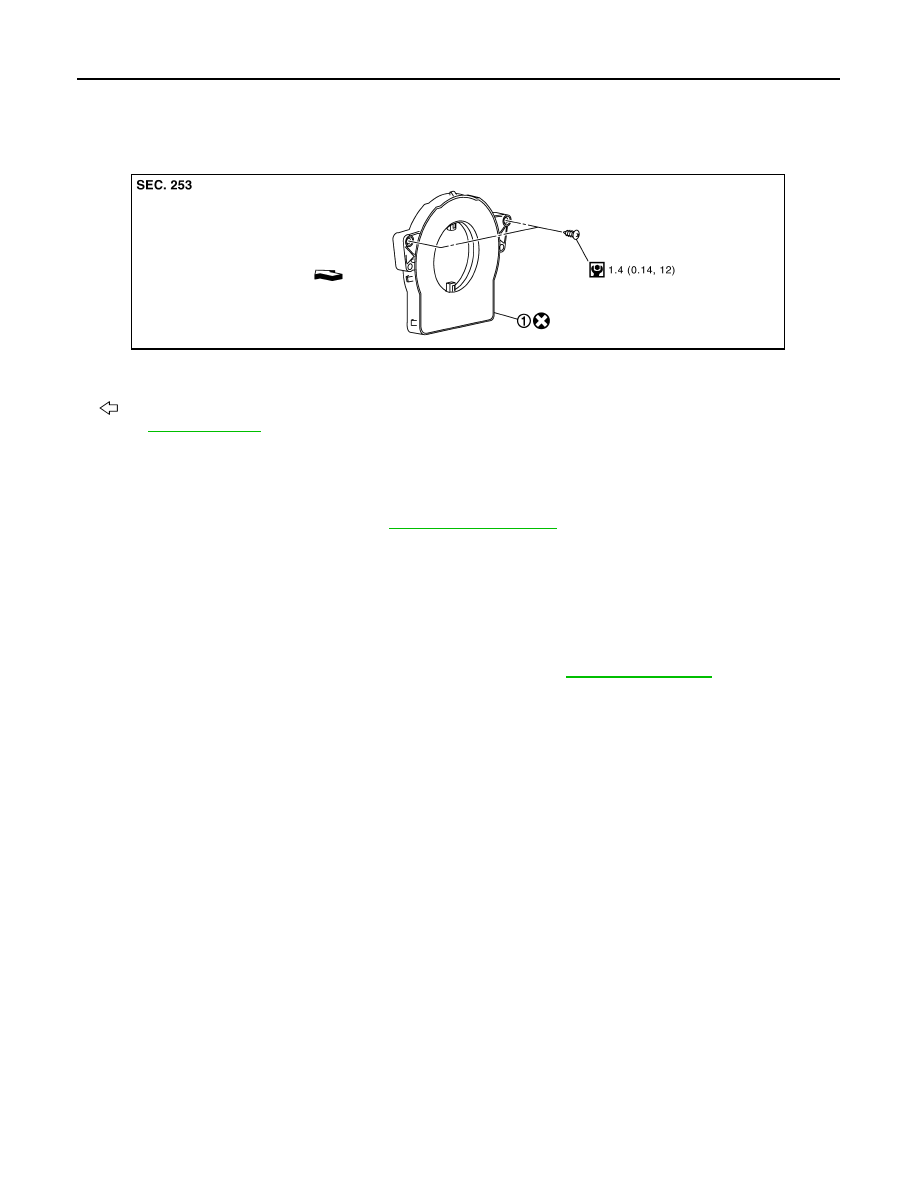

STEERING ANGLE SENSOR

STEERING ANGLE SENSOR

Exploded View

INFOID:0000000009950056

Removal and Installation

INFOID:0000000009950057

REMOVAL

1.

Remove spiral cable assembly. Refer to

SR-14, "Exploded View"

.

2.

Remove steering angle sensor from spiral cable assembly.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Never reuse steering angle sensor.

Adjustment

INFOID:0000000009950058

Make sure to adjust neutral position of steering angle sensor. Refer to

BRC-9, "Description"

.

1.

Steering angle sensor

: Vehicle front

Refer to

GI-4, "Components"

 for the symbols in the figure.

JSFIA0237GB

VDC OFF SWITCH

BRC-117

< REMOVAL AND INSTALLATION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

VDC OFF SWITCH

Removal and Installation

INFOID:0000000009950059

REMOVAL

1.

Remove Instrument lower panel LH. Refer to

IP-13, "Exploded View"

.

2.

Remove VDC OFF switch.

INSTALLATION

Install in the reverse order of removal.
