Nissan Cube. Manual - part 115





BRC-110

< REMOVAL AND INSTALLATION >

[VDC/TCS/ABS]

WHEEL SENSOR

REMOVAL AND INSTALLATION

WHEEL SENSOR

FRONT WHEEL SENSOR

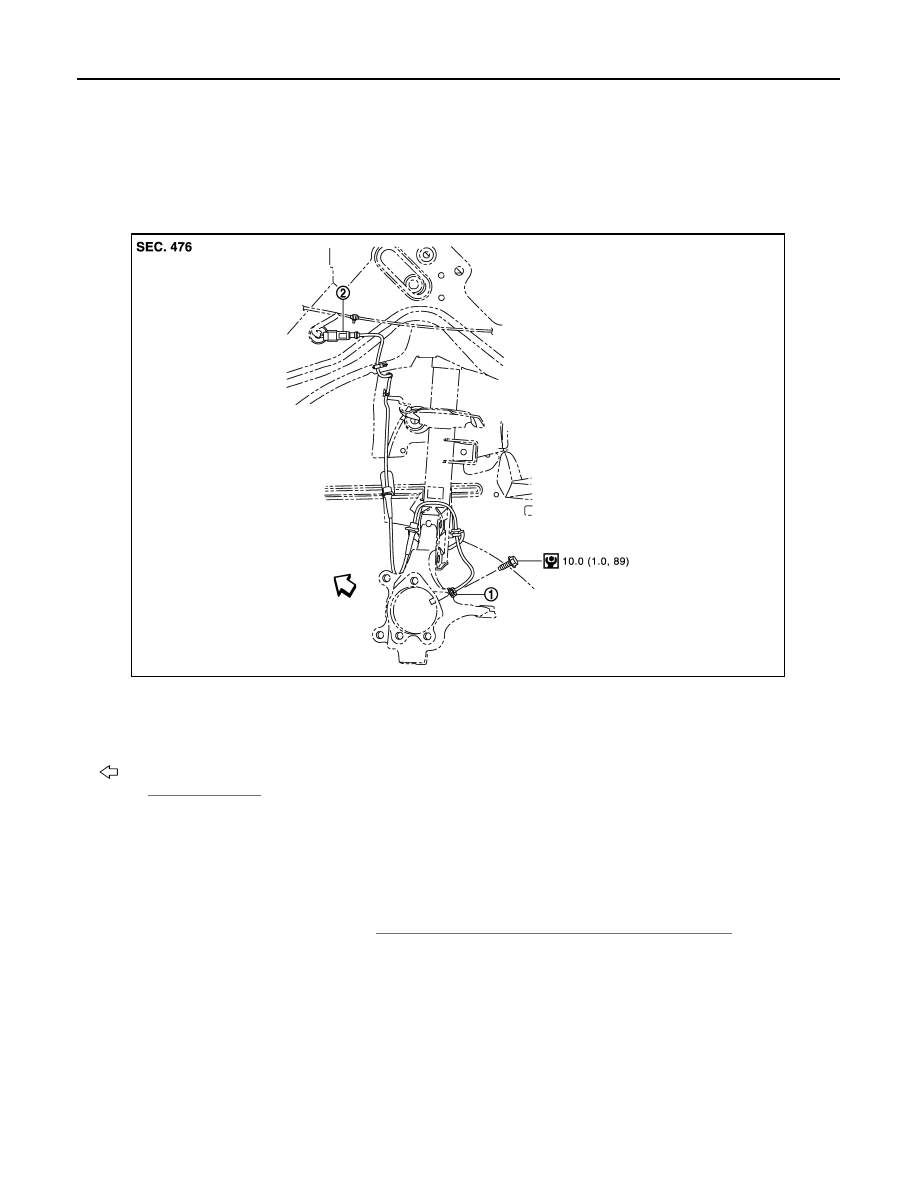

FRONT WHEEL SENSOR : Exploded View

INFOID:0000000009950043

NOTE:
The above figure (front side) shows left side. Right side is the mirror image.

FRONT WHEEL SENSOR : Removal and Installation

INFOID:0000000009950044

REMOVAL

1.

Remove the fender protector. Refer to

EXT-21, "FENDER PROTECTOR : Exploded View"

.

2.

Remove the wheel sensor from steering knuckle.

CAUTION:

Never twist sensor harness as much as possible, when removing it. Pull wheel sensors out with-
out pulling sensor harness.

3.

Remove the wheel sensor harness from vehicle.

CAUTION:

Never twist sensor harness as much as possible, when removing it. Pull wheel sensors out with-
out pulling sensor harness.

INSTALLATION

Note the following, and install in the reverse order of the removal.
• Make sure there is no foreign material such as iron chips on and in the mounting hole of the wheel sensor.

1.

Front LH wheel sensor

2.

Front LH wheel sensor harness con-
nector

A.

Color line

: Vehicle front

Refer to

GI-4, "Components"

 for symbols in the figure.

JPFIC0038GB

WHEEL SENSOR

BRC-111

< REMOVAL AND INSTALLATION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

• Make sure no foreign material has been caught in the sensor rotor. Remove any foreign material and clean

the mount. Replace the wheel sensor if necessary.

• When installing wheel sensor, be sure to press rubber grommets in until they lock at locations shown above

in the figure. When installed, harness must not be twisted.

REAR WHEEL SENSOR

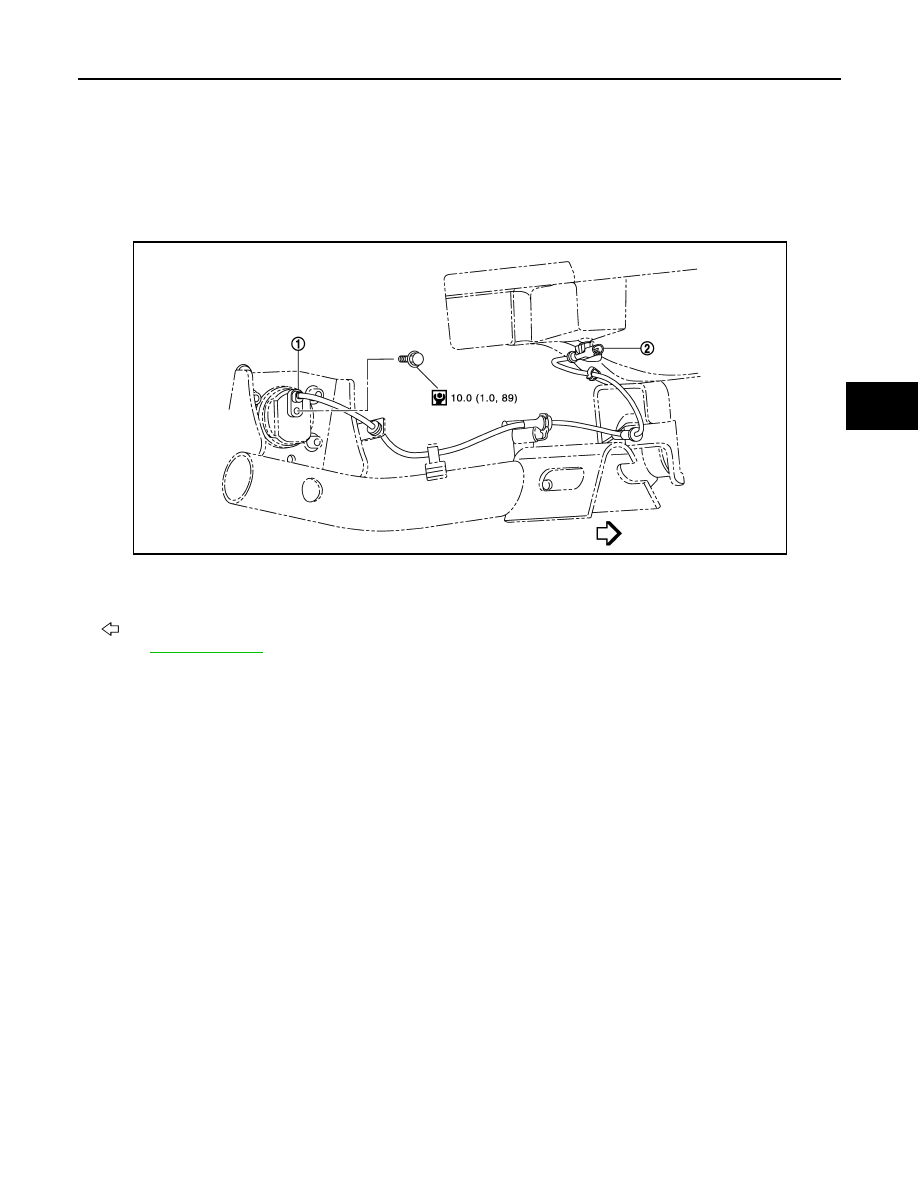

REAR WHEEL SENSOR : Exploded View

INFOID:0000000009950045

REAR WHEEL SENSOR : Removal and Installation

INFOID:0000000009950046

REMOVAL

1.

Remove wheel sensor from wheel hub and bearing assembly.

CAUTION:

Never twist sensor harness as much as possible, when removing it. Pull wheel sensors out with-
out pulling sensor harness.

2.

Remove wheel sensor harness from vehicle.

CAUTION:

Never twist sensor harness as much as possible, when removing it. Pull wheel sensors out with-
out pulling sensor harness.

INSTALLATION

Note the following, and install in the reverse order of the removal.
• Make sure there is no foreign material such as iron chips on and in the mounting hole of the wheel sensor.
• Make sure no foreign material has been caught in the sensor rotor. Remove any foreign material and clean

the mount. Replace the wheel sensor if necessary.

• When installing wheel sensor, be sure to press rubber grommets in until they lock at locations shown above

in the figure. When installed, harness must not be twisted.

1.

Rear LH wheel sensor

2.

Rear LH wheel sensor harness con-
nector

: Vehicle front

Refer to

GI-4, "Components"

 for symbols in the figure.

JPFIC0039GB

BRC-112

< REMOVAL AND INSTALLATION >

[VDC/TCS/ABS]

SENSOR ROTOR

SENSOR ROTOR

FRONT SENSOR ROTOR

FRONT SENSOR ROTOR : Removal and Installation

INFOID:0000000009950047

CAUTION:

Sensor rotor cannot be disassembled. Remove the sensor rotor together with hub bearing assembly.

REMOVAL

Remove the wheel hub and bearing assembly. Refer to

FAX-9, "Exploded View"

.

INSTALLATION

Install the wheel hub and bearing assembly. Refer to

FAX-9, "Exploded View"

.

FRONT SENSOR ROTOR : Disassembly and Assembly

INFOID:0000000009950048

Sensor rotor cannot be disassembled. Remove the sensor rotor together with hub bearing assembly.

REAR SENSOR ROTOR

REAR SENSOR ROTOR : Removal and Installation

INFOID:0000000009950049

CAUTION:

Sensor rotor cannot be disassembled. Remove the sensor rotor together with hub bearing assembly.

REMOVAL

Remove the wheel hub and bearing assembly. Refer to

RAX-6, "Exploded View"

.

INSTALLATION

Install the wheel hub and bearing assembly. Refer to

RAX-6, "Exploded View"

.

REAR SENSOR ROTOR : Disassembly and Assembly

INFOID:0000000009950050

Sensor rotor cannot be disassembled. Remove the sensor rotor together with hub bearing assembly.

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

BRC-113

< REMOVAL AND INSTALLATION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

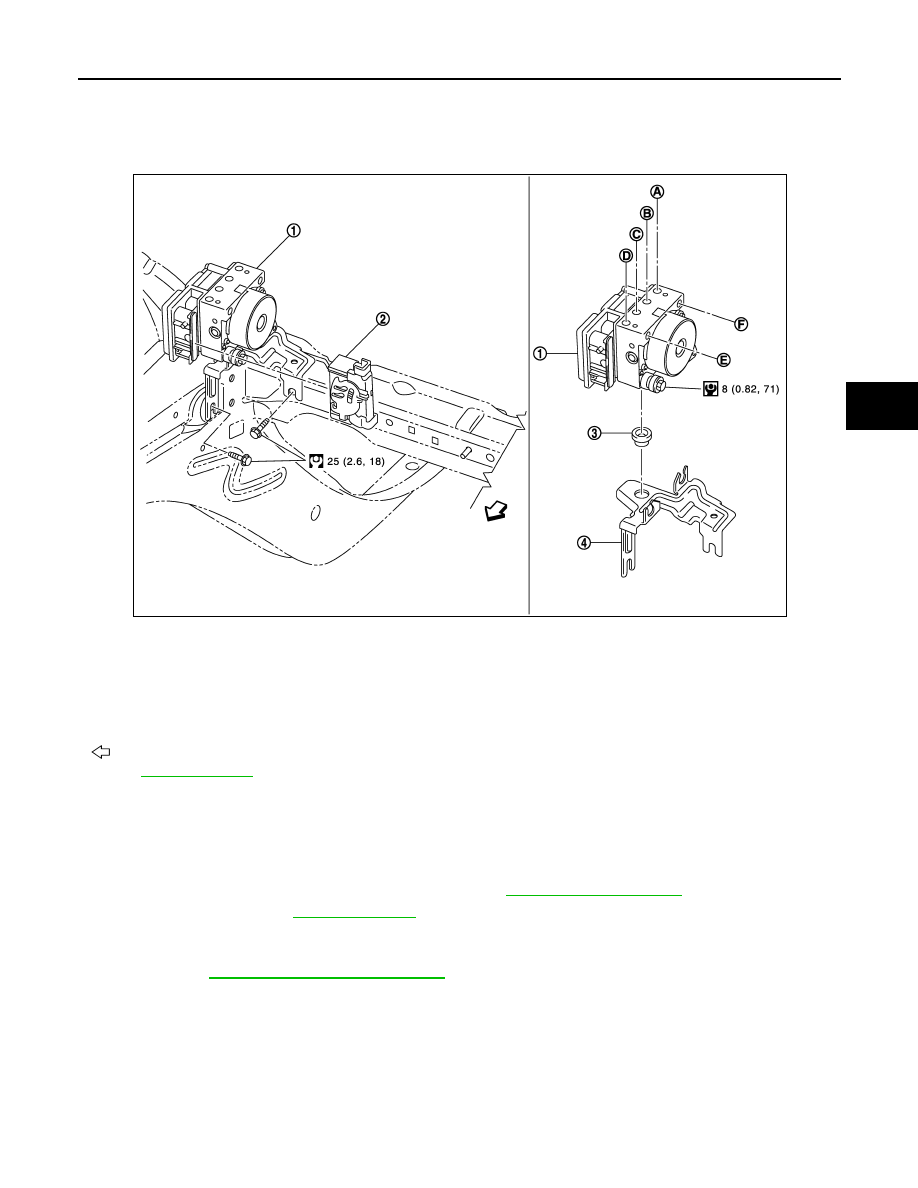

Exploded View

INFOID:0000000009950051

Removal and Installation

INFOID:0000000009950052

REMOVAL

1.

Disconnect the battery cable from negative terminal.

2.

Remove cowl top cover and extension cowl top. Refer to

EXT-19, "Exploded View"

.

3.

Drain brake fluid. Refer to

BR-10, "Draining"

.

4.

Disconnect ABS actuator and electric unit (control unit) harness connector.

5.

Loosen brake tube flare nuts, and then remove brake tubes from ABS actuator and electric unit (control
unit). Refer to

BR-20, "FRONT : Exploded View"

.

CAUTION:

Never scratch the flare nut and the brake tube.

6.

Remove ABS actuator and electric unit (control unit) and bracket from vehicle.

CAUTION:

• Never apply excessive impact to ABS actuator and electric unit (control unit), such as dropping

it.

• Never remove actuator by holding harness.

7.

Remove bracket and bush from ABS actuator and electric unit (control unit).

1.

ABS actuator and electric unit (control
unit)

2.

Harness connector

3.

Bushing

4.

Bracket

A.

To front LH brake caliper

B.

To rear RH wheel cylinder

C.

To Rear LH wheel cylinder

D.

To front RH brake caliper

E.

To master cylinder secondary side

F.

To master cylinder primary side

: Vehicle front

Refer to

GI-4, "Components"

 for symbols in the figure.

JPFIC0061GB
