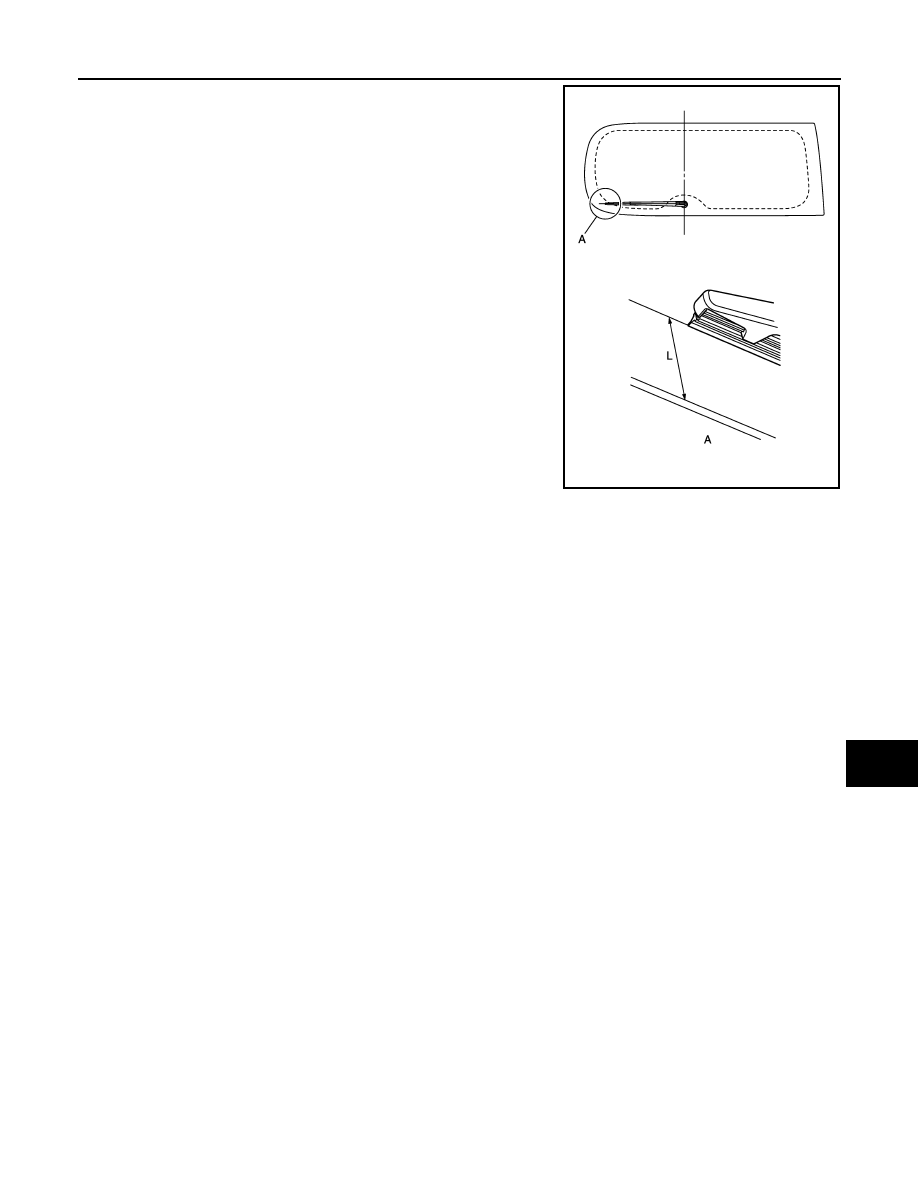

REAR WIPER ARM

WW-153

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

Standard clearance

L

: 54.5

±

7.5 mm (2.146

±

 0.295 in)

JPLIA1821ZZ

WW-154

< REMOVAL AND INSTALLATION >

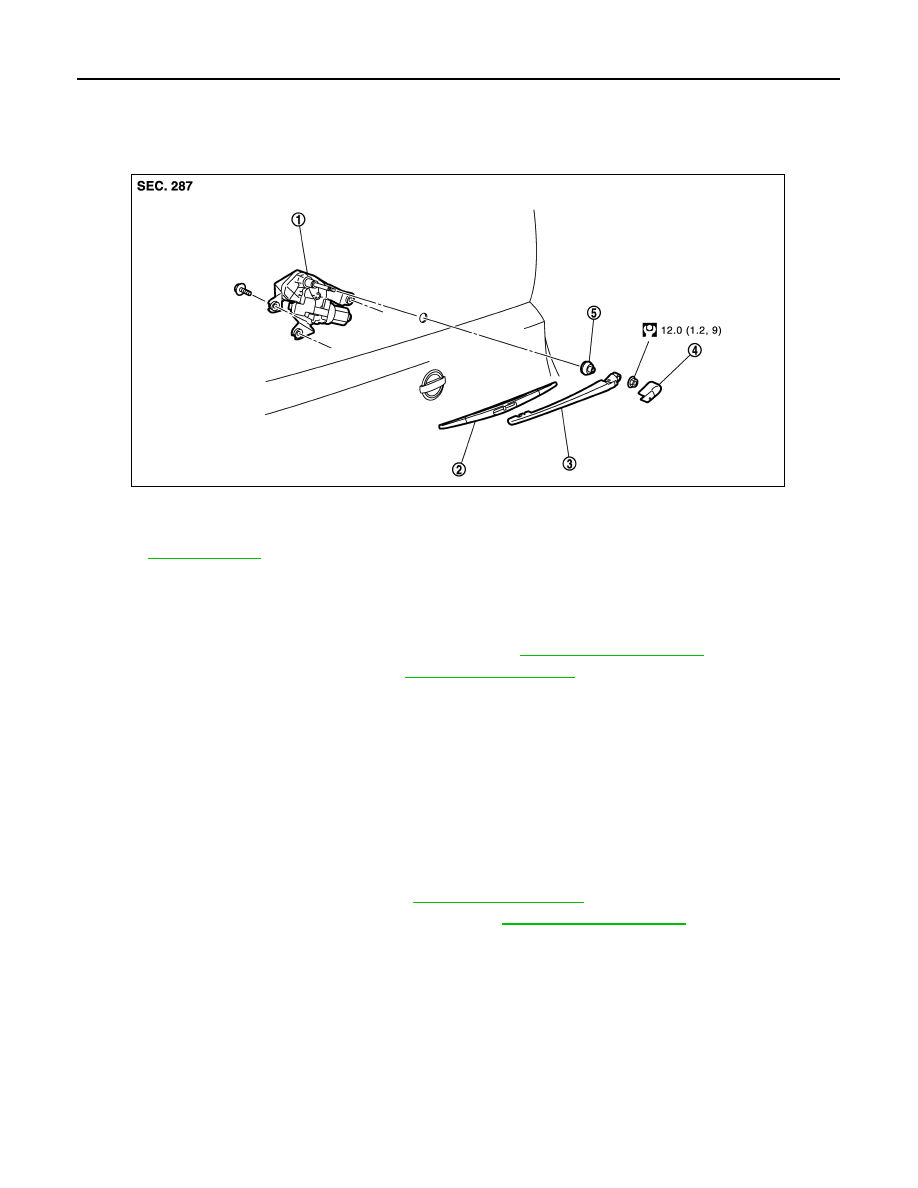

REAR WIPER MOTOR

REAR WIPER MOTOR

Exploded View

INFOID:0000000009945890

Removal and Installation

INFOID:0000000009945891

REMOVAL

1.

Remove rear wiper arm cover and rear wiper arm. Refer to

WW-152, "Exploded View"

.

2.

Remove back door finisher lower. Refer to

INT-27, "Exploded View"

.

3.

Disconnect the rear wiper motor connector.

4.

Remove rear wiper motor mounting bolts.

5.

Remove rear wiper motor from the vehicle.

6.

Remove pivot seal.

INSTALLATION

1.

Install the pivot seal.

2.

Install the rear wiper motor to the vehicle.

3.

Connect the rear wiper motor connector.

4.

Operate the rear wiper to the auto stop position.

5.

Install the back door finisher lower. Refer to

INT-27, "Exploded View"

.

6.

Install rear wiper arm cover and rear wiper arm. Refer to

WW-152, "Exploded View"

.

1.

Rear wiper motor

2.

Rear wiper blade

3.

Rear wiper arm

4.

Rear wiper arm cover

5.

Pivot seal

Refer to

GI-4, "Components"

 for symbols in the figure.

JPLIA1820GB

REAR WASHER NOZZLE AND TUBE

WW-155

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

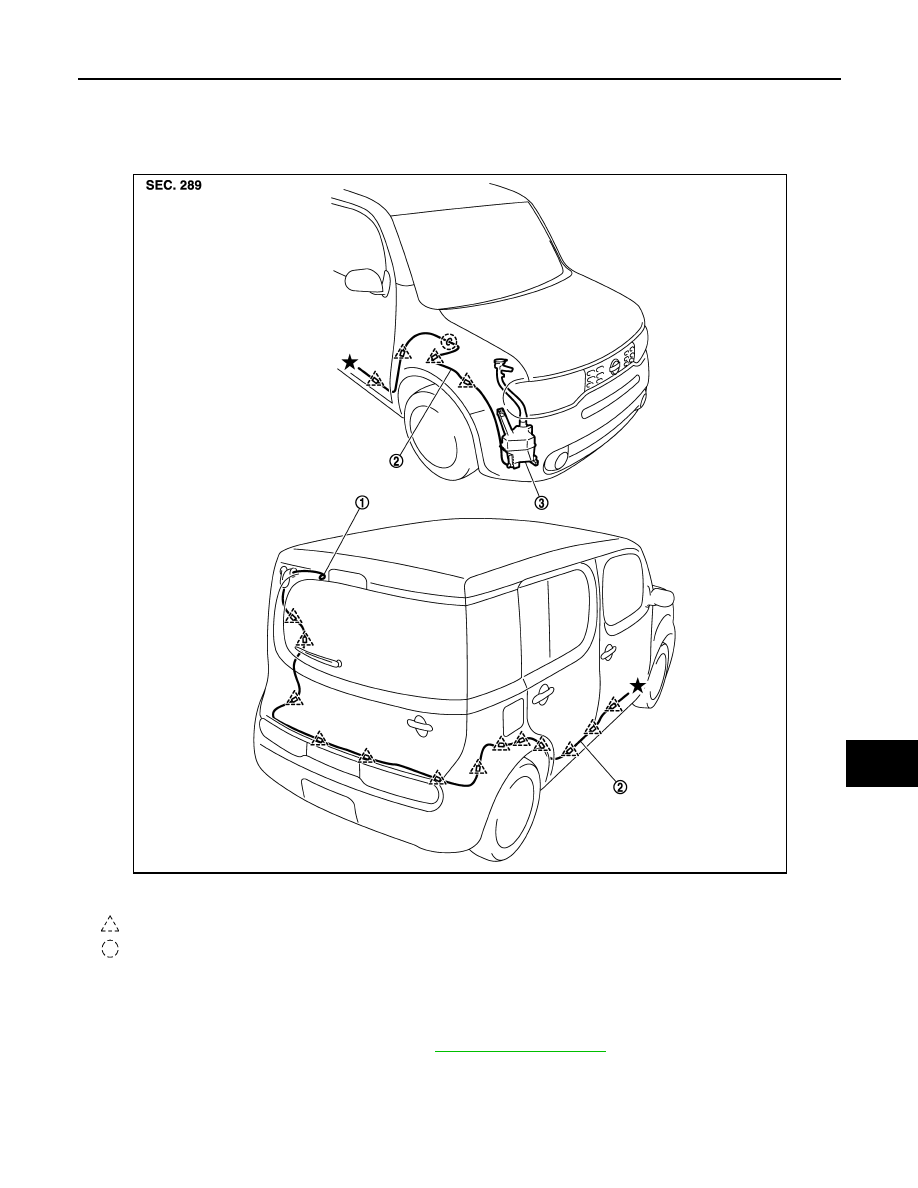

REAR WASHER NOZZLE AND TUBE

Hydraulic Layout

INFOID:0000000009945892

Removal and Installation

INFOID:0000000009945893

REMOVAL

1.

Remove the back door finisher upper. Refer to

INT-27, "Exploded View"

.

1.

Rear washer nozzle

2.

Rear washer tube

3.

Washer tank

: Clip

: Grommet

JPLIA1767ZZ

WW-156

< REMOVAL AND INSTALLATION >

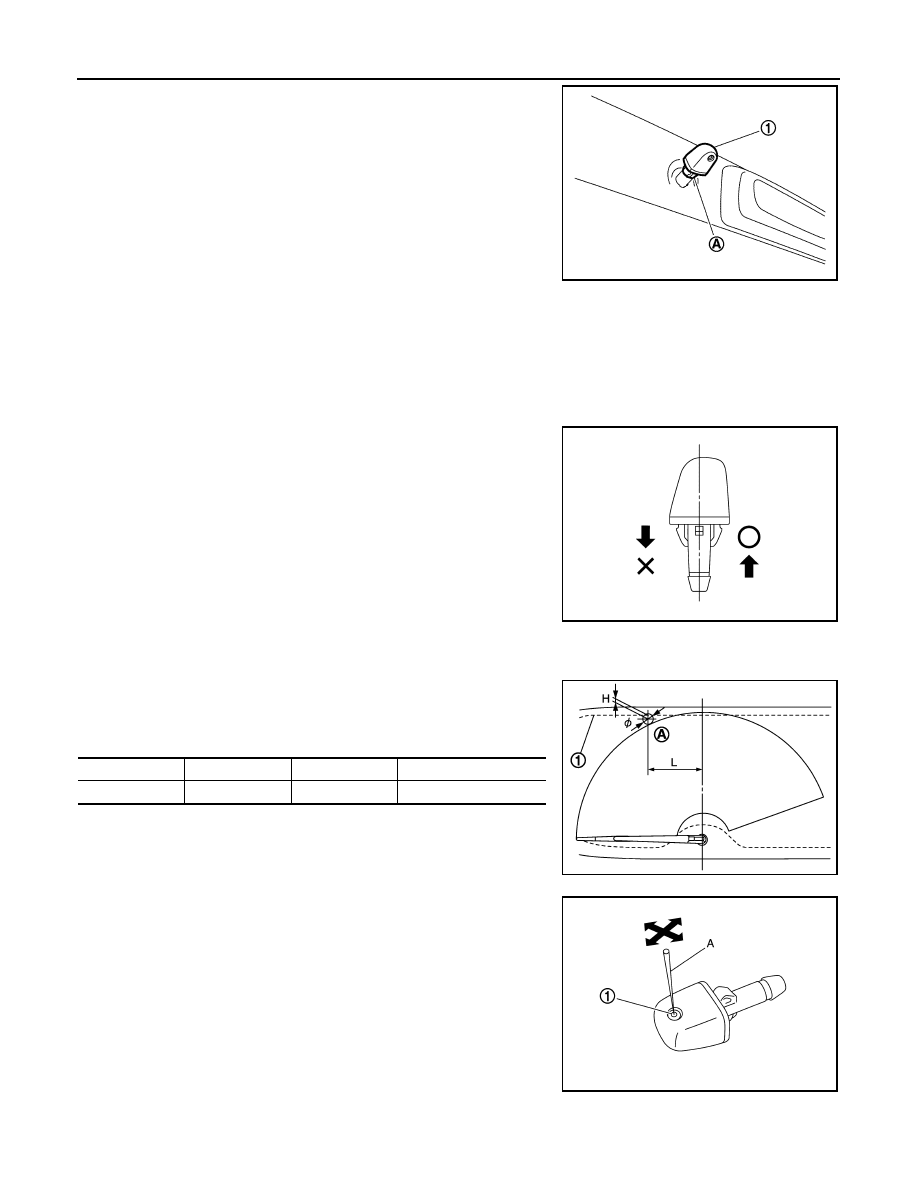

REAR WASHER NOZZLE AND TUBE

2.

Remove the rear washer tube from the rear washer nozzle (1).

3.

Push pawl (A), and remove the rear washer nozzle from the
back door.

INSTALLATION

Install in the reverse order of removal.

Inspection and Adjustment

INFOID:0000000009945894

INSPECTION

Washer Nozzle Inspection

Check that air can pass through the hose by blowing forward (toward
the nozzle), and check that air cannot pass through by sucking.

ADJUSTMENT

Washer Nozzle Spray Position adjustment

Adjust spray positions to match the positions shown in the figure.

Unit: mm (in)

Insert a needle or similar object (A) into the spray opening (1) and
move up/down and left/right to adjust the spray position.
NOTE:
If wax or dust gets into the nozzle, remove wax or dust with a needle
or small pin.

JPLIA1740ZZ

JPLIA1659ZZ

1

: Black printed frame line

Spray position

H : Height

L : Length

φ

: Spray position area

A

1 (0.04)

164.8 (6.49)

30 (1.18)

JPLIA1822ZZ

JPLIA1661ZZ
