REMOVAL AND INSTALLATION

WASHER TANK

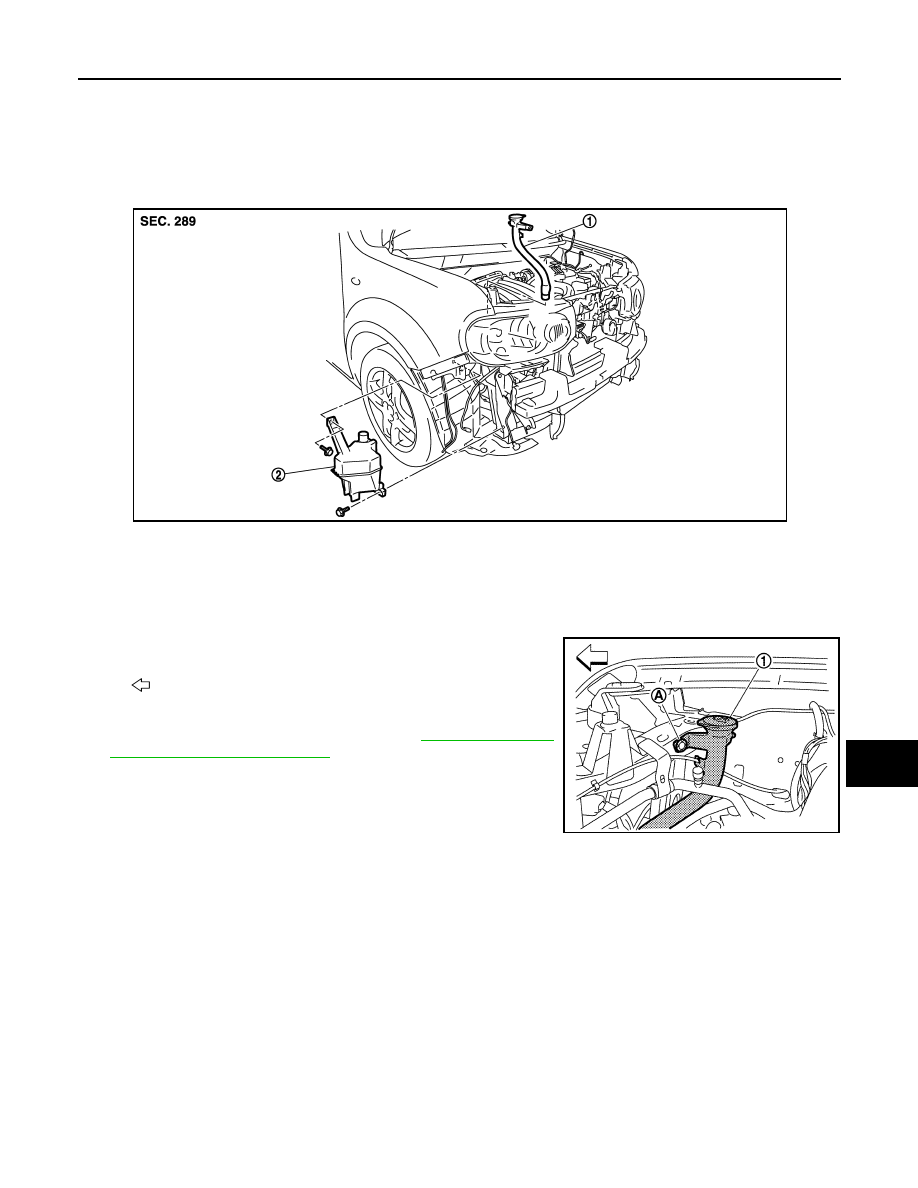

Exploded View

INFOID:0000000009945871

Removal and Installation

INFOID:0000000009945872

REMOVAL

1.

Remove the clip (A).

2.

Pull out the washer tank inlet (1) from the washer tank.

3.

Remove the fender protector RH. Refer to

EXT-21, "FENDER

PROTECTOR : Exploded View"

.

4.

Disconnect washer pump connector.

5.

Disconnect washer level switch connector.

6.

Remove front washer tube and rear washer tube.

7.

Remove washer tank mounting bolts.

8.

Remove the washer tank from the vehicle.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Add water up to the top of the washer tank inlet after installing. Check that there is no leakage.

1.

Washer tank inlet

2.

Washer tank

JPLIA1819ZZ

: Vehicle front

JPLIA1733ZZ

WW-142

< REMOVAL AND INSTALLATION >

WASHER PUMP

WASHER PUMP

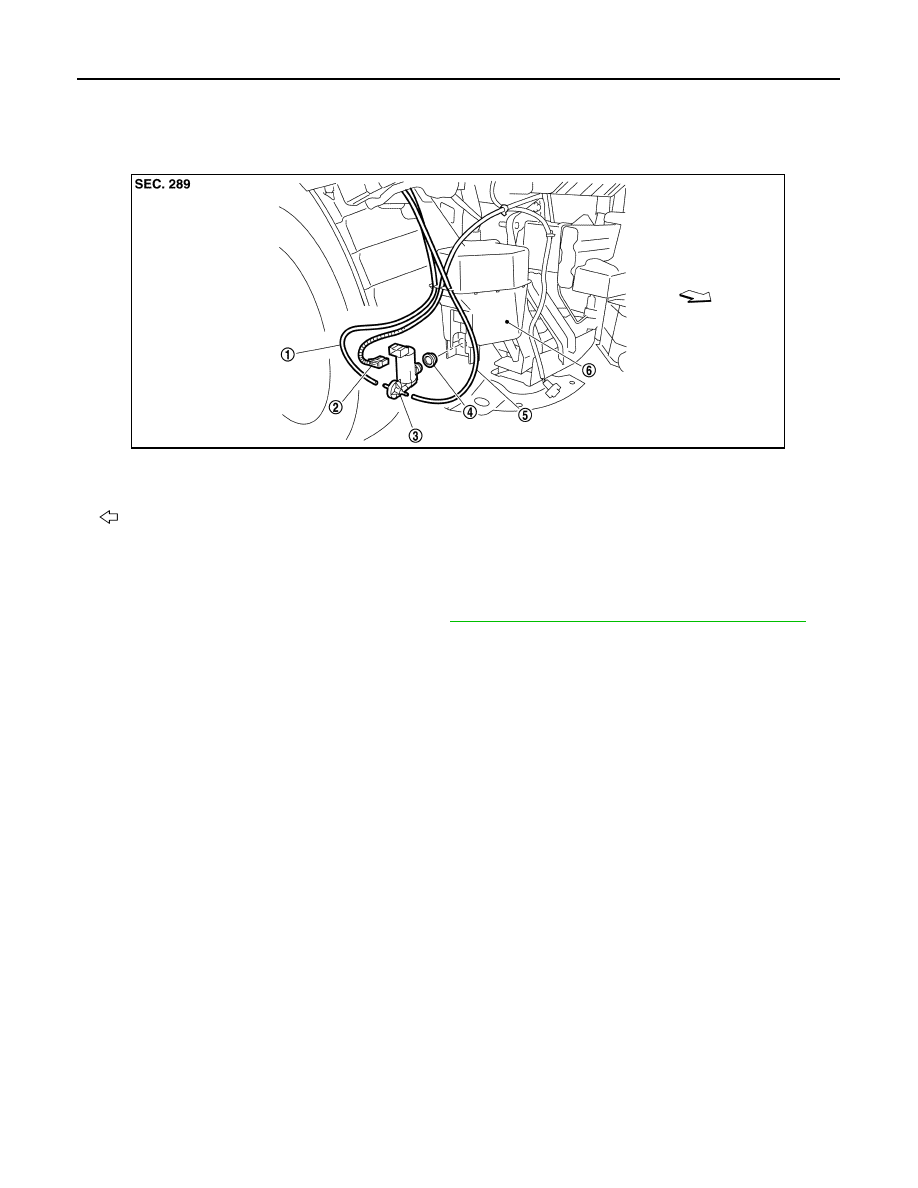

Exploded View

INFOID:0000000009945873

Removal and Installation

INFOID:0000000009945874

REMOVAL

1.

Remove the fender protector RH (front). Refer to

EXT-21, "FENDER PROTECTOR : Exploded View"

.

2.

Disconnect washer pump connector.

3.

Disconnect washer level switch connector. (For Canada models)

4.

Remove front washer tube and rear washer tube.

5.

Remove washer pump from the washer tank.

6.

Remove the packing from the washer tank.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Never twist the packing when installing the washer pump.

1.

Rear washer tube

2.

Washer pump connector

3.

Washer pump

4.

Packing

5.

Front washer tube

6.

Washer tank

: Vehicle front

JPLIA1734ZZ

WASHER LEVEL SWITCH

WW-143

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

WASHER LEVEL SWITCH

Removal and Installation

INFOID:0000000009945875

The washer level switch must be replaced together with the washer tank as an assembly. Refer to

WW-141,

"Removal and Installation"

.

WW-144

< REMOVAL AND INSTALLATION >

FRONT WASHER NOZZLE AND TUBE

FRONT WASHER NOZZLE AND TUBE

Exploded View

INFOID:0000000009945876

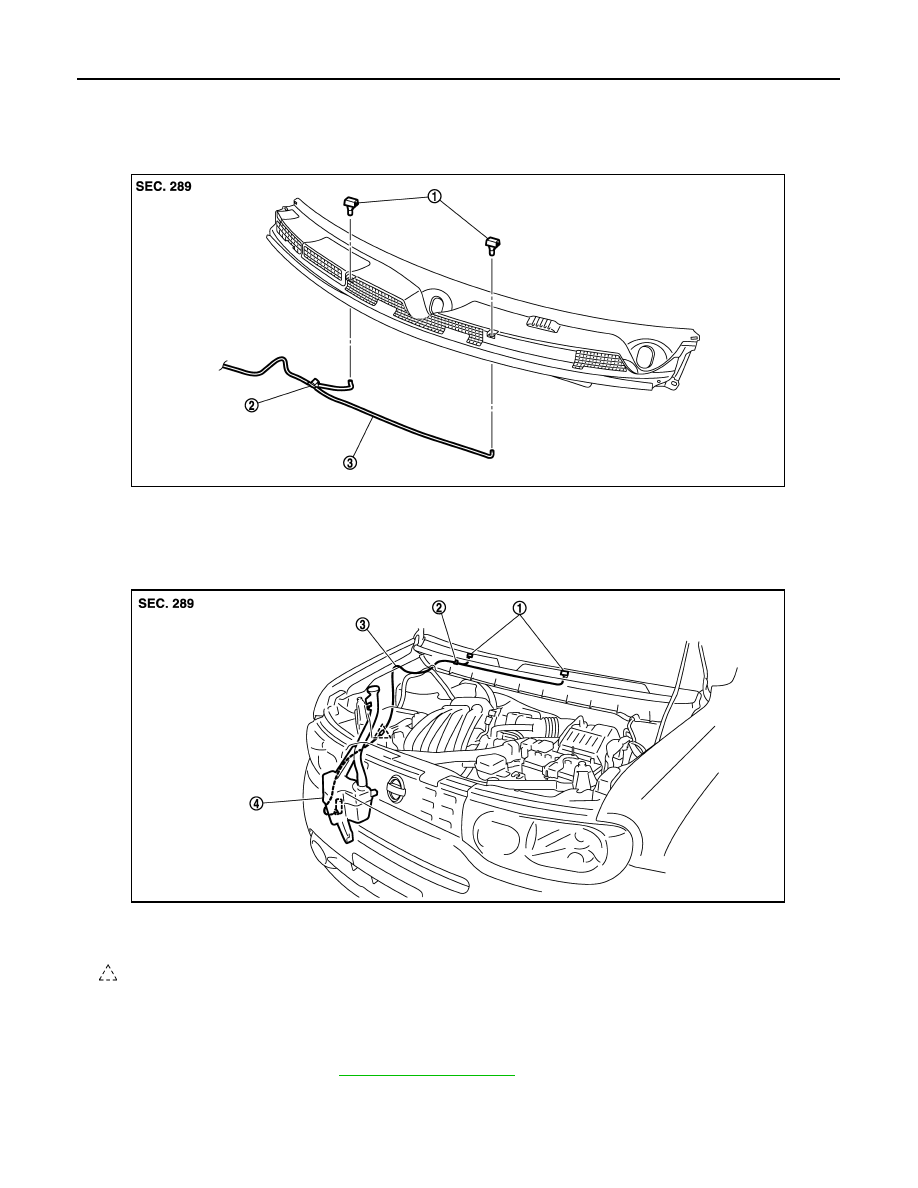

Hydraulic Layout

INFOID:0000000009945877

Removal and Installation

INFOID:0000000009945878

REMOVAL

1.

Remove cowl top cover. Refer to

EXT-19, "Exploded View"

.

1.

Front washer nozzle

2.

Check valve

3.

Front washer tube

JPLIA1760ZZ

1.

Front washer nozzle

2.

Check valve

3.

Front washer tube

4.

Washer tank

: Clip

JPLIA1761ZZ
