IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

WW-125

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

34

(R)

Ground

Horn relay control

Output

The horn is deactivated

Battery voltage

The horn is activated

0 V

36

(O)

Ground

Parking lamp (LH)

Output

Ignition
switch
ON

Lighting switch OFF

0 V

Lighting switch 1ST

Battery voltage

37

(V)

Ground

Parking lamp (RH)

Output

Ignition
switch
ON

Lighting switch OFF

0 V

Lighting switch 1ST

Battery voltage

38

(G)

Ground

Tail lamp (RH) & illumi-
nations

Output

Ignition
switch
ON

Lighting switch OFF

0 V

Lighting switch 1ST

Battery voltage

39

(V)

Ground

Front wiper HI

Output

Ignition
switch
ON

Front wiper switch OFF

0 V

Front wiper switch HI

Battery voltage

40

(R)

Ground

ECM relay control

Output

Ignition switch OFF
(More than a few seconds after turn-
ing ignition switch OFF)

Battery voltage

• Ignition switch ON
• Ignition switch OFF

(For a few seconds after turning ig-
nition switch OFF)

0 - 1.5 V

41

(SB)

Ground

Tail lamp (LH) & license
plate lamps

Output

Ignition
switch
ON

Lighting switch OFF

0 V

Lighting switch 1ST

Battery voltage

43

(G)

Ground

ECM relay power sup-
ply

Output

Ignition switch OFF
(More than a few seconds after turn-
ing ignition switch OFF)

0 V

• Ignition switch ON
• Ignition switch OFF

(For a few seconds after turning ig-
nition switch OFF)

Battery voltage

44

(P)

Ground

ECM relay power sup-
ply

Output

Ignition switch OFF
(More than a few seconds after turn-
ing ignition switch OFF)

0 V

• Ignition switch ON
• Ignition switch OFF

(For a few seconds after turning ig-
nition switch OFF)

Battery voltage

45

(Y)

Ground

TCM power supply

Output

Ignition switch OFF

Battery voltage

46

(O)

Ground

Front wiper LO

Output

Ignition
switch
ON

Front wiper switch OFF

0 V

Front wiper switch LO

Battery voltage

47

(BR)

Ground

Transmission range

switch

*1

Input

Select lever in any position other than
P or N (Ignition switch ON)

0 V

Select lever P or N (Ignition switch
ON)

Battery voltage

Clutch interlock

switch

*2

Input

Release the clutch pedal

0 V

Depress the clutch pedal

Battery voltage

49

(W)

Ground

Headlamp HI (RH)

Output

Ignition
switch
ON

Lighting switch OFF

0 V

• Lighting switch HI
• Lighting switch PASS

Battery voltage

Terminal NO.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

–

WW-126

< ECU DIAGNOSIS INFORMATION >

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

*2: CVT models
*3: M/T models

50

(GR)

Ground

Headlamp HI (LH)

Output

Ignition
switch
ON

Lighting switch OFF

0 V

• Lighting switch HI
• Lighting switch PASS

Battery voltage

51

(R)

Ground

Headlamp LO (LH)

Output

Ignition
switch
ON

Lighting switch OFF

0 V

Lighting switch 2ND

Battery voltage

52

(P)

Ground

Headlamp LO (RH)

Output

Ignition
switch
ON

Lighting switch OFF

0 V

Lighting switch 2ND

Battery voltage

54

(GR)

Ground

Throttle control motor
relay power supply

Output

Ignition switch OFF
(More than a few seconds after turn-
ing ignition switch OFF)

0 V

• Ignition switch ON
• Ignition switch OFF

(For a few seconds after turning ig-
nition switch OFF)

Battery voltage

55

(P)

Ground

Fuel pump power sup-
ply

Output

Approximately 1 second or more than
after turning the ignition switch ON

0 V

• Approximately 1 second after turn-

ing the ignition switch ON

• Engine running

Battery voltage

56

(SB)

Ground

A/C relay power supply

Output

Engine
running

A/C switch OFF

0 V

A/C switch ON
(A/C compressor is oper-
ating)

Battery voltage

57

(G)

Ground

Throttle control motor
relay control

Output

Ignition switch ON

→

 OFF

0 - 1.0 V

↓

Battery voltage

↓

0 V

Ignition switch ON

0 - 1.0 V

58

(R)

Ground

Ignition relay power
supply

Output

Ignition switch OFF

0 V

Ignition switch ON

Battery voltage

59

(Y)

Ground

Ignition relay power
supply

Output

Ignition switch OFF

0 V

Ignition switch ON

Battery voltage

60

(V)

Ground

Ignition relay power
supply

Output

Ignition switch OFF

0 V

Ignition switch ON

Battery voltage

61

(W)

Ground

Ignition relay power
supply

Output

Ignition switch OFF

0 V

Ignition switch ON

Battery voltage

62

(L)

Ground

Ignition relay power
supply

Output

Ignition switch OFF

0 V

Ignition switch ON

Battery voltage

Terminal NO.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

–

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

WW-127

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

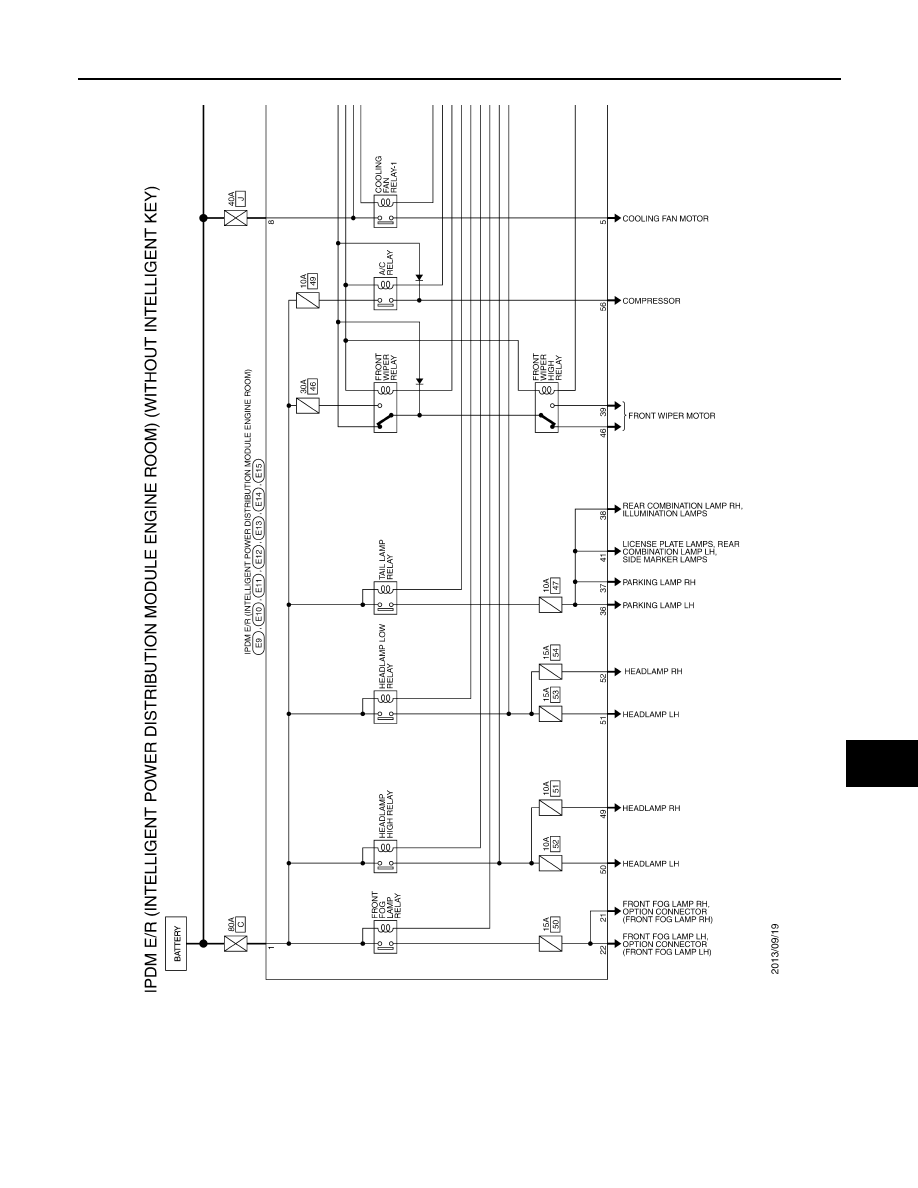

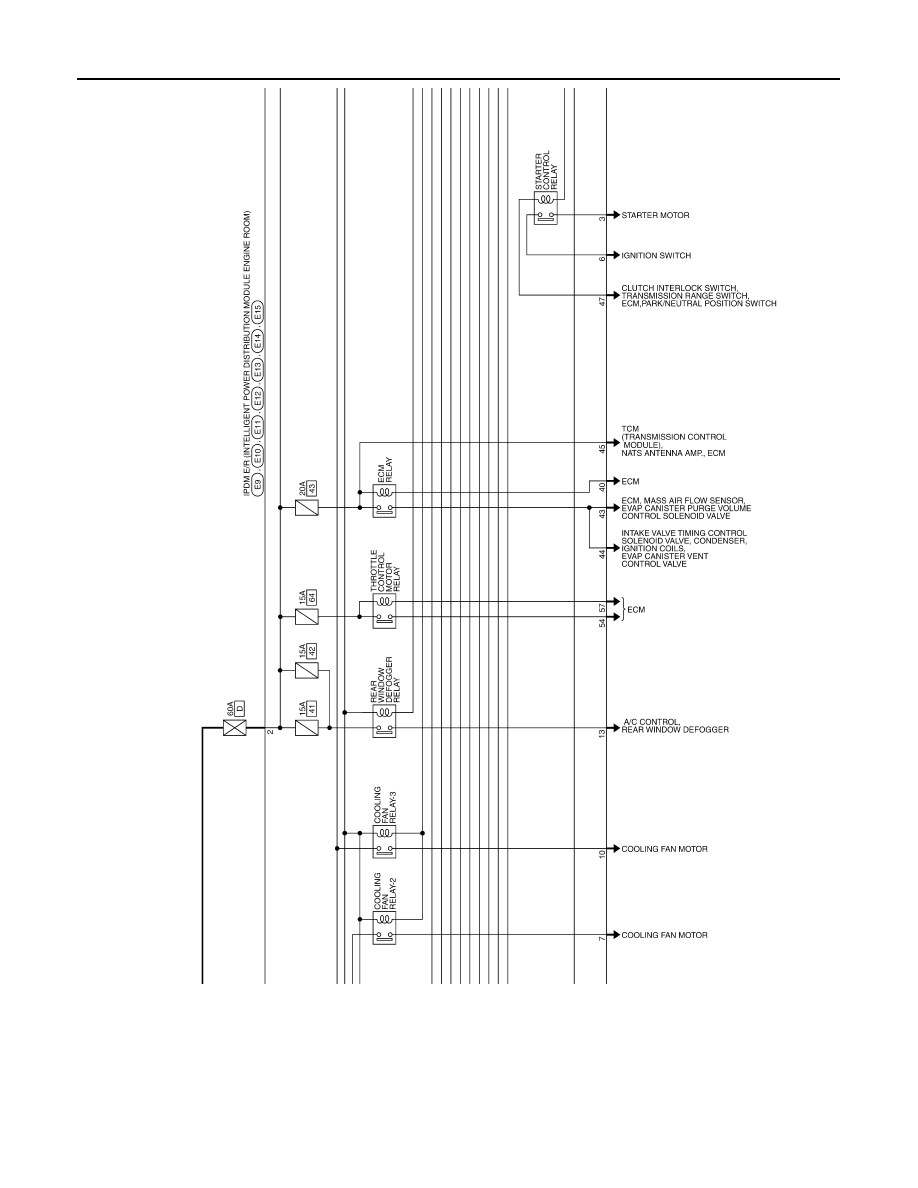

WITHOUT INTELLIGENT KEY : Wiring Diagram — IPDM E/R —

INFOID:0000000010262859

JRMWE7723GB

WW-128

< ECU DIAGNOSIS INFORMATION >

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

JRMWE7724GB
